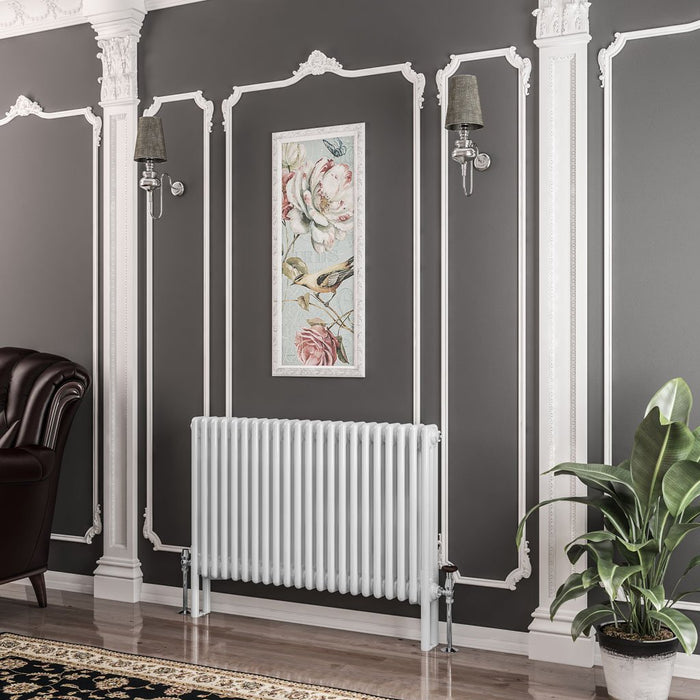

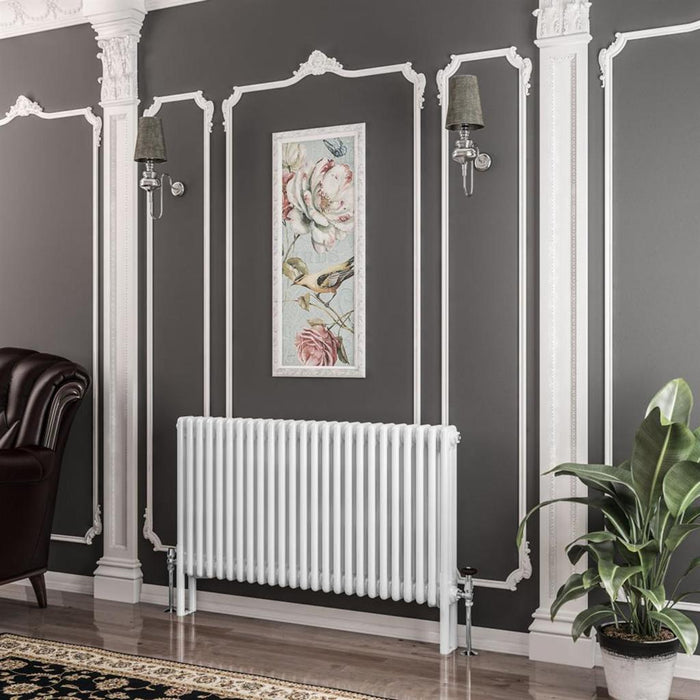

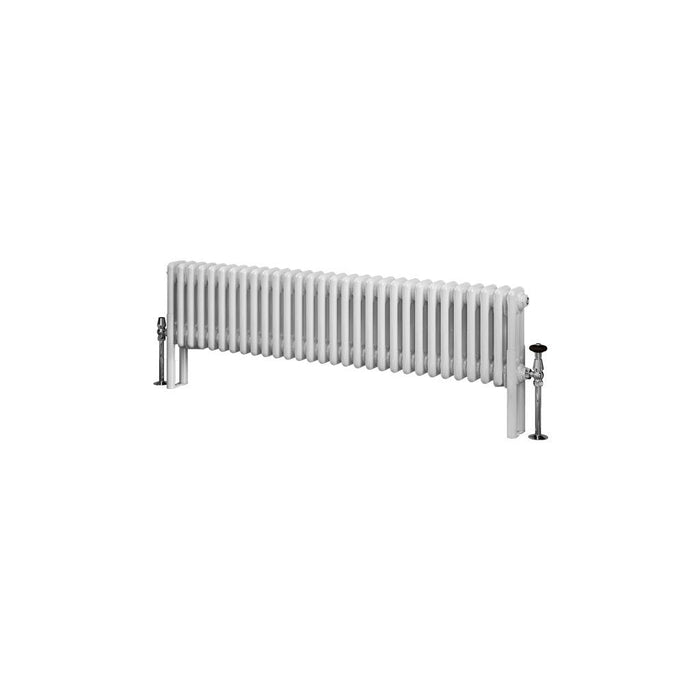

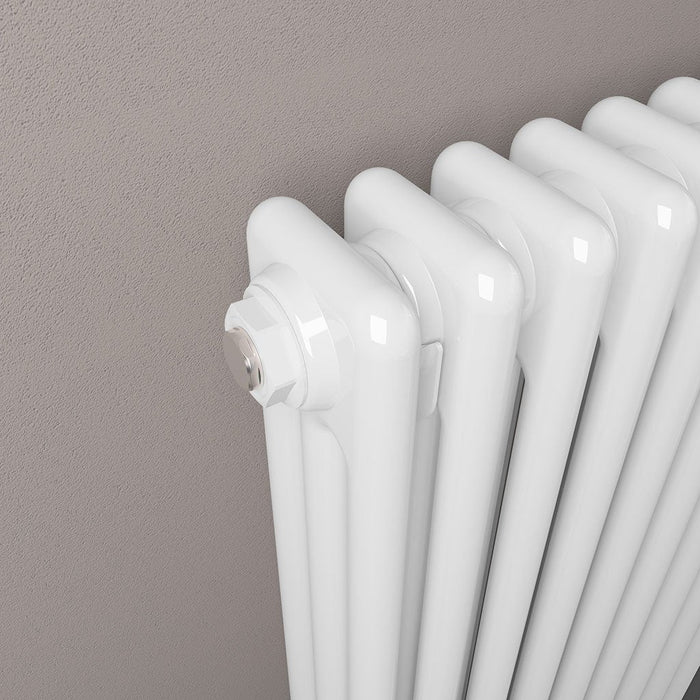

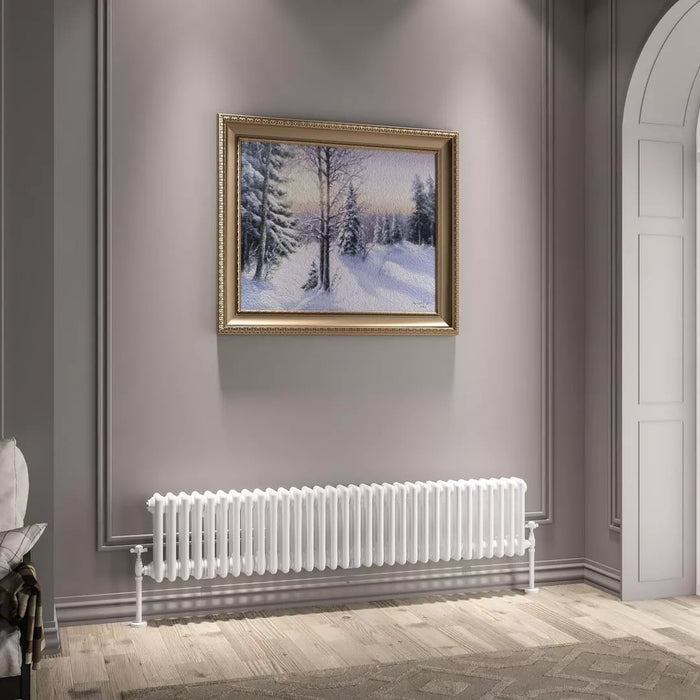

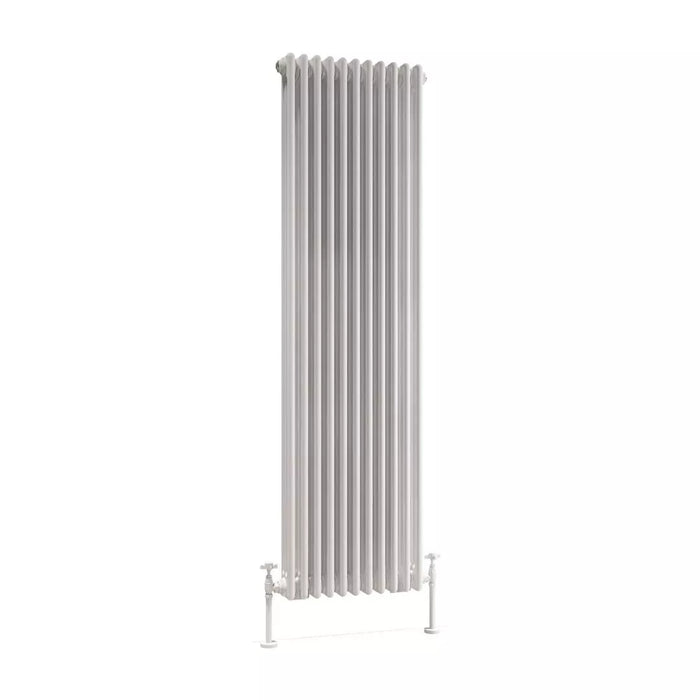

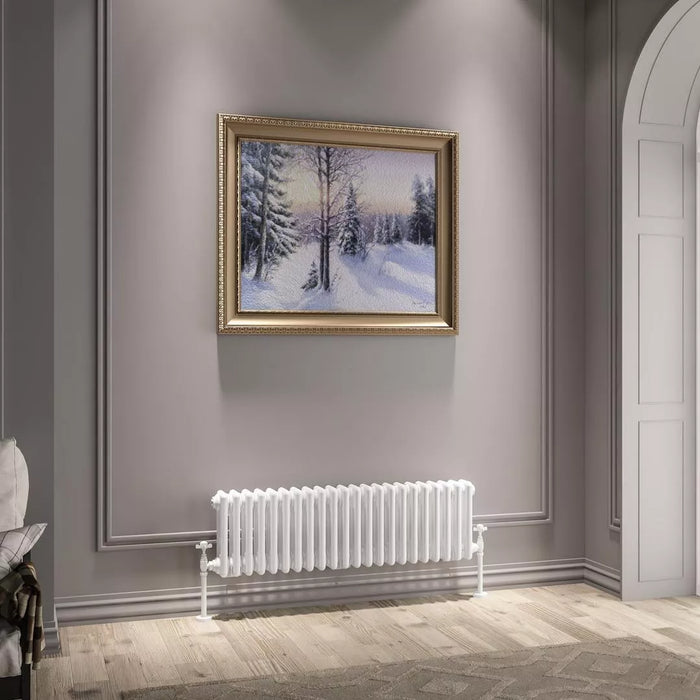

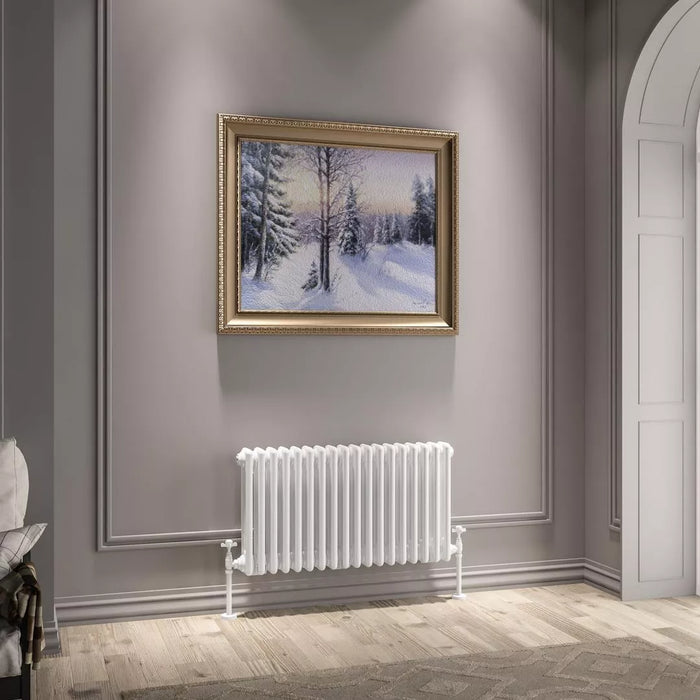

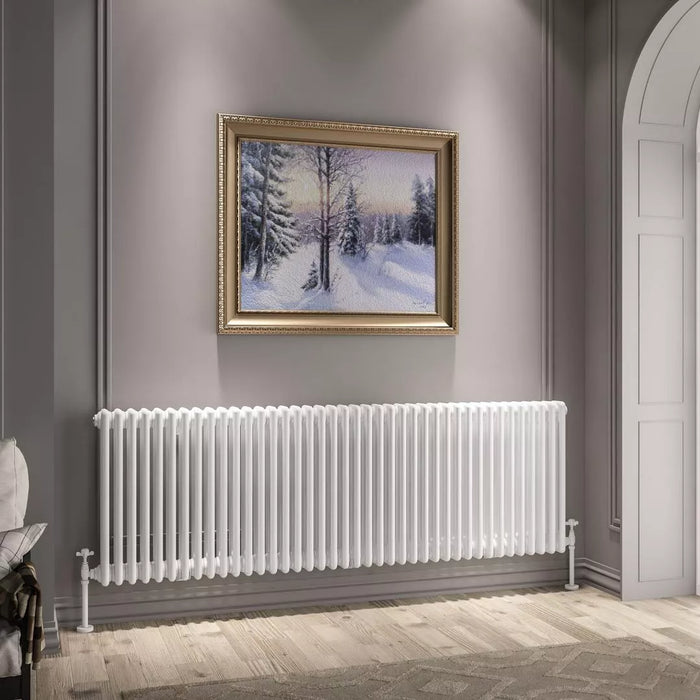

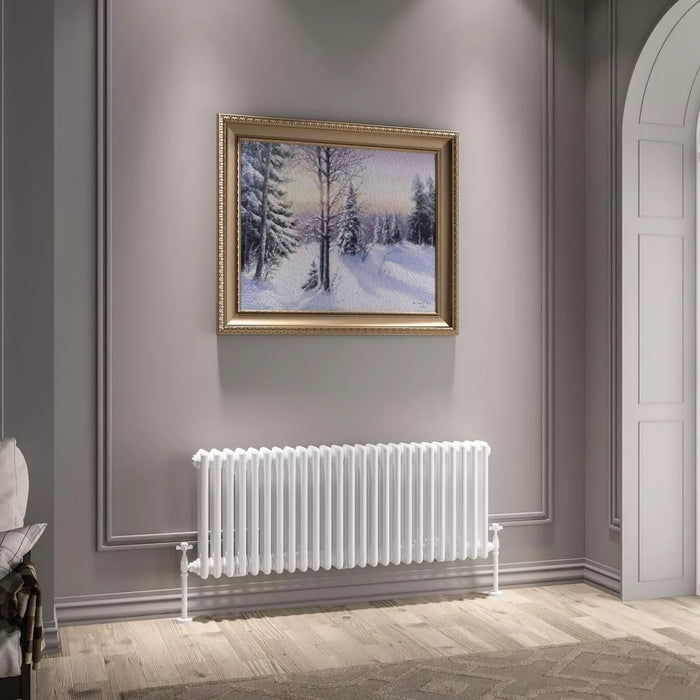

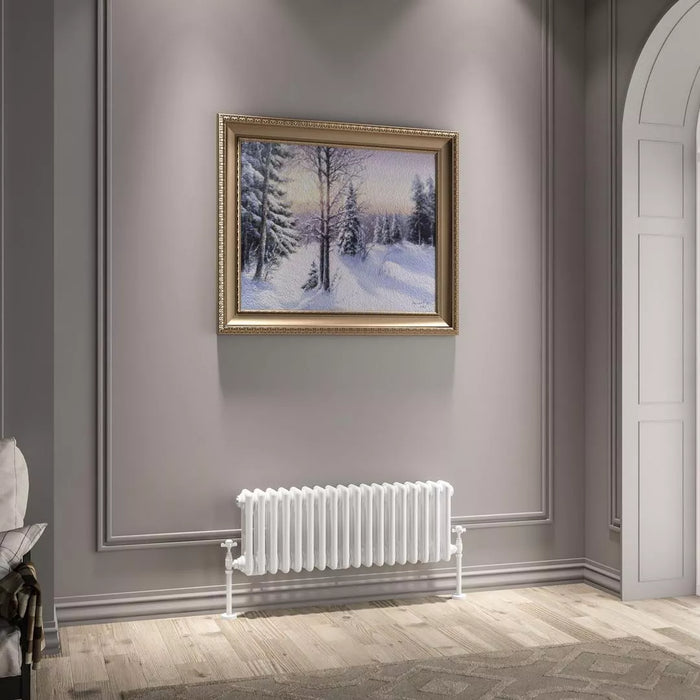

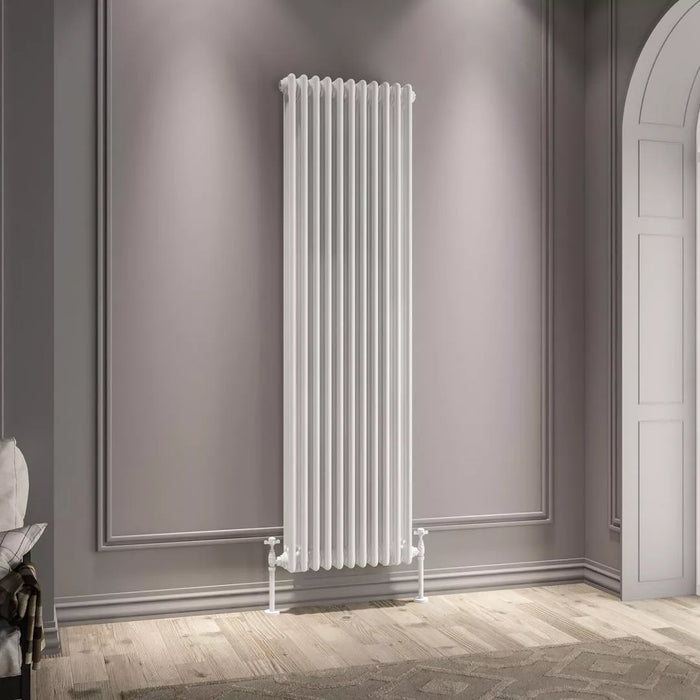

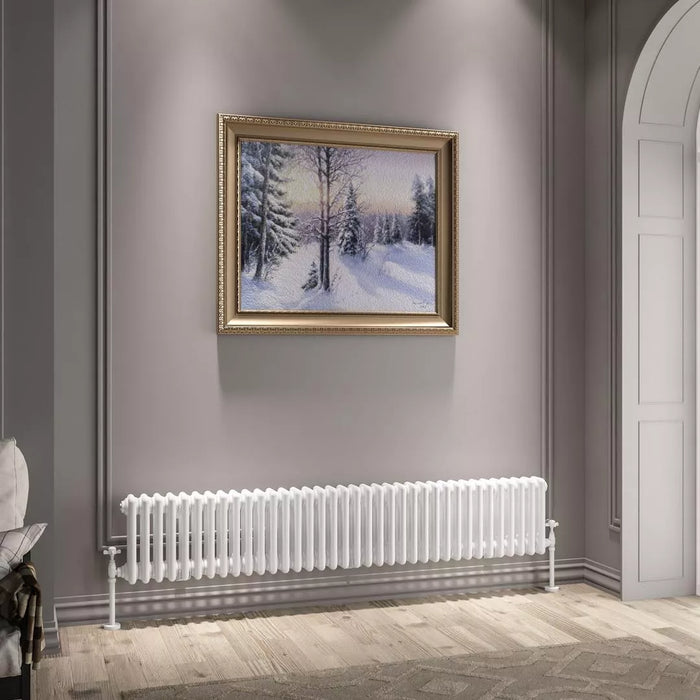

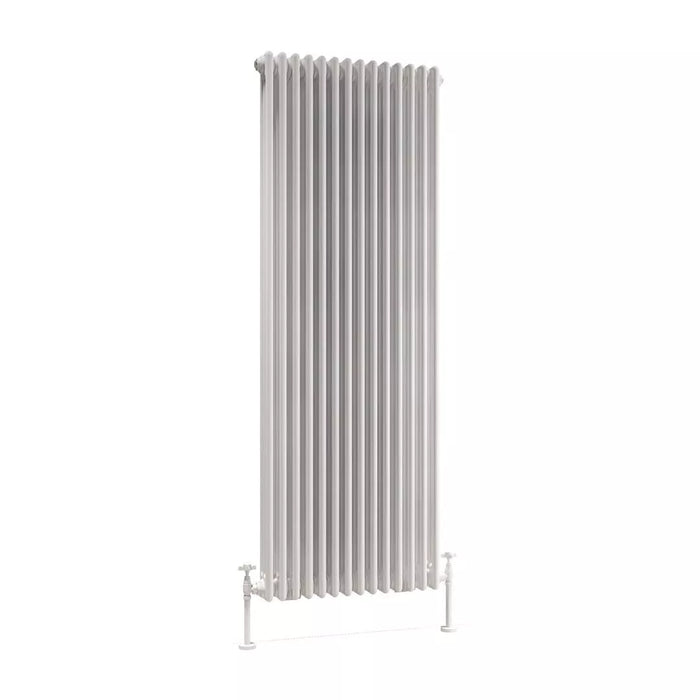

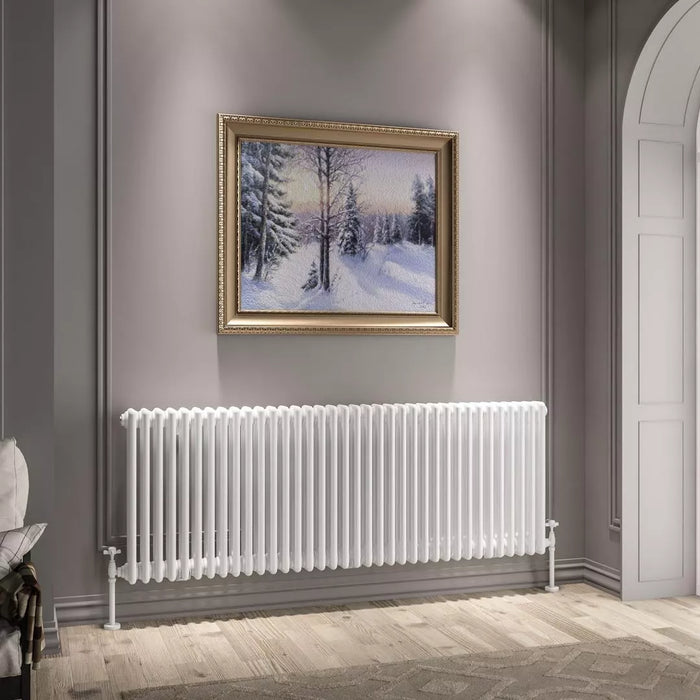

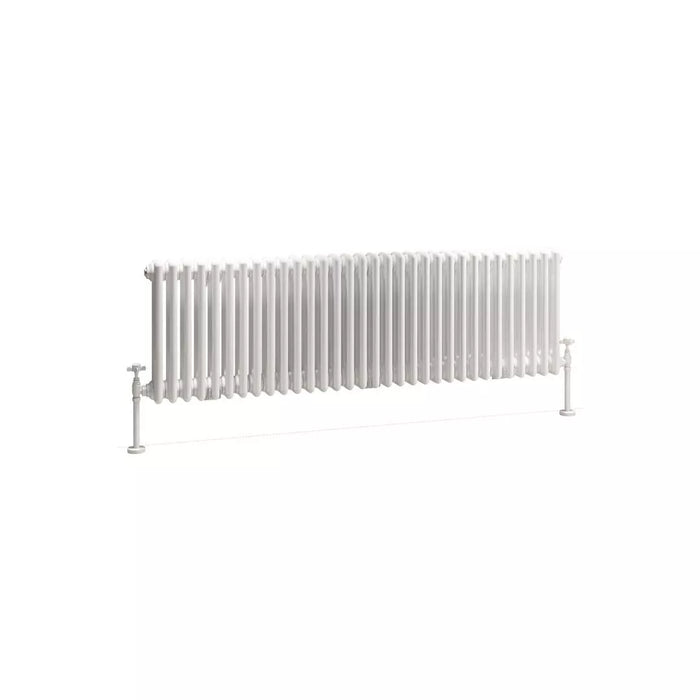

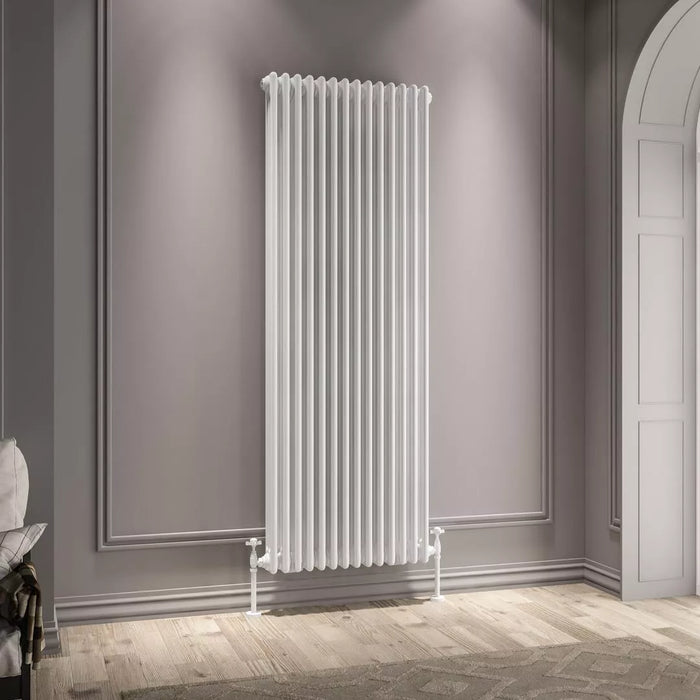

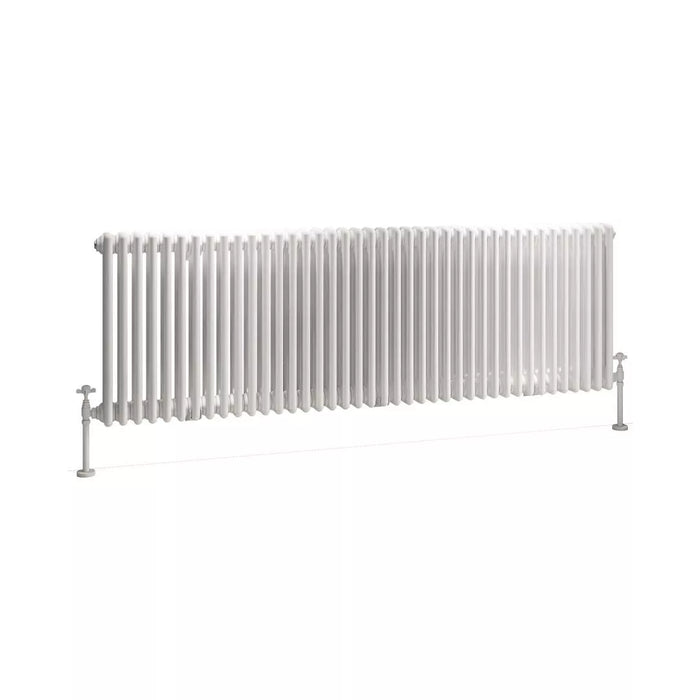

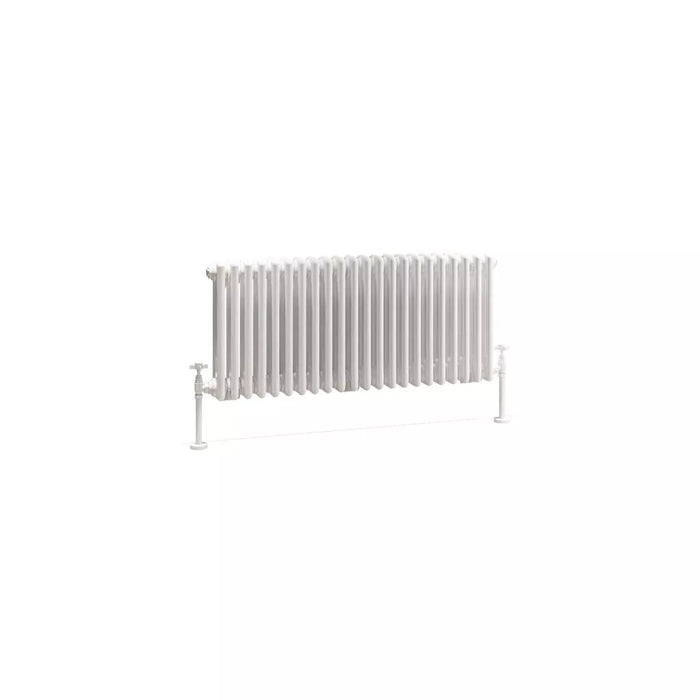

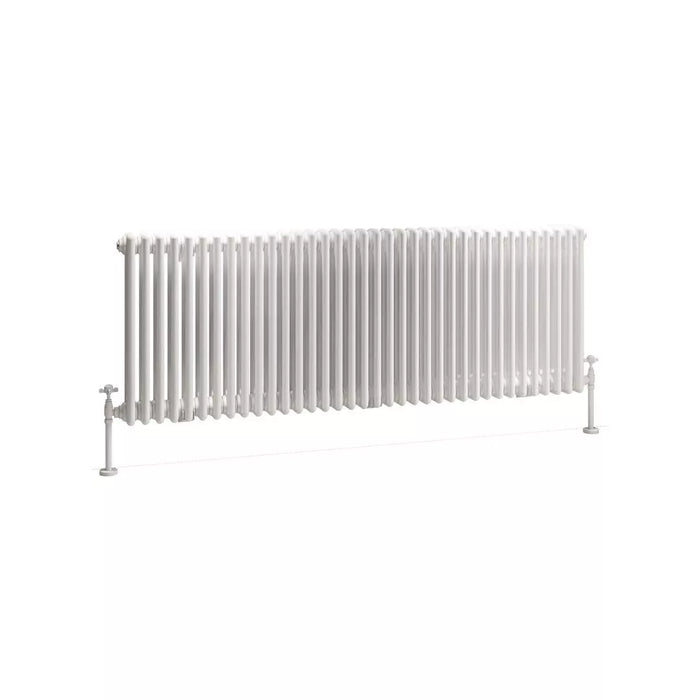

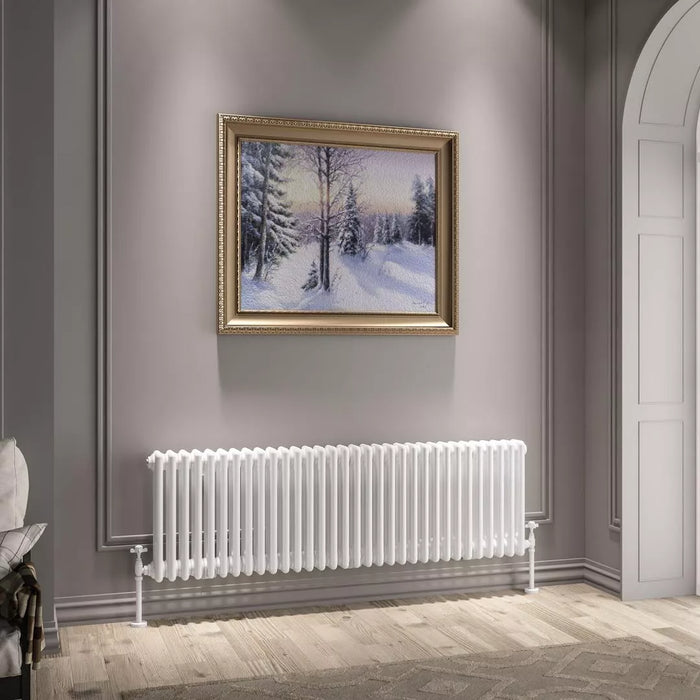

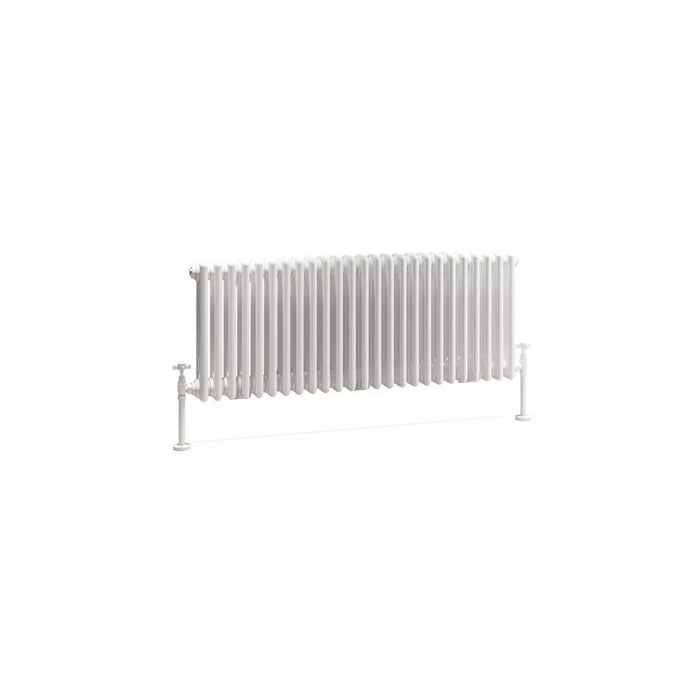

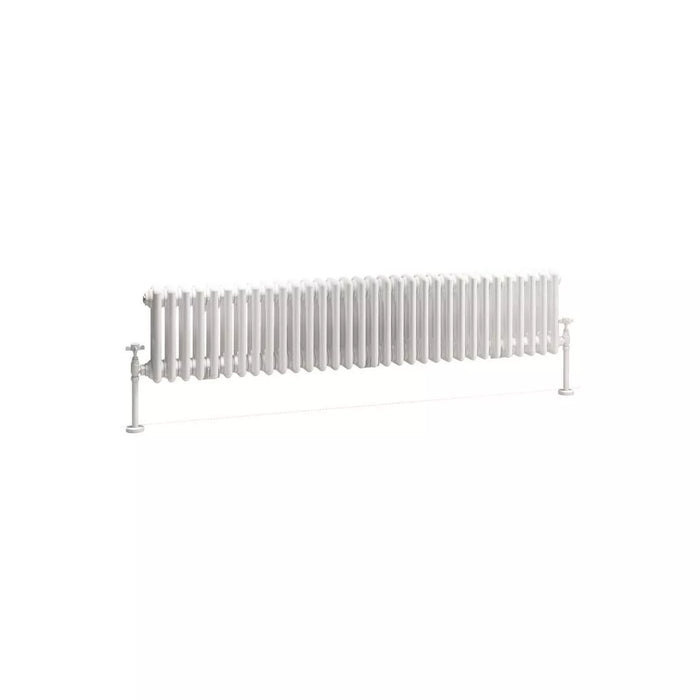

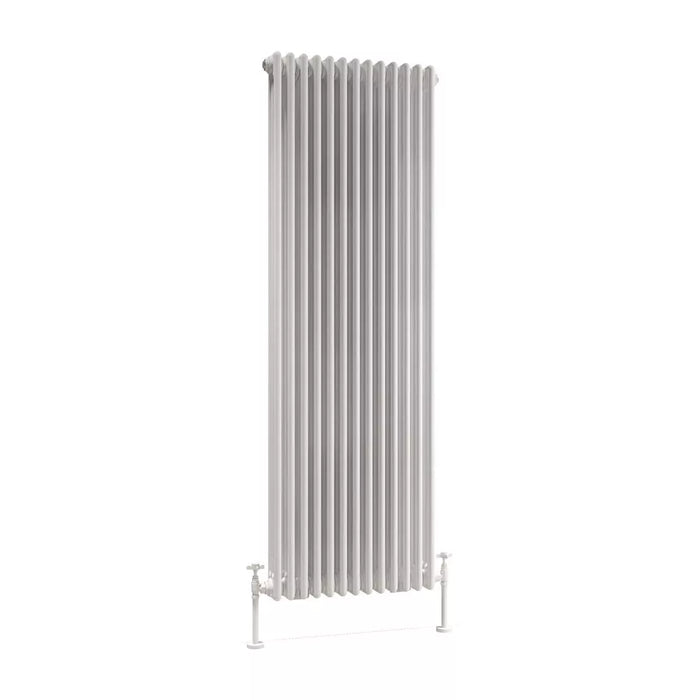

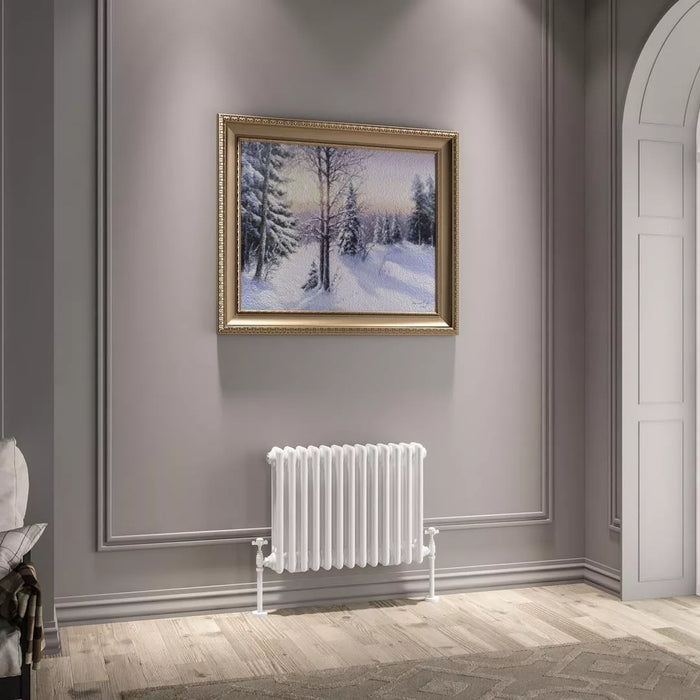

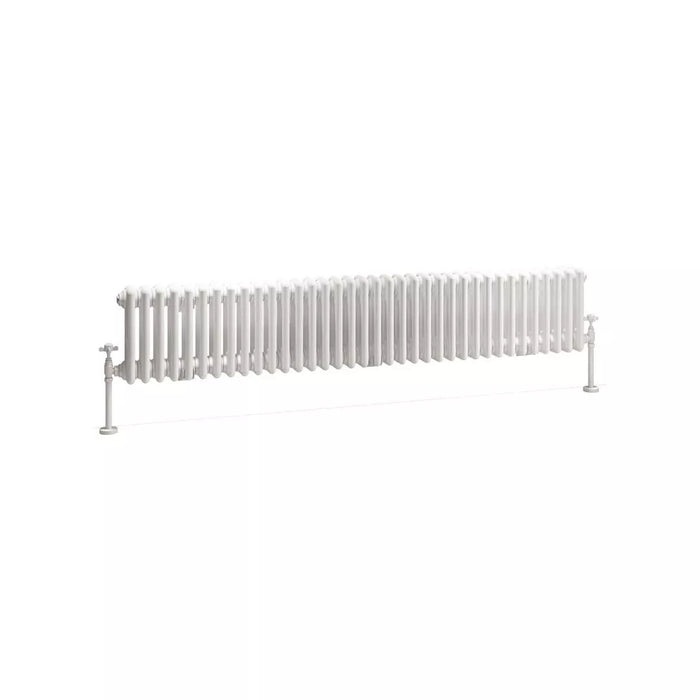

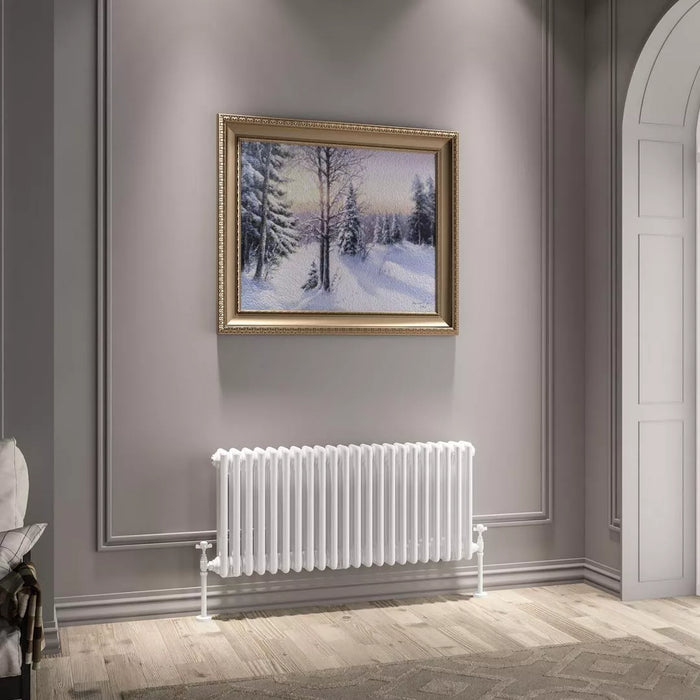

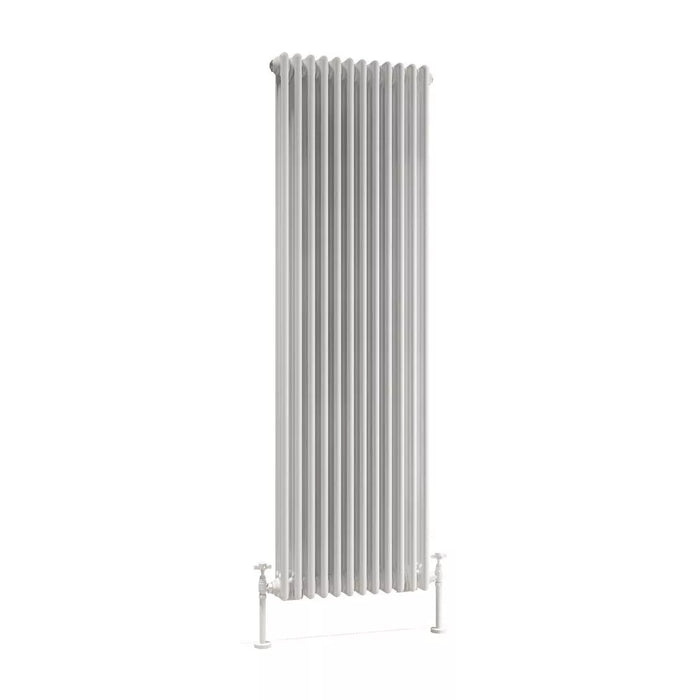

Eastbrook Imperia 3 Column Radiator Gloss White
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook Imperia 3 Column Radiator in Gloss White combines timeless traditional styling with dependable and versatile heating performance. Manufactured from durable mild steel, this column radiator features a substantial three-column design that brings classic character to both traditional and contemporary interiors. The crisp gloss white finish creates a clean, bright appearance, while matching colour wall fixing sets provide a coordinated and professional installation. Tested to BS EN442 standards, the Imperia radiator does not require a flow diverter and can be configured for single or dual-fuel operation or used as an all-electric radiator, subject to the relevant conditions. Heat output is based on Delta T30°C and T50°C, while electric-only configurations are restricted to the output of the selected heating element. Compatible Type C, E, or H elements can be increased to the full capacity of the rail. Radiator valves, feet, and heating elements are not included. The tappings span the width of the rail and sit approximately 60mm from the wall.
Available in an extensive range of widths and heights, the Imperia 3 Column Radiator provides heat outputs from 270 Watts up to 1,200 Watts at T30°C and up to 2,320 Watts at T50°C, depending on the selected size. Selected models support element outputs ranging from 450W to 1200W, offering flexibility for different heating requirements. Designed for indirect heating systems, corrosion inhibitor must be added to and maintained within the heating system.
Product Specifications:
- Warranty: 5 Years
- Product Type: Column Radiator
- Brand: Eastbrook
- Collection: Imperia
- Finish: Gloss White
- Style: Traditional
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves, feet's and Heating Element are not included
- Tested to BS EN442 standards.
- Matching colour wall fixing sets.
- Doesn't require flow diverter.
- Can be single or dual fuel, or all electric.
- Heat output based on Delta T30°C and T50°C.
- Radiators that are electric only are restricted to the heat output of the elements.
- Element size can be increased to full capacity of rail if using element type C, E or H.
- For indirect heating systems only.
- Corrosion inhibitor must be added to the heating system and maintained.
- Tapings are the width of the rail and approx. 60mm off the wall.
Technical Specifications
|
Size |
Watts T30°C |
BTU T30°C |
Watts T50°C |
BTU T50°C |
Element Output |
Element Type |
|
300mm x 830mm |
293 |
1000 |
562 |
1917 |
450W |
A, A+, C, E, H |
|
300mm x 1010mm |
358 |
1221 |
708 |
2415 |
600W |
A, A+, C, E, H |
|
300mm x 1145mm |
407 |
1388 |
830 |
2831 |
600W |
A, A+, C, E, H |
|
300mm x 1370mm |
488 |
1665 |
1026 |
3499 |
750W |
A, A+, C, E, H |
|
300mm x 1460mm |
520 |
1774 |
1126 |
3840 |
750W |
A, A+, C, E, H |
|
300mm x 1640mm |
585 |
1995 |
1303 |
4444 |
900W |
A, A+, C, E, H |
|
450mm x 605mm |
299 |
1020 |
585 |
1995 |
450W |
A, A+ |
|
450mm x 830mm |
414 |
1412 |
810 |
2763 |
600W |
A, A+, C, H |
|
450mm x 1010mm |
506 |
1726 |
990 |
3376 |
750W |
A, A+, C, H |
|
450mm x 1145mm |
575 |
1961 |
1125 |
3837 |
900W |
A, A+, C, H |
|
450mm x 1460mm |
736 |
2510 |
1440 |
4911 |
1200W |
A+, H |
|
600mm x 425mm |
270 |
921 |
522 |
1781 |
450W |
A, A+ |
|
600mm x 470mm |
300 |
1023 |
580 |
1978 |
450W |
A, A+, C, H |
|
600mm x 515mm |
330 |
1126 |
638 |
2176 |
450W |
A, A+, C, H |
|
600mm x 560mm |
360 |
1228 |
696 |
2374 |
600W |
A+, C, H |
|
600mm x 605mm |
390 |
1330 |
754 |
2572 |
600W |
A, A+, C, H |
|
600mm x 830mm |
540 |
1842 |
1044 |
3561 |
900W |
A+, C, H |
|

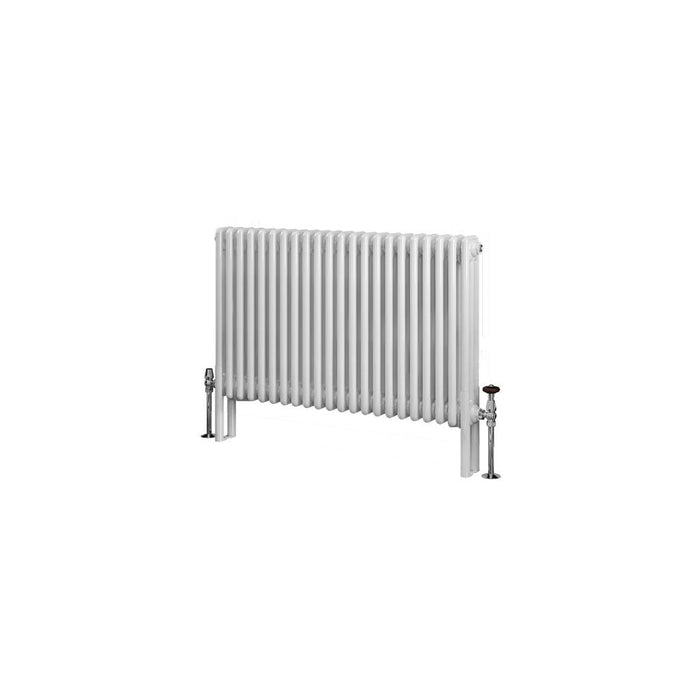

600mm x 1010mm |
660 |
2251 |
1276 |
4352 |
1000W |
A, A+, C, H |
|
600mm x 1145mm |
750 |
2558 |
1450 |
4945 |
1200W |
A, A+, H |
|

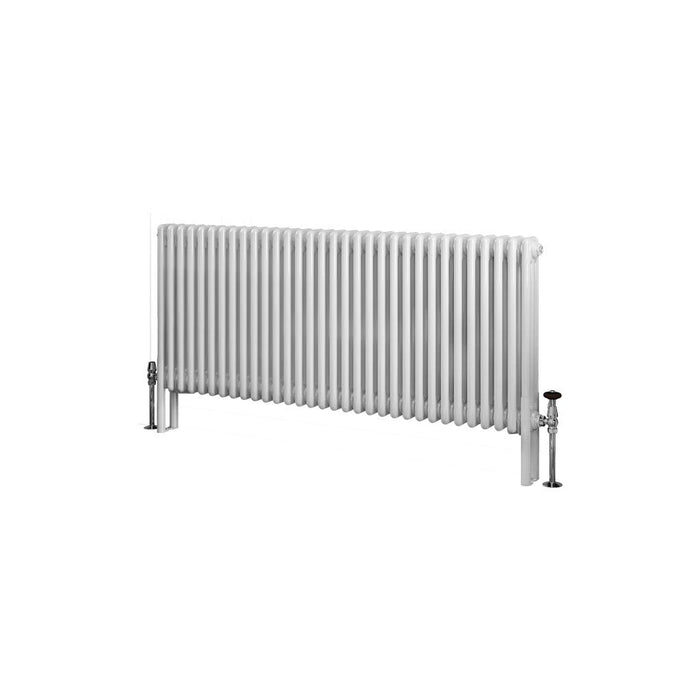

600mm x 1460mm |
960 |
3274 |
1856 |
6329 |
1200W |
A+, H |
|
600mm x 1640mm |
1080 |
3683 |
2088 |
7121 |
1200W | A+, H |
|
600mm x 1820mm |
1200 |
4092 |
2320 |
7912 |
1200W | A+, H |
|
1800mm x 290mm |
500 |
1705 |
994 |
3390 |
||
|
1800mm x 380mm |
667 |
2275 |
1326 |
4522 |
||
| 1800mm x 470mm | 834 | 2844 | 1657 | 5651 | ||
| 1800mm x 515mm | 917 | 3127 | 1823 | 6217 | ||
| 1800mm x 560mm | 1001 | 3414 | 1988 | 6780 | ||
| 1800mm x 605mm | 1084 | 3697 | 2154 | 7346 | ||
| 1800mm x 650mm | 1168 | 3983 | 2320 | 7912 |
Assembling instructions for 3 Column Radiator

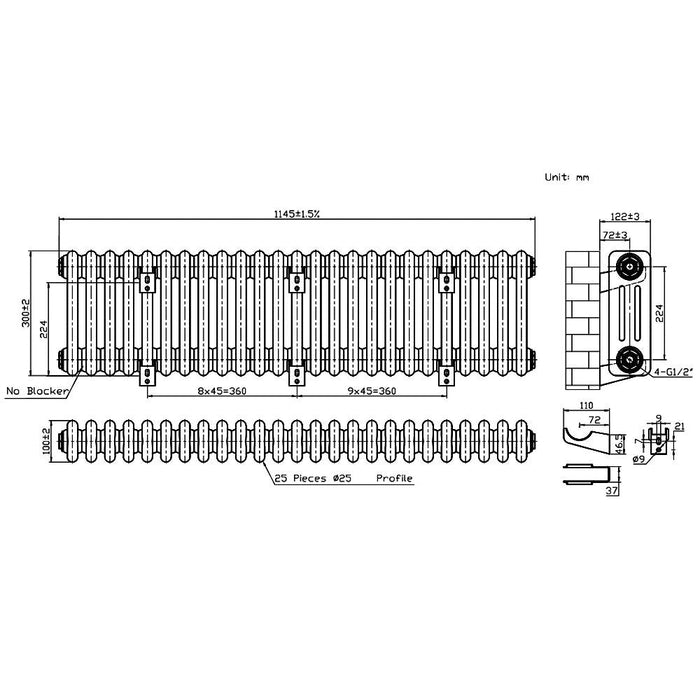

Datasheet for 300mm x 1145mm Column Radiator

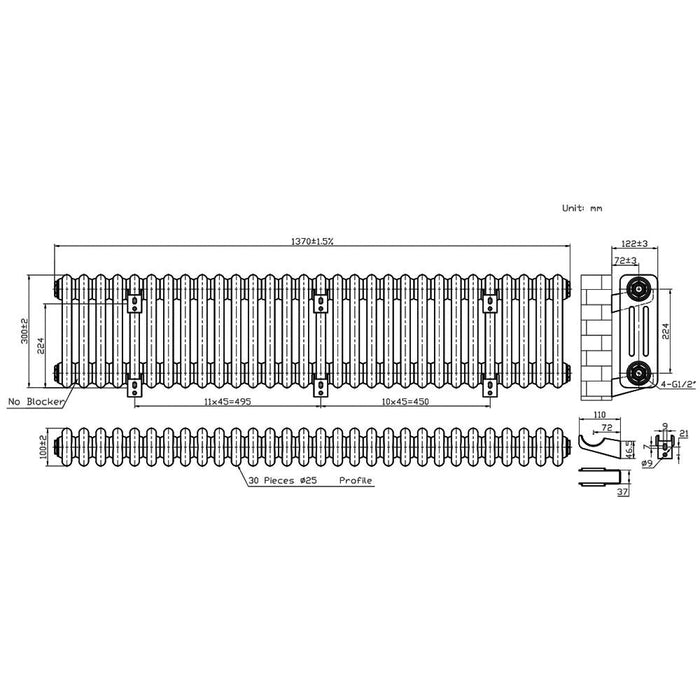

Datasheet for 300mm x 1370mm Column Radiator

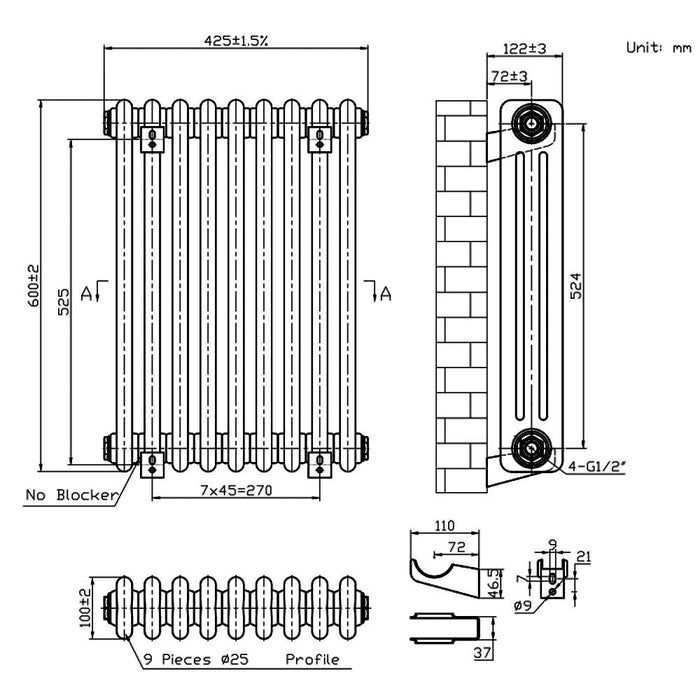

Datasheet for 600mm x 425mm Column Radiator

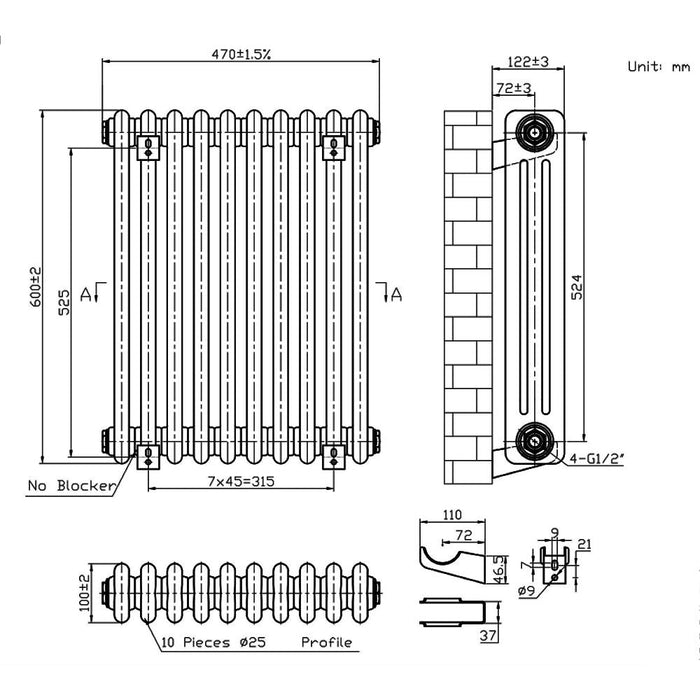

Datasheet for 600mm x 470mm Column Radiator

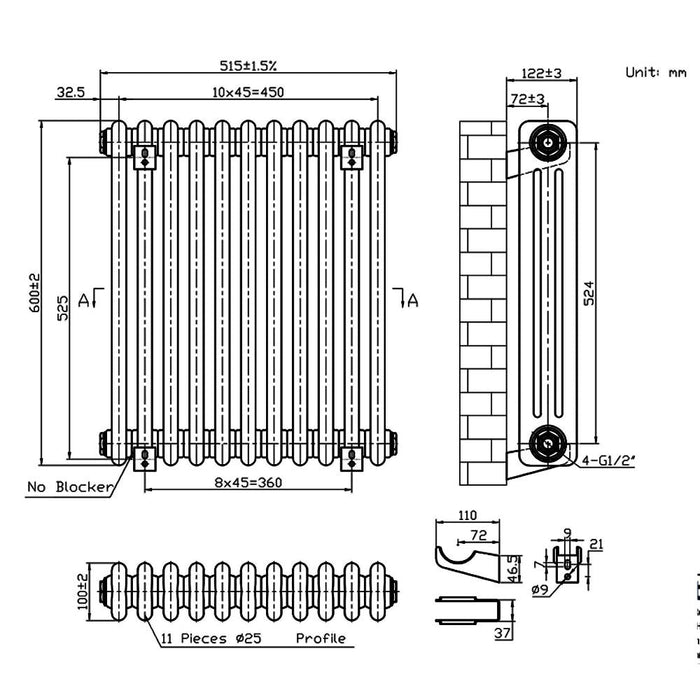

Datasheet for 600mm x 515mm Column Radiator

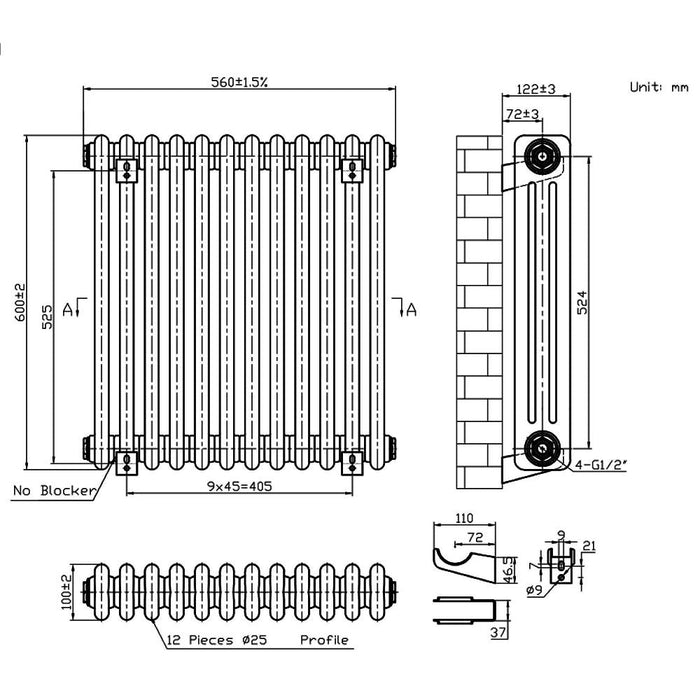

Datasheet for 600mm x 560mm Column Radiator

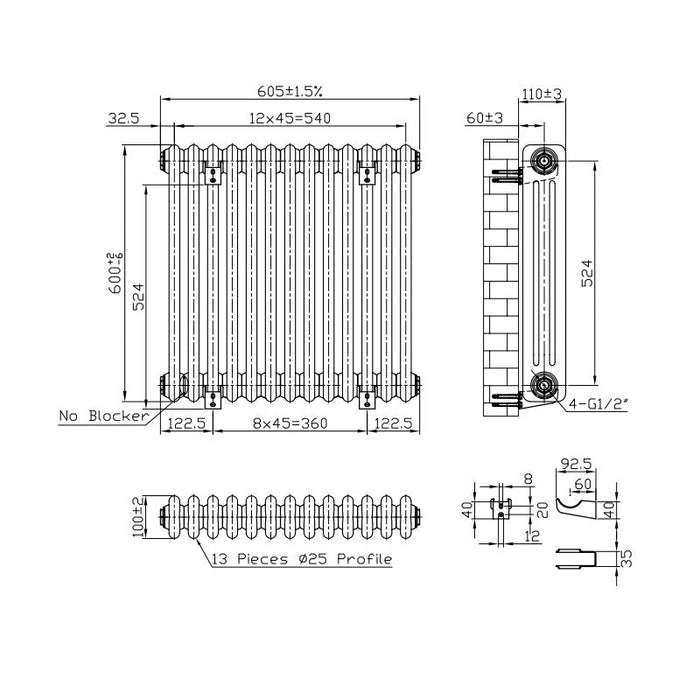

Datasheet for 600mm x 605mm Column Radiator

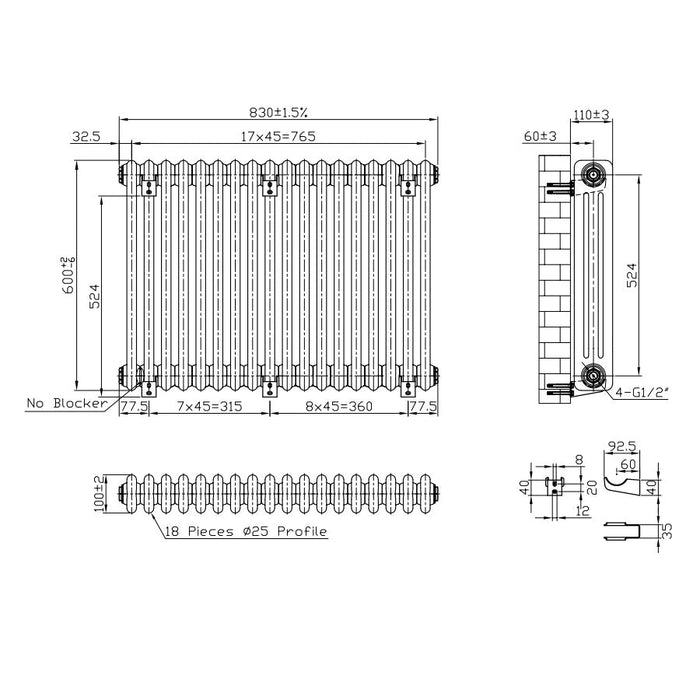

Datasheet for 600mm x 830mm Column Radiator

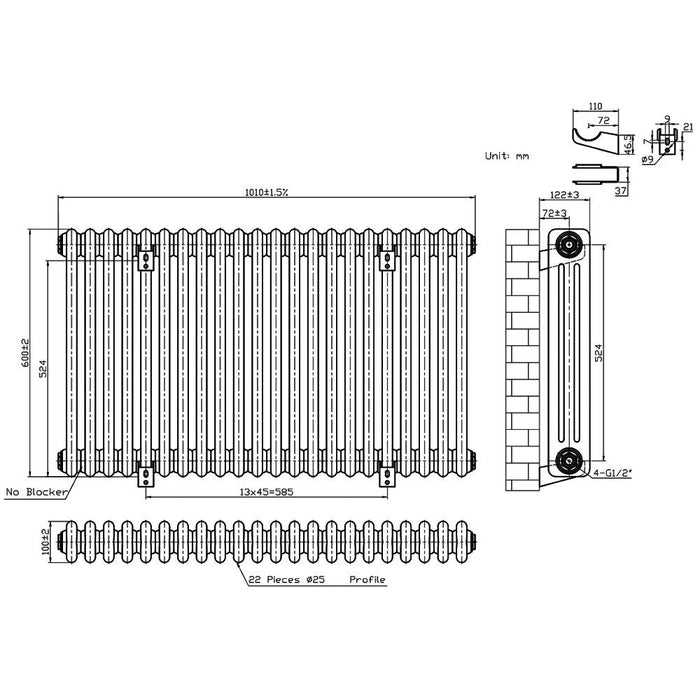

Datasheet for 600mm x 1010mm Column Radiator

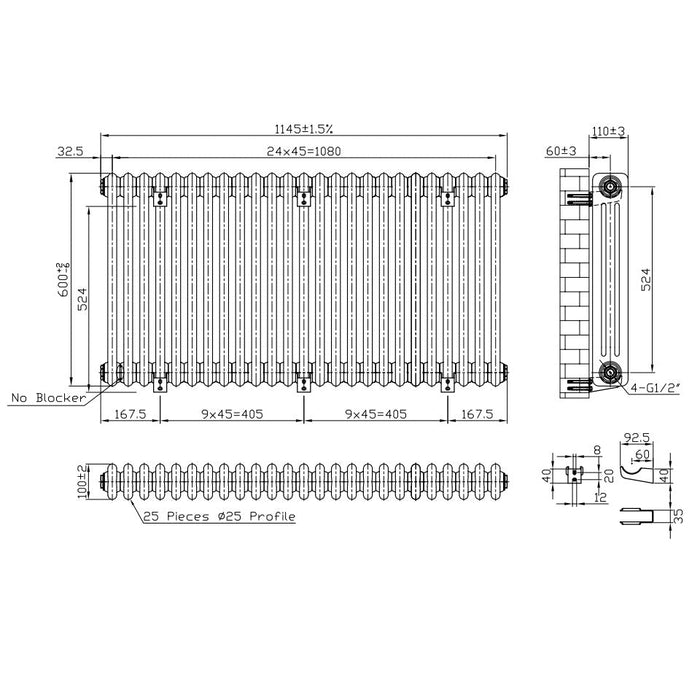

Datasheet for 600mm x 1145mm Column Radiator

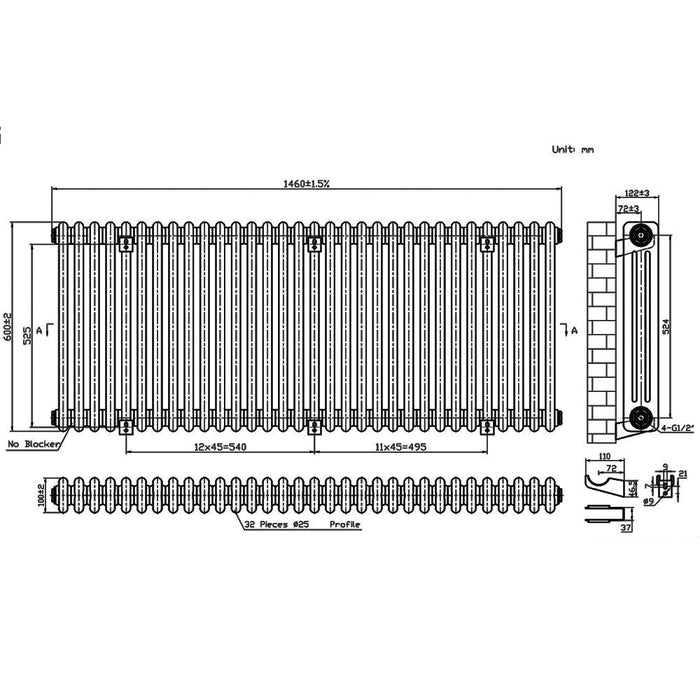

Datasheet for 600mm x 1460mm Column Radiator

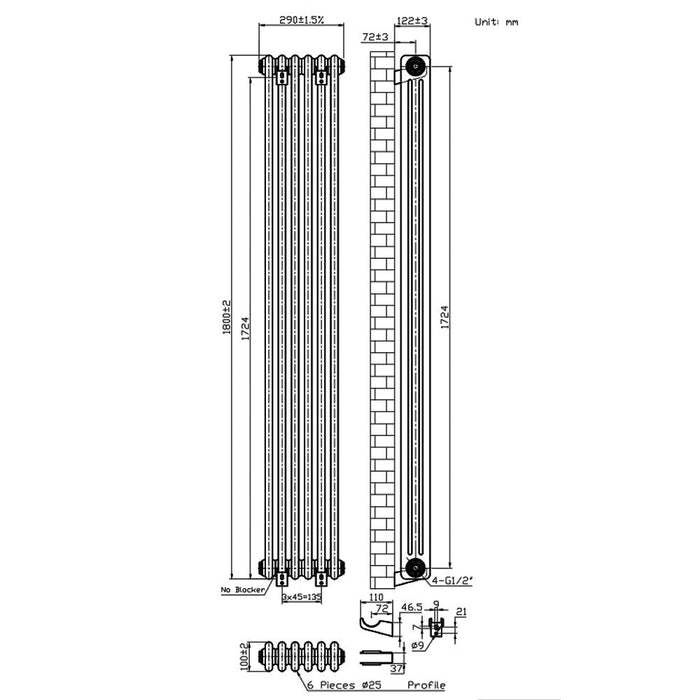

Datasheet for 1800mm x 290mm Column Radiator

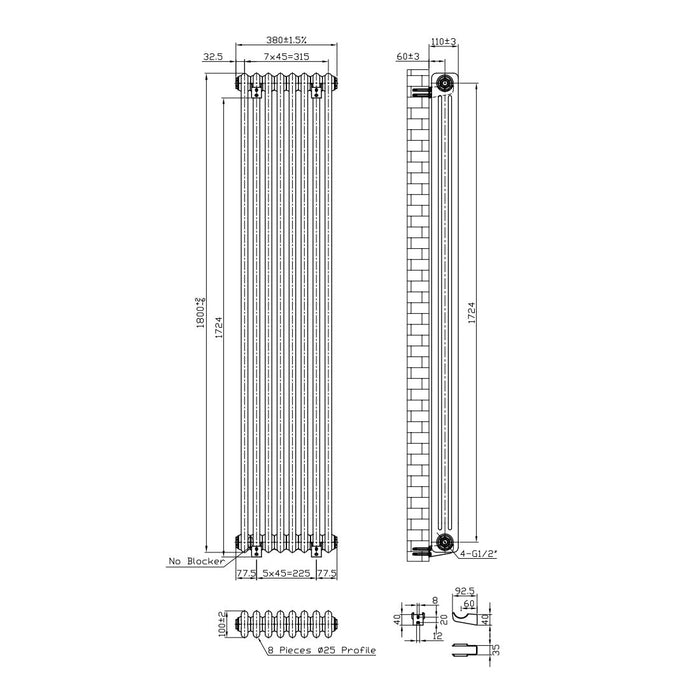

Datasheet for 1800mm x 380mm Column Radiator

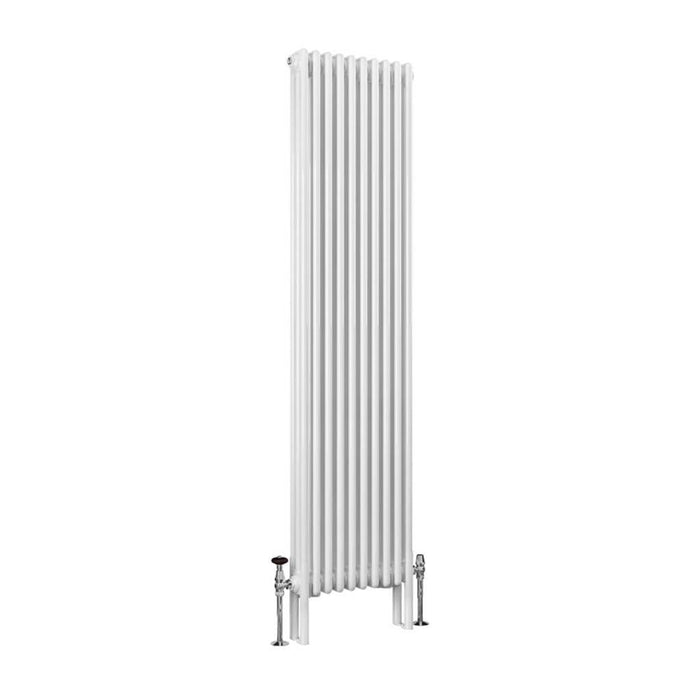

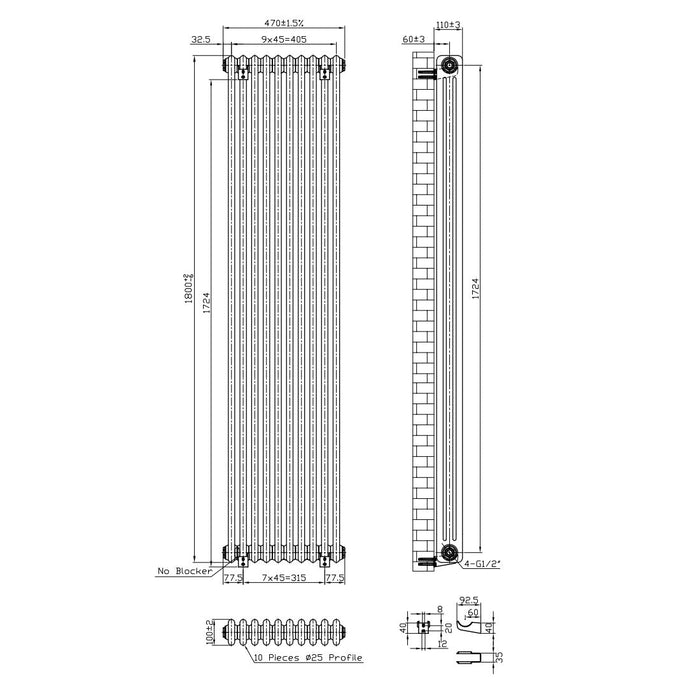

Datasheet for 1800mm x 470mm Column Radiator
Datasheet for 1800mm x 515mm Column Radiator
Datasheet for 1800mm x 560mm Column Radiator
Datasheet for 1800mm x 605mm Column Radiator
Datasheet for 1800mm x 650mm Column Radiator
Datasheet for 300mm x 830mm Column Radiator
Datasheet for 300mm x 1010mm Column Radiator
Datasheet for 300mm x 1460mm Column Radiator
Datasheet for 300mm x 1640mm Column Radiator
Datasheet for 450mm x 605mm Column Radiator
Datasheet for 450mm x 830mm Column Radiator
Datasheet for 450mm x 1010mm Column Radiator
Datasheet for 450mm x 1145mm Column Radiator
Datasheet for 450mm x 1460mm Column Radiator
Datasheet for 600mm x 1640mm Column Radiator
Datasheet for 600mm x 1820mm Column Radiator
- View Less
