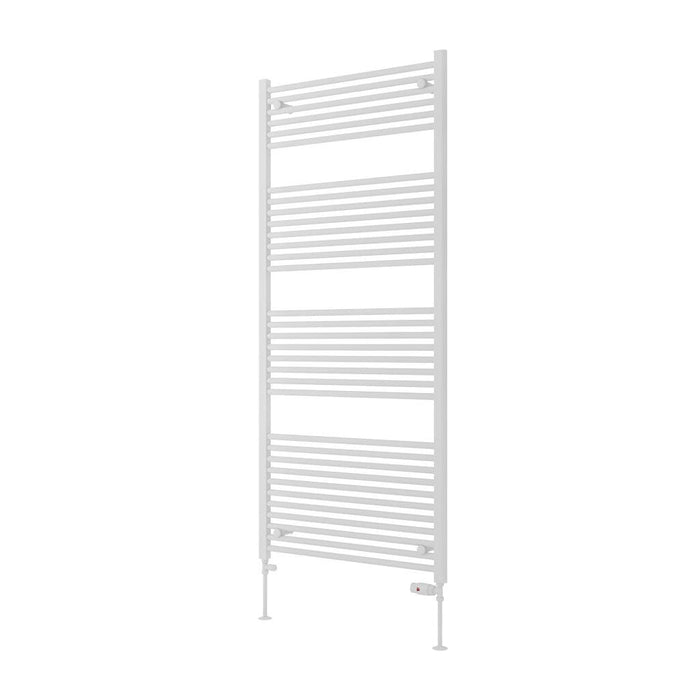

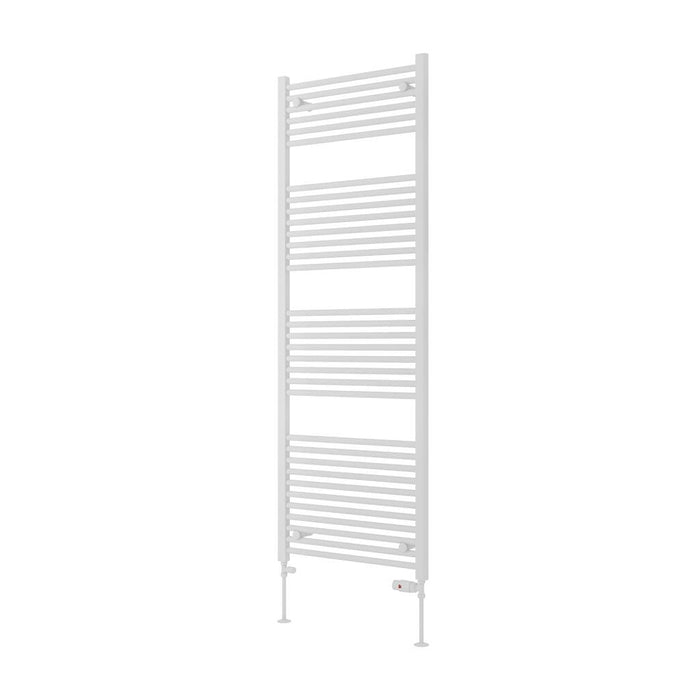

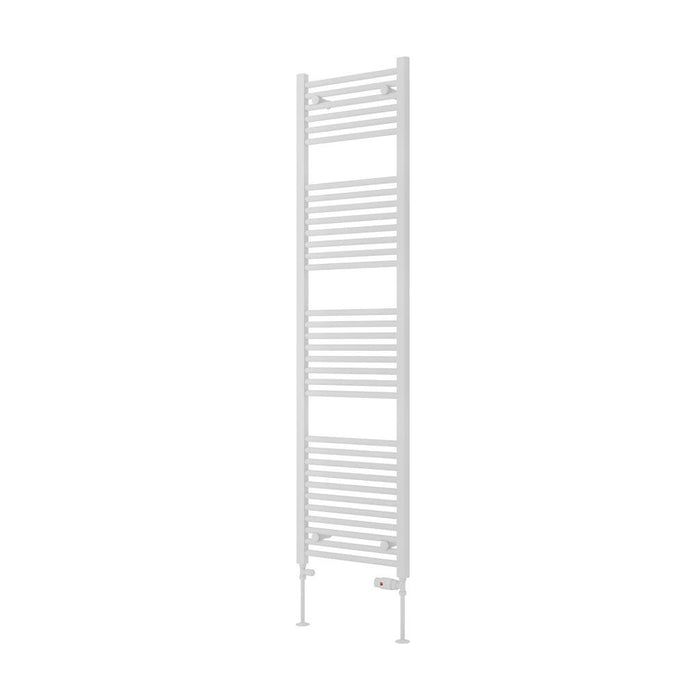

Eastbrook Biava Multirail Straight Heated Towel Rail Matt White
Order now for dispatch in approximately 4 weeks.
Product Information
The Eastbrook biava multirail straight heated towel rail offers a sleek and modern design, perfect for any contemporary bathroom. With a stylish matt white finish, this towel rail is made from durable mild steel and features 22mm diameter horizontal round tubes and 40 x 30mm vertical profiles. The rail is tested to bs en442 standards, ensuring excellent heating performance. It is available in various sizes to suit different spaces.Designed for easy installation and use, the biava towel rail can be configured as single, dual fuel, or fully electric. It includes hidden air vents at the rear and has flush-finished tops for a seamless look. Please note that radiator valves and heating elements are not included.
Product Specifications:
- Warranty: 5 Years
- Product Type: Heated Towel Rail
- Brand: Eastbrook
- Collection: Biava
- Finish: Matt White
- Shape: Straight
- Style: Modern
- Material: Mild Steel
Special Features:
- Easy to install and use
- Images are shown for illustration purposes only
- 22mm diameter horizontal round tubes.
- 40 x 30mm vertical profiles.
- Hidden air vent at the rear.
- Tapings only at the bottom.

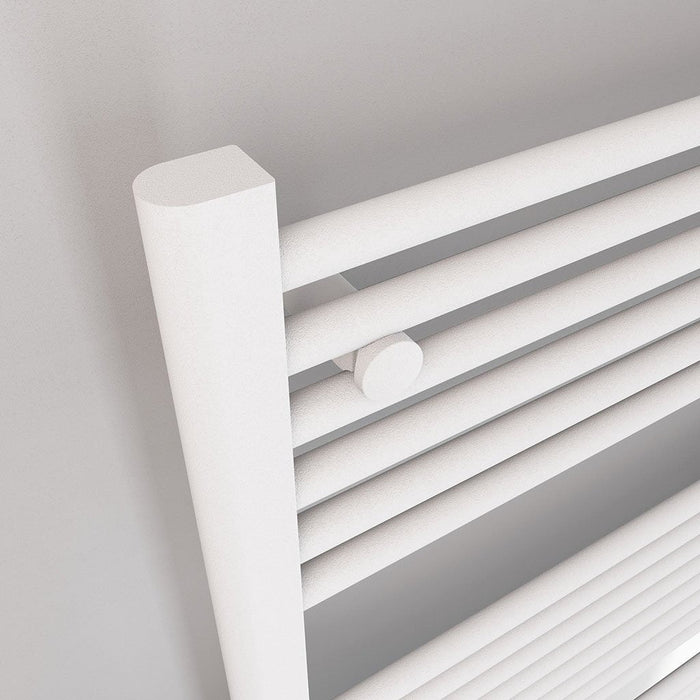

- Flush finished tops.
- Tested to BS EN442 standards.
- Can be single, dual fuel or all electric.
- Heat output based on Delta T60°C.
- Radiators that are electric only are restricted to the heat output of the elements.
- Element size can be increased to full capacity of rail if using element type D, E, F or G.
- For indirect heating systems only.
- Corrosion inhibitor must be added to the heating system and maintained.
- Tapings are approx. 50mm less than the width of the rail and approx. 70-85mm off the wall.
Technical Specifications
|
Size |
Watts T30°C |
BTU T30°C |
Watts T50°C |
BTU T50°C |
Element Output |
Element Type |
|
360mm x 400mm |
73 |
249 |
139 |
474 |
100W |
A, A+, B, D, E, F, G |
|
688mm x 450mm |
149 | 509 |
282 |
962 |
150W |
A, A+, B, D, E, F, G |
|
688mm x 600mm |
191 | 652 |
363 |
1238 |
150W |
A, A+, B, D, E, F, G |
|
688mm x 750mm |
233 | 795 |
441 |
1504 |
300W |
A, A+, B, D, E, F, G |
|
1118mm x 450mm |
238 | 812 | 454 | 1549 |
300W |
A, A+, B, D, E, F, G |
|
1118mm x 600mm |
306 | 1044 | 583 | 1989 |
300W |
A, A+, B, D, E, F, G |
|
1118mm x 750mm |
372 | 1269 | 709 | 2418 |
450W |
A, A+, B, D, E, F, G |
|
1720mm x 450mm |
368 | 1255 | 707 | 2411 |
450W |
A, A+, B, D, E, F, G |
|
1720mm x 600mm |
473 | 1613 | 909 | 3100 |
600W |
A, A+, B, D, E, F, G |
|
1720mm x 750mm |
575 | 1961 | 1104 | 3765 |
750W |
A, A+, B, D, E, F, G |
Assembling instructions for Heated Towel Rail
Datasheet for 360mm x 400mm Heated Towel Rail
Datasheet for 688mm x 450mm Heated Towel Rail
Datasheet for 688mm x 600mm Heated Towel Rail
Datasheet for 688mm x 750mm Heated Towel Rail
Datasheet for 1118mm x 600mm Heated Towel Rail
Datasheet for 1118mm x 750mm Heated Towel Rail
Datasheet for 1720mm x 600mm Heated Towel Rail
Datasheet for 1720mm x 750mm Heated Towel Rail
Datasheet for 688mm x 750mm Heated Towel Rail
Datasheet for 1118mm x 450mm Heated Towel Rail
Datasheet for 1720mm x 450mm Heated Towel Rail

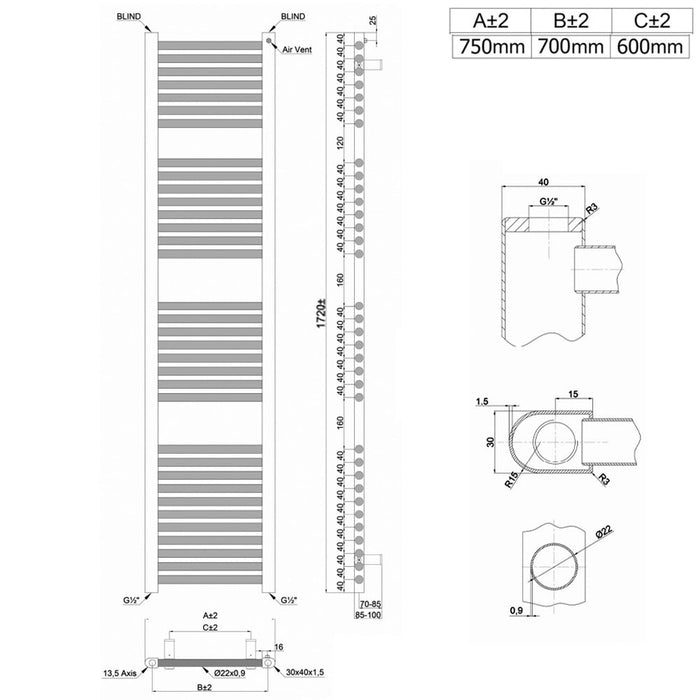

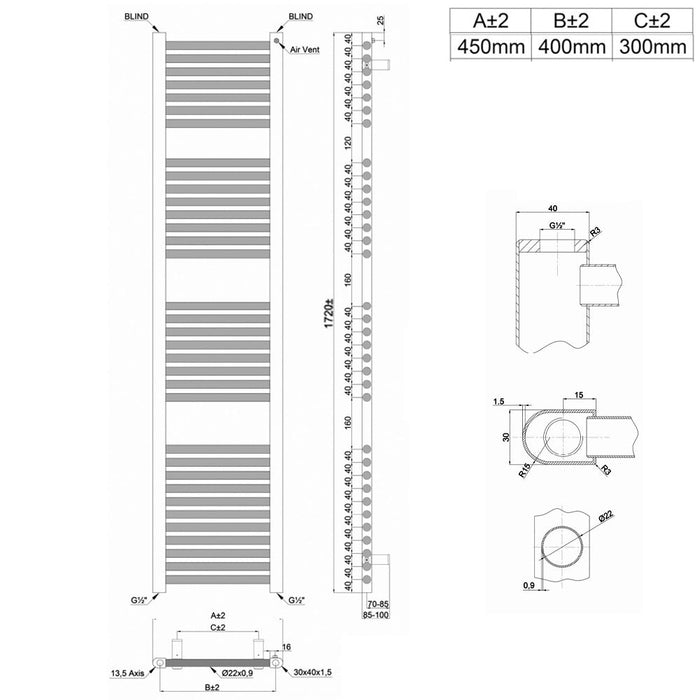

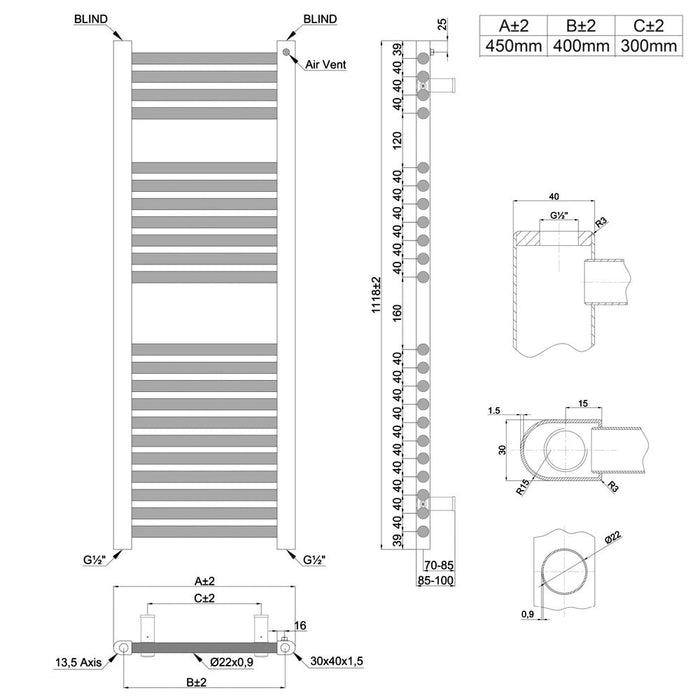

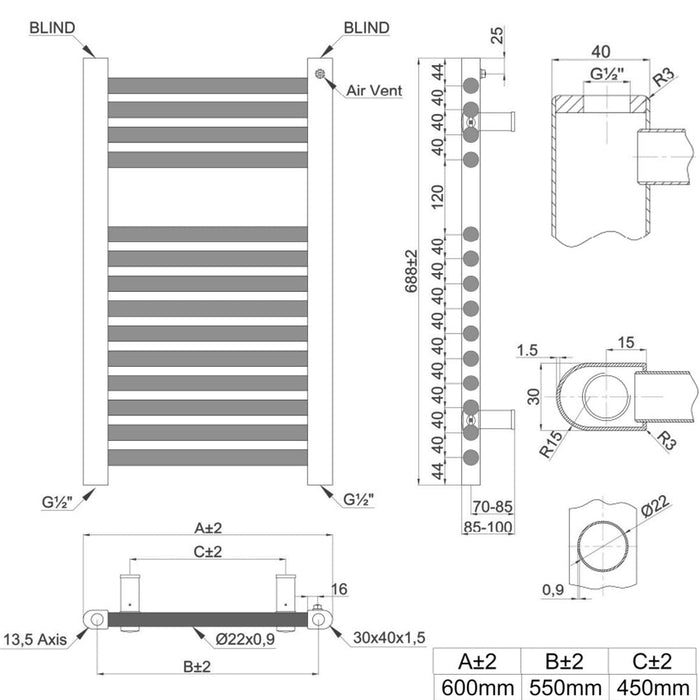

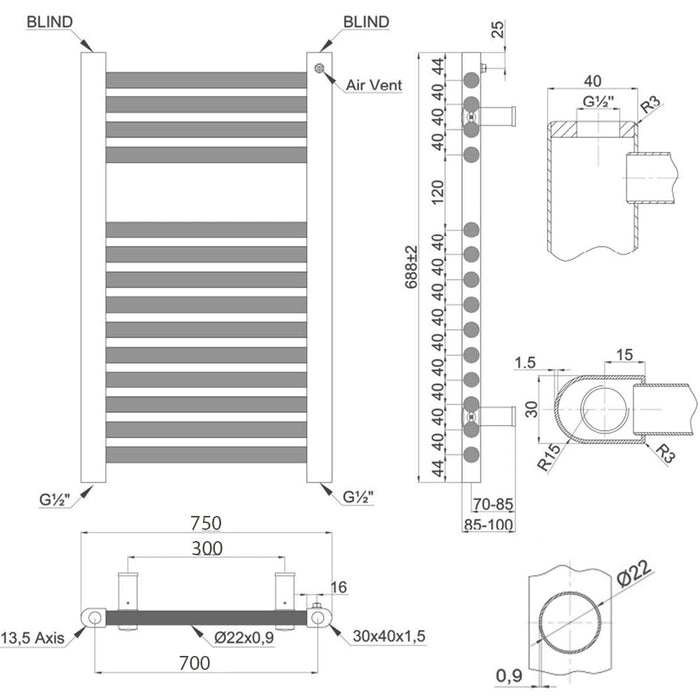

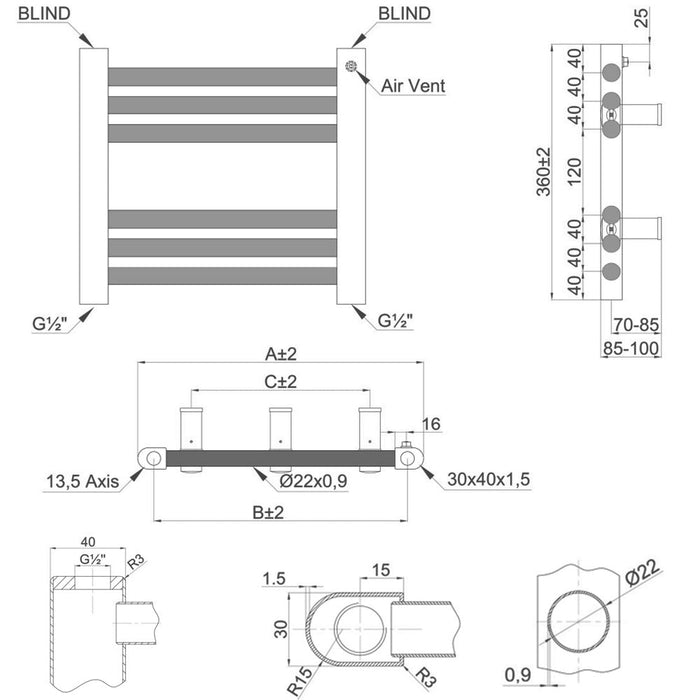

Technical Drawing

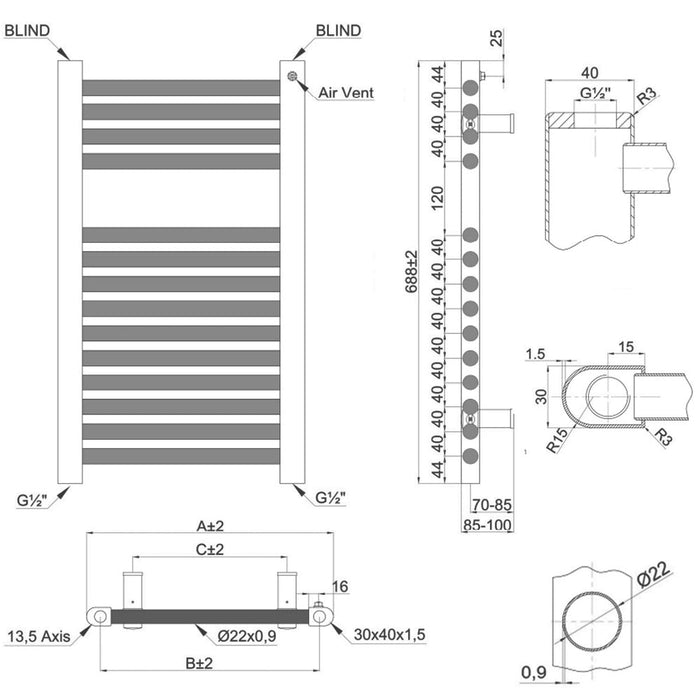

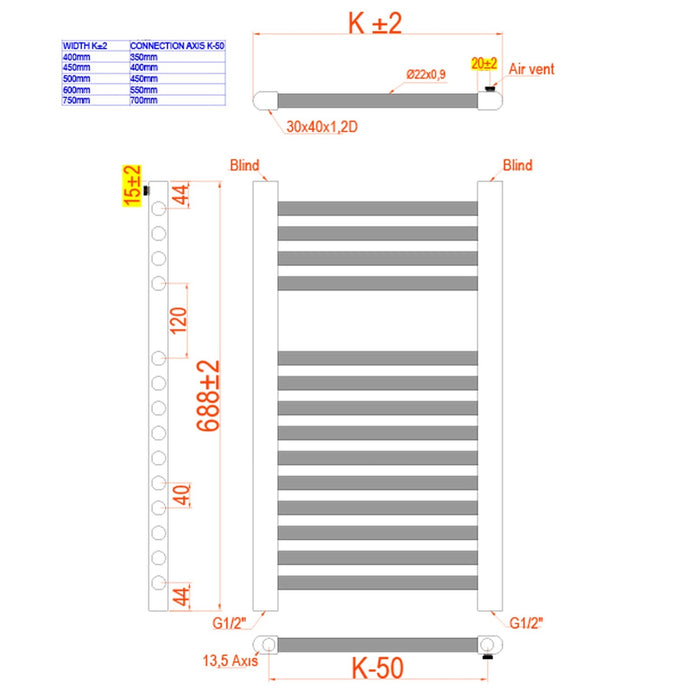

688mm Heated Towel Rail

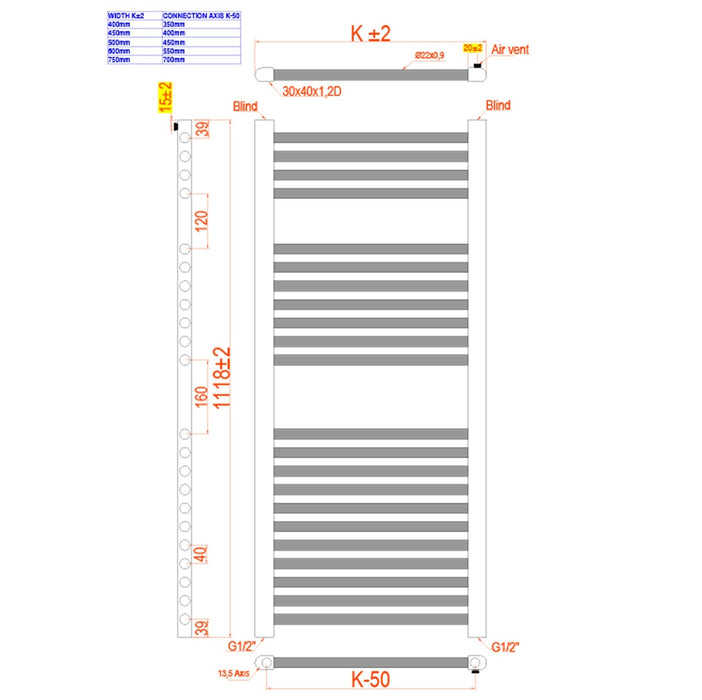

1118mm Heated Towel Rail

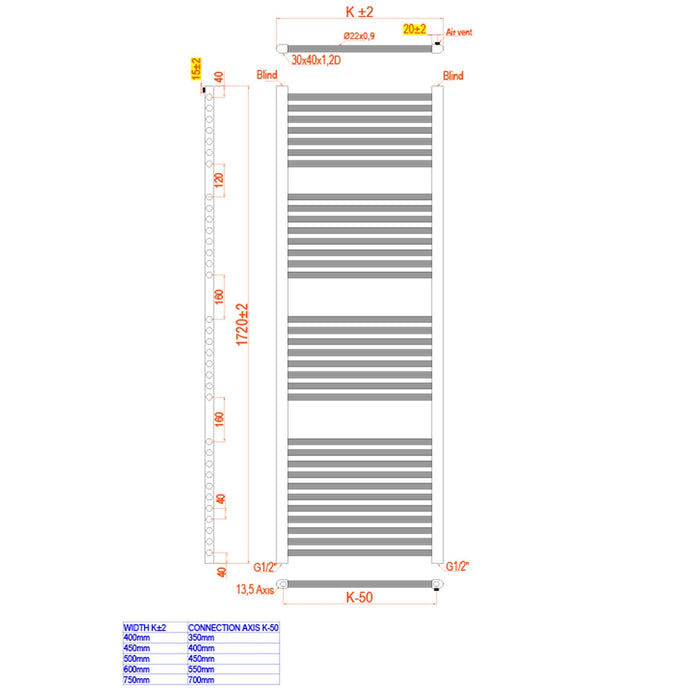

1720mm Heated Towel Rail
- View Less
