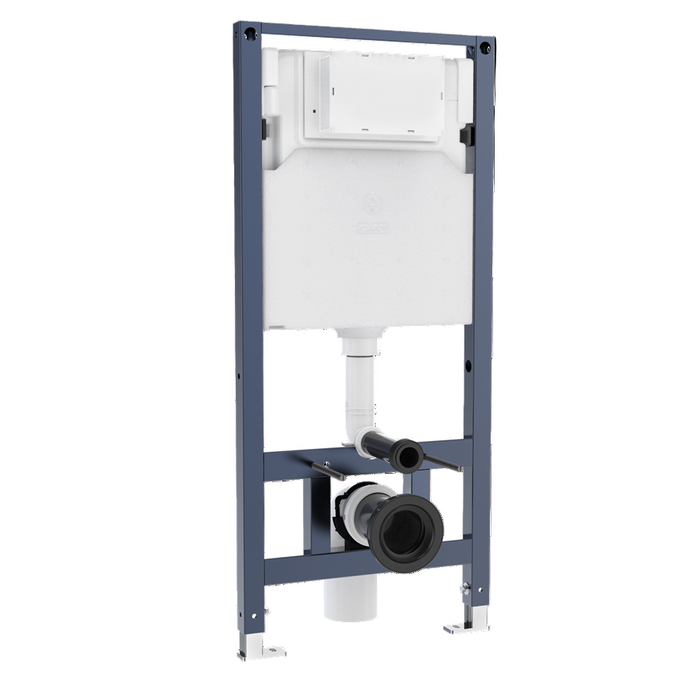

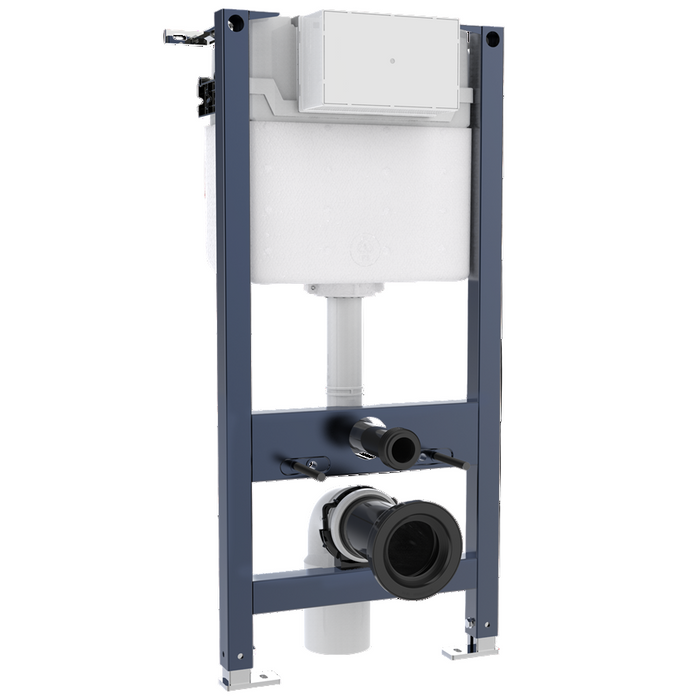

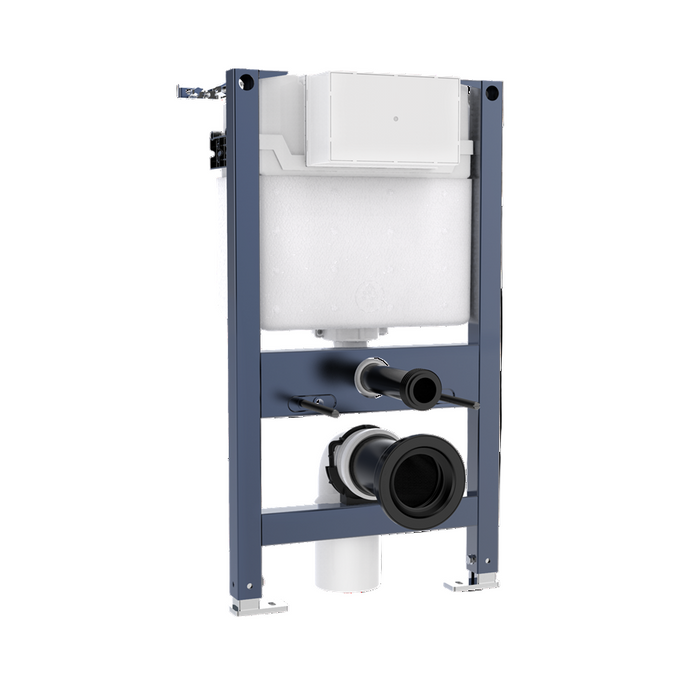

Crosswater Wall Hung Toilet Frame with Concealed Cistern
Stocks : 2 in stock, order now for immediate dispatch
Product Information
The Crosswater Wall Hung Toilet Frame with Concealed Cistern offers a strong and space-saving solution for modern bathrooms. Designed for use with wall-hung toilets, this sturdy steel frame provides excellent support and stability, ensuring long-lasting performance and a clean, minimalist look.
Its built-in concealed cistern delivers reliable flushing performance while maintaining a sleek appearance by keeping all pipework hidden behind the wall. The dual flush system allows for efficient water usage, offering both full and half flush options to help reduce water consumption without compromising power or hygiene.
Engineered with precision and built to last, the Crosswater frame features adjustable fixing points for easy installation and height flexibility, making it suitable for a wide range of bathroom layouts. The smooth, insulated cistern prevents condensation and ensures quiet, consistent operation.
Perfect for both residential and commercial settings, this wall-hung toilet frame and concealed cistern combination enhances your bathroom with a modern, uncluttered aesthetic while ensuring robust functionality.
Specifications
- Guarantee: 5 Years
- Product Type: Wall Hung Toilet Frame
- Brand: Crosswater
- Style: Modern
- Mounting: Floor
- Material: Steel/Plastic
Special Features
- Front or top actuation
- Mechanical flush
- WRAS Approved product
- Dual flush 3/6L Volume
- All fittings included
- Noise Class: Group I
- Comes with Water-Saving Technology
- Providing Both 3 and 6 Litre Flush Capabilities when Installed with a Flush Plate
- Comes with Dual-Flush Concealed Cistern & Installation Kit
- For wall hung toilets with connection dimensions in accordance with EN 33.2011
- Adjustable feet with rubber sound deadening pads
- Full UK specification to EN 14055 Class 2
- Maximum supply pressure 6 bar
- Flush plate not included
- Please note this cistern is only compatible with the following flush plates, VENFLUSHC/B/F/V/T/BZ, MPROFLUSHC/B/F/V/T/BZ and MPROSPLATEC/B/F/V/T/BZ
820mm Wall Hung Toilet Frame with Concealed Cistern Datasheet
980mm Wall Hung Toilet Frame with Concealed Cistern Datasheet
1120mm Wall Hung Toilet Frame with Concealed Cistern Datasheet
Assembling instruction for 820mm/980mm Wall Hung Toilet Frame with Concealed Cistern
Assembling instruction for 1120mm Wall Hung Toilet Frame with Concealed Cistern
Technical Drawing

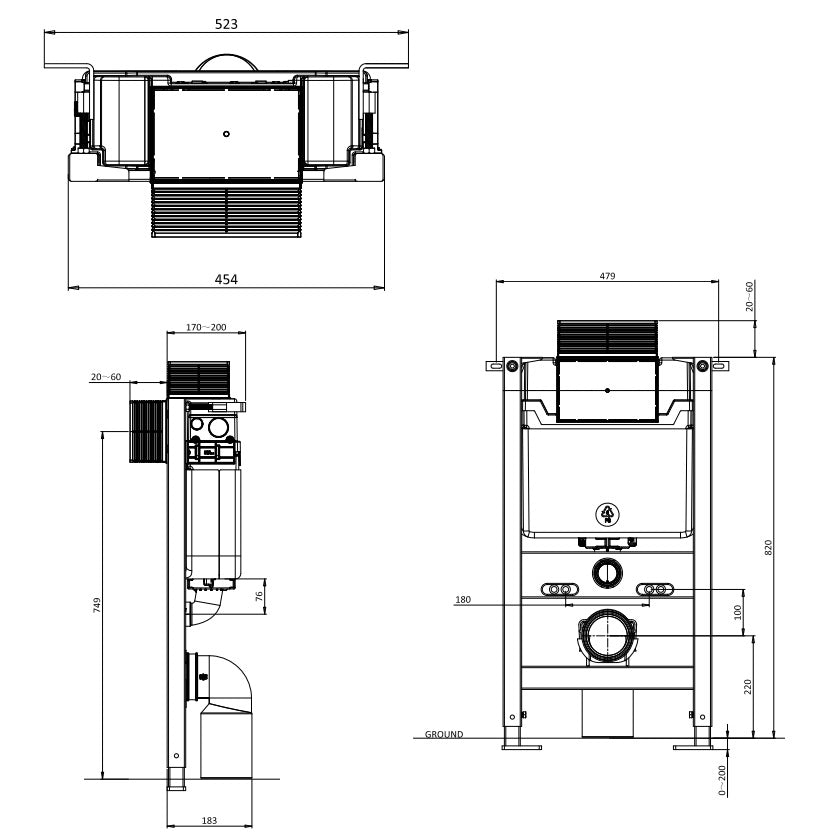

820mm

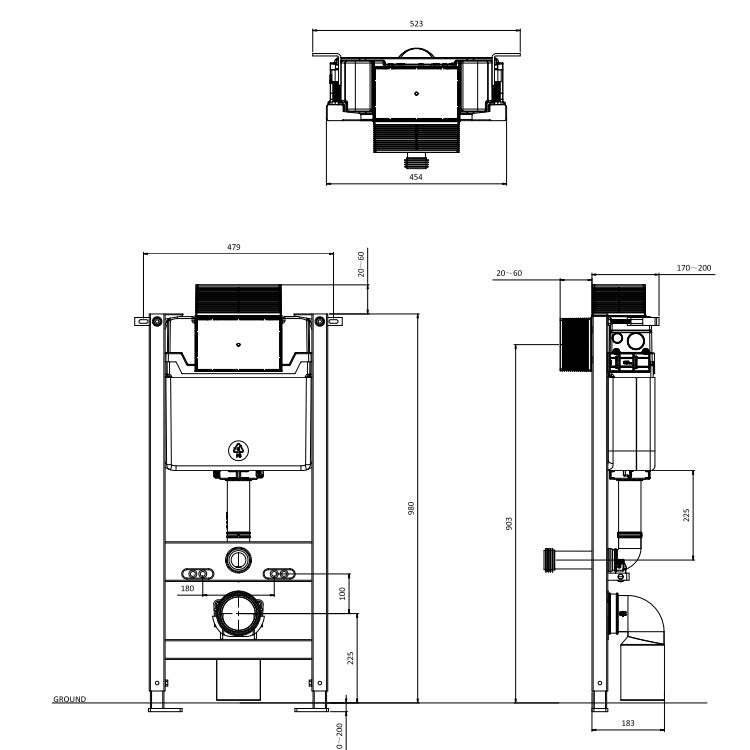

980mm

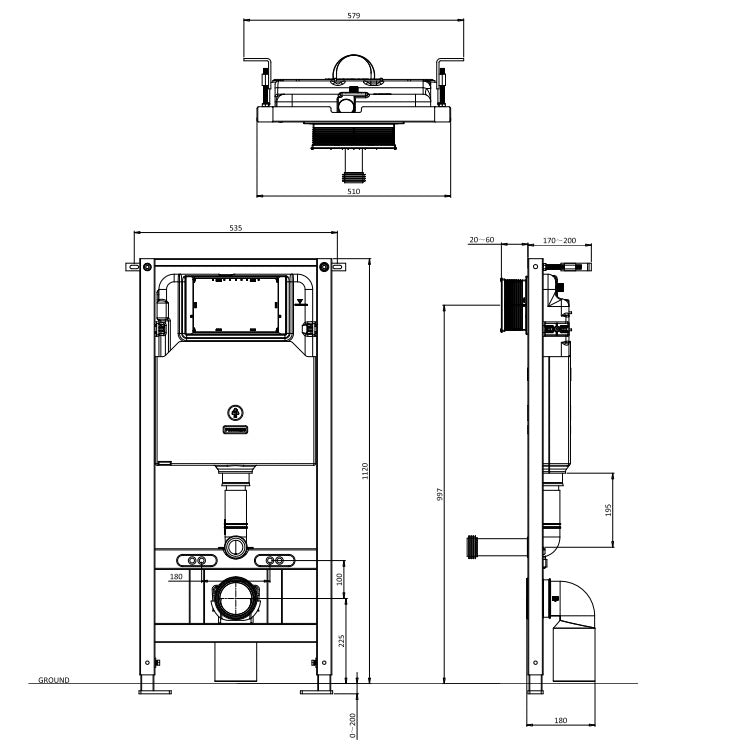

1120mm
- View Less
Product Information
The Crosswater Wall Hung Toilet Frame with Concealed Cistern offers a strong and space-saving solution for modern bathrooms. Designed for use with wall-hung toilets, this sturdy steel frame provides excellent support and stability, ensuring long-lasting performance and a clean, minimalist look.
Its built-in concealed cistern delivers reliable flushing performance while maintaining a sleek appearance by keeping all pipework hidden behind the wall. The dual flush system allows for efficient water usage, offering both full and half flush options to help reduce water consumption without compromising power or hygiene.
Engineered with precision and built to last, the Crosswater frame features adjustable fixing points for easy installation and height flexibility, making it suitable for a wide range of bathroom layouts. The smooth, insulated cistern prevents condensation and ensures quiet, consistent operation.
Perfect for both residential and commercial settings, this wall-hung toilet frame and concealed cistern combination enhances your bathroom with a modern, uncluttered aesthetic while ensuring robust functionality.
Specifications
- Guarantee: 5 Years
- Product Type: Wall Hung Toilet Frame
- Brand: Crosswater
- Style: Modern
- Mounting: Floor
- Material: Steel/Plastic
Special Features
- Front or top actuation
- Mechanical flush
- WRAS Approved product
- Dual flush 3/6L Volume
- All fittings included
- Noise Class: Group I
- Comes with Water-Saving Technology
- Providing Both 3 and 6 Litre Flush Capabilities when Installed with a Flush Plate
- Comes with Dual-Flush Concealed Cistern & Installation Kit
- For wall hung toilets with connection dimensions in accordance with EN 33.2011
- Adjustable feet with rubber sound deadening pads
- Full UK specification to EN 14055 Class 2
- Maximum supply pressure 6 bar
- Flush plate not included
- Please note this cistern is only compatible with the following flush plates, VENFLUSHC/B/F/V/T/BZ, MPROFLUSHC/B/F/V/T/BZ and MPROSPLATEC/B/F/V/T/BZ
820mm Wall Hung Toilet Frame with Concealed Cistern Datasheet
980mm Wall Hung Toilet Frame with Concealed Cistern Datasheet
1120mm Wall Hung Toilet Frame with Concealed Cistern Datasheet
Assembling instruction for 820mm/980mm Wall Hung Toilet Frame with Concealed Cistern
Assembling instruction for 1120mm Wall Hung Toilet Frame with Concealed Cistern
Technical Drawing
820mm
980mm
1120mm
- View Less
