Crosswater Verge 3 Outlet Thermostatic Shower Valve With Crossbox
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Verge 3 Outlet Thermostatic Shower Valve with Crossbox offers a sleek, modern design with a rectangular brass construction, ideal for wall-mounted concealed installations. Weighing 2.12kg, it features two lever handles and supports up to three outlets, such as an overhead shower, hand shower, or riser rail kit. The super slim 60mm depth reduces wall preparation time, while front or rear mounting options provide installation flexibility. With a built-in ‘Easy-switch’ thermostatic module, flush-block testing plate, and simplified 2-stage fixing system, installation is quicker and more efficient. The unit includes the Crossbox and is backed by a 15-year guarantee for reliability.
Specification
- Guarantee: 15 Years
- Product Type: Concealed Shower Valve
- Brand: Crosswater
- Collection: Verge
- Style: Modern
- Shape: Rectangular
- Mounting: Wall
- Material: Brass
- Weight: 2.12kg
- No Of Handle: 2
- Handle Style: Lever
- Outlet: 3
- Valve Position : Concealed
- Thermo type: recessed
Special Features
- Images are shown for illustration purposes only
- Suitable for use with a three outlet - i.e. overhead shower, hand shower or riser rail kit
- Crosswater logo with hot and cold controls engraved onto the back plate
- Back plate and square handles included
- Super slim 60mm minimum installation depths require reduced solid wall preparation for quicker installation time.
- Front or rear mounting options increase ease of installation and flexibility.
- Simple 2-stage fixing allows installation of in-wall components and final trim separately, reducing possible on-site damage.
- 'Flush-block' testing plate included for easy pressure testing.
- Easy fix 2nd stage trim sets reduce installation times.
- Built-in, 'Easy-switch' thermostatic module allows for simple, quick flow reversal if feeds are plumbed in the wrong way round.
- Improved flow dynamics allow 90-degree elbows to be fitted directly to outlets to create a more compact piping footprint
- Crossbox Universal Box is included
Dimensions
- Height: 180mm
- Width: 130mm
Assembling Instructions Shower Valve

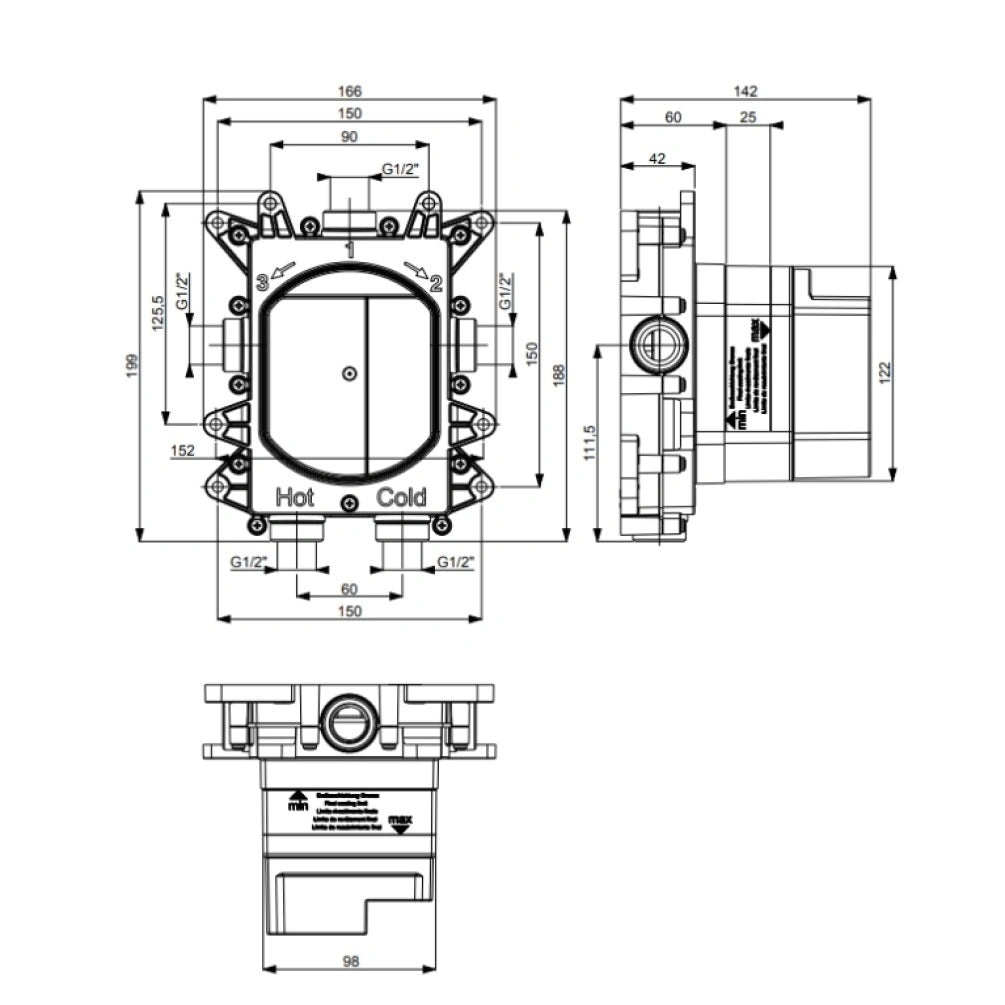

Assembling Instructions Of Crossbox

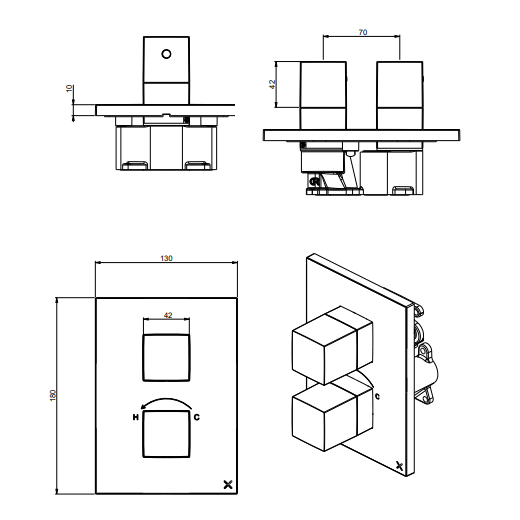

TECHNICAL DRAWING
- View Less
Product Information
The Crosswater Verge 3 Outlet Thermostatic Shower Valve with Crossbox offers a sleek, modern design with a rectangular brass construction, ideal for wall-mounted concealed installations. Weighing 2.12kg, it features two lever handles and supports up to three outlets, such as an overhead shower, hand shower, or riser rail kit. The super slim 60mm depth reduces wall preparation time, while front or rear mounting options provide installation flexibility. With a built-in ‘Easy-switch’ thermostatic module, flush-block testing plate, and simplified 2-stage fixing system, installation is quicker and more efficient. The unit includes the Crossbox and is backed by a 15-year guarantee for reliability.
Specification
- Guarantee: 15 Years
- Product Type: Concealed Shower Valve
- Brand: Crosswater
- Collection: Verge
- Style: Modern
- Shape: Rectangular
- Mounting: Wall
- Material: Brass
- Weight: 2.12kg
- No Of Handle: 2
- Handle Style: Lever
- Outlet: 3
- Valve Position : Concealed
- Thermo type: recessed
Special Features
- Images are shown for illustration purposes only
- Suitable for use with a three outlet - i.e. overhead shower, hand shower or riser rail kit
- Crosswater logo with hot and cold controls engraved onto the back plate
- Back plate and square handles included
- Super slim 60mm minimum installation depths require reduced solid wall preparation for quicker installation time.
- Front or rear mounting options increase ease of installation and flexibility.
- Simple 2-stage fixing allows installation of in-wall components and final trim separately, reducing possible on-site damage.
- 'Flush-block' testing plate included for easy pressure testing.
- Easy fix 2nd stage trim sets reduce installation times.
- Built-in, 'Easy-switch' thermostatic module allows for simple, quick flow reversal if feeds are plumbed in the wrong way round.
- Improved flow dynamics allow 90-degree elbows to be fitted directly to outlets to create a more compact piping footprint
- Crossbox Universal Box is included
Dimensions
- Height: 180mm
- Width: 130mm
Assembling Instructions Shower Valve
Assembling Instructions Of Crossbox
TECHNICAL DRAWING
- View Less
