Crosswater Venue 820mm Concealed Cistern Toilet Frame Set 1
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Venue Concealed Cistern Frame Set 1 is a durable and practical solution for installing wall-hung toilet pans in modern bathroom spaces. Designed for strength, reliability and easy installation, this high-quality frame system provides a secure and concealed setup for a clean and minimalist bathroom finish. Constructed from robust steel and ABS materials, the frame is engineered to support loads of up to 400kg, ensuring long-lasting stability and dependable performance. Suitable for use with Crosswater wall-hung toilet pans, it offers a versatile design with both front and top actuation compatibility to suit different bathroom layouts and installation requirements. Featuring a mechanical push button dual flush system, the frame helps improve water efficiency with adjustable water-saving settings of 4.5/3 litres and a preset flush volume of 6/4 litres. The side inlet location and adjustable height provide added flexibility during installation, while floor fixings are included for convenience.
The Venue Frame Set is WRAS and UKCA certified and complies with BS EN 14055:2018 standards, offering reassurance of quality and performance. With low noise operation rated to Noise Class Group I, it delivers quieter flushing for enhanced comfort in the bathroom environment. Designed with adaptable installation depths, the frame supports top flush depth ranges from 170mm to 200mm and front flush depth ranges from 190mm to 260mm, making it suitable for a variety of bathroom configurations. Backed by a 5-year warranty, the Crosswater Venue Frame Set 1 combines strength, efficiency and modern functionality for contemporary bathroom installations.
Specifications
- Warranty: 5 Years
- Product Type: Wall Hung Toilet Frame
- Brand: Crosswater
- Collection: Venue
- Style: Modern
- Shape: Rectangular
- Mounting: Floor
- Material: Steel/ABS
Special Features
- Set includes: Dual flush concealed cistern & installation kit, WC frame and flush plate
- For use with Crosswater wall-hung toilet pans
- Supports up to 400kg load
- Depth range of Top flush: 170mm-200mm
- Depth range of Front flush: 190mm-260mm
- WRAS and UKCA certified product
-
Flush Type: Push Button Dual Flush
- Flush Operation: Mechanical
- Actuation Type: Front/Top Actuation
-
Inlet Location: Side Inlet
- Adjustable Height
- Water Saving Adjustment: 4.5/3L
- Flush Volume: 6/4L preset
- Noise Class: Group I
- BS EN 14055:2018 standards
- Floor fixing included
Dimensions
- Height: 820mm
- Width: 450mm
- Depth: 159mm
Assembling instructions for Frame with dual flush concealed cistern
Datasheet for Frame with dual flush concealed cistern
Assembling instructions for Flush Plate

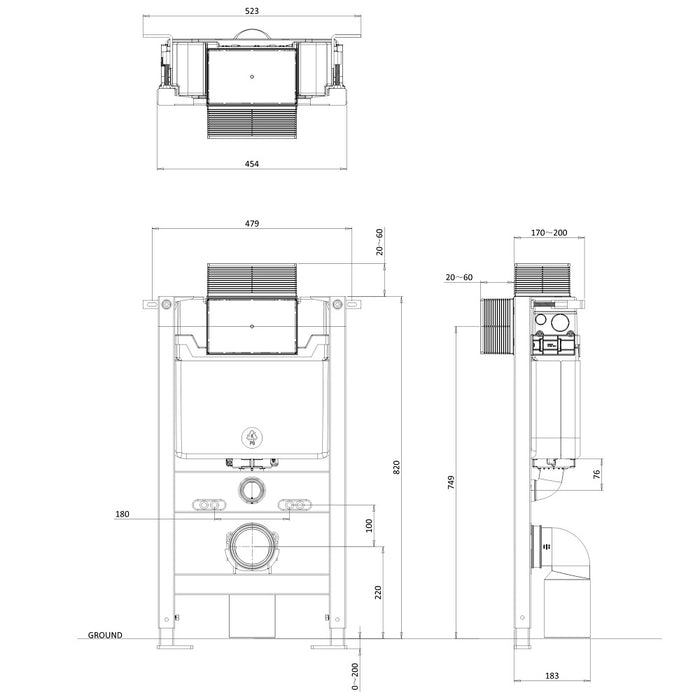

Technical Drawing
