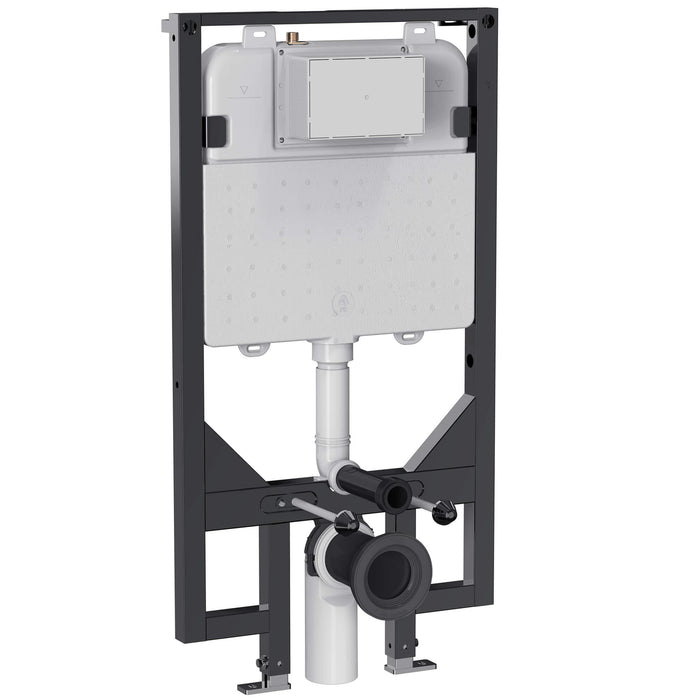

Crosswater Ultra Slim Depth Wall Hung Toilet Frame with Concealed Cistern - 1140mm High
Stocks : 5 in stock, order now for immediate dispatch
Product Information
The Crosswater Ultra Slim Depth Wall Hung Toilet Frame with Concealed Cistern – 1140mm High – is expertly designed to deliver strength, style, and space efficiency for modern bathrooms. With its ultra-slim profile, this frame is the perfect choice for compact spaces such as cloakrooms or en-suites, where every inch matters but performance and durability cannot be compromised. Crafted from robust steel, the frame offers exceptional structural stability for wall-hung toilets, ensuring long-term reliability and support. The concealed cistern provides a sleek, clutter-free look by keeping all pipework hidden behind the wall, enhancing the minimalist aesthetic of your bathroom.
Equipped with a dual flush mechanism, the cistern allows for both full and half flush options, promoting water efficiency without sacrificing flushing power. Its insulated design minimises condensation and ensures quiet, consistent operation. The adjustable height and easy installation system make this frame a practical choice for both homeowners and installers alike. Blending engineering excellence with contemporary design, the Crosswater Ultra Slim Depth Wall Hung Toilet Frame with Concealed Cistern – 1140mm – is ideal for creating a refined, space-optimised bathroom environment with dependable performance.
Specifications
- Warranty: 5 Years
- Product Type: Wall Hung Toilet Frame
- Brand: Crosswater
- Style: Modern
- Mounting: Floor
- Material: Steel/Plastic
Special Features
- Front actuation
- Mechanical flush
- WRAS Approved product
- Dual flush 3/6L Volume
- All fittings included
- Noise Class: Group I
- The Design is Created with Smaller Wall Cavities
- Comes with Water-Saving Technology
- Providing Both 3 and 6 Litre Flush Capabilities when Installed with a Flush Plate
- Comes with Dual-Flush Concealed Cistern & Installation Kit
- For wall hung toilets with connection dimensions in accordance with EN 33.2011
- Large feet for easy rear fixing (specially designed for UK timber floor)
- Adjustable feet with rubber sound deadening pads
- Full UK specification to EN 14055 Class 2
- Maximum supply pressure 6 bar
- Please note this cistern is only compatible with the following flush plates, VENFLUSHC/B/F/V/T/BZ, MPROFLUSHC/B/F/V/T/BZ and MPROSPLATEC/B/F/V/T/BZ
Dimension
- Height: 1140mm
- Width: 590mm
- Depth: 110mm
Datasheet for Ultra Slim Depth Wall Hung Toilet Frame with Concealed Cistern
Assembling instruction for Ultra Slim Depth Wall Hung Toilet Frame with Concealed Cistern

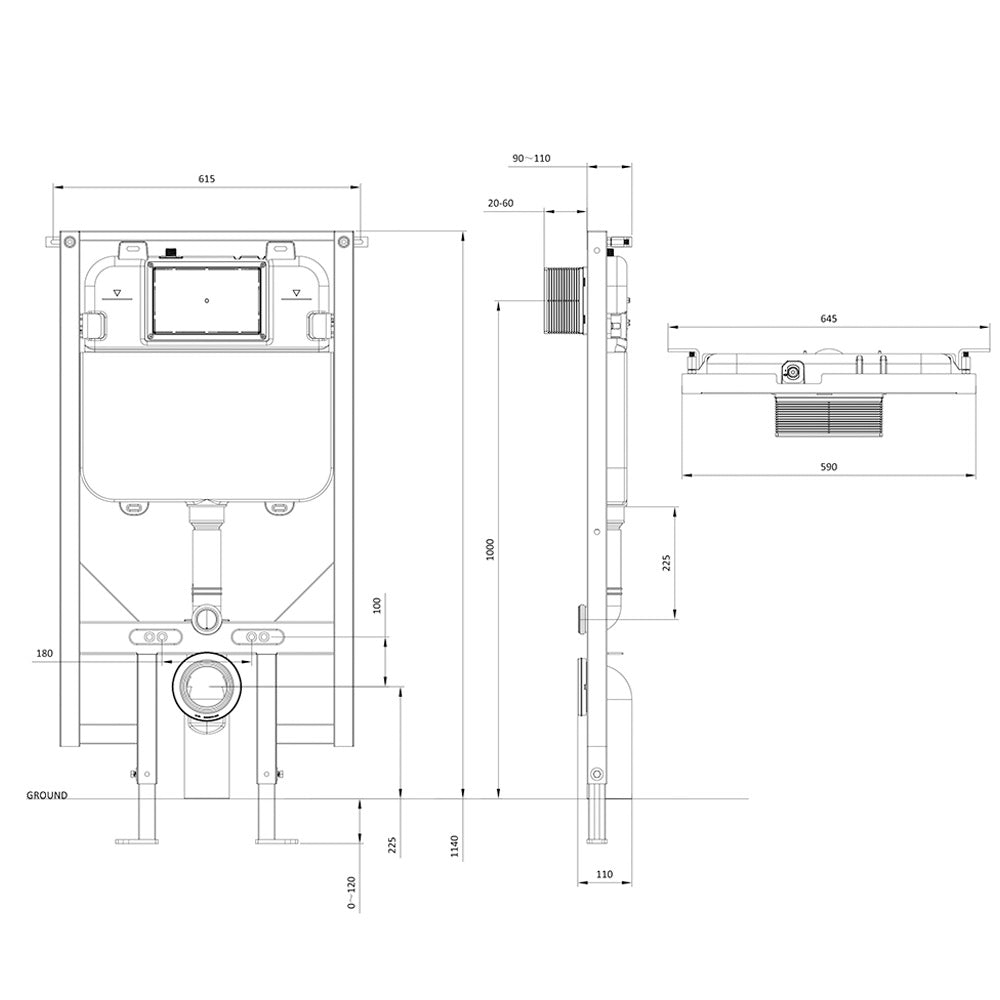

Technical Drawing
