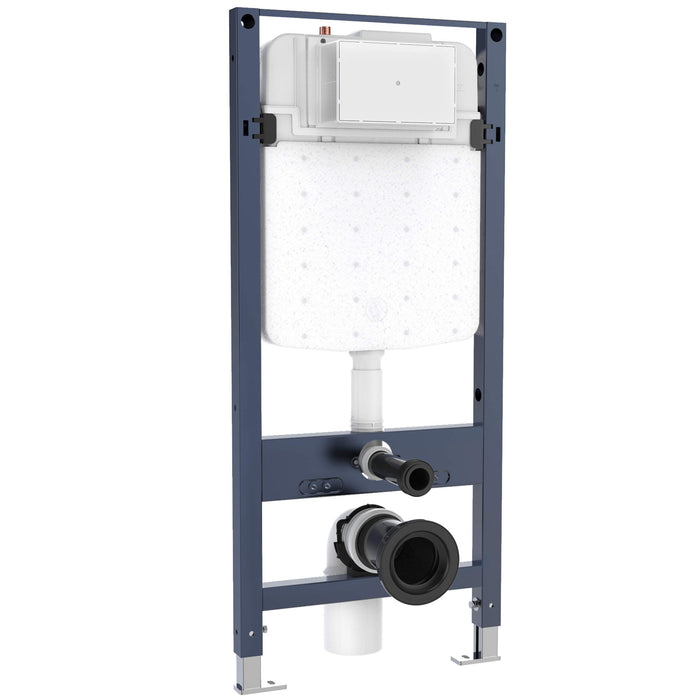

Crosswater Slim Depth Wall Hung Toilet Frame with Concealed Cistern - 1120mm High
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Slim Depth Wall Hung Toilet Frame with Concealed Cistern offers a smart, space-saving solution for compact and contemporary bathrooms. Designed to support wall-hung toilets with strength and precision, this 1120mm-high frame is ideal for installations where depth is limited but reliability and style are essential. Crafted from durable, high-quality steel, the frame provides exceptional stability and long-lasting performance. The concealed cistern delivers powerful, efficient flushing while keeping all plumbing hidden behind the wall, maintaining a clean, modern appearance. Its dual flush mechanism allows you to choose between full and half flush options, helping to reduce water consumption and promote eco-friendly operation.
Engineered for easy installation, the frame features adjustable height and fixing points to suit a range of wall types and bathroom layouts. The slim-depth design makes it perfect for cloakrooms, ensuite bathrooms, or any area where space optimisation is key. Combining functionality with minimalist aesthetics, the Crosswater Slim Depth Wall Hung Toilet Frame with Concealed Cistern provides a sleek and reliable foundation for your wall-hung WC, ensuring lasting performance and visual harmony in any modern bathroom setting.
Specifications
- Guarantee: 5 Years
- Product Type: Wall Hung Toilet Frame
- Brand: Crosswater
- Style: Modern
- Mounting: Floor
- Material: Steel/Plastic
Special Features
- Front actuation
- Mechanical flush
- WRAS Approved product
- Dual flush 3/6L Volume
- All fittings included
- Noise Class: Group I
- Comes with Water-Saving Technology
- Providing Both 3 and 6 Litre Flush Capabilities when Installed with a Flush Plate
- Comes with Dual-Flush Concealed Cistern & Installation Kit
- For wall hung toilets with connection dimensions in accordance with EN 33.2011
- Large feet for easy rear fixing (specially designed for UK timber floor)
- Adjustable feet with rubber sound deadening pads
- Full UK specification to EN 14055 Class 2
- Maximum supply pressure 6 bar
- Please note this cistern is only compatible with the following flush plates, VENFLUSHC/B/F/V/T/BZ, MPROFLUSHC/B/F/V/T/BZ and MPROSPLATEC/B/F/V/T/BZ
Dimension
- Height: 1120mm
- Width: 497mm
Datasheet for Slim Depth Wall Hung Toilet Frame with Concealed Cistern
Assembling instruction for Slim Depth Wall Hung Toilet Frame with Concealed Cistern

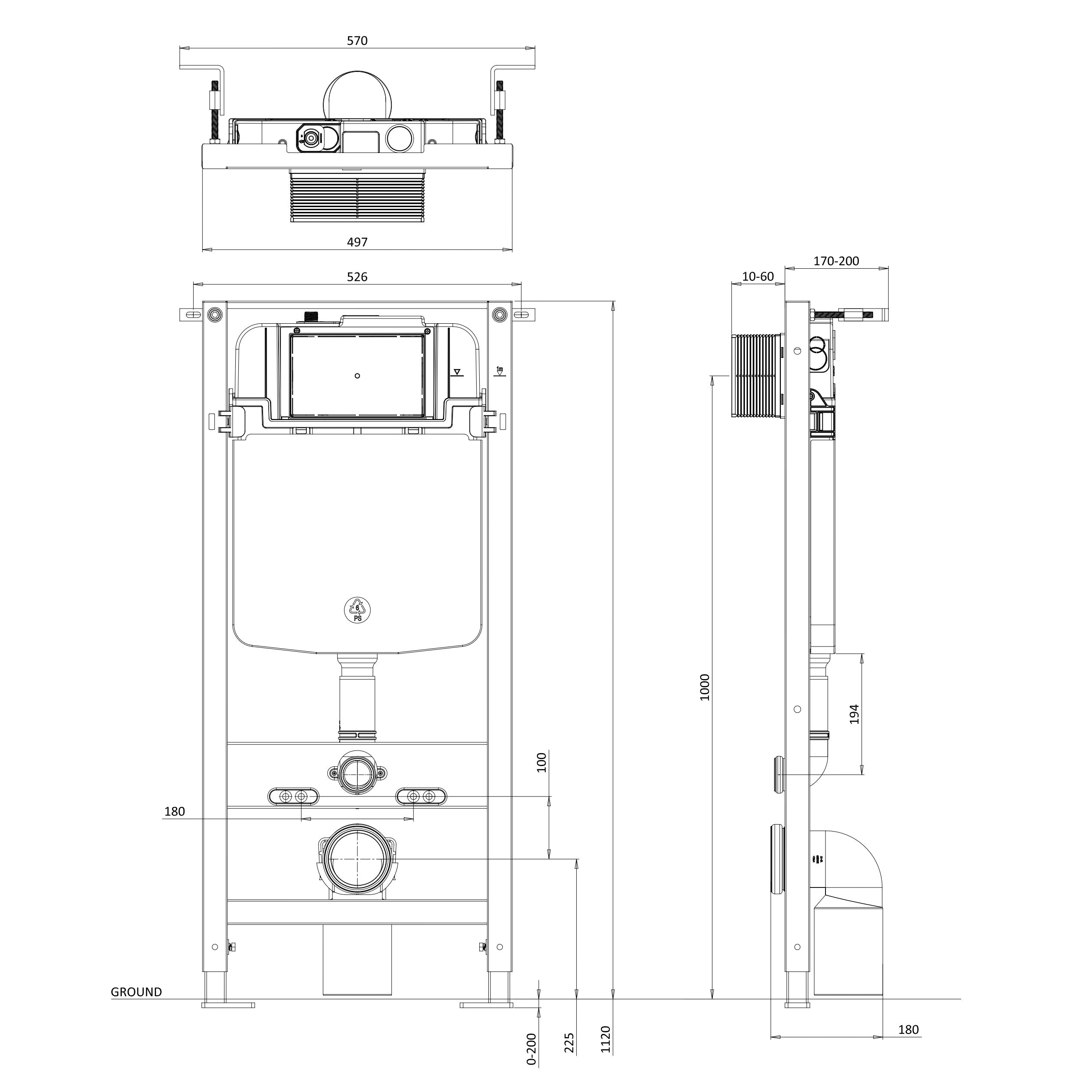

Technical Drawing
- View Less
Product Information
The Crosswater Slim Depth Wall Hung Toilet Frame with Concealed Cistern offers a smart, space-saving solution for compact and contemporary bathrooms. Designed to support wall-hung toilets with strength and precision, this 1120mm-high frame is ideal for installations where depth is limited but reliability and style are essential. Crafted from durable, high-quality steel, the frame provides exceptional stability and long-lasting performance. The concealed cistern delivers powerful, efficient flushing while keeping all plumbing hidden behind the wall, maintaining a clean, modern appearance. Its dual flush mechanism allows you to choose between full and half flush options, helping to reduce water consumption and promote eco-friendly operation.
Engineered for easy installation, the frame features adjustable height and fixing points to suit a range of wall types and bathroom layouts. The slim-depth design makes it perfect for cloakrooms, ensuite bathrooms, or any area where space optimisation is key. Combining functionality with minimalist aesthetics, the Crosswater Slim Depth Wall Hung Toilet Frame with Concealed Cistern provides a sleek and reliable foundation for your wall-hung WC, ensuring lasting performance and visual harmony in any modern bathroom setting.
Specifications
- Guarantee: 5 Years
- Product Type: Wall Hung Toilet Frame
- Brand: Crosswater
- Style: Modern
- Mounting: Floor
- Material: Steel/Plastic
Special Features
- Front actuation
- Mechanical flush
- WRAS Approved product
- Dual flush 3/6L Volume
- All fittings included
- Noise Class: Group I
- Comes with Water-Saving Technology
- Providing Both 3 and 6 Litre Flush Capabilities when Installed with a Flush Plate
- Comes with Dual-Flush Concealed Cistern & Installation Kit
- For wall hung toilets with connection dimensions in accordance with EN 33.2011
- Large feet for easy rear fixing (specially designed for UK timber floor)
- Adjustable feet with rubber sound deadening pads
- Full UK specification to EN 14055 Class 2
- Maximum supply pressure 6 bar
- Please note this cistern is only compatible with the following flush plates, VENFLUSHC/B/F/V/T/BZ, MPROFLUSHC/B/F/V/T/BZ and MPROSPLATEC/B/F/V/T/BZ
Dimension
- Height: 1120mm
- Width: 497mm
Datasheet for Slim Depth Wall Hung Toilet Frame with Concealed Cistern
Assembling instruction for Slim Depth Wall Hung Toilet Frame with Concealed Cistern
Technical Drawing
- View Less
