Enhancing luxury within modern and traditional settings, our OPTIX 10 shower enclosures feature 10mm toughened glass for remarkable quality and unparalleled
performance. Available in three enclosure types and four striking colours, combine function and style effortlessly within your dream bathroom scheme.

Guarantee	Lifetime Guarantee
Crosswater Clear	As standard
Frame Finish	10mm toughened safety glass
Material	304 Stainless steel and brass components
Height	To top of the Profile 2000mm
Quality Approvals	BS EN 14428
Features	Smooth soft close open and closing Integrated self cleaning bottom rollers Reversible door for left or right hand entry Suitable for tray or tiled floors (wetroom) Stainless steel double handle Super clear PVC seals These sliders require a shower tray with a minimum ledge of 60mm

Shower Door Specifications:

Door Size	Door Opening	Door Adjustment
1200mm	476mm	1155–1185 (1170-1185 with side panel)
1400mm	576mm	1355–1385 (1370-1385 with side panel)
1500mm	626mm	1455–1485 (1470-1485 with side panel)
1700mm	626mm	1655–1685 (1670-1685 with side panel)

Side Panel Specifications:

Side Panel Size	Adjustment
800mm	765-790mm
900mm	865-890mm

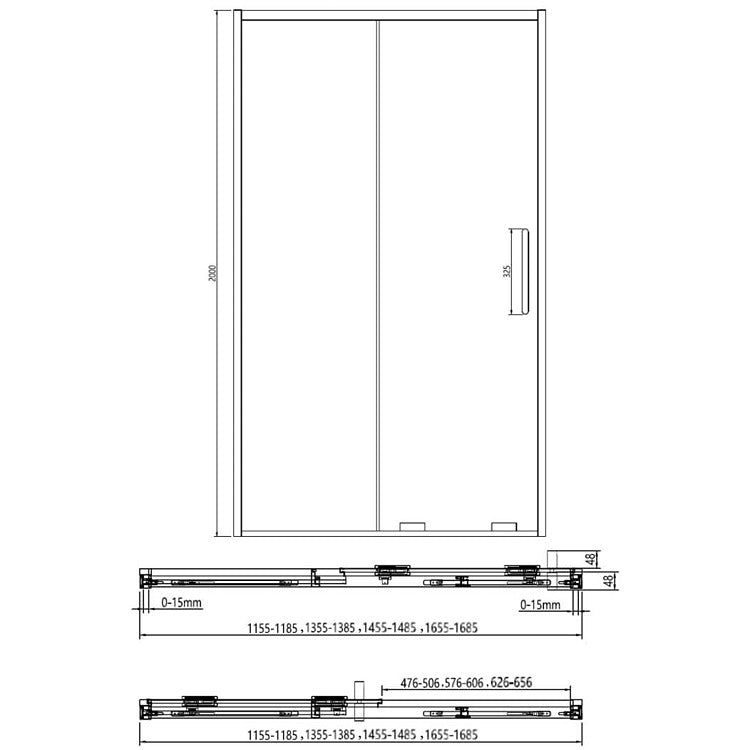

TECHNICAL DRAWING

Crosswater OPTIX 10 Single Sliding Shower Door with Side

Crosswater OPTIX 10 Single Sliding Shower Door with Side Panel
