Crosswater OPTIX 10 Pivot Shower Door with Inline Panel & Side Panel
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater OPTIX 10 pivot shower door with inline panel and side panel is a premium shower enclosure designed to deliver a striking modern look combined with exceptional strength and performance. With its clear glass and clean, architectural styling, it creates a bright, open showering space that suits contemporary bathrooms and luxury wetroom designs. Crafted from robust 10 mm toughened safety glass, this enclosure offers outstanding durability, stability and a high-end feel. The pivot door features flush-fit hinges for a smooth, streamlined appearance, while magnetic seals and super clear PVC seals ensure a secure, watertight closure. Supplied with the required bracing bar, fixed inline panel glass clamp and side panel glass clamp, the enclosure is engineered for strength and long-term reliability.
Designed for flexibility, the door is reversible for left or right-hand entry and suitable for installation on shower trays or tiled wetroom floors. A 25 mm adjustment allows easier fitting, even where walls are slightly uneven. Side panels are supplied with a prefitted closing profile, and the moving door must close against a side panel for correct installation. This enclosure requires a shower tray with a minimum ledge of 60mm. The OPTIX 10 range is manufactured to BS EN 14428 quality standards and features a stainless steel double handle and breakwater bar for added stability and water control. With a generous height of 2000 mm, it provides excellent splash protection and a spacious, luxurious showering experience. Backed by Crosswater’s lifetime guarantee, it combines cutting-edge design with dependable performance. Please note, handles are not included with the shower door and are available separately.
Specification
- Guarantee: Lifetime
- Product Type: Pivot Door Shower Enclosure
- Brand: Crosswater
- Collection: OPTIX 10
- Material: Glass
- Glass Finish: Clear
- Thickness: 10mm
- Glass Type: Toughened
- Style: Modern
Special Features
- 25mm adjustment for easy fitting
- Quality Approvals: BS EN 14428
- Supplied with required bracing bar and fixed inline panel glass clamp
- This shower enclosure requires a shower tray with a minimum ledge of 60mm.
- Side panels are supplied with required glass clamp and prefitted closing profile. The moving door must only close against a side panel
- Magnetic seal
- Flush-fit pivot hinges
- Reversible door for left or right hand entry
- Suitable for tray or tiled floors (wetroom)
- Stainless steel double handle
- Breakwater bar
- Super clear PVC seals
- Please note: Handles are not included with the shower door, available separately
Dimensions
- Height: 2000mm
Shower Door Specifications
| Door Size | Door Opening | Door Adjustment |
| 800mm | 500mm | 760-785 (770-795 with side panel) |
| 900mm | 500mm | 860-885 (870-895 with side panel) |
| 1000mm | 600mm | 960-985 (970-995 with side panel) |
| 1200mm | 650mm | 1160-1185 (1170-1195 with side panel) |
| 1400mm | 650mm | 1360-1385 (1370-1395 with side panel) |
Side Panel Specifications
| Panel Size | Adjustment |
| 800mm | 770-795mm |
| 900mm | 870-895mm |
Assembling instructions for Pivot Shower Door with Inline Panel & Side Panel

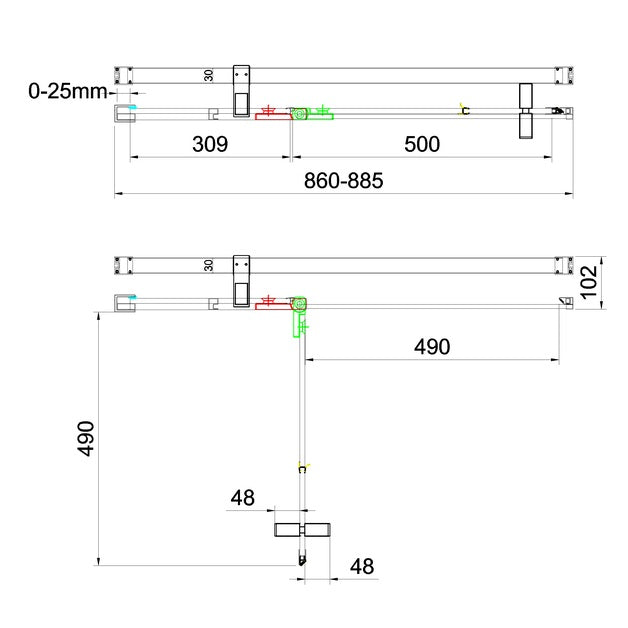

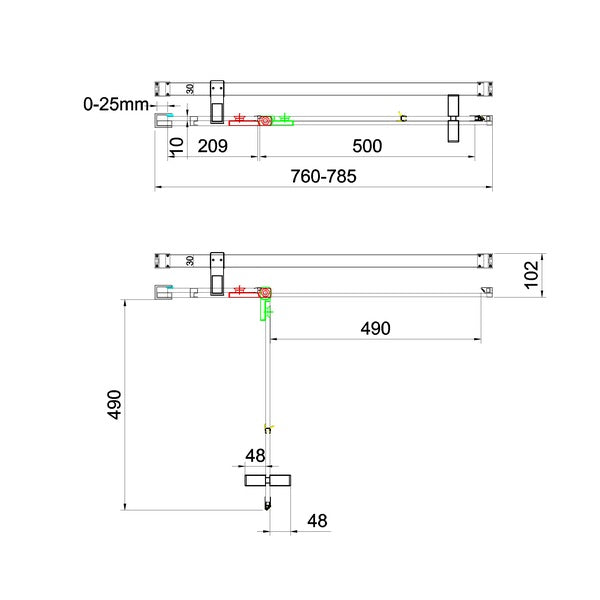

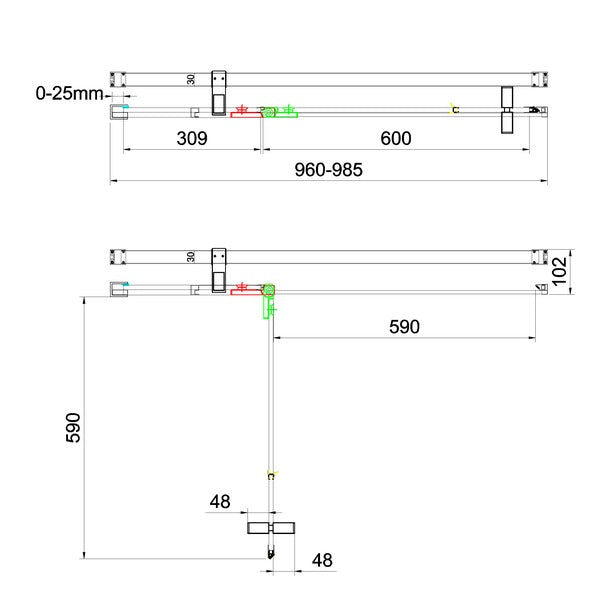

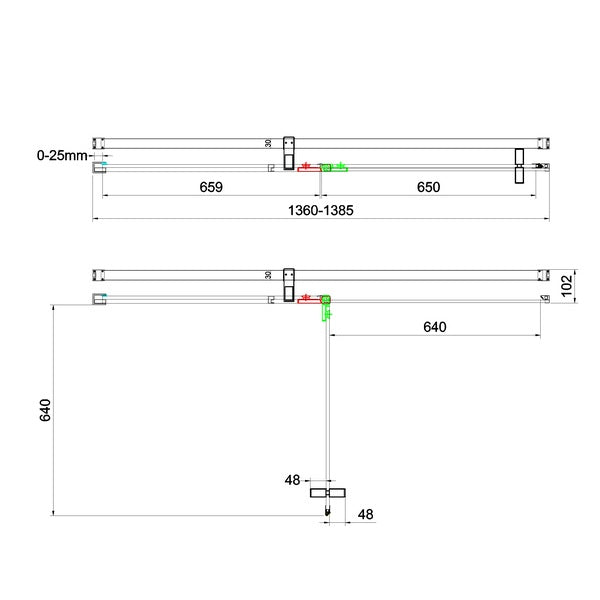

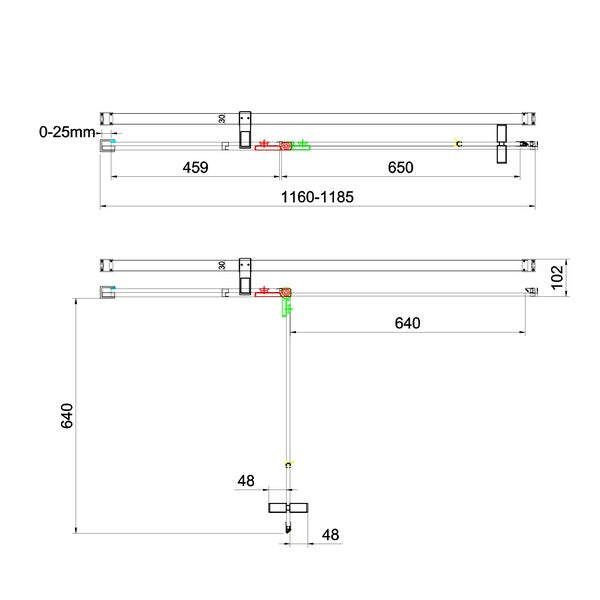

TECHNICAL DRAWING
- View Less
Product Information
The Crosswater OPTIX 10 pivot shower door with inline panel and side panel is a premium shower enclosure designed to deliver a striking modern look combined with exceptional strength and performance. With its clear glass and clean, architectural styling, it creates a bright, open showering space that suits contemporary bathrooms and luxury wetroom designs. Crafted from robust 10 mm toughened safety glass, this enclosure offers outstanding durability, stability and a high-end feel. The pivot door features flush-fit hinges for a smooth, streamlined appearance, while magnetic seals and super clear PVC seals ensure a secure, watertight closure. Supplied with the required bracing bar, fixed inline panel glass clamp and side panel glass clamp, the enclosure is engineered for strength and long-term reliability.
Designed for flexibility, the door is reversible for left or right-hand entry and suitable for installation on shower trays or tiled wetroom floors. A 25 mm adjustment allows easier fitting, even where walls are slightly uneven. Side panels are supplied with a prefitted closing profile, and the moving door must close against a side panel for correct installation. This enclosure requires a shower tray with a minimum ledge of 60mm. The OPTIX 10 range is manufactured to BS EN 14428 quality standards and features a stainless steel double handle and breakwater bar for added stability and water control. With a generous height of 2000 mm, it provides excellent splash protection and a spacious, luxurious showering experience. Backed by Crosswater’s lifetime guarantee, it combines cutting-edge design with dependable performance. Please note, handles are not included with the shower door and are available separately.
Specification
- Guarantee: Lifetime
- Product Type: Pivot Door Shower Enclosure
- Brand: Crosswater
- Collection: OPTIX 10
- Material: Glass
- Glass Finish: Clear
- Thickness: 10mm
- Glass Type: Toughened
- Style: Modern
Special Features
- 25mm adjustment for easy fitting
- Quality Approvals: BS EN 14428
- Supplied with required bracing bar and fixed inline panel glass clamp
- This shower enclosure requires a shower tray with a minimum ledge of 60mm.
- Side panels are supplied with required glass clamp and prefitted closing profile. The moving door must only close against a side panel
- Magnetic seal
- Flush-fit pivot hinges
- Reversible door for left or right hand entry
- Suitable for tray or tiled floors (wetroom)
- Stainless steel double handle
- Breakwater bar
- Super clear PVC seals
- Please note: Handles are not included with the shower door, available separately
Dimensions
- Height: 2000mm
Shower Door Specifications
| Door Size | Door Opening | Door Adjustment |
| 800mm | 500mm | 760-785 (770-795 with side panel) |
| 900mm | 500mm | 860-885 (870-895 with side panel) |
| 1000mm | 600mm | 960-985 (970-995 with side panel) |
| 1200mm | 650mm | 1160-1185 (1170-1195 with side panel) |
| 1400mm | 650mm | 1360-1385 (1370-1395 with side panel) |
Side Panel Specifications
| Panel Size | Adjustment |
| 800mm | 770-795mm |
| 900mm | 870-895mm |
Assembling instructions for Pivot Shower Door with Inline Panel & Side Panel
TECHNICAL DRAWING
- View Less
