Crosswater MP3ONE6 3 Outlet Thermostatic Concealed Shower Valve With Crossbox
Order now for dispatch in approximately 4 weeks.
Product Information

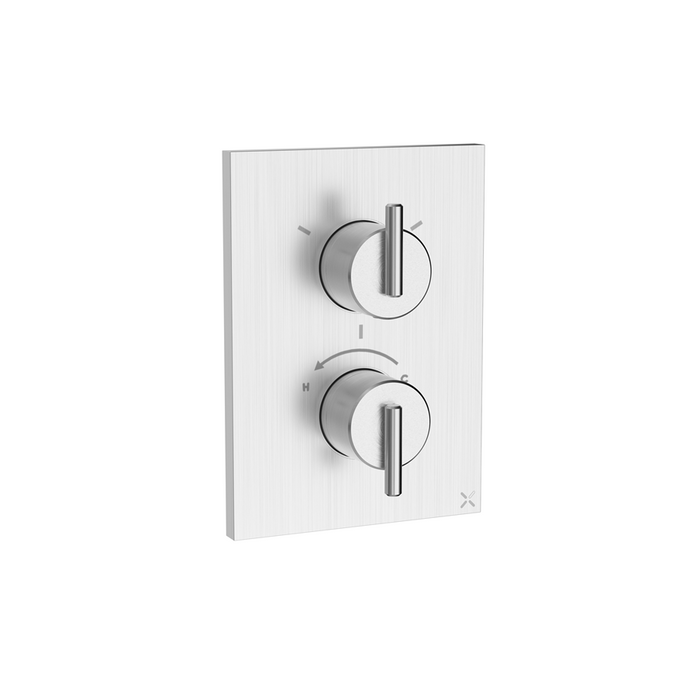

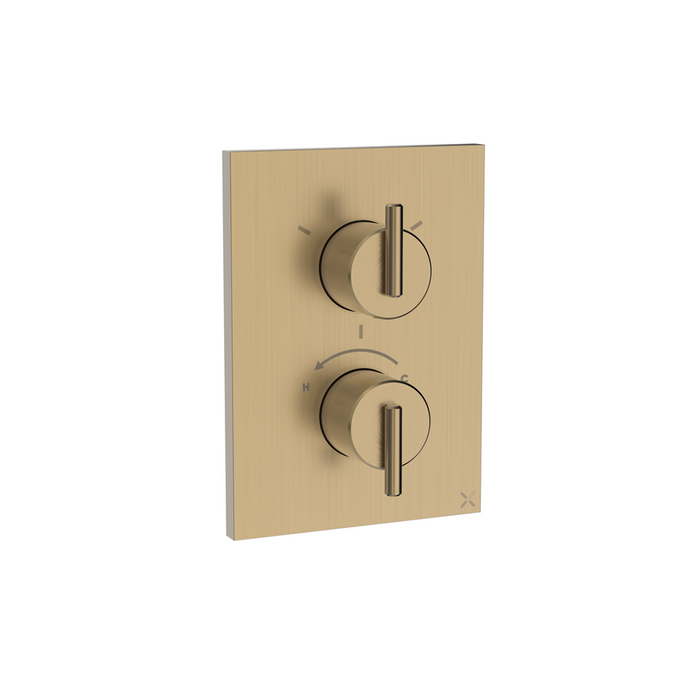

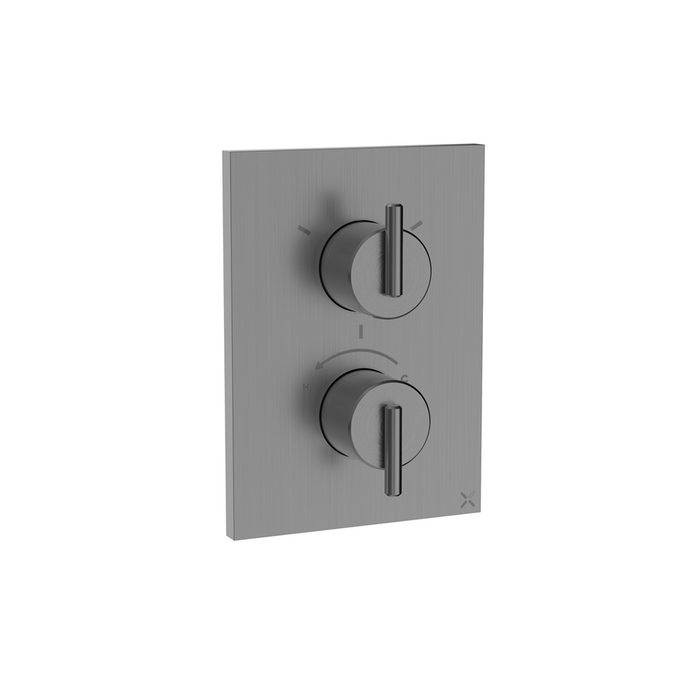

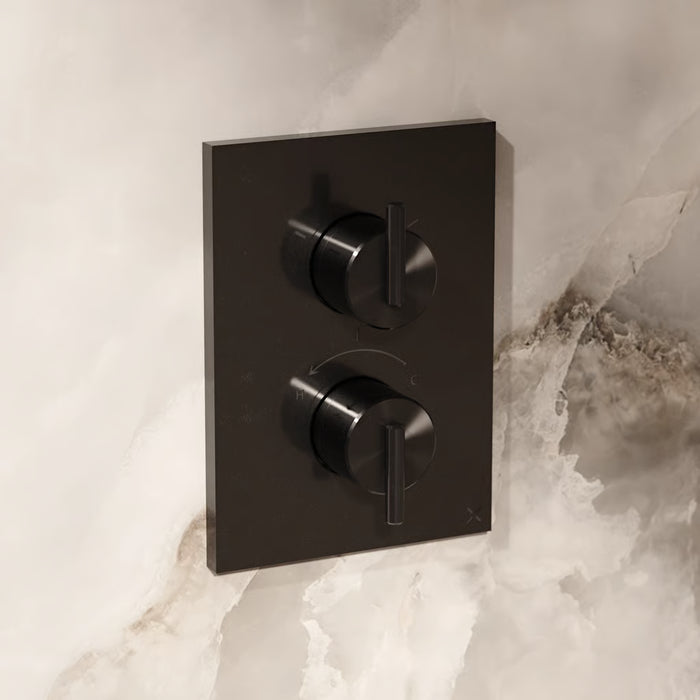

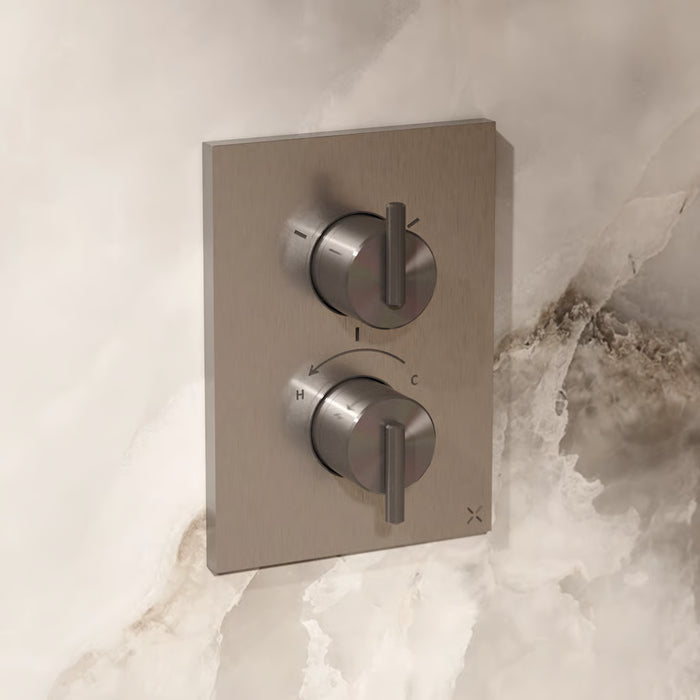

The Crosswater MP3ONE6 3 Outlet Thermostatic Concealed Shower Valve with Crossbox is an advanced solution for modern bathrooms, offering precise control and versatility. Designed for wall mounting, this sleek, rectangular valve is crafted from durable brass and features two lever handles for easy operation. Compatible with high-pressure systems (HP1), it supports three outlets, providing flexible showering options. The valve's super slim 60mm installation depth minimises wall preparation time, while the 'Easy-switch' thermostatic module allows for quick flow reversal. With a 'flush-block' testing plate and simple 2-stage fixing, installation is straightforward and efficient. The included Crossbox enhances installation flexibility and durability, all backed by a 15-year guarantee.
Specifications
- Guarantee: 15 Years
- Product Type: 3 Outlet Concealed Shower Valve
- Brand: Crosswater
- Collection: MP3ONE6
- Material: Brass
- Mounting: Wall
- Style: Modern
- Shape: Rectangular
- Handles: 2
- Handle Type: Lever
- Water Pressure: HP1
- Outlet: 3
- Min. water pressure 0.5 bar
- Max. water pressure 5.0 bar
Special Features
- Easy to Install and use
- Images shown are for illustration purposes only
- Super slim 60mm minimum installation depths requires reduced solid wall preparation for quicker installation time
- Front or rear mounting options increase ease installation and flexibility
- Simple 2 stage fixing allows installation of in-wall components and final trim separately reducing possible on site damage
- 'Flush-block' testing plate included for easy pressure testing
- Easy fix 2nd stage trim sets reduce installation times
- Built in, 'Easy-switch' thermostatic module allows for simple, quick flow reversal if feeds are plumbed in the wrong way round
- Improved flow dynamics allow 90-degree elbows to be fitted directly to outlets to create a more compact piping footprint
- Crossbox is Included
Dimensions
- Height: 180mm
- Width: 130mm
Datasheet Of 3 Outlet Trim set
Assembling Instructions Of 3 Outlet Trim set
Assembling Instructions Of Crossbox

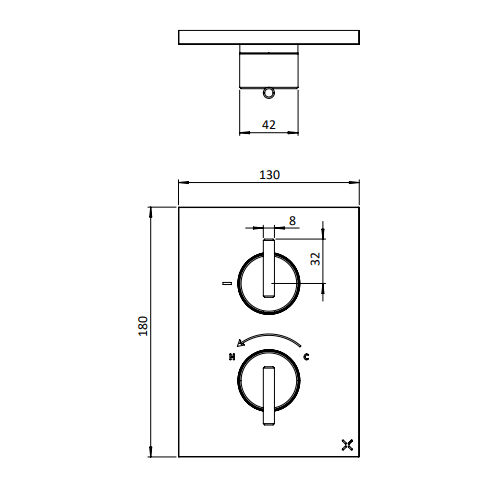

Technical Drawing
