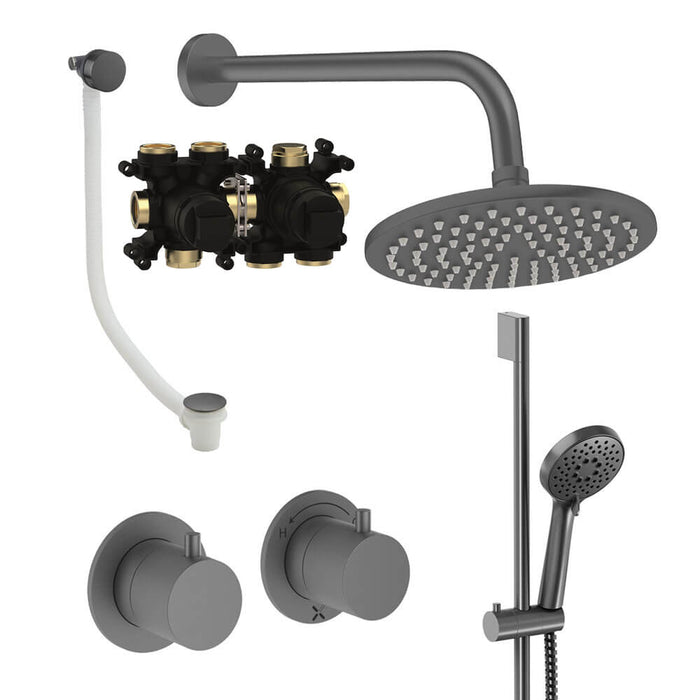

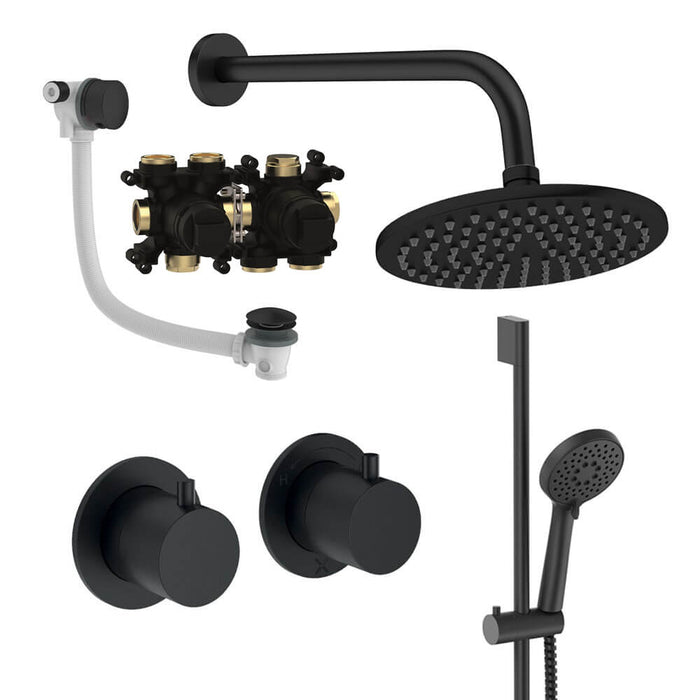

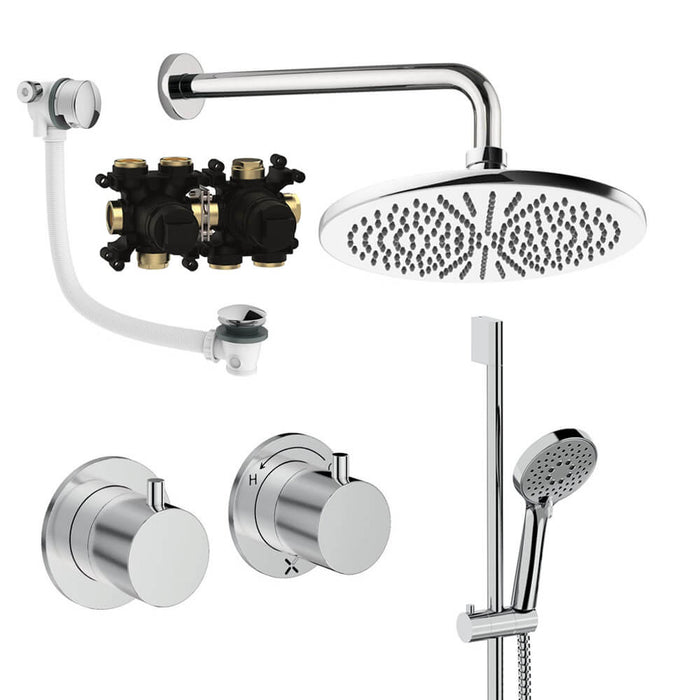

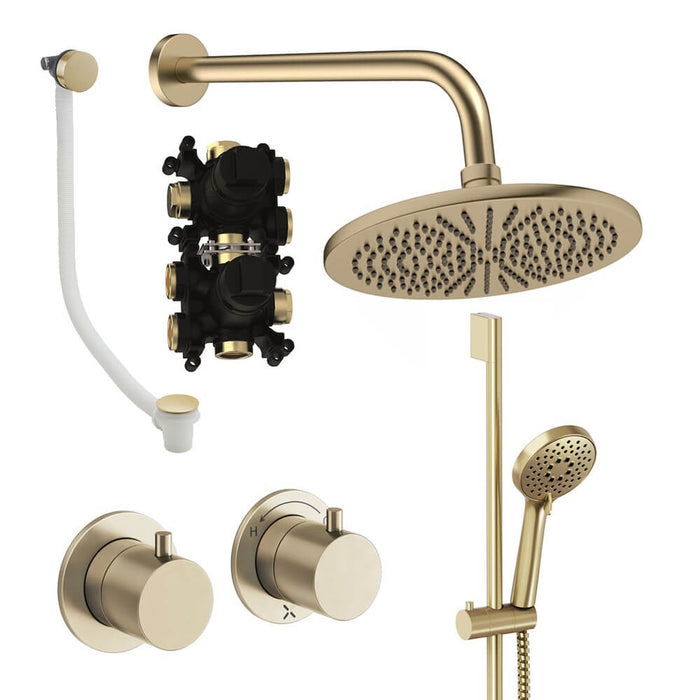

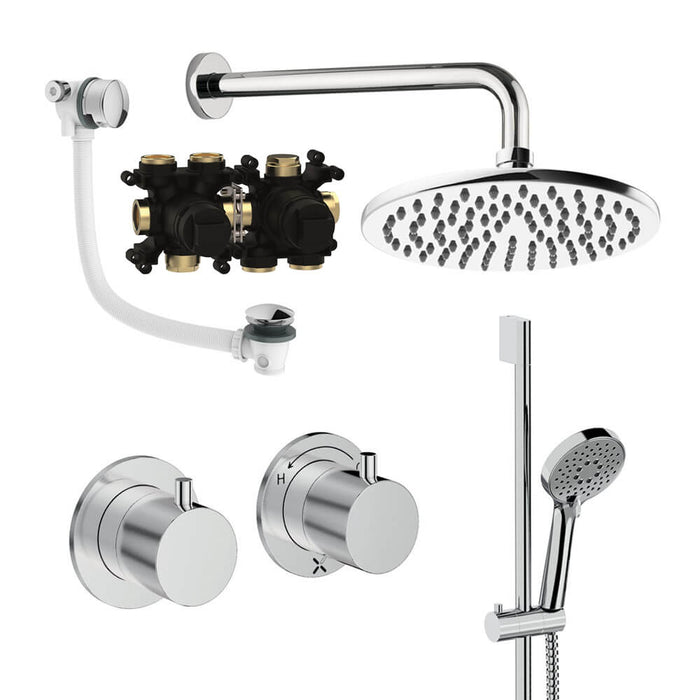

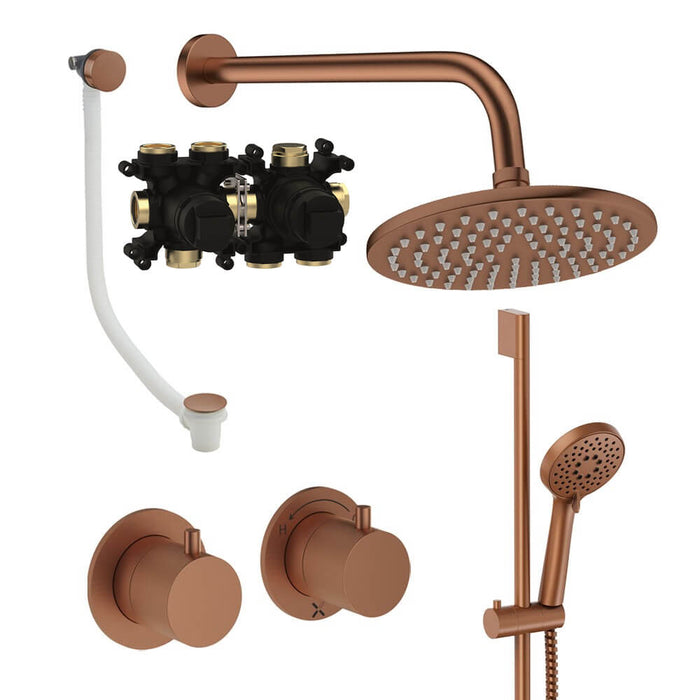

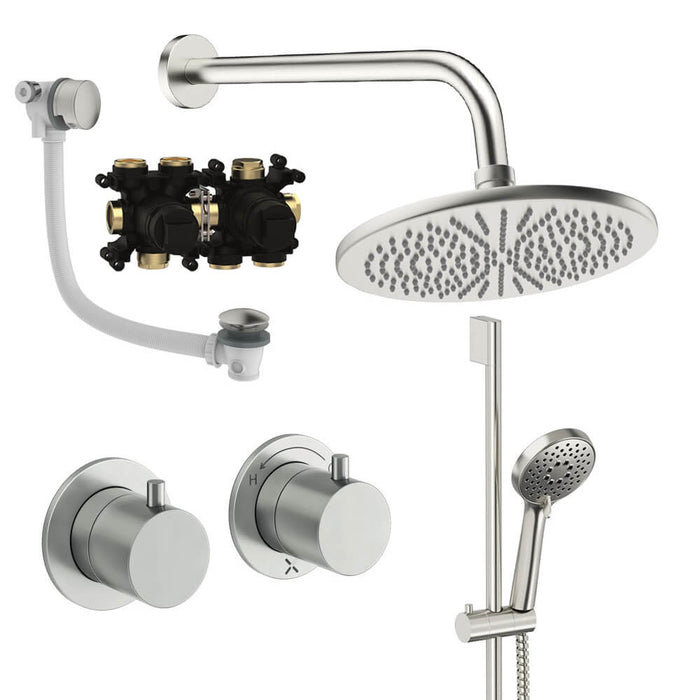

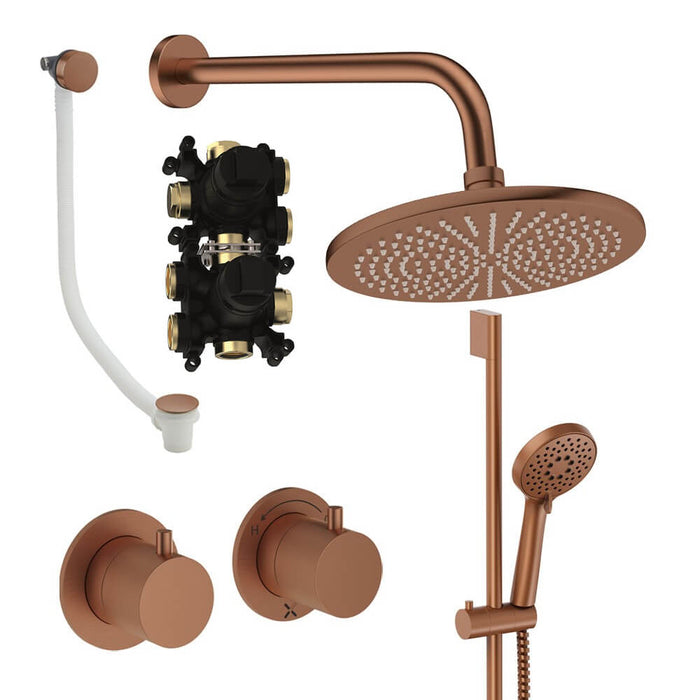

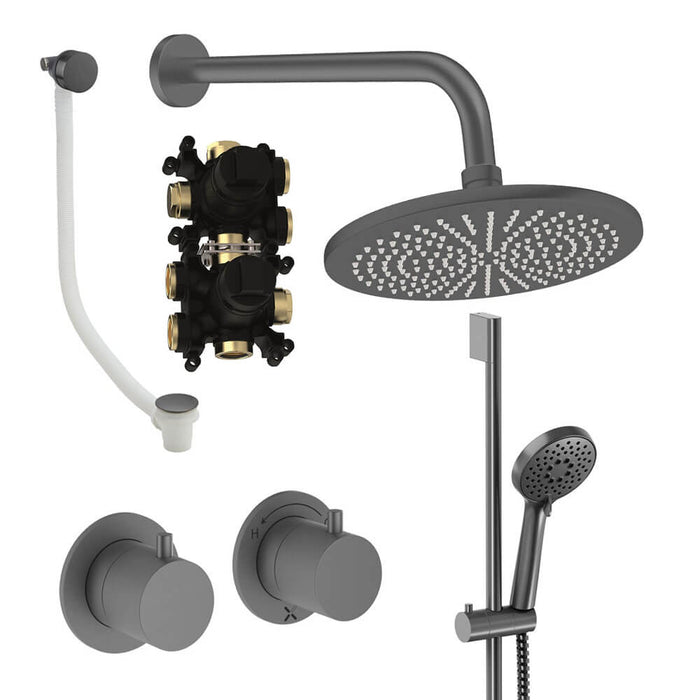

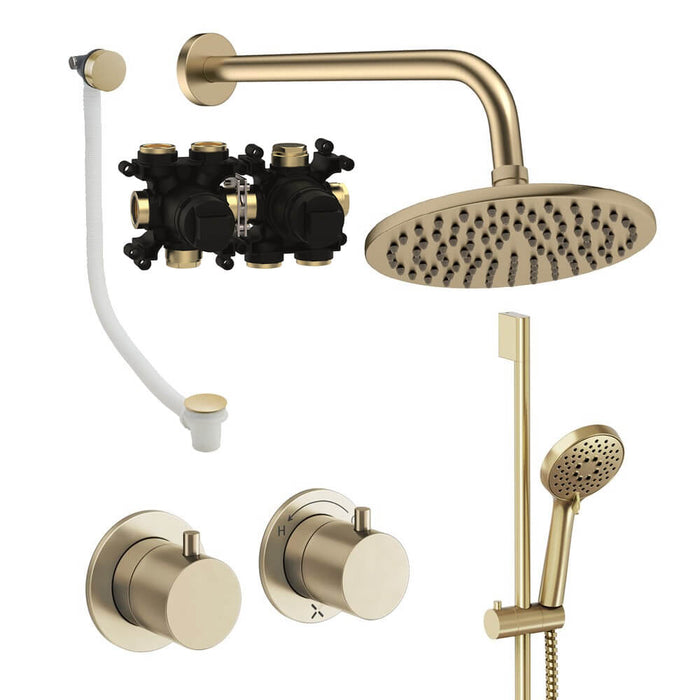

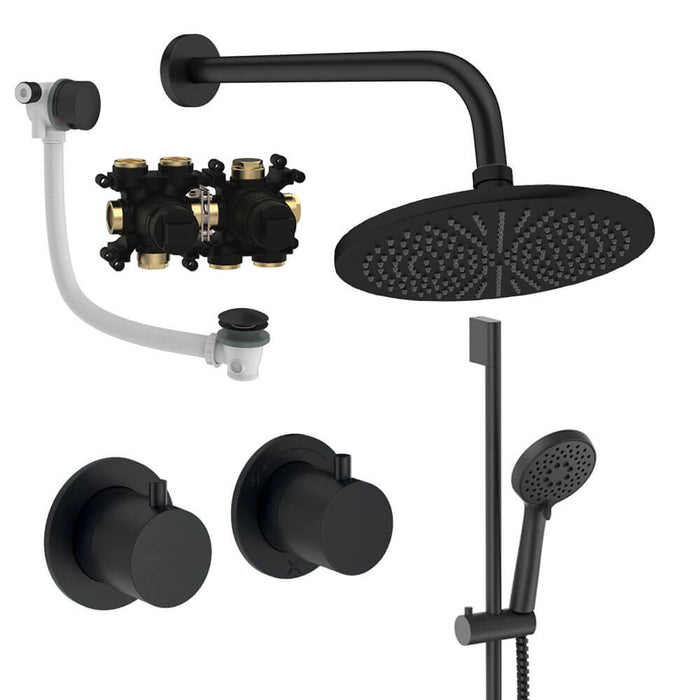

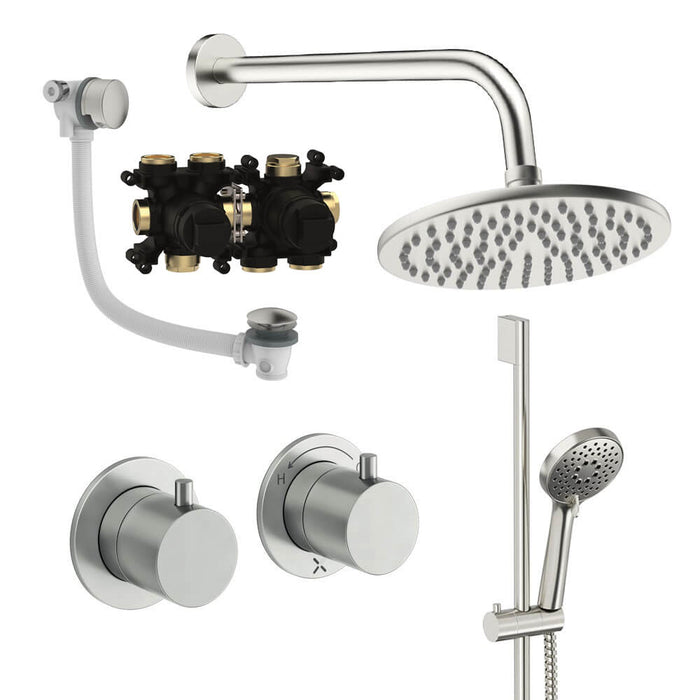

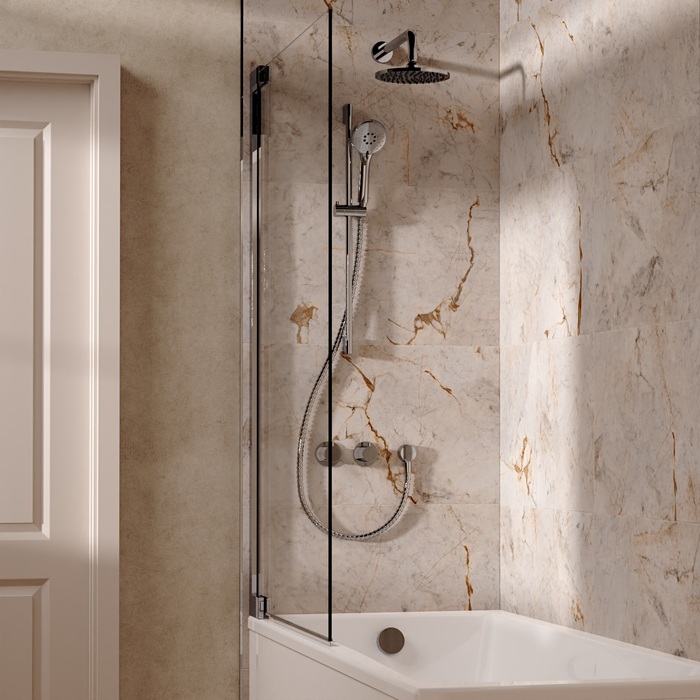

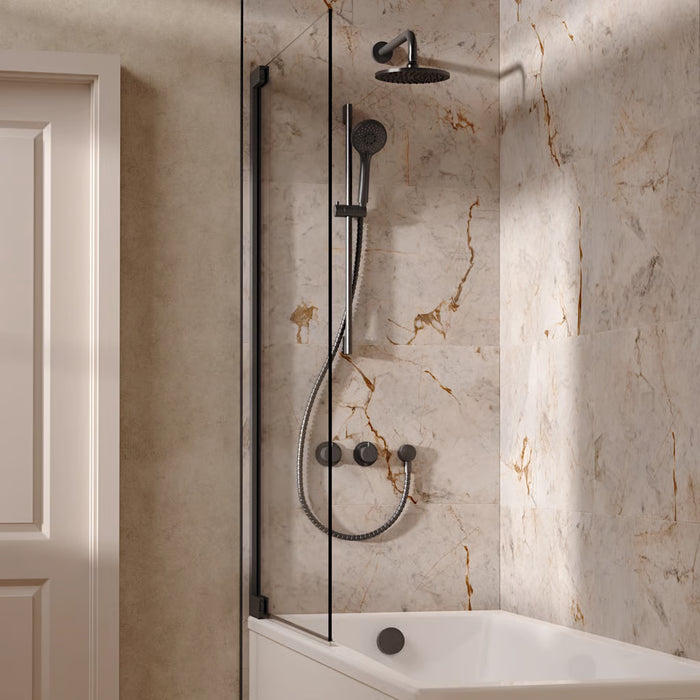

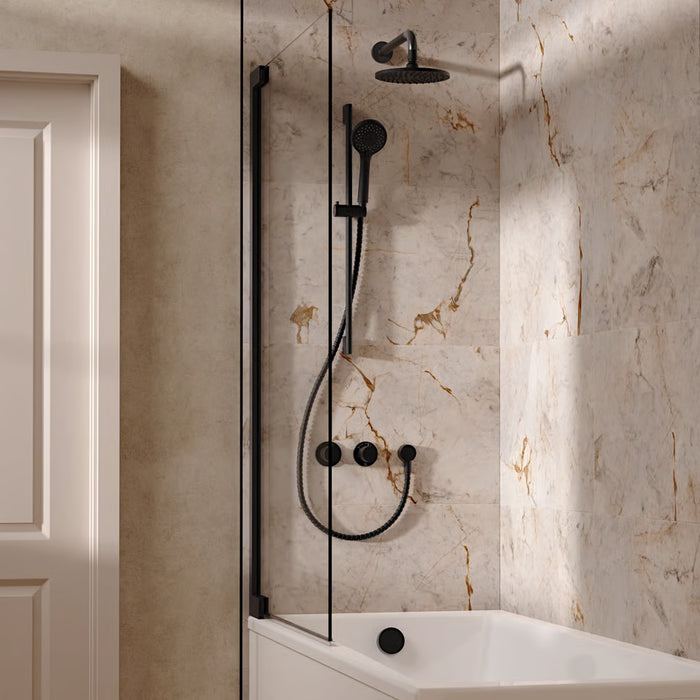

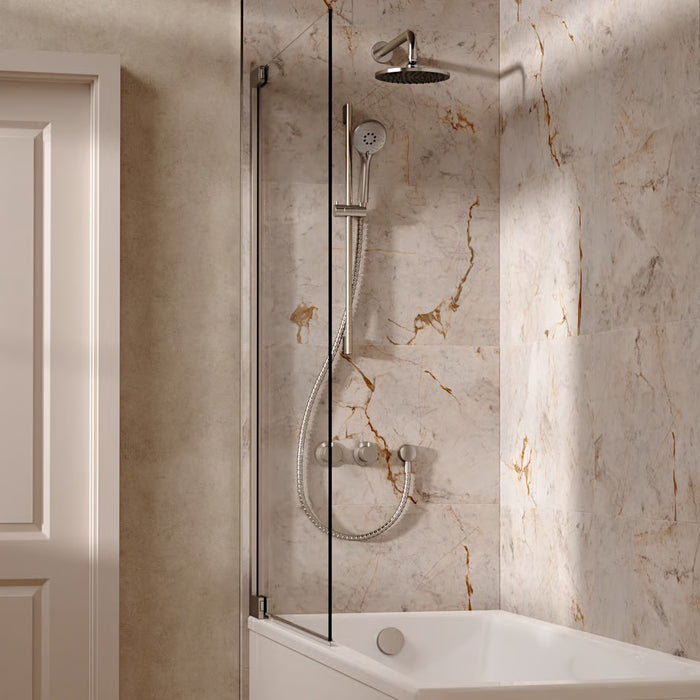

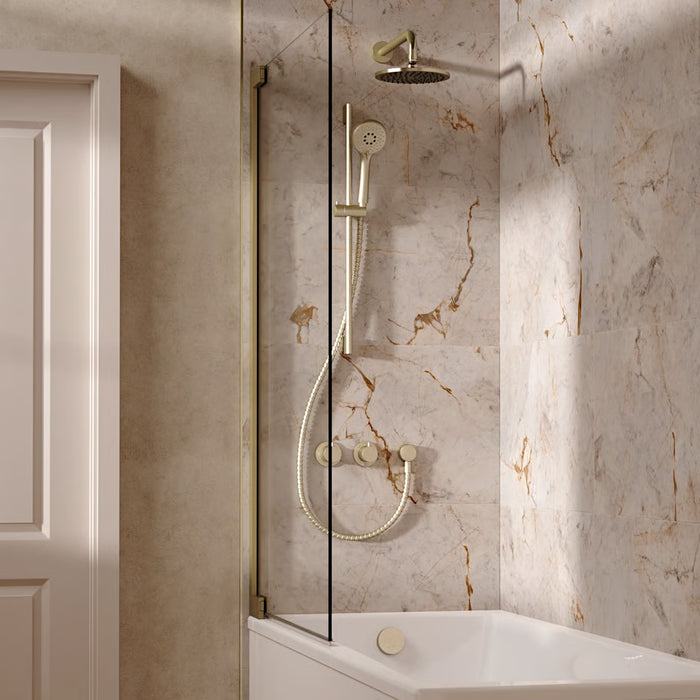

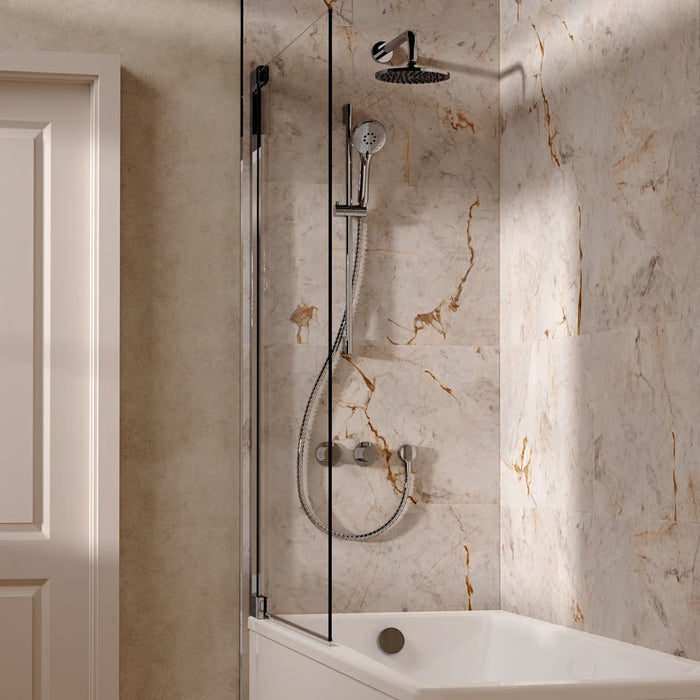

Crosswater Module 3 Outlet Shower Set 7
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Module Shower Set 7 is a premium shower and bath system designed to deliver exceptional performance, safety, and modern style. As part of the Crosswater Module collection, this set combines advanced thermostatic technology with high-quality materials to create a complete and versatile bathroom solution. Manufactured from durable brass components, the system is built for long-lasting reliability and is suitable for high water pressure systems operating between 1 and 5 bar. The set includes a 3-outlet thermostatic shower valve, a 2-control concealed trim set, a wall-mounted shower arm, a round fixed shower head, a slide rail shower kit with handset and hose, and a bath filler with click-clack waste. At the centre of the system is the thermostatic shower valve, designed to maintain consistent water temperature for comfort and safety. The valve measures 221mm in width, 141mm in depth, and 120mm in height and uses a thermo cartridge with integrated flow controls for precise operation. It features G3/4-inch inlet and outlet connections and complies with EN 1111:2017 standards. The valve is also KIWA approved, confirming its reliability and performance for high water pressure systems. The concealed trim set provides intuitive and convenient control over the shower system. Designed to meet EN 1111:2008 standards, it offers thermostatically controlled operation for enhanced safety. The easy-to-use multi-button design allows users to control water flow and select outlets with ease. It also allows multiple outlets to operate at the same time and enables users to keep their preferred temperature and flow settings ready for the next use. The wall-mounted shower arm measures 330mm in length and features G1/2-inch inlet and outlet connections. It is KIWA approved and compatible with all Crosswater fixed shower heads, providing a stable and stylish installation for the overhead shower.
The round fixed shower head offers a luxurious overhead showering experience. It features a slim profile with a head thickness of 5.8mm and connects via a G1/2-inch inlet. Both WRAS and KIWA approved, it is designed for high water pressure systems and requires a minimum operating pressure of 1 bar. For additional flexibility, the set includes a slide rail shower kit with handset, hose, and outlet elbow. The rail measures 111mm in width, 81mm in depth, and 698mm in height. The handset features three spray functions and wipe-clean nozzles for easy maintenance. It slides smoothly up and down the rail and can be twisted and locked into position for user comfort. The shower hose measures 1500mm in length and connects via a standard G1/2-inch inlet thread. Manufactured from brass and ABS materials, the system requires a minimum water pressure of 1 bar and delivers flow rates from 10.29 litres per minute at 1 bar up to 19.38 litres per minute at 5 bar. Completing the set is a bath filler with integrated click-clack waste. Measuring 1340mm in length with a projection of 44mm, it incorporates a 3-in-1 inlet, outlet, and overflow function. The click-clack waste allows easy operation by pressing with your foot, while the flexible overflow pipe simplifies installation, especially for baths with unusual shapes. The waste outlet connection uses a G1½-inch thread and is ideal for shower and bath combination setups. For smooth performance, a minimum water pressure of 0.5 bar is recommended. Backed by a 15-year warranty, the Crosswater Module Shower Set 7 combines advanced engineering, modern design, and dependable performance, making it a perfect choice for contemporary bathroom installations.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Module
- Style: Modern
- Material: Brass
- Outlets: 3
- Minimum Operating Water Pressure: 1 Bar
- Maximum Operating Water Pressure: 5 Bar
Special Features:
- Shower Set Includes - 3 Outlet Thermostatic Shower Valve, 2 Control Concealed Trim Set, Wall-Mounted Shower Arm, Round Fixed Shower Head, Shower Handset with Wall Outlet and Hose, Bath Filler with Click Clack Waste
Details of Thermostatic Shower Valve:
- Number of Functions: 2
- KIWA Approved Product
- Size: 221mm x 141mm x 120mm [Width x Depth x Height]
- Standards: EN 1111:2017
- Headwork: Thermo Cartridge, Flow Controls
- Inlet and Outlet Connections Thread: G 3/4 inch
- Suitable for High Water Pressure System
Details of Trimset:
- Standard: EN 1111:2008
- Thermostatically-Controlled for 100% Safety
- Easy-to-Use without the Need for a Lever
- Enjoy Water from Multiple Outlets at the Same Time
- Easy-to-Use Multi-Button Design for Full Control
- Allows You to Leave Temperature and Flow Controls in Place, Ready for the Next Use
Details of Wall-Mounted Shower Arm:
- KIWA Approved
- Style: Modern
- Length: 330mm
- Inlet/Outlet connection: G 1/2 Inch
- Suitable for All Crosswater Fixed Heads
Details of Wall-Mounted Shower Head:
- WRAS and KIWA Approved
- Style: Round
- Head thickness: 5.8mm
- Inlet Connection: G1/2 Inch
- Suitable for High Water Pressure System
- Requires a Minimum of 1.0 Bar or Above Water Pressure

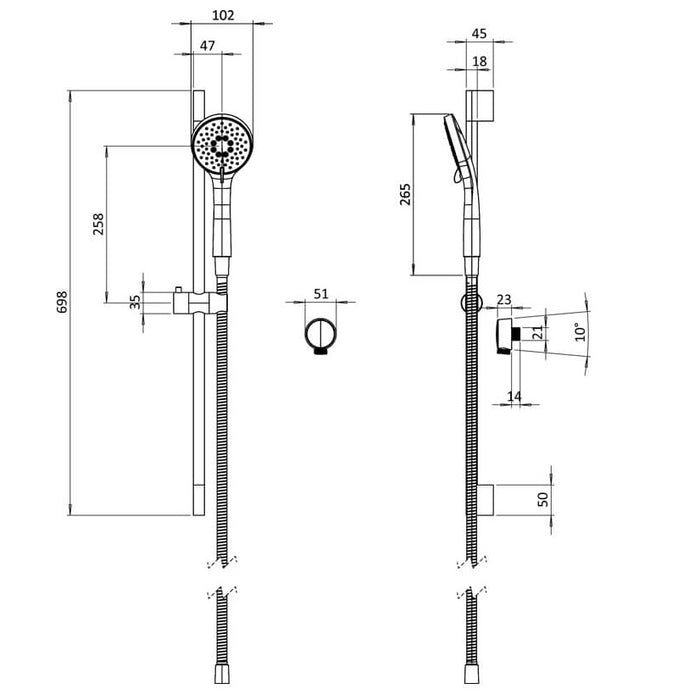

Details of Shower Handset with Wall Outlet and Hose:
- WRAS Approved
- Slide Rail with Shower Kit and Outlet Elbow
- Size: 111mm x 81mm x 698mm [Width x Depth x Height]
- Wipe Clean Nozzles
- Hose Length: 1500mm
- 3-Functions Shower Handset
- Slides Up and Down, Twist and Lock
- Inlet Connection Thread: G1/2-Inch
- Manufactured from Brass and ABS Material
- Requires a Minimum of 1 Bar of Water Pressure
- Flow Rate: 1Bar: 10.29, 2Bar: 13.26, 3Bar: 15.18, 4Bar: 17.76, 5Bar: 19.38
Details of Bath Filler with Click Clack Waste:
- Length: 1340mm
- Projection: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Smooth and Simple Cable Waste Operation or Click-Clack Waste - Press with Your Foot
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- Ideal for Shower and Bath Combinations
- Outlet Connections Thread Waste/Trap: G 1.1/2
- Suitable for Medium Water Pressure Systems
- Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar
Assembling instruction for Trimset
Assembling instruction for 200mm Shower Head
Assembling instruction for 300mm Shower Head
Assembling instruction for Shower Kit
Assembling instruction for Bath Filler Waste
Datasheet for 200mm Shower Head
Datasheet for 300mm Shower Head
Datasheet for Bath Filler Waste
- View Less
