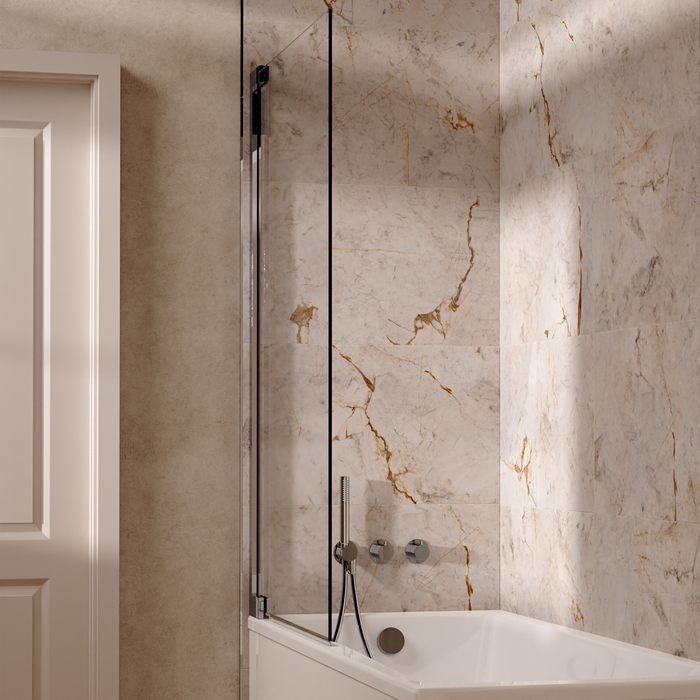

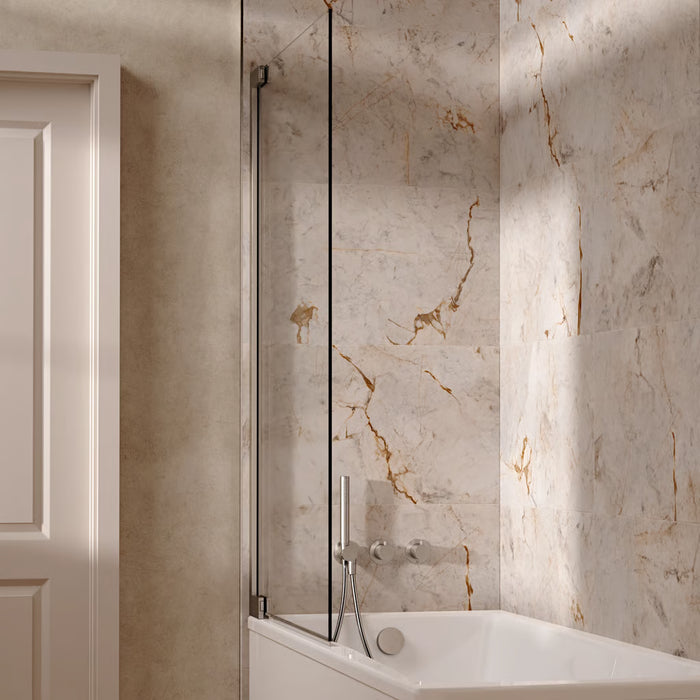

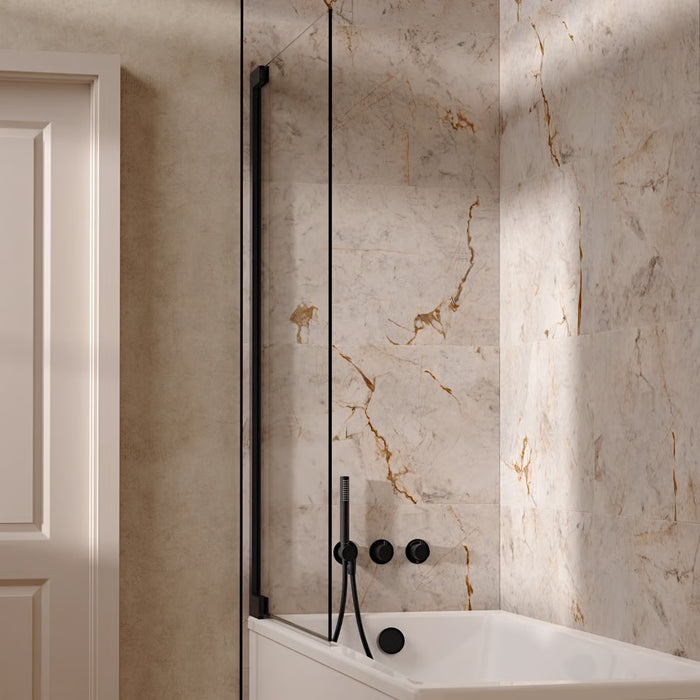

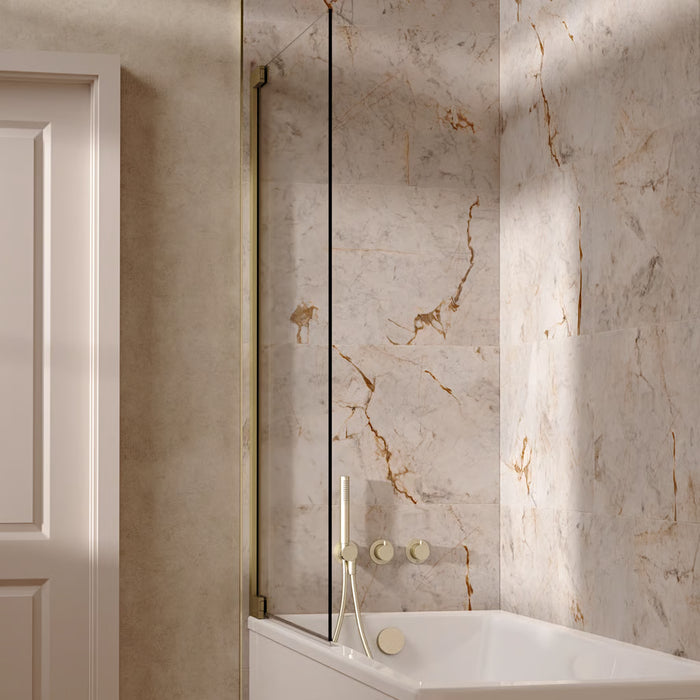

Crosswater Module Shower Set 5 with Handset & Bath Filler
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Module Shower Set 5 is a versatile and modern shower and bath solution designed to bring both functionality and contemporary style to your bathroom. Part of the Crosswater Module collection, this system combines advanced thermostatic technology with practical features to deliver a safe and comfortable showering and bathing experience. Constructed from high-quality brass, the set is designed for durability and reliable performance. Suitable for high water pressure systems, it operates efficiently within a pressure range of 1 to 5 bar. The set includes a concealed thermostatic shower valve with handset, a two-outlet valve for bath spout or hand shower use, and a bath filler with click-clack waste, making it ideal for bathrooms that combine showering and bathing functions. At the centre of the system is the concealed thermostatic shower valve, designed to maintain consistent water temperature and provide safe operation. The valve measures 296mm in width, 141mm in depth, and 119mm in height and features a thermo cartridge with integrated flow controls for precise adjustment of water temperature and flow. An anti-scald safety feature helps protect users from sudden temperature fluctuations. The valve uses G3/4-inch inlet and outlet connections and complies with EN 1111:2017 standards. It is also KIWA approved, ensuring dependable performance and quality. The two-handle shower valve and handset provide convenient shower control and flexibility. The thermostatic system allows accurate temperature adjustment, while the trim set has a diameter of 70mm and a spout height of 185mm. Manufactured in accordance with EN 1111:2008 standards, the design ensures reliable operation and ease of use.
Completing the set is a bath filler with integrated click-clack waste system. Measuring 1340mm in length with a projection of 44mm, it features a 3-in-1 inlet, outlet, and overflow function. The click-clack waste allows simple operation by pressing with your foot, while the cable waste system ensures smooth and efficient drainage. The flexible overflow pipe makes installation easier, particularly in baths with unusual shapes. The waste outlet connection uses a G 1½-inch thread and is ideal for shower and bath combination setups. Backed by a 15-year warranty, the Crosswater Module Shower Set 5 offers dependable engineering, modern aesthetics, and versatile functionality, making it an excellent choice for contemporary bathroom installations.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Module
- Style: Modern
- Material: Brass
- Outlets: 2
- Minimum Operating Water Pressure: 1 Bar
- Maximum Operating Water Pressure: 5 Bar
Special Features:
- Shower Set Includes - Concealed Thermostatic Shower Valve with Handset, 2 Outlet Valve With Outlet For Bath Spout Or Handshower, Bath Filler with Click-Clack Waste
- Suitable for High Water Pressure System
- Thermostatic temperature control
Details of Thermostatic Shower Valve:
- Anti-Scald: Yes
- KIWA Approved
- Size: 296mm x 141mm x 119mm [Width x Depth x Height]
- Standards: EN 1111:2017
- Headwork: Thermo Cartridge, Flow Controls
- Inlet and Outlet Connections Thread: G 3/4 inch
Details of 2 Handle Shower Valve & Handset:
- Thermo Type: Thermostatic
- Diameter of Trim-Set: Ø70mm
- Spout Height: 185mm
- Standards: EN 1111:2008
Details of Bath Filler with Click Clack Waste:
- Length: 1340mm
- Projection: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Smooth and Simple Cable Waste Operation or Click-Clack Waste - Press with Your Foot
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- Ideal for Shower and Bath Combinations
- Outlet Connections Thread Waste/Trap: G 1.1/2
Assembling instruction for Bath Filler Waste
Assembling instruction for Trimset
Datasheet for Bath Filler Waste
Datasheet for Trimset and Shower Handset
Technical Drawing
Shower Valve

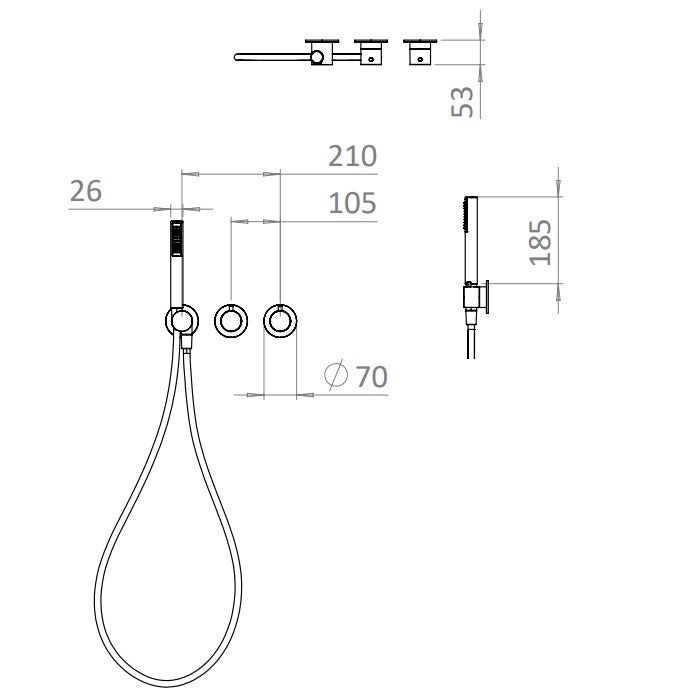

Shower Valve & Handset

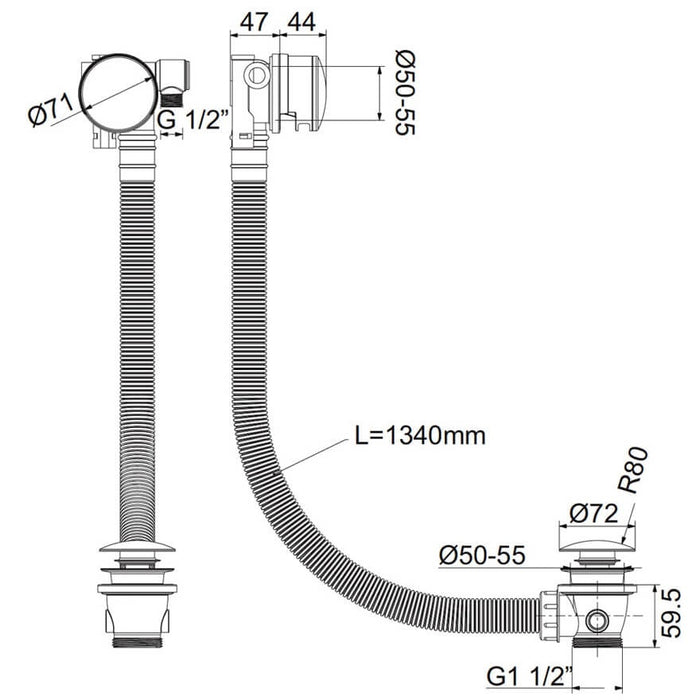

Bath Filler with Click Clack Waste
- View Less
Product Information
The Crosswater Module Shower Set 5 is a versatile and modern shower and bath solution designed to bring both functionality and contemporary style to your bathroom. Part of the Crosswater Module collection, this system combines advanced thermostatic technology with practical features to deliver a safe and comfortable showering and bathing experience. Constructed from high-quality brass, the set is designed for durability and reliable performance. Suitable for high water pressure systems, it operates efficiently within a pressure range of 1 to 5 bar. The set includes a concealed thermostatic shower valve with handset, a two-outlet valve for bath spout or hand shower use, and a bath filler with click-clack waste, making it ideal for bathrooms that combine showering and bathing functions. At the centre of the system is the concealed thermostatic shower valve, designed to maintain consistent water temperature and provide safe operation. The valve measures 296mm in width, 141mm in depth, and 119mm in height and features a thermo cartridge with integrated flow controls for precise adjustment of water temperature and flow. An anti-scald safety feature helps protect users from sudden temperature fluctuations. The valve uses G3/4-inch inlet and outlet connections and complies with EN 1111:2017 standards. It is also KIWA approved, ensuring dependable performance and quality. The two-handle shower valve and handset provide convenient shower control and flexibility. The thermostatic system allows accurate temperature adjustment, while the trim set has a diameter of 70mm and a spout height of 185mm. Manufactured in accordance with EN 1111:2008 standards, the design ensures reliable operation and ease of use.
Completing the set is a bath filler with integrated click-clack waste system. Measuring 1340mm in length with a projection of 44mm, it features a 3-in-1 inlet, outlet, and overflow function. The click-clack waste allows simple operation by pressing with your foot, while the cable waste system ensures smooth and efficient drainage. The flexible overflow pipe makes installation easier, particularly in baths with unusual shapes. The waste outlet connection uses a G 1½-inch thread and is ideal for shower and bath combination setups. Backed by a 15-year warranty, the Crosswater Module Shower Set 5 offers dependable engineering, modern aesthetics, and versatile functionality, making it an excellent choice for contemporary bathroom installations.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Module
- Style: Modern
- Material: Brass
- Outlets: 2
- Minimum Operating Water Pressure: 1 Bar
- Maximum Operating Water Pressure: 5 Bar
Special Features:
- Shower Set Includes - Concealed Thermostatic Shower Valve with Handset, 2 Outlet Valve With Outlet For Bath Spout Or Handshower, Bath Filler with Click-Clack Waste
- Suitable for High Water Pressure System
- Thermostatic temperature control
Details of Thermostatic Shower Valve:
- Anti-Scald: Yes
- KIWA Approved
- Size: 296mm x 141mm x 119mm [Width x Depth x Height]
- Standards: EN 1111:2017
- Headwork: Thermo Cartridge, Flow Controls
- Inlet and Outlet Connections Thread: G 3/4 inch
Details of 2 Handle Shower Valve & Handset:
- Thermo Type: Thermostatic
- Diameter of Trim-Set: Ø70mm
- Spout Height: 185mm
- Standards: EN 1111:2008
Details of Bath Filler with Click Clack Waste:
- Length: 1340mm
- Projection: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Smooth and Simple Cable Waste Operation or Click-Clack Waste - Press with Your Foot
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- Ideal for Shower and Bath Combinations
- Outlet Connections Thread Waste/Trap: G 1.1/2
Assembling instruction for Bath Filler Waste
Assembling instruction for Trimset
Datasheet for Bath Filler Waste
Datasheet for Trimset and Shower Handset
Technical Drawing
Shower Valve
Shower Valve & Handset
Bath Filler with Click Clack Waste
- View Less
