Crosswater Limit 1 Outlet Thermostatic Concealed Shower Valve With Crossbox
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Limit 1 Outlet Thermostatic Concealed Shower Valve with Crossbox is a sleek and modern solution for single-outlet shower setups, combining functionality with minimalist design. Made from durable brass and weighing 2.12kg, it features two knob-style handles for precise thermostatic temperature control. Suitable for wall mounting, it operates efficiently between 1.0 and 5.0 bar pressure with G1/2 inch inlet connections. Installation is streamlined with Easy fix trim sets, a built-in Easy-switch module for flow reversal, front or rear mounting flexibility, and a flush-block testing plate. It's ultra-slim 60mm depth allows for quicker installation and reduced wall preparation, and it comes complete with the Universal Crossbox.
Crosswater Limit - A beautiful exploration of shape, colour and texture
An award winning design style, the Limit collection emerges from the study of composition. The exploration of harmony between shape and texture results in a rejection of the ordinary. The fluidity of the grooves along the surface are limitless, with no beginning or end. Available across a selection of brassware and furniture, bring a daring expression of boldness to your bathroom design.
Specification
- Guarantee: 15 Years
- Product Type: Concealed Shower Valve
- Brand: Crosswater
- Collection: Limit
- Style: Modern
- Shape: Rectangular
- Mounting: Wall
- Material: Brass
- Weight: 2.12kg
- No Of Handle: 2
- Handle Style: Knob
- Outlet: 1
- Temperature Control: Thermostatic
- Inlet Connections: G1/2 Inch
- Minimum pressure: 1.0 Bar
- Maximum pressure: 5.0 Bar
Special Features
- Image is shown for illustration purpose only
- Easy fix 2nd stage trim sets reduce installation times
- Built-in, 'Easy-switch' thermostatic module allows for simple, quick flow reversal if feeds are plumbed in the wrong way round
- Front or rear mounting options increase ease of installation and flexibility
- Flush-block testing plate is included for easy pressure testing
- Super slim 60mm minimum installation depths require reduced solid wall preparation for quicker installation time.
- Comes with Universal Crossbox
Dimensions
- Height: 180mm
- Width: 130mm
- Depth: 59mm
Assembling Instructions Of Shower Valve
Assembling Instructions Of Crossbox

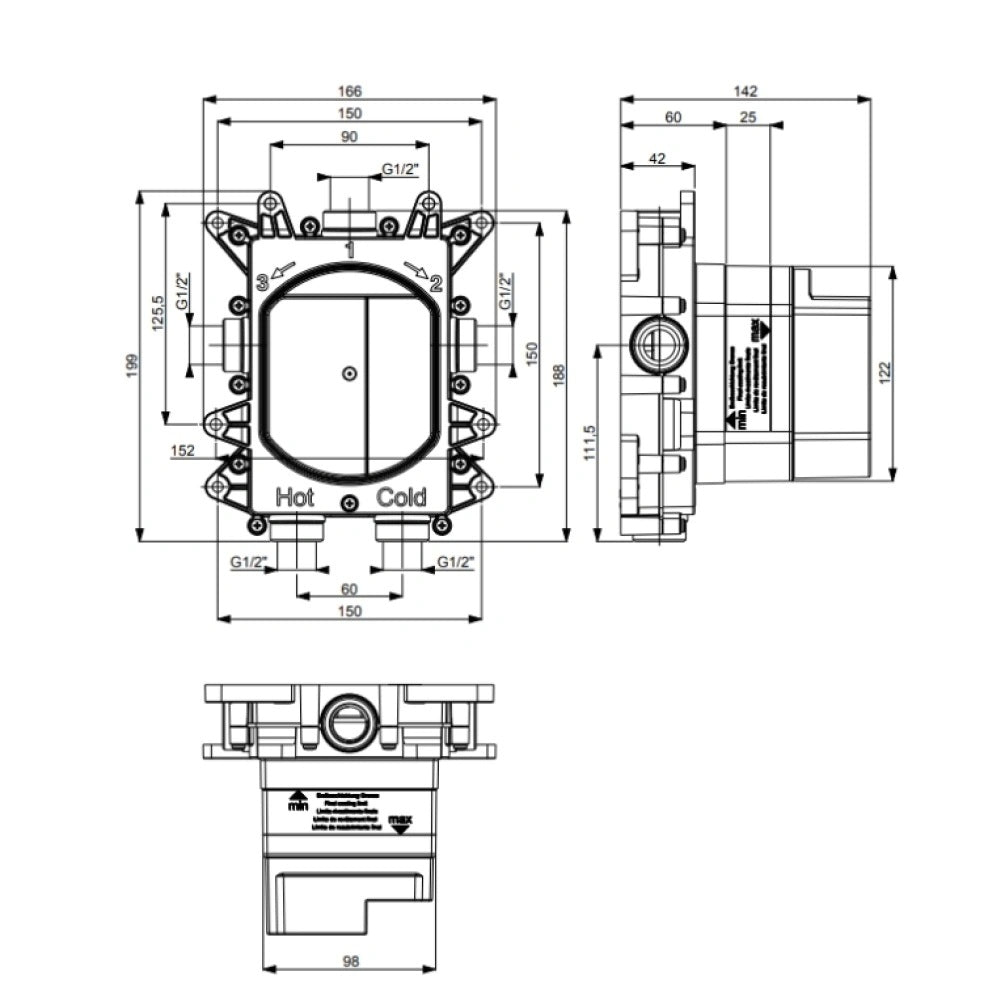

Technical Drawing
- View Less
Product Information
The Crosswater Limit 1 Outlet Thermostatic Concealed Shower Valve with Crossbox is a sleek and modern solution for single-outlet shower setups, combining functionality with minimalist design. Made from durable brass and weighing 2.12kg, it features two knob-style handles for precise thermostatic temperature control. Suitable for wall mounting, it operates efficiently between 1.0 and 5.0 bar pressure with G1/2 inch inlet connections. Installation is streamlined with Easy fix trim sets, a built-in Easy-switch module for flow reversal, front or rear mounting flexibility, and a flush-block testing plate. It's ultra-slim 60mm depth allows for quicker installation and reduced wall preparation, and it comes complete with the Universal Crossbox.
Crosswater Limit - A beautiful exploration of shape, colour and texture
An award winning design style, the Limit collection emerges from the study of composition. The exploration of harmony between shape and texture results in a rejection of the ordinary. The fluidity of the grooves along the surface are limitless, with no beginning or end. Available across a selection of brassware and furniture, bring a daring expression of boldness to your bathroom design.
Specification
- Guarantee: 15 Years
- Product Type: Concealed Shower Valve
- Brand: Crosswater
- Collection: Limit
- Style: Modern
- Shape: Rectangular
- Mounting: Wall
- Material: Brass
- Weight: 2.12kg
- No Of Handle: 2
- Handle Style: Knob
- Outlet: 1
- Temperature Control: Thermostatic
- Inlet Connections: G1/2 Inch
- Minimum pressure: 1.0 Bar
- Maximum pressure: 5.0 Bar
Special Features
- Image is shown for illustration purpose only
- Easy fix 2nd stage trim sets reduce installation times
- Built-in, 'Easy-switch' thermostatic module allows for simple, quick flow reversal if feeds are plumbed in the wrong way round
- Front or rear mounting options increase ease of installation and flexibility
- Flush-block testing plate is included for easy pressure testing
- Super slim 60mm minimum installation depths require reduced solid wall preparation for quicker installation time.
- Comes with Universal Crossbox
Dimensions
- Height: 180mm
- Width: 130mm
- Depth: 59mm
Assembling Instructions Of Shower Valve
Assembling Instructions Of Crossbox
Technical Drawing
- View Less
