Crosswater Fusion Dual Lever Deck Mounted Bath Filler Tap - Chrome
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Fusion Dual Lever Deck Mounted Bath Filler Tap combines modern design with functionality, featuring a polished chrome finish and round shape. Made from durable brass, it has two lever handles for precise control and a base-to-spout height of 51mm. Suitable for all plumbing systems, it operates smoothly between 0.2 to 5.0 bar water pressure with flow rates ranging from 20.5 to 89 Litres per minute. The tap includes quarter-turn ceramic disc headwork for reliability and WRAS approval for quality assurance. With inlet centres of 180mm and a G3/4-inch male tail connection, this elegant tap is easy to clean and maintain.
Specification
- Guarantee: 15 Years
- Product Type: Bath Filler Tap
- Brand: Crosswater
- Collection: Fusion
- Finish: Chrome
- Style: Modern
- Shape: Round
- Mounting: Deck
- Material: Brass
- Weight: 1.9kg
- Base To Spout: 51mm
- No Of Handle: 2
- Handle Style: Lever
- Tap Hole: 2
- Flow Rates: 0.2 Bar - 39 l/m
- Flow Rates: 0.5 Bar - 38.5 l/m
- Flow Rates: 1.0 Bar - 56 l/m
- Flow Rates: 3.0 Bar - 89 l/m
Special Features
- Images are shown for illustration purposes only
- WRAS approved Product
- The Centre of the inlet to the Centre of the outlet is 110mm.
- The inlet connection is G3/4-inch male tail.
- Inlet centres are 180mm.
- It should be cleaned using warm soapy water and polished with a clean, soft, dry cloth
- Suitable for all types of plumbing systems.
- The minimum water pressure recommended for smooth working is 0.2 bar [LP-Low Pressure], and the maximum is 5.0 bar.
- The minimum flow rate is 20.5 litres per minute at 0.2 bar water pressure.
- Quarter-turn ceramic disc headwork
- Waste is not included
Dimensions
- Height: 132mm
- Depth: 110mm
Assembling Instructions of Bath Filler Tap

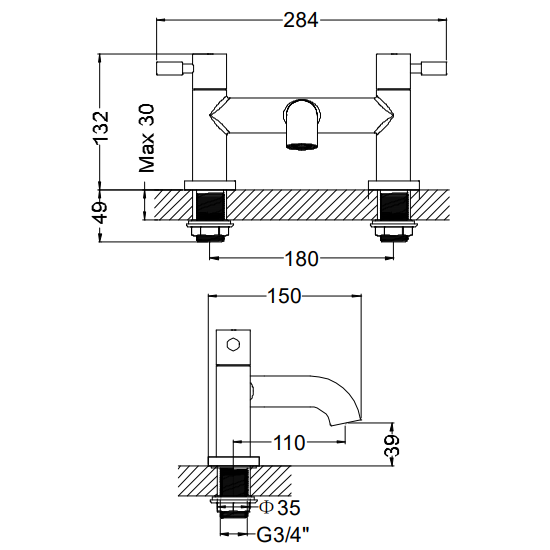

TECHNICAL DRAWING
- View Less
Product Information
The Crosswater Fusion Dual Lever Deck Mounted Bath Filler Tap combines modern design with functionality, featuring a polished chrome finish and round shape. Made from durable brass, it has two lever handles for precise control and a base-to-spout height of 51mm. Suitable for all plumbing systems, it operates smoothly between 0.2 to 5.0 bar water pressure with flow rates ranging from 20.5 to 89 Litres per minute. The tap includes quarter-turn ceramic disc headwork for reliability and WRAS approval for quality assurance. With inlet centres of 180mm and a G3/4-inch male tail connection, this elegant tap is easy to clean and maintain.
Specification
- Guarantee: 15 Years
- Product Type: Bath Filler Tap
- Brand: Crosswater
- Collection: Fusion
- Finish: Chrome
- Style: Modern
- Shape: Round
- Mounting: Deck
- Material: Brass
- Weight: 1.9kg
- Base To Spout: 51mm
- No Of Handle: 2
- Handle Style: Lever
- Tap Hole: 2
- Flow Rates: 0.2 Bar - 39 l/m
- Flow Rates: 0.5 Bar - 38.5 l/m
- Flow Rates: 1.0 Bar - 56 l/m
- Flow Rates: 3.0 Bar - 89 l/m
Special Features
- Images are shown for illustration purposes only
- WRAS approved Product
- The Centre of the inlet to the Centre of the outlet is 110mm.
- The inlet connection is G3/4-inch male tail.
- Inlet centres are 180mm.
- It should be cleaned using warm soapy water and polished with a clean, soft, dry cloth
- Suitable for all types of plumbing systems.
- The minimum water pressure recommended for smooth working is 0.2 bar [LP-Low Pressure], and the maximum is 5.0 bar.
- The minimum flow rate is 20.5 litres per minute at 0.2 bar water pressure.
- Quarter-turn ceramic disc headwork
- Waste is not included
Dimensions
- Height: 132mm
- Depth: 110mm
Assembling Instructions of Bath Filler Tap
TECHNICAL DRAWING
- View Less
