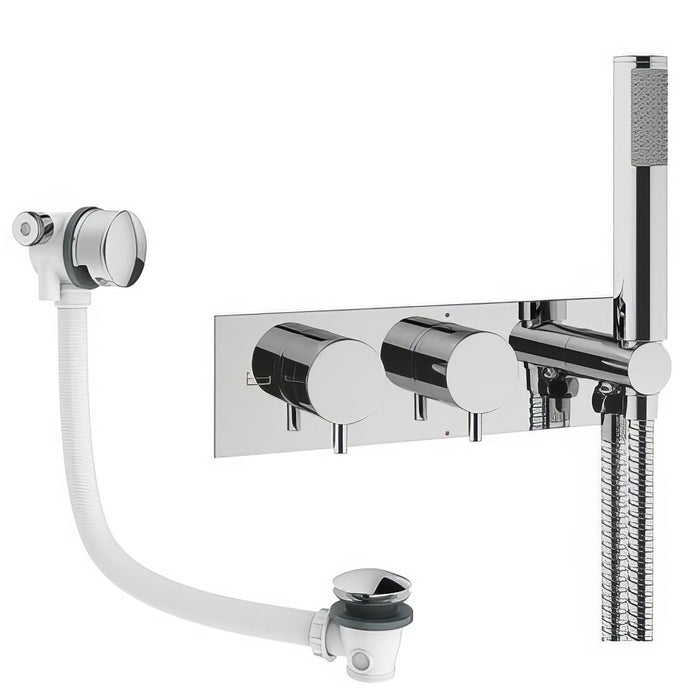

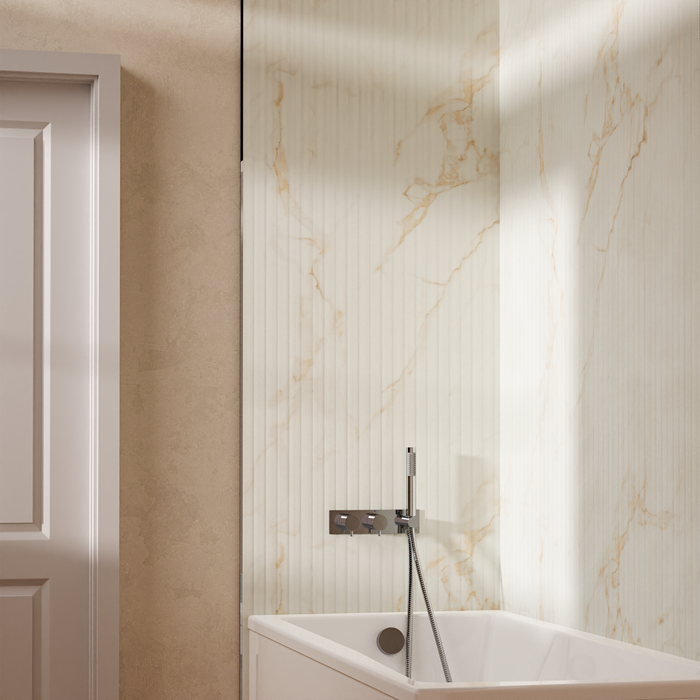

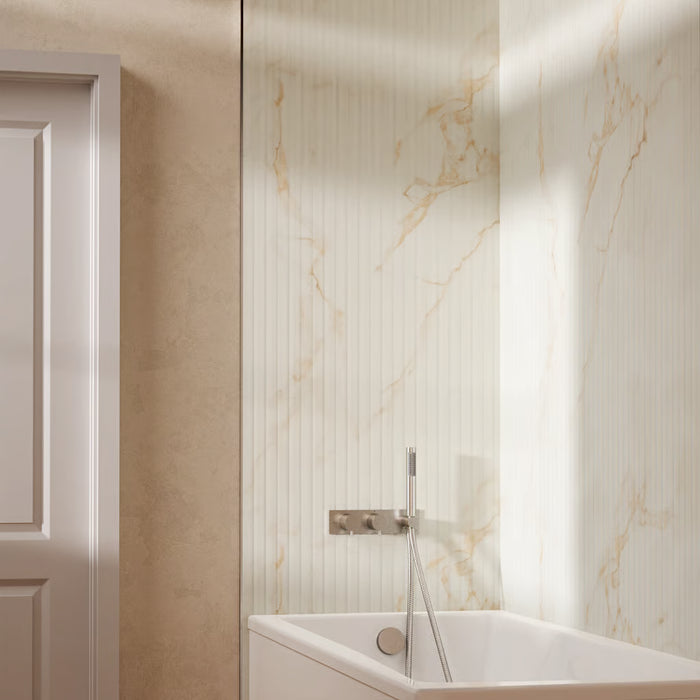

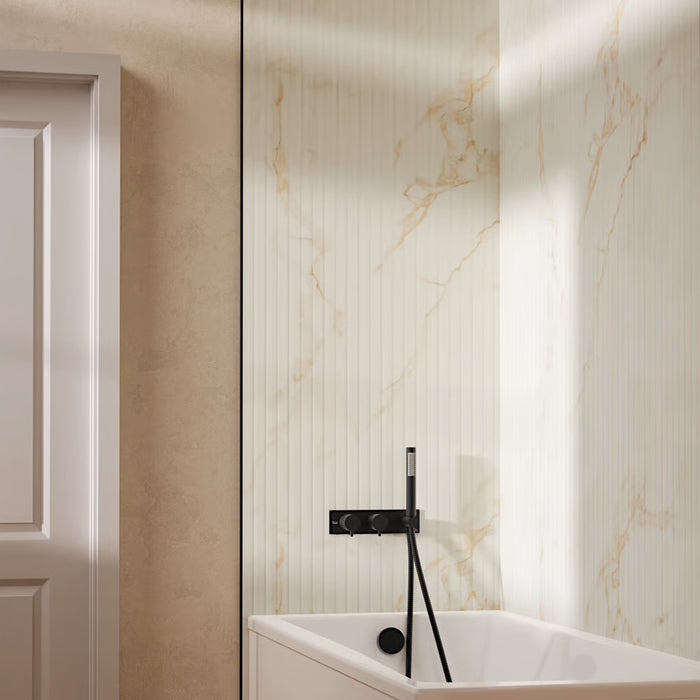

Crosswater Design Shower Set 5 with Handset & Bath Filler
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Design Shower Set 5 is a sophisticated thermostatic bath and shower solution designed to deliver modern style, convenience and reliable performance. Manufactured from high-quality brass and ABS materials, this set combines durability with a sleek contemporary appearance, making it a perfect addition to modern bathrooms. Part of the Crosswater Design collection, this shower set includes a shower valve body, trim set and a 3-in-1 bath filler supplied with a click clack waste. It also comes complete with a shower handset and hose, providing a practical and versatile bathing and showering setup in one integrated system. The system features two knob handles and two outlets, allowing easy switching between functions while providing smooth and precise control over water flow and temperature. Built-in thermostatic temperature control maintains a consistent water temperature for a comfortable showering experience while protecting users from scalding and sudden temperature changes. Designed with practicality in mind, the valve system offers front access for easy servicing and maintenance without the need for extensive wall work. The trim set measures 262mm in width and 67mm in height and is suitable for high-pressure water systems operating between 1 and 5 bar. The trim set is KIWA approved, ensuring certified quality and reliability.
The shower valve is landscape oriented and measures 181mm in width, 129mm in depth and 82mm in height. It features a G3/4 inch inlet and outlet connection and includes a 2-way diverter with a thermostatic cartridge for efficient water control. The system meets the BS EN 1111:2017 standard and carries multiple approvals including WRAS, KIWA Reg 4 and KIWA TMV2 for trusted safety and performance. The included 3-in-1 bath filler enhances the functionality of the set. It measures 332mm in width and 130mm in height, with a length of 250mm and a spout projection of 41mm. The bath filler connects via a 1/2 inch inlet and features water activation by lifting or tilting, offering easy and convenient operation. It is supplied with a click clack waste for a complete and practical bathing solution. Combining advanced thermostatic technology, practical functionality and a modern aesthetic, the Crosswater Design Shower Set 5 provides a stylish and reliable bath and shower system. Backed by a 15 year warranty, it ensures long-lasting performance and peace of mind.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Design
- Style: Modern
- Material: Brass/ABS
- Outlets: 2
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 1 Bar
- Maximum Operating Water Pressure: 5 Bar
Special Features:
- Shower Set Includes - Shower Valve body, Trimset and Bath Filler with Click Clack Waste
- Easy and accurate control of water flow and temperature is provided for consistent comfort
- Protection against scalding and sudden temperature changes is built in for added safety
- Front access is provided to allow easy servicing and maintenance
- Size of Trim Set: 262 x 67mm
- Thermostatic Temperature Control
- Shower Handset and hose are included
- Trim set Suitable for High-Pressure Water System
- Trim Set Kiwa Approved:2307710

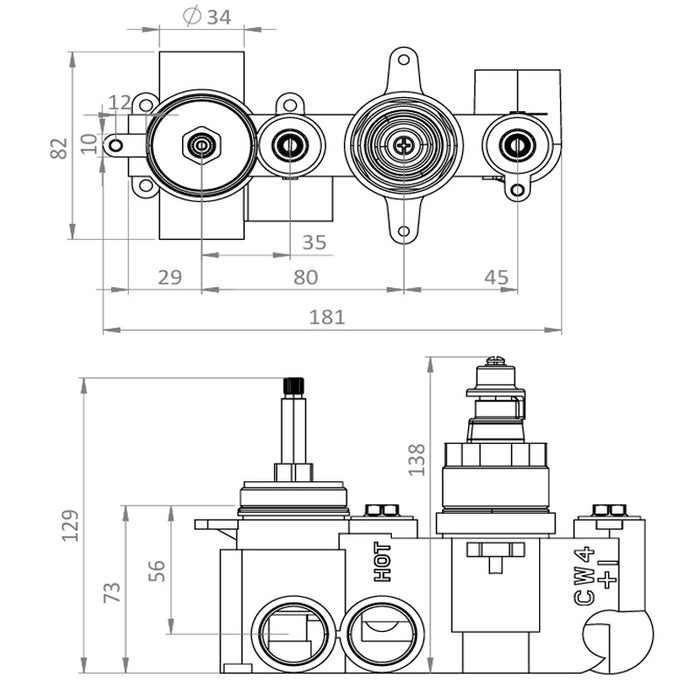

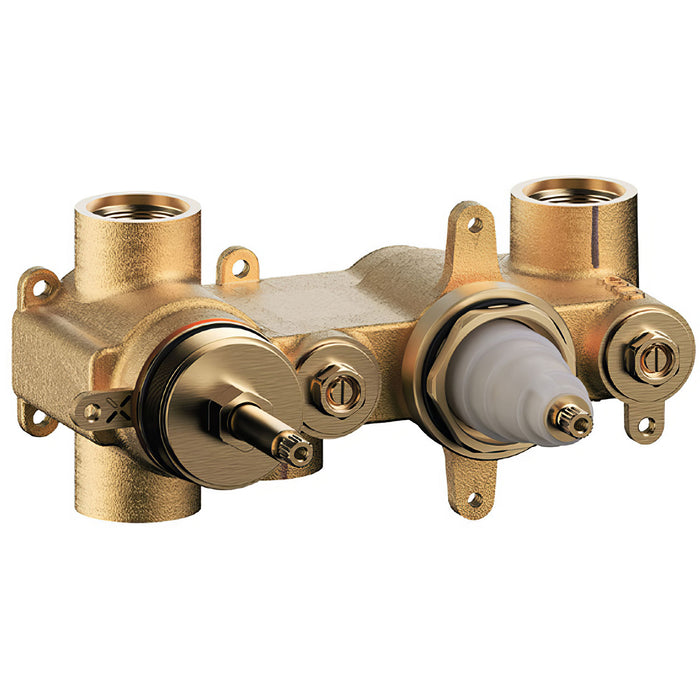

- Shower Valve Size: Width 181mm x Depth 129mm x Height 82mm
- Shower Valve Orientation: Landscape
- Shower Valve Inlet and Outlet Connection: G3/4 Inch
- 2-Way Diverter and Thermostatic Cartridge
- Standard BS EN 1111:2017
- Approval: WRAS:- 2203300 KIWA Reg 4:- 2201704 KIWA TMV2:- 2203756
- 3-In-1 Bath Filler
- Supplied with Click Clack Waste
- Bath Filler Size (mm) Width 332 x Height: 130mm
- Bath Filler Length: 250mm
- Bath Filler Spout Projection: 41mm
- Bath Filler Inlet Connection: 1/2"
- Water Activation: By Lifting / Tilting
Assembling instruction for Valve Body
Assembling instruction for Bath Filler waste
Datasheet for Trim set, Shower Handset and hose
Datasheet for Bath Filler waste
Technical Drawing

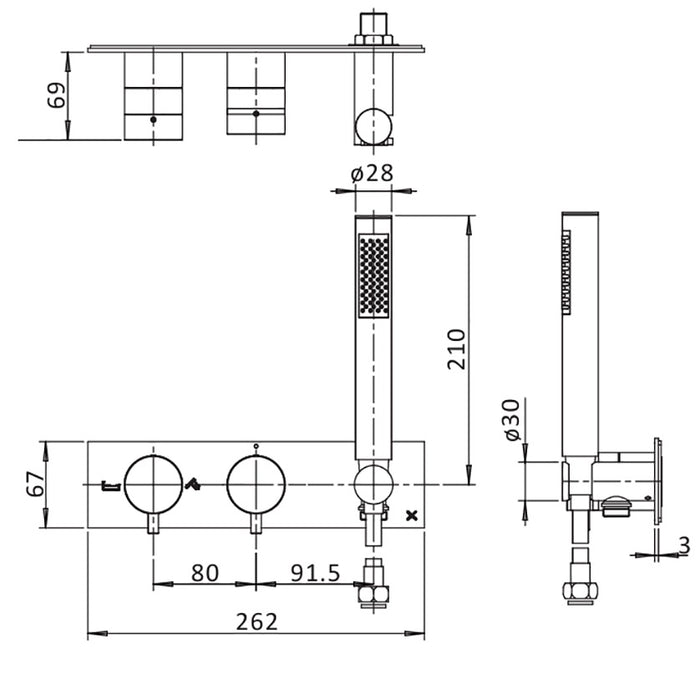

Shower Trimset
Shower Handset and Hose

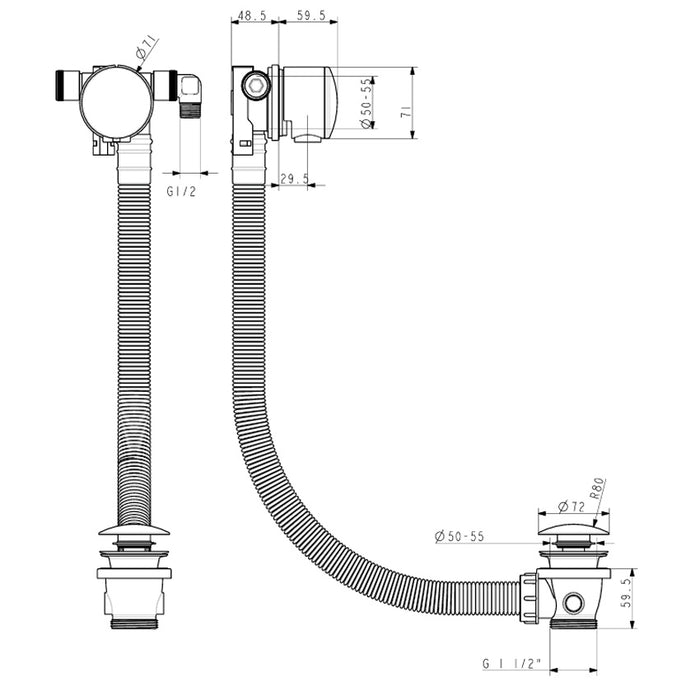

Bath Filler Waste
