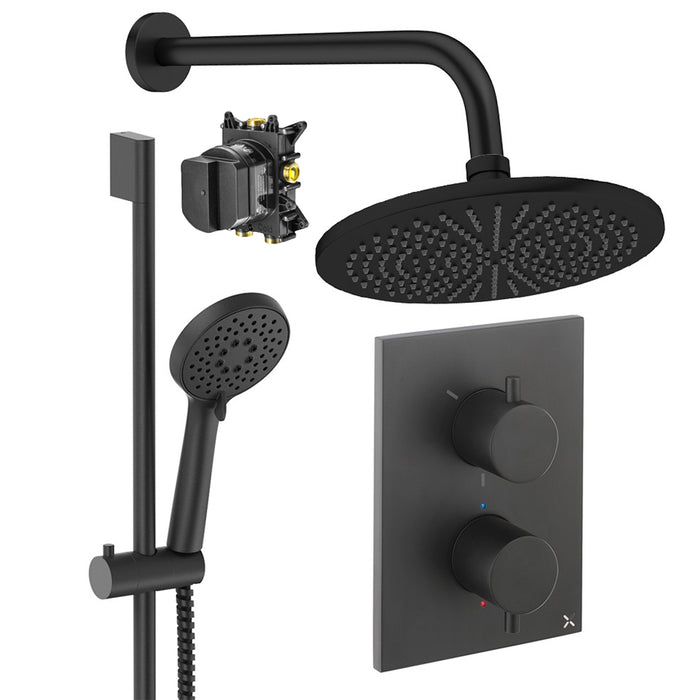

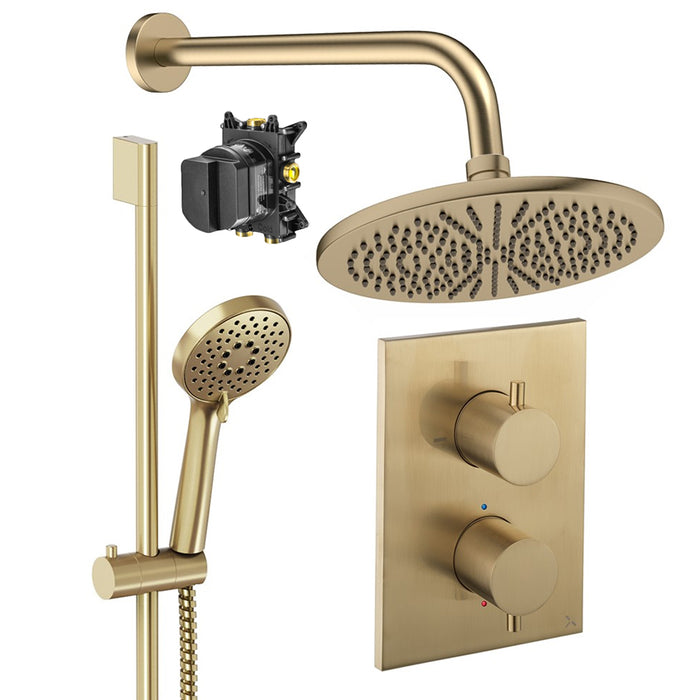

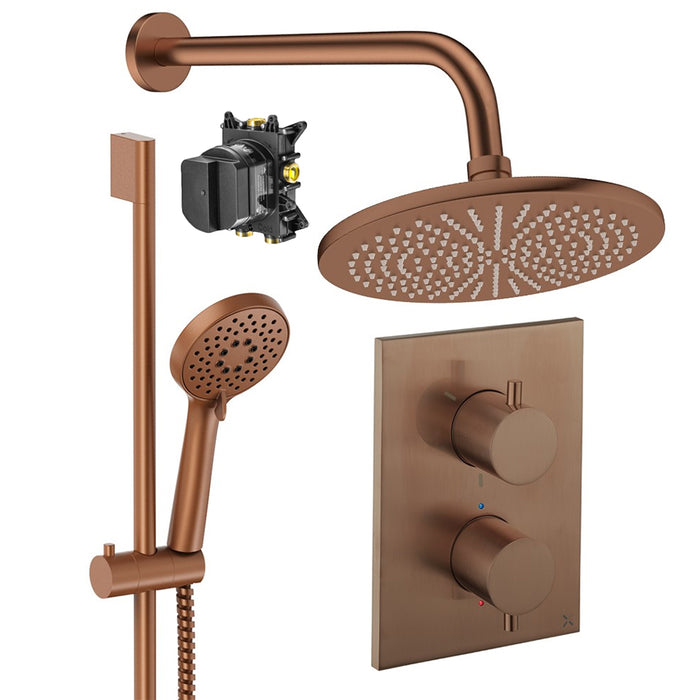

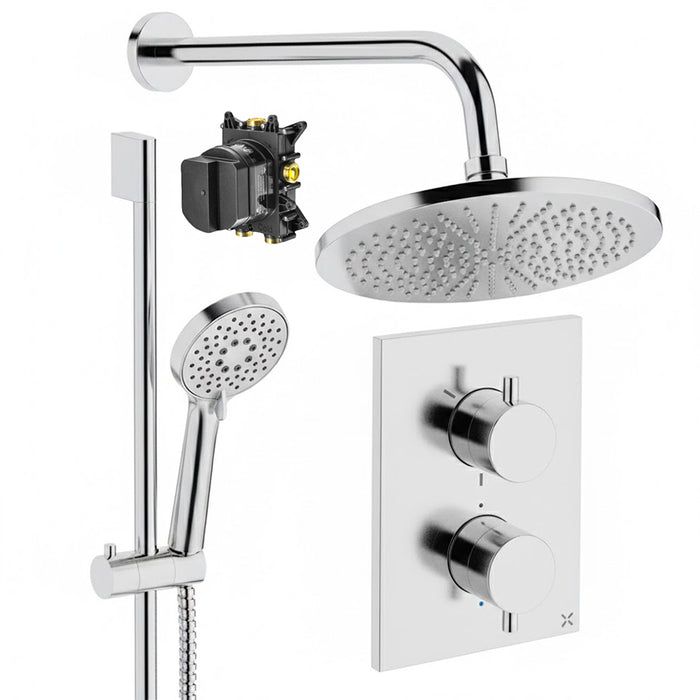

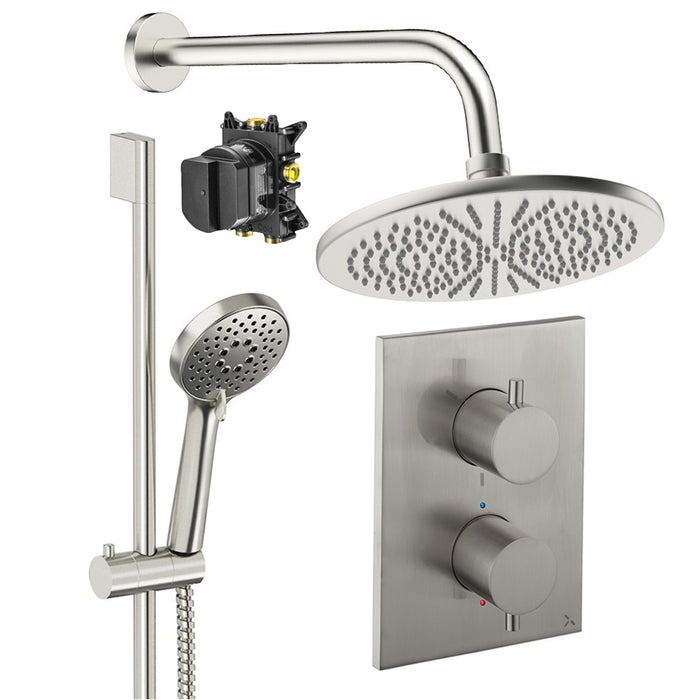

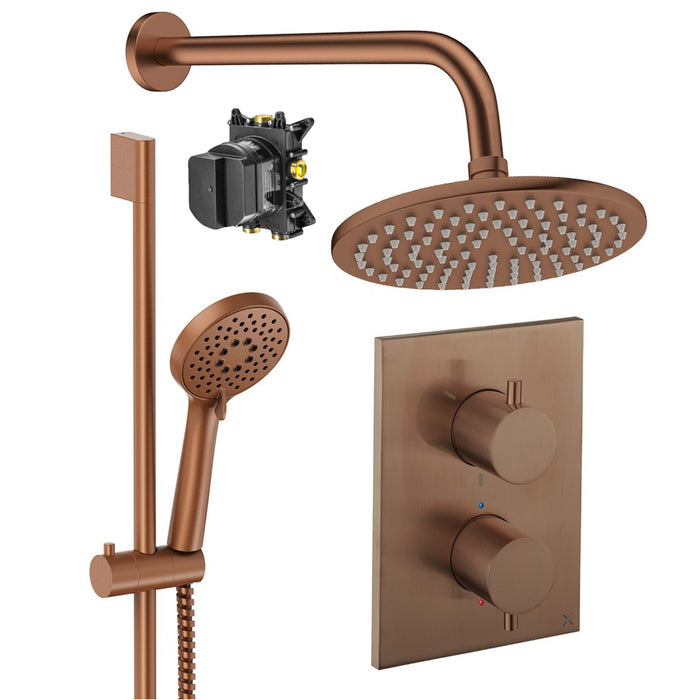

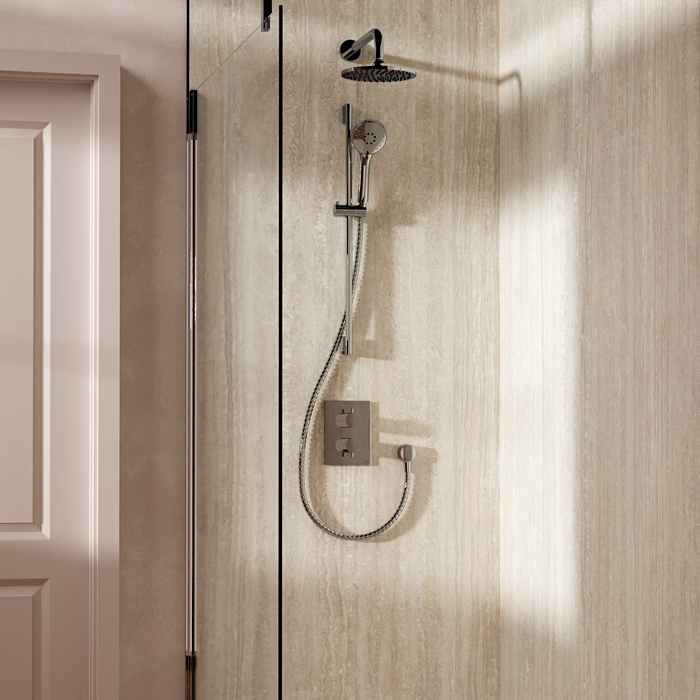

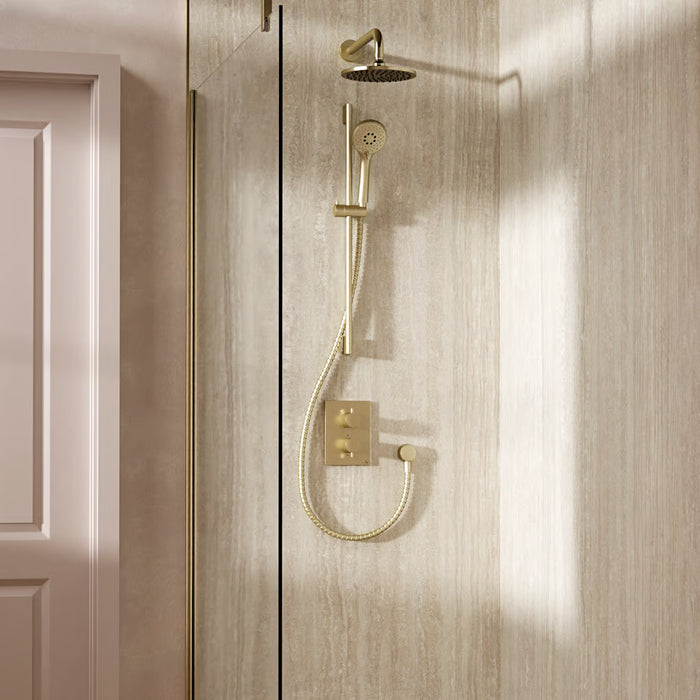

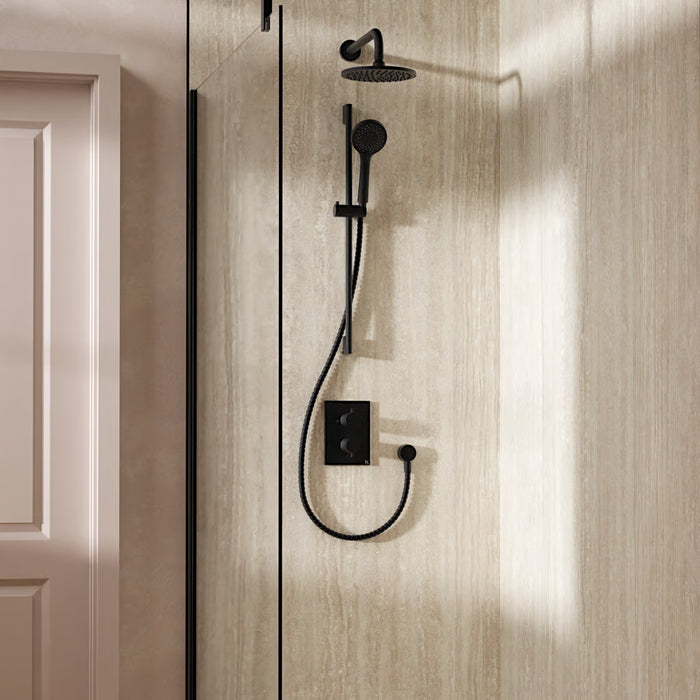

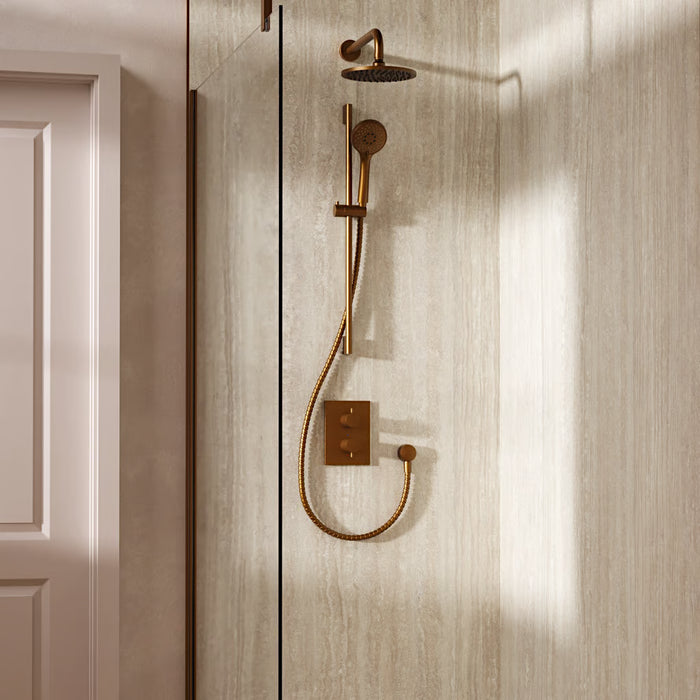

Crosswater Crossbox Shower Set 4 with Fixed Head & Handset
Stocks : 5 in stock, order now for immediate dispatch
Product Information
The Crosswater Crossbox Shower Set 4 is a premium modern shower solution designed to deliver excellent performance, advanced thermostatic safety and a sleek contemporary look. Manufactured from durable brass and ABS materials, this shower set ensures long-lasting reliability and a stylish finish suitable for modern bathrooms. It features two outlets and two knob handles that provide smooth and accurate control of water temperature and flow. The shower system operates with a minimum water pressure of 1 bar and a maximum of 5 bar and is designed specifically for high water pressure systems. Part of the Crosswater Crossbox collection, the shower set includes a shower valve, trim set, slide rail kit with handset and hose, fixed shower head and shower arm. The system is WRAS and KIWA approved and incorporates anti-scald protection for enhanced safety. The valve backplate measures 130mm x 180mm (width x height) and features a super slim design with a minimum installation depth of just 60mm, reducing the amount of solid wall preparation required and allowing faster installation. It also offers front or rear mounting options, providing flexibility during fitting.
The Crossbox system features a simple two-stage fixing process that allows the in-wall components and final trim to be installed separately, reducing the risk of damage during construction. A Flush-Block testing plate is included to allow easy pressure testing before final installation, while Easy Fix second stage trim sets further reduce installation time. The built-in Easy-Switch thermostatic module allows quick and simple flow reversal if the water feeds are connected incorrectly.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass/ABS
- Outlets: 2
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 1 Bar
- Maximum Operating Water Pressure: 5 Bar
Special Features:

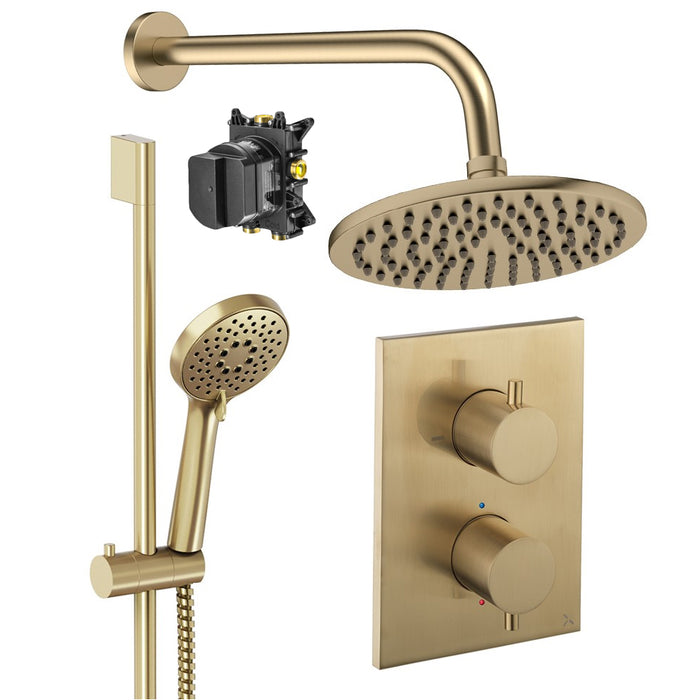

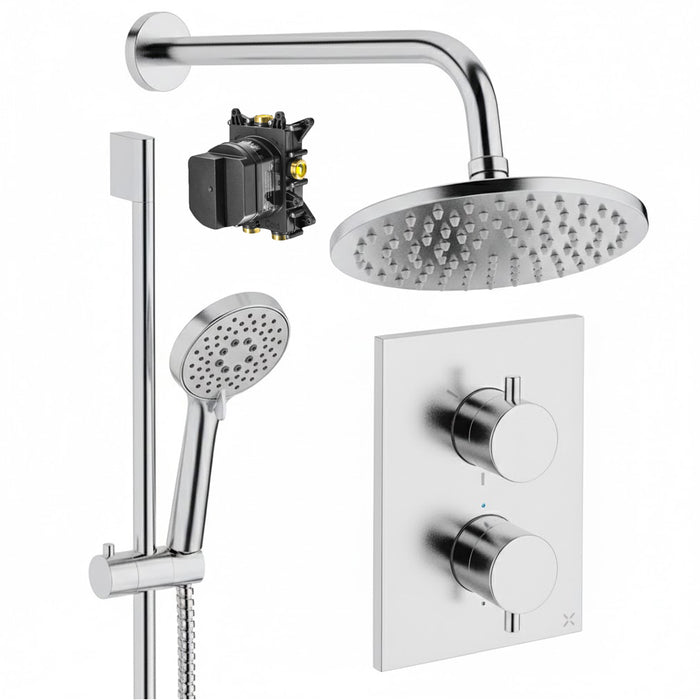

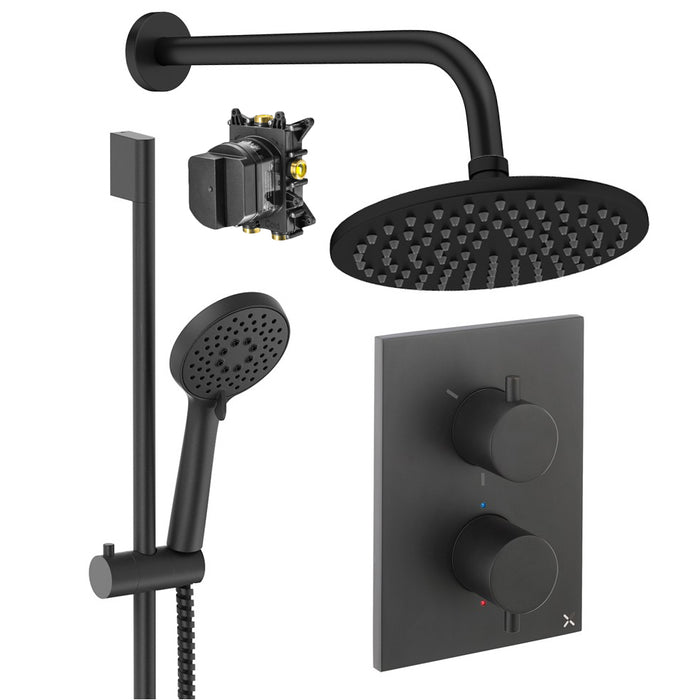

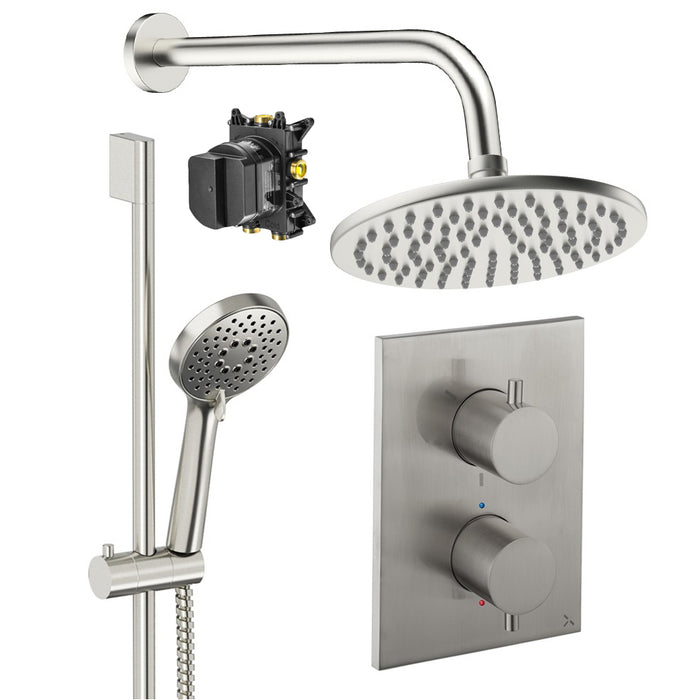

- Shower Set Includes - Shower Valve, Trimset, Slide Rail Kit with Handset and Hose, Fixed Head and Arm
- WRAS-KIWA Approved
- Anti-Scald

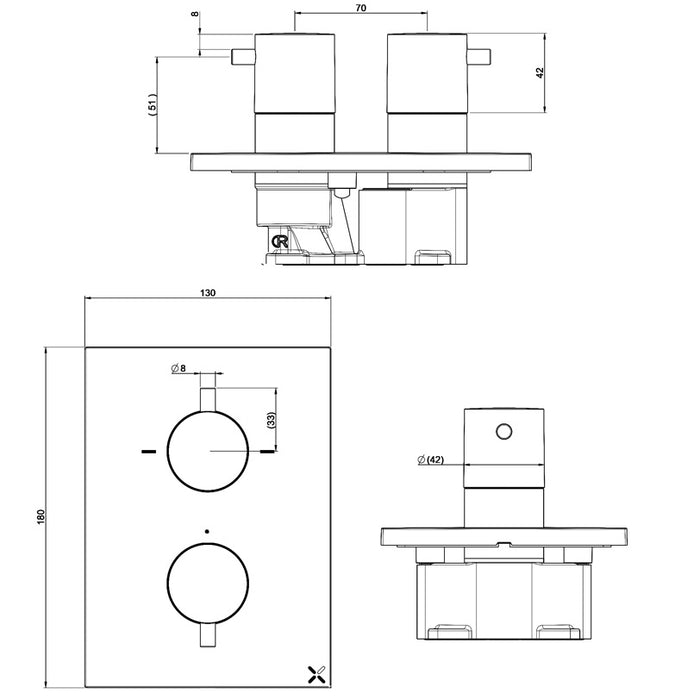

- Size of Backplate: 130mm x 180mm [Width x Height]
- Suitable for High Water Pressure System
- Super Slim 60mm Minimum Installation Depths Require Reduced Solid Wall Preparation for Quicker Installation Time
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- Simple 2-Stage Fixing Allows Installation of in-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Flush-Block Testing Plate Included for Easy Pressure Testing
- Easy Fix 2nd Stage Trim Sets Reduce Installation Times
- Built-In Easy-Switch Thermostatic Module Allows for Simple, Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow dynamics Allow 90-Degree elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure
- Choose CrossBox If:
- If You Want to Future-Proof Your Shower so it Can be Easily Upgraded as Technology Develops
- If You are Looking for a 3-Outlet Shower Valve in a More Compact Design
- If You Want a 2-Outlet Shower Which Will Allow Each to Work Independently or at the Same Time
- If You Wish to have our Quietest Possible Shower with Added Sound and Waterproofing Benefits
- If You Want a Quicker and Easier Way to Install a Shower Valve That Projects Less

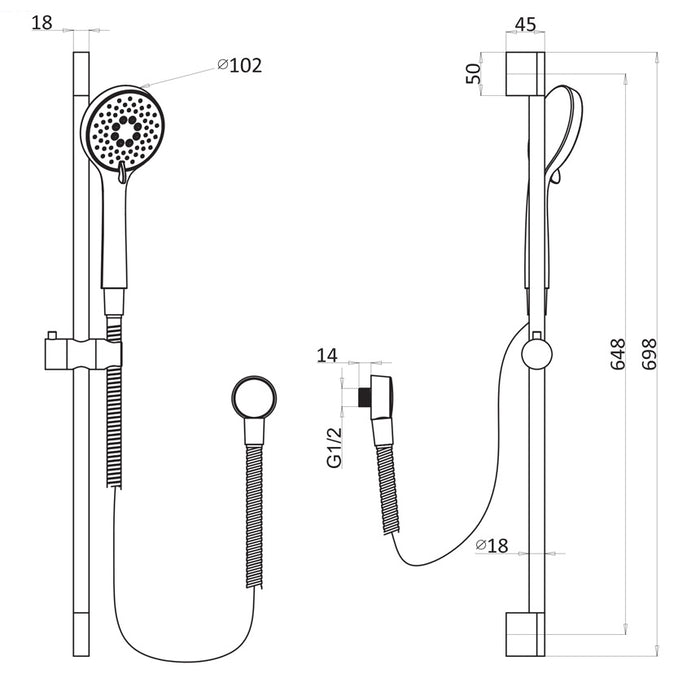

- Slide Rail with Shower Kit and Outlet Elbow
- Overall Size: 111mm x 81mm x 698mm [Width x Depth x Height]
- 3-Functions Shower Handset
- 1-Outlet Elbow
- Flow Rate: 1Bar: 10.29, 2 Bar: 13.26, 3 Bar: 15.18, 4 Bar: 17.76, 5 Bar: 19.38
- Number of Functions: 1

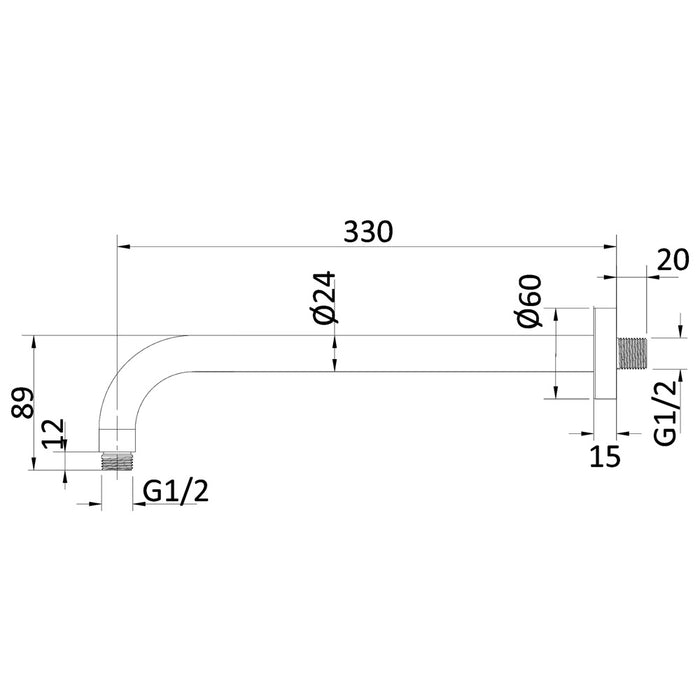

- Shower Arm Size: 60mm x 342mm x 95mm [Width x Depth x Height]
- Inlet and Outlet Connection Thread: G1/2"
Assembling instruction for 200mm shower head

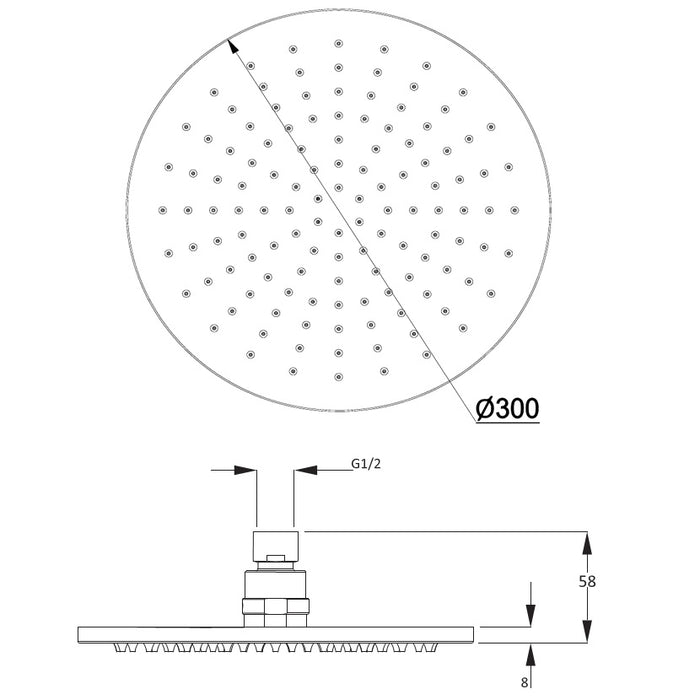

Assembling instruction for 300mm shower head

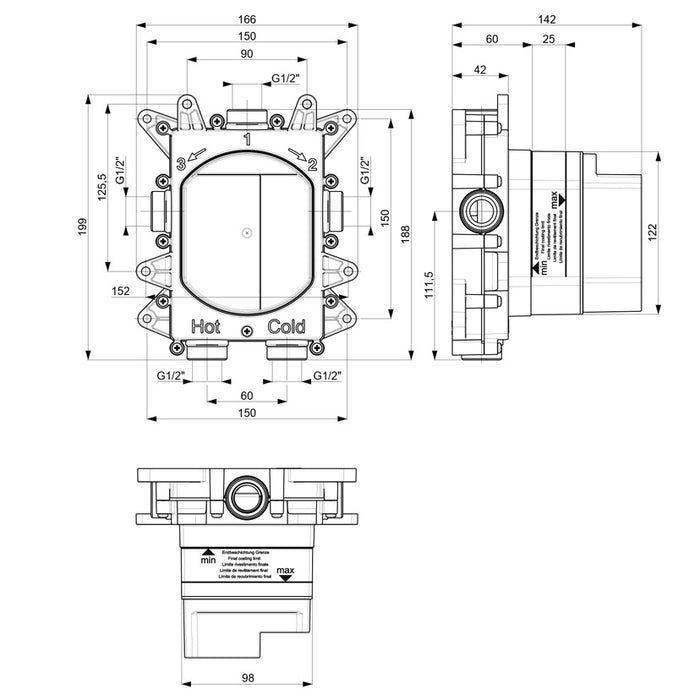

Assembling instruction for Crossbox
Assembling instruction for Shower Valve
Assembling instruction for Shower Kit

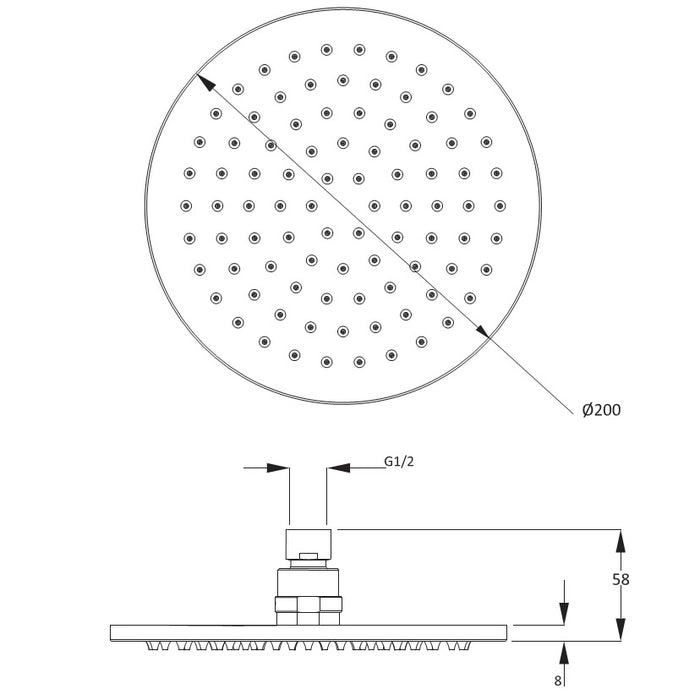

Datasheet for 200mm Shower Head
Datasheet for 300mm Shower Head
Technical Drawing
Shower Valve
- View Less
