Crosswater Crossbox Push 3 Outlet Shower Set 9
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Crossbox Push Shower Set 9 is a premium, all-in-one shower solution designed to deliver modern style, advanced functionality, and exceptional performance. Part of the renowned Crossbox collection, this contemporary shower set features a concealed installation that creates a clean and minimalist look while providing complete control over multiple water outlets. At the heart of the system is the concealed thermostatic shower valve, designed for safety and comfort. It maintains a consistent water temperature, helping to prevent sudden fluctuations and ensuring a safe showering experience. The valve measures 130mm in width and 160mm in height and features a simple two-stage fixing system that allows the in-wall components and final trim to be installed separately. This helps reduce the risk of on-site damage and makes installation more efficient. Front or rear mounting options provide greater flexibility during installation, while the easy-fix trim sets help reduce installation time. Backed by a 15-year warranty, the Crosswater Crossbox Push Shower Set 9 combines innovative engineering, elegant design, and high-quality materials to deliver a complete and reliable showering and bathing solution for modern bathrooms.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass
- Outlets: 3
- Minimum Operating Water Pressure: 1 Bar
Special Features:

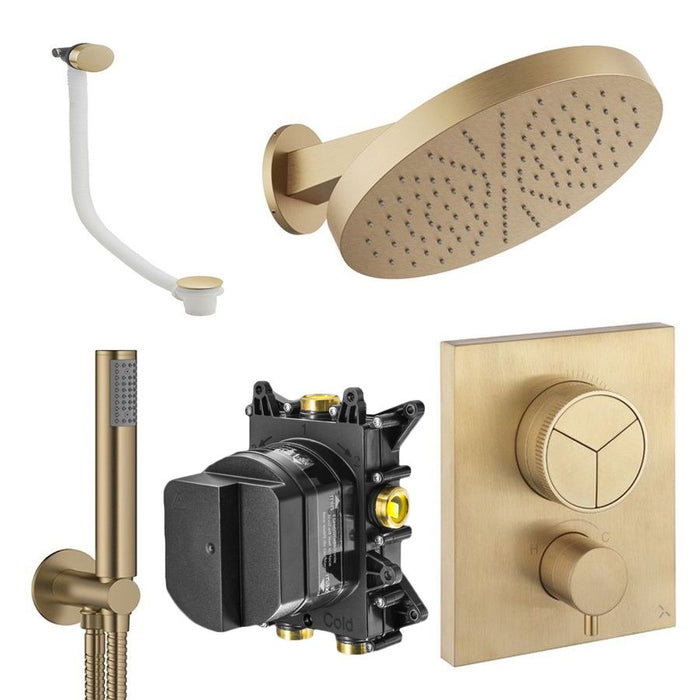

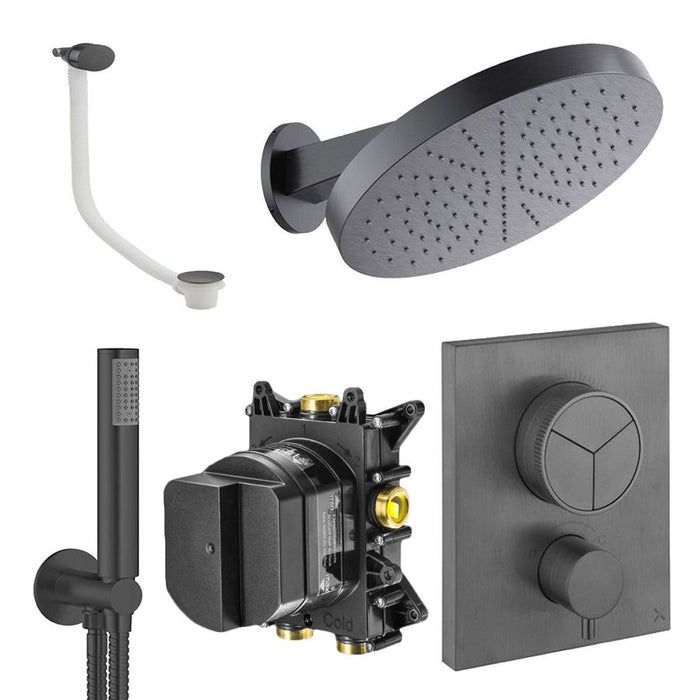

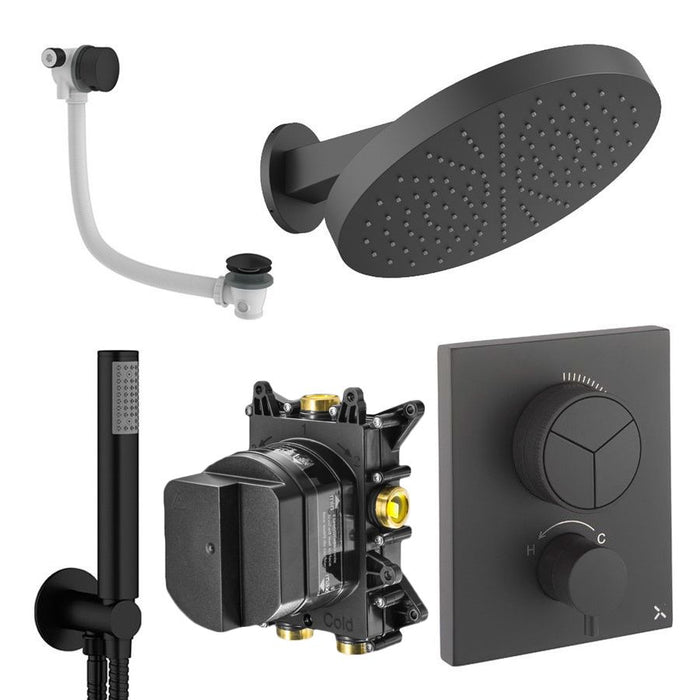

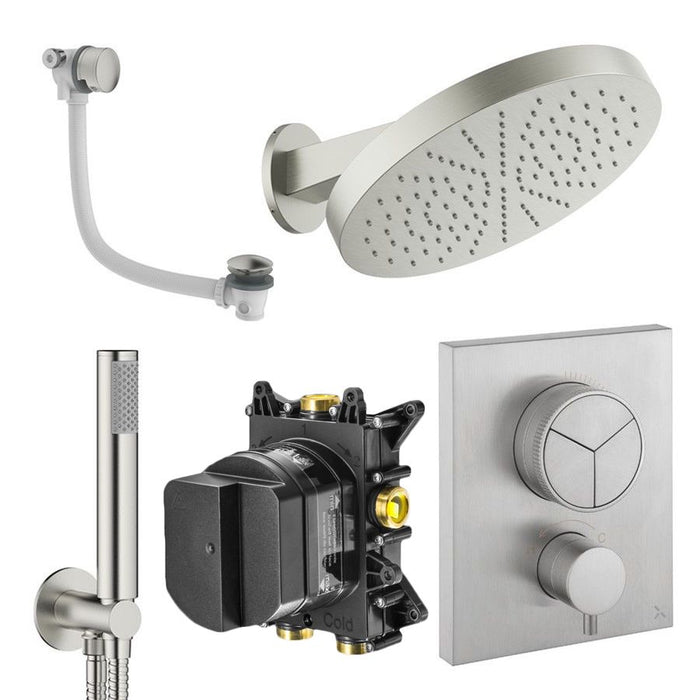

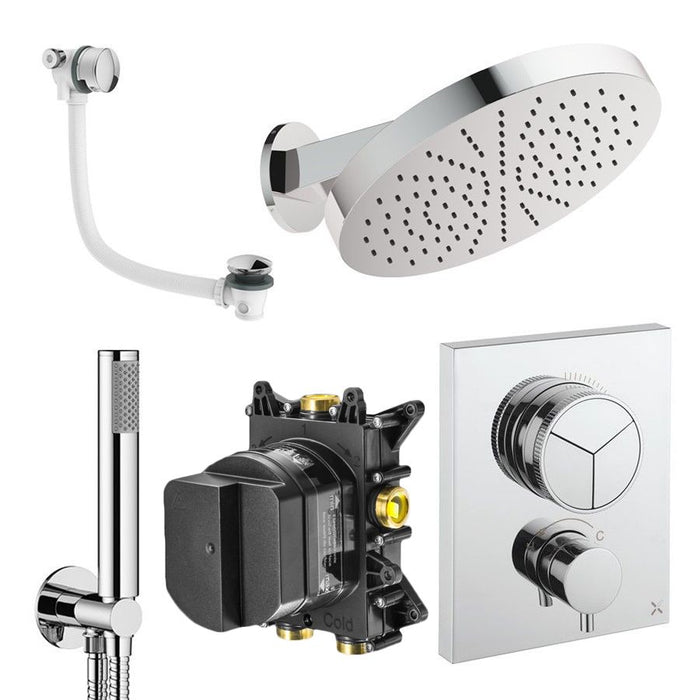

- Shower Set Includes - Concealed 3-Outlet Thermostatic Valve, Crossbox, Fixed Shower Head, Shower Arm, Shower Handset, Wall Outlet, Hose, Holder, Bath Filler with Waste
Details of Thermostatic Shower Valve:

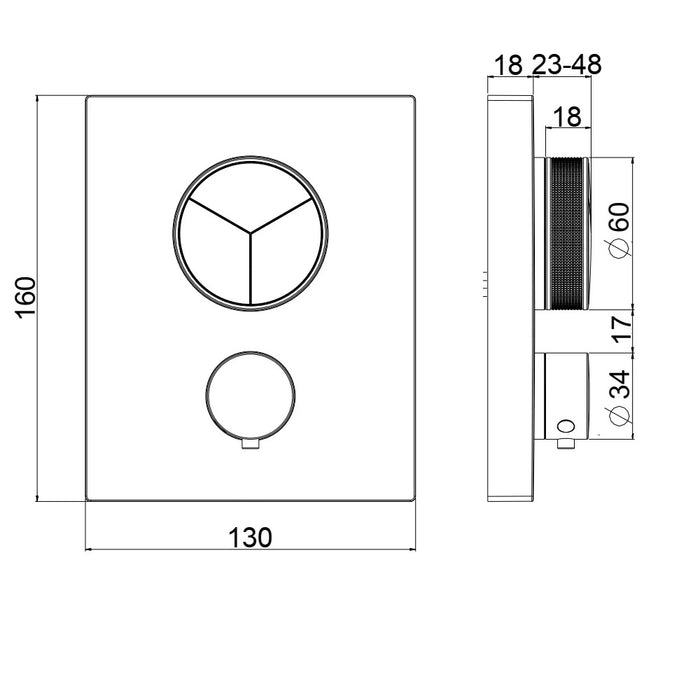

- Size: 130mm x 160mm [Width x Height]
- Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
- Built-In Easy-Switch Thermostatic Module Allows for Simple
- The Flush-Block Testing Plate Included for Easy Pressure Testing
- Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
- Suitable for High Water Pressure
- Requires a Minimum of 1 Bar Water Pressure System
Details of Crossbox:
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure

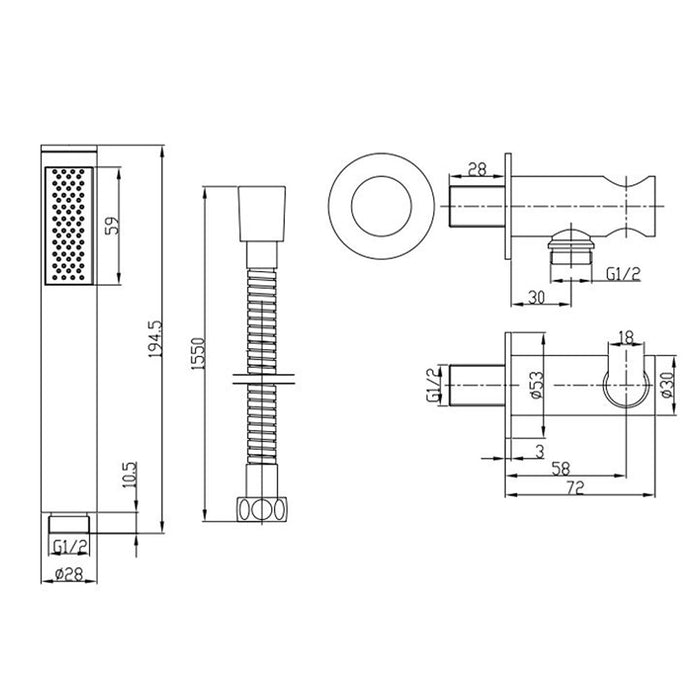

Details of Shower Handset:
- Single Spray Pattern
- Minimalist Design
- Modern Aesthetics with Functional Design
- Ideal for Contemporary Bathrooms
- Includes a Slimline Shower Handset, a Durable Hose, and a Wall-Mounted Outlet with an Integrated Holder
- Handset Height: 194.5mm [19.45cm]
- WRAS-Approved
- Suitable for Low and High Water Pressure Systems
- Works On a Minimum of 0.2 Bar to 5.0 Bar Water Pressure

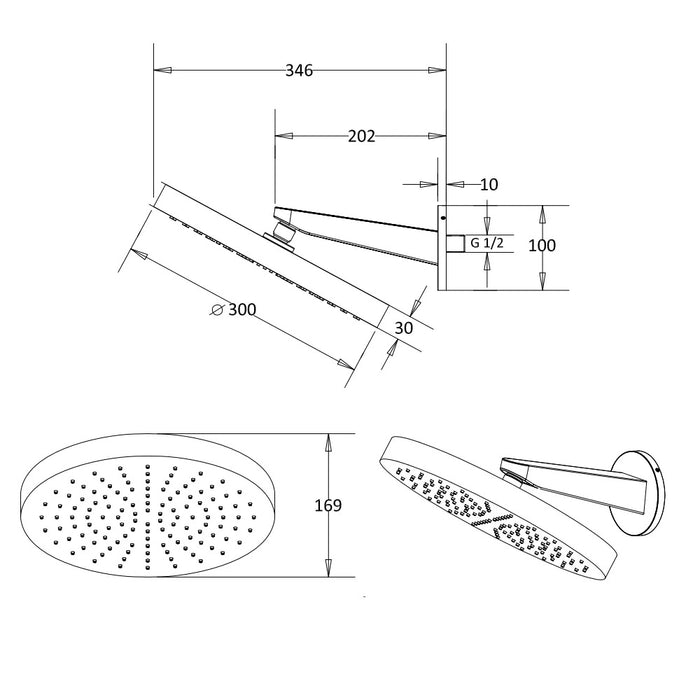

Details of Fixed Shower Head and Arm:
- Single Spray Pattern
- Supplied with Wall Arm
- Wipe Clean Nozzles
- Material: 304 Stainless Steel
- Diameter: 300mm
- Arm Length: 202mm
- Inlet Connection: G1/2-Inch

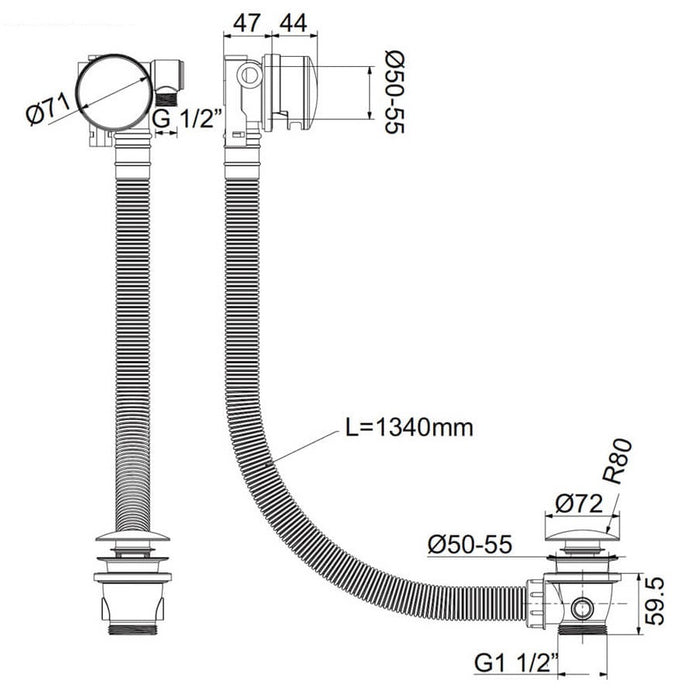

Details of Bath Filler with Waste:
- Length: 1340mm
- Depth: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]
Assembling instruction for Shower Valve
Assembling instruction for Crossbox
Assembling instruction for Shower Kit
Assembling instruction for Stainless Steel Shower Head
Assembling instruction for Bath Filler Waste
Datasheet for Stainless Steel Shower Head
Datasheet for Bath Filler Waste

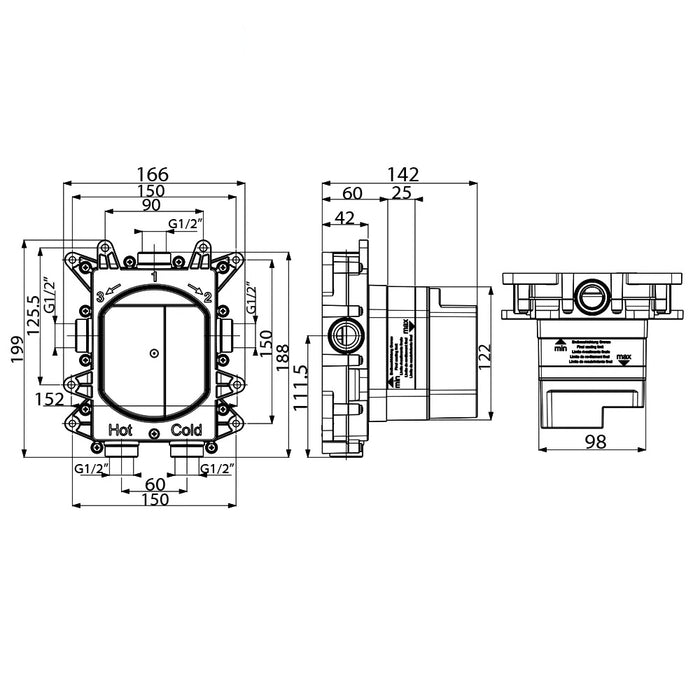

Technical Drawing
Shower Valve
- View Less
