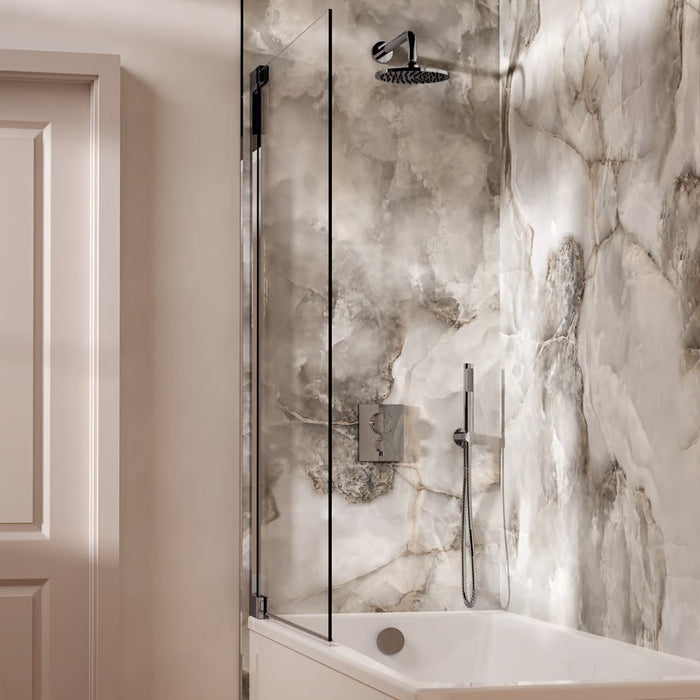

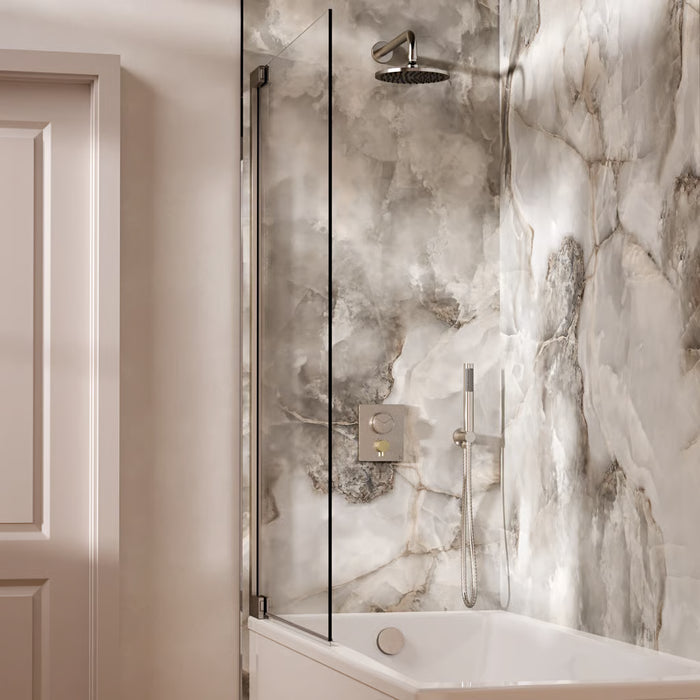

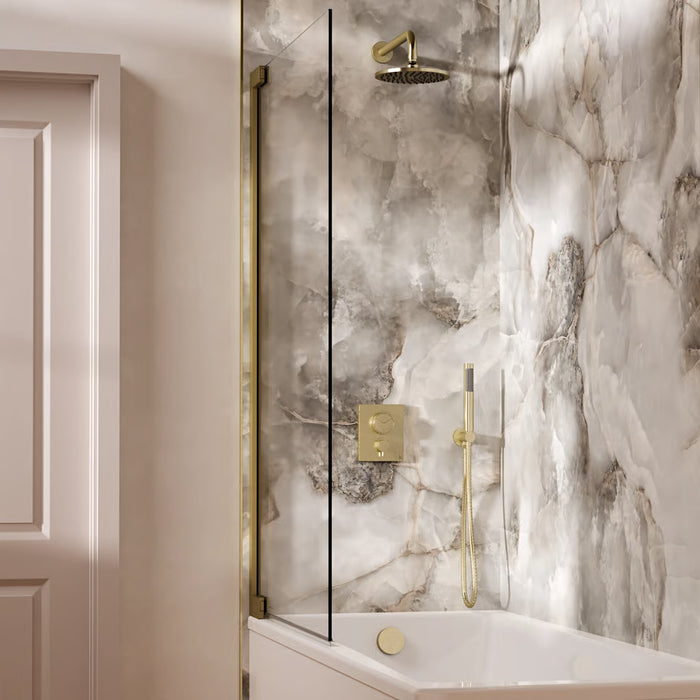

Crosswater Crossbox Push 3 Outlet Shower Set 7
Order now for dispatch in approximately 4 weeks.
Product Information

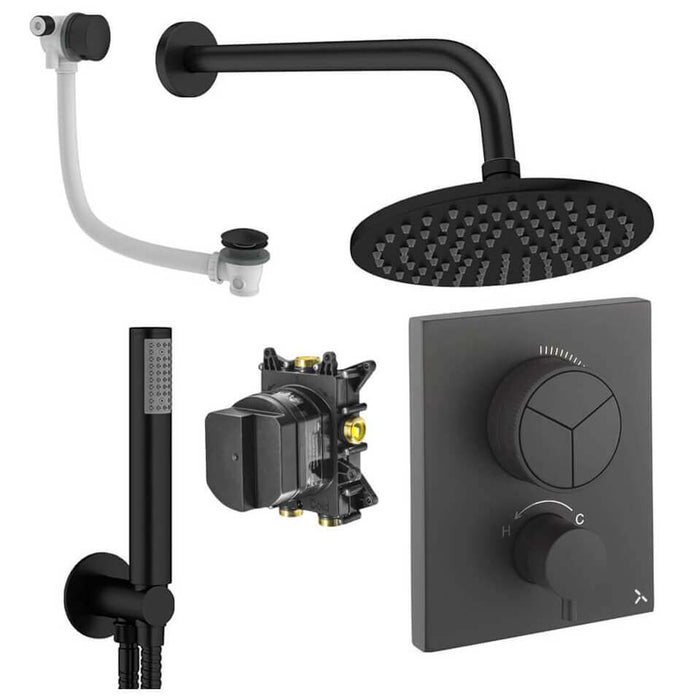

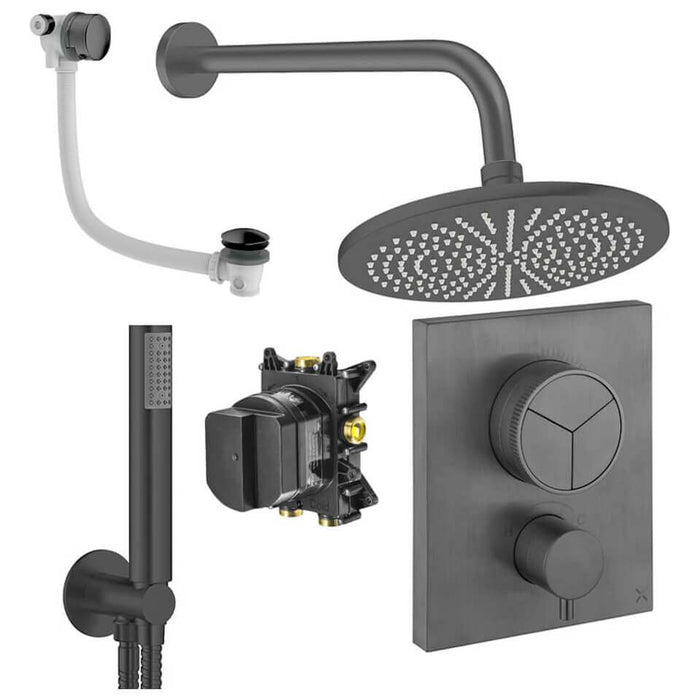

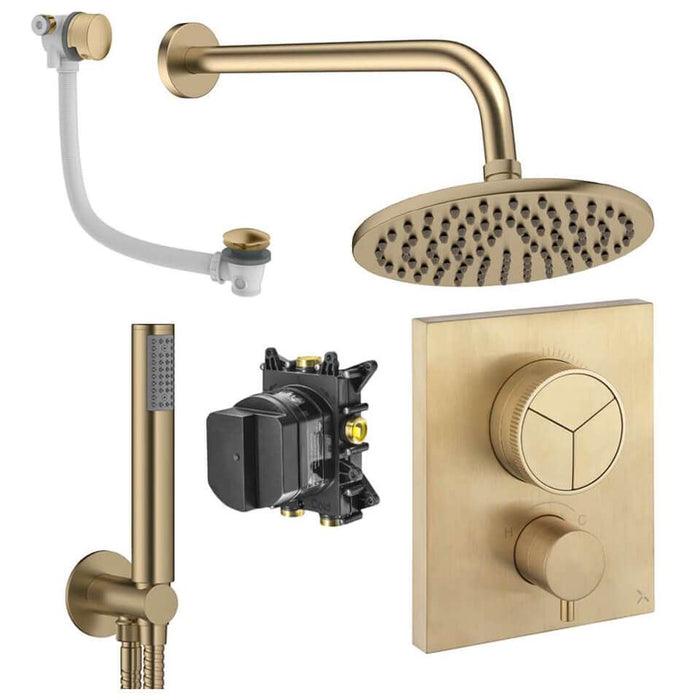

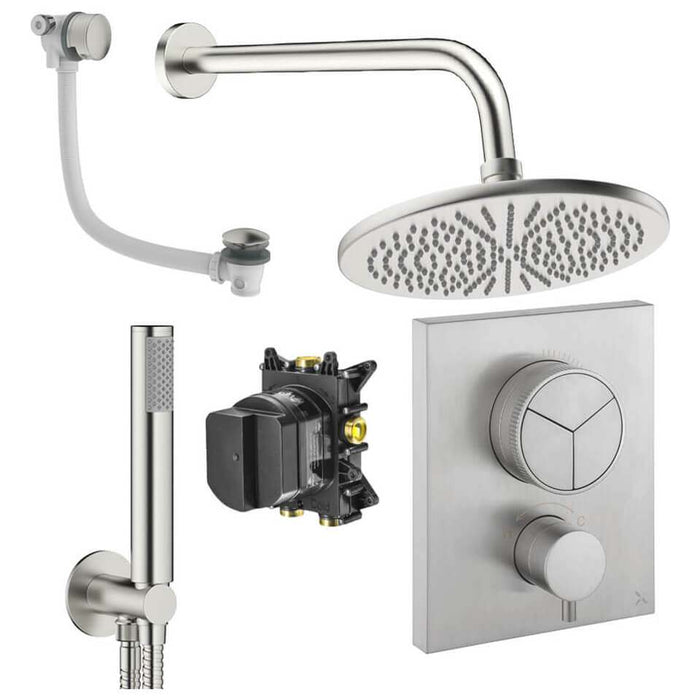

The Crosswater Crossbox Push Shower Set 7 is a complete and versatile showering solution designed for modern bathrooms. Combining contemporary styling with advanced Crossbox technology, this set offers reliable performance, easy installation, and a clean, minimal look that suits a wide range of bathroom interiors. This shower set includes a shower valve, thermostatic Crossbox concealed unit, shower handset with hose, fixed shower head with arm, and a bath filler with waste. With three outlets available, the system allows you to enjoy multiple water functions within one integrated setup, making it ideal for bathrooms that combine both shower and bath features. The valve is engineered with a simple two-stage fixing system, allowing installers to fit the in-wall components first and attach the external trim later. This approach reduces the risk of damage during installation and simplifies the overall fitting process. Easy-Fix second-stage trim sets further reduce installation time, while the included flush-block testing plate allows pressure testing to be completed before the final installation. With its combination of thermostatic safety, flexible installation features, and multiple water outlets, the Crosswater Crossbox Push Shower Set 7 offers a comprehensive and stylish solution for modern bathrooms.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass
- Outlets: 3
- Minimum Operating Water Pressure: 1 Bar
Special Features:

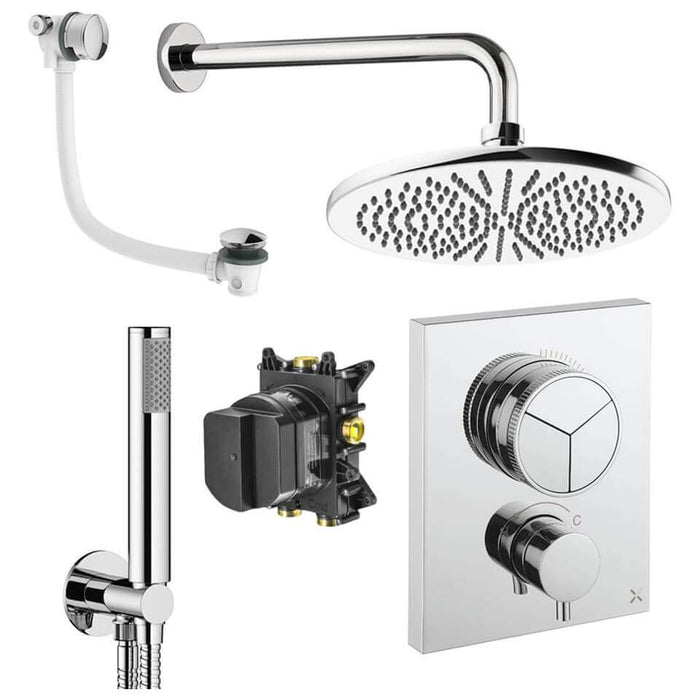

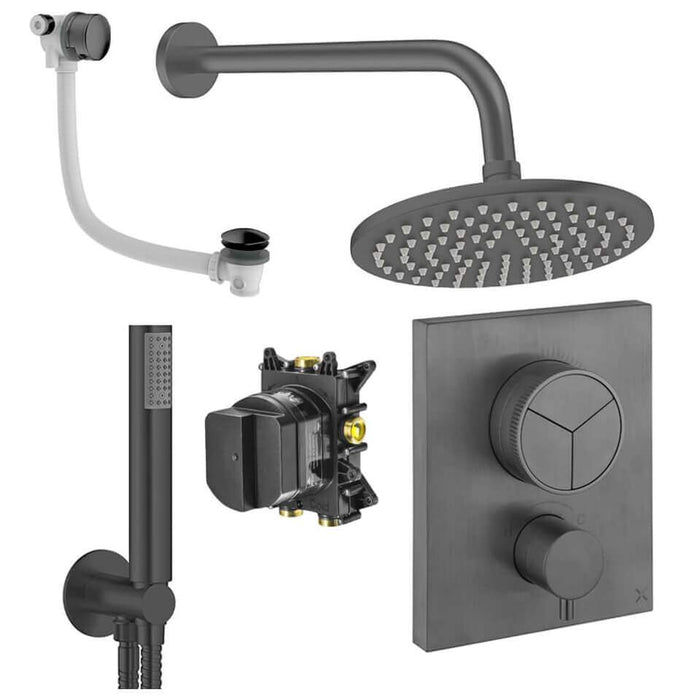

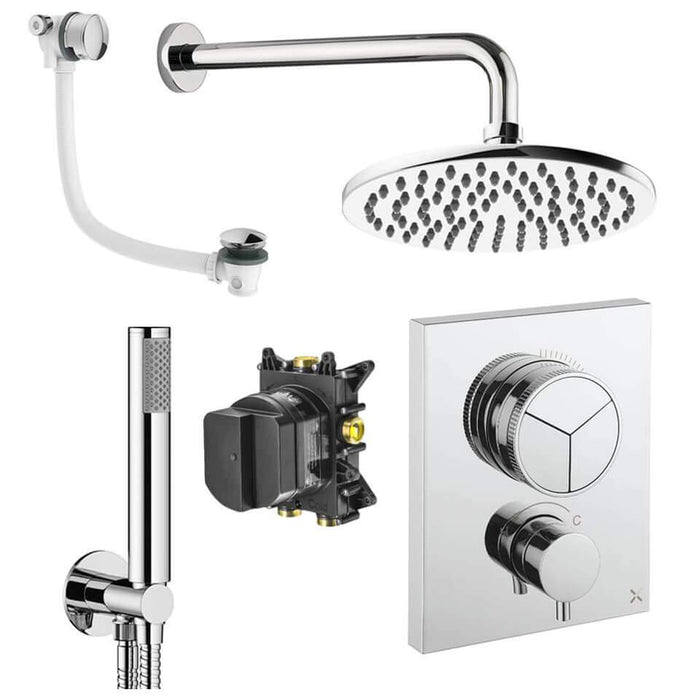

- Shower Set Includes - Shower Valve, Thermostatic Crossbox (Concealed Part), Shower Kit: Handset and Hose, Fixed Head with Arm, Bath Filler with Waste

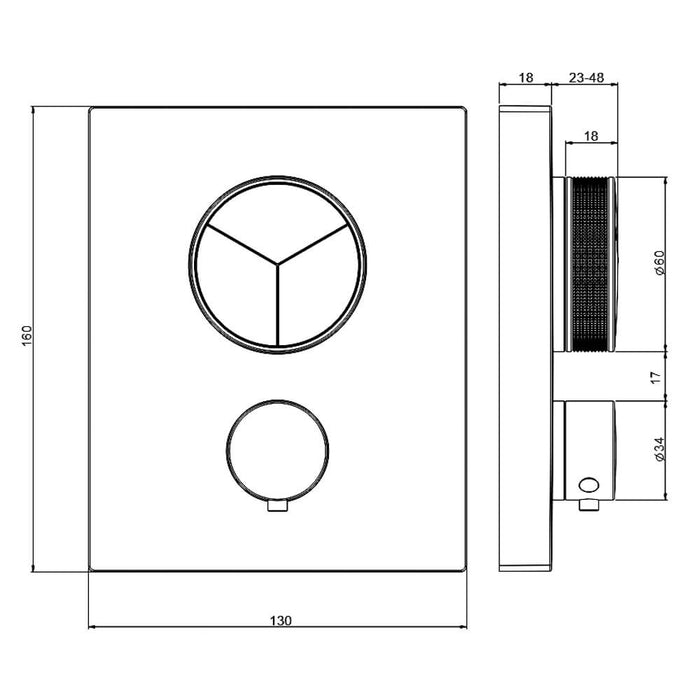

Details of Thermostatic Shower Valve:
- Size: 130mm x 160mm [Width x Height]
- Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
- Built-In Easy-Switch Thermostatic Module Allows for Simple
- The Flush-Block Testing Plate Included for Easy Pressure Testing
- Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
- Suitable for High Water Pressure
- Requires a Minimum of 1 Bar Water Pressure System

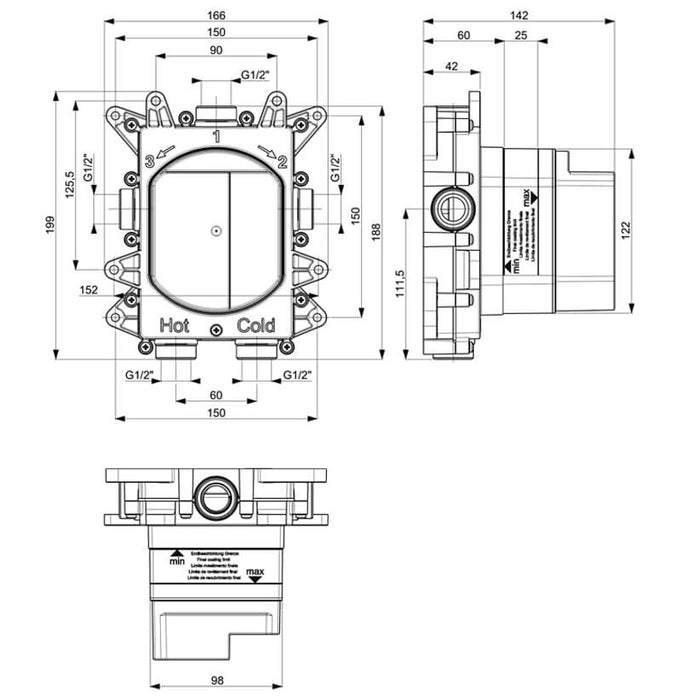

Details of Crossbox:
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure

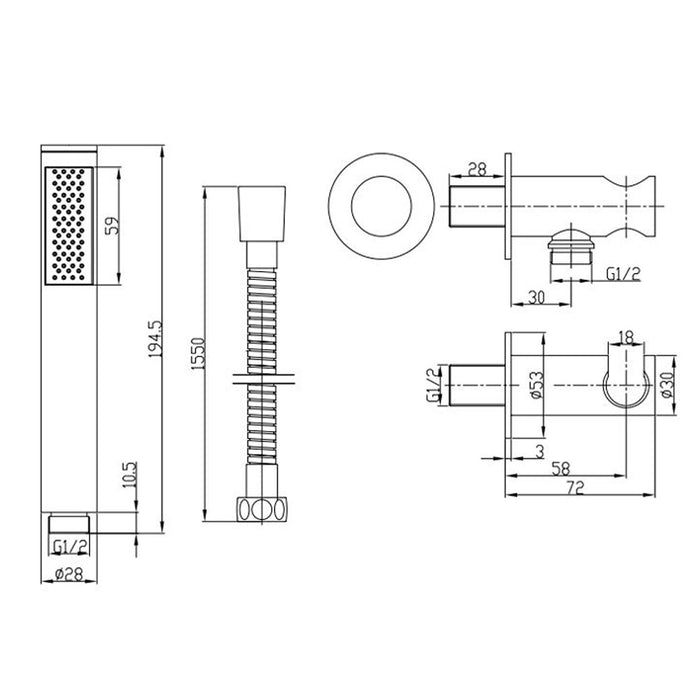

Details of Shower Handset:
- Single Spray Pattern
- Minimalist Design
- Modern Aesthetics with Functional Design
- Ideal for Contemporary Bathrooms
- A Slimline Round Shower Handset, a Durable Hose, and a Wall-Mounted Outlet with an Integrated Holder
- Handset Height: 194.5mm
- WRAS-Approved
- Suitable for Low and High Water Pressure Systems
- Works on a Minimum of 0.2 Bar to 5.0 Bar Water Pressure

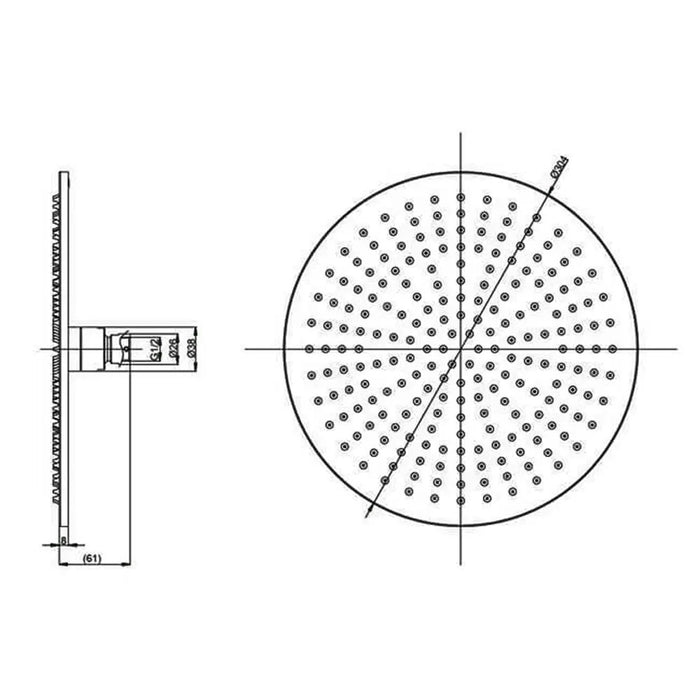

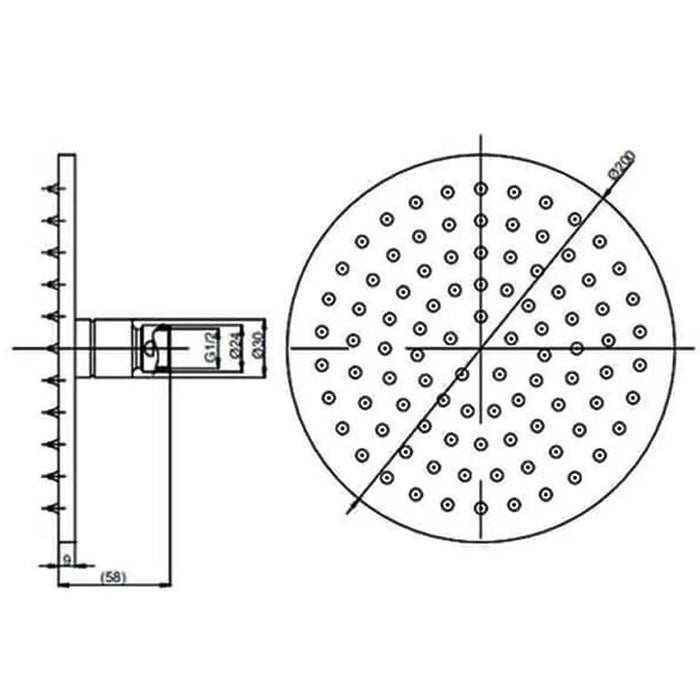

Details of Shower Head:
- WRAS and KIWA-Approved
- Head Thickness: 5.8mm
- Inlet Connection: G1/2 Inch
- Requires a Minimum of 1.0 Bar or Above Water Pressure

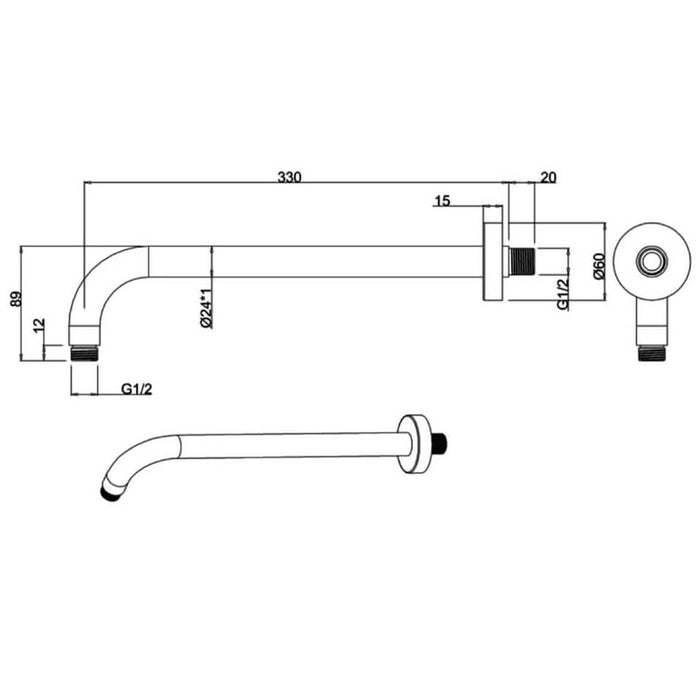

Details of Shower Arm:
- KIWA-Approved
- Length: 330mm
- Inlet/Outlet Connection: G1/2-Inch
- Suitable for All Crosswater Fixed Heads

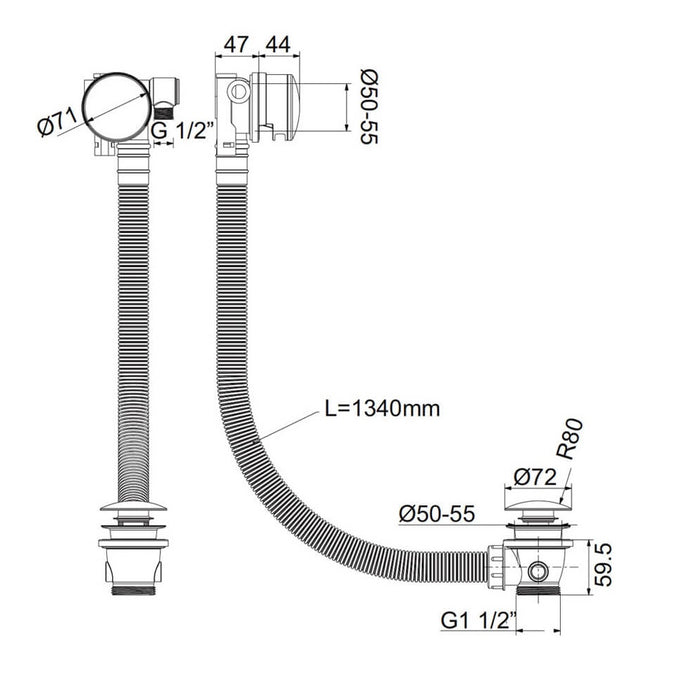

Details of Bath Filler with Waste:
- Length: 1340mm
- Depth: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]
Assembling instruction for Shower Valve
Assembling instruction for 200mm Shower head
Assembling instruction for 300mm Shower head
Assembling instruction for Crossbox
Assembling instruction for Bath Filler Waste
Assembling instruction for Shower Kit
Datasheet for 200mm Shower Head
Datasheet for 300mm Shower Head
Datasheet for Bath Filler Waste
Technical Drawing
Shower Valve
- View Less
Product Information
The Crosswater Crossbox Push Shower Set 7 is a complete and versatile showering solution designed for modern bathrooms. Combining contemporary styling with advanced Crossbox technology, this set offers reliable performance, easy installation, and a clean, minimal look that suits a wide range of bathroom interiors. This shower set includes a shower valve, thermostatic Crossbox concealed unit, shower handset with hose, fixed shower head with arm, and a bath filler with waste. With three outlets available, the system allows you to enjoy multiple water functions within one integrated setup, making it ideal for bathrooms that combine both shower and bath features. The valve is engineered with a simple two-stage fixing system, allowing installers to fit the in-wall components first and attach the external trim later. This approach reduces the risk of damage during installation and simplifies the overall fitting process. Easy-Fix second-stage trim sets further reduce installation time, while the included flush-block testing plate allows pressure testing to be completed before the final installation. With its combination of thermostatic safety, flexible installation features, and multiple water outlets, the Crosswater Crossbox Push Shower Set 7 offers a comprehensive and stylish solution for modern bathrooms.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass
- Outlets: 3
- Minimum Operating Water Pressure: 1 Bar
Special Features:
- Shower Set Includes - Shower Valve, Thermostatic Crossbox (Concealed Part), Shower Kit: Handset and Hose, Fixed Head with Arm, Bath Filler with Waste
Details of Thermostatic Shower Valve:
- Size: 130mm x 160mm [Width x Height]
- Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
- Built-In Easy-Switch Thermostatic Module Allows for Simple
- The Flush-Block Testing Plate Included for Easy Pressure Testing
- Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
- Suitable for High Water Pressure
- Requires a Minimum of 1 Bar Water Pressure System
Details of Crossbox:
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure
Details of Shower Handset:
- Single Spray Pattern
- Minimalist Design
- Modern Aesthetics with Functional Design
- Ideal for Contemporary Bathrooms
- A Slimline Round Shower Handset, a Durable Hose, and a Wall-Mounted Outlet with an Integrated Holder
- Handset Height: 194.5mm
- WRAS-Approved
- Suitable for Low and High Water Pressure Systems
- Works on a Minimum of 0.2 Bar to 5.0 Bar Water Pressure
Details of Shower Head:
- WRAS and KIWA-Approved
- Head Thickness: 5.8mm
- Inlet Connection: G1/2 Inch
- Requires a Minimum of 1.0 Bar or Above Water Pressure
Details of Shower Arm:
- KIWA-Approved
- Length: 330mm
- Inlet/Outlet Connection: G1/2-Inch
- Suitable for All Crosswater Fixed Heads
Details of Bath Filler with Waste:
- Length: 1340mm
- Depth: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]
Assembling instruction for Shower Valve
Assembling instruction for 200mm Shower head
Assembling instruction for 300mm Shower head
Assembling instruction for Crossbox
Assembling instruction for Bath Filler Waste
Assembling instruction for Shower Kit
Datasheet for 200mm Shower Head
Datasheet for 300mm Shower Head
Datasheet for Bath Filler Waste
Technical Drawing
Shower Valve
- View Less
