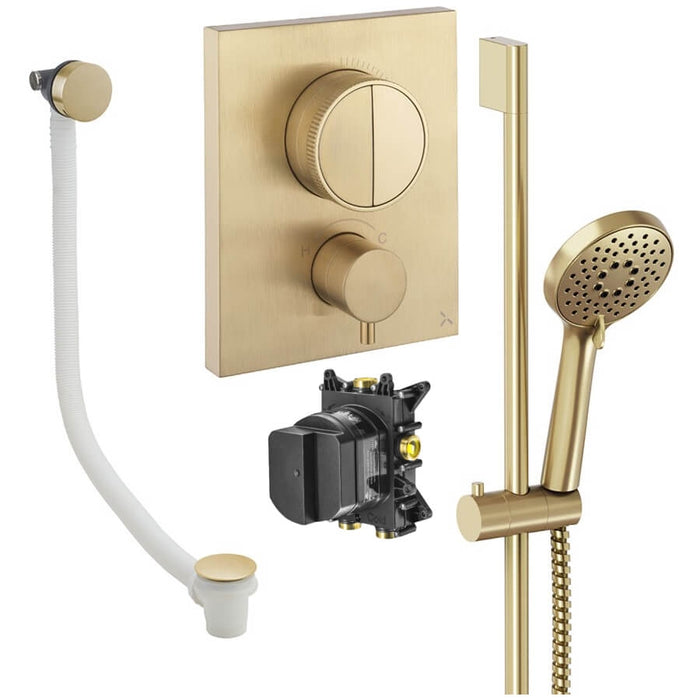

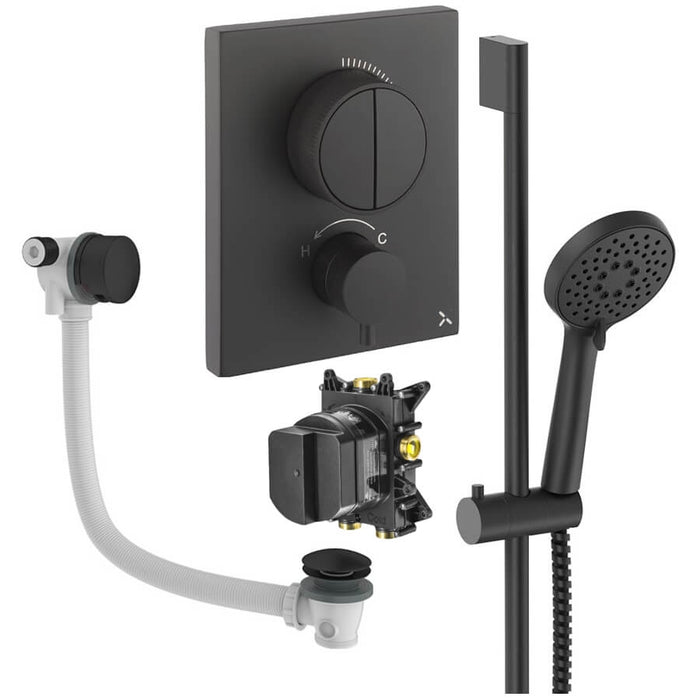

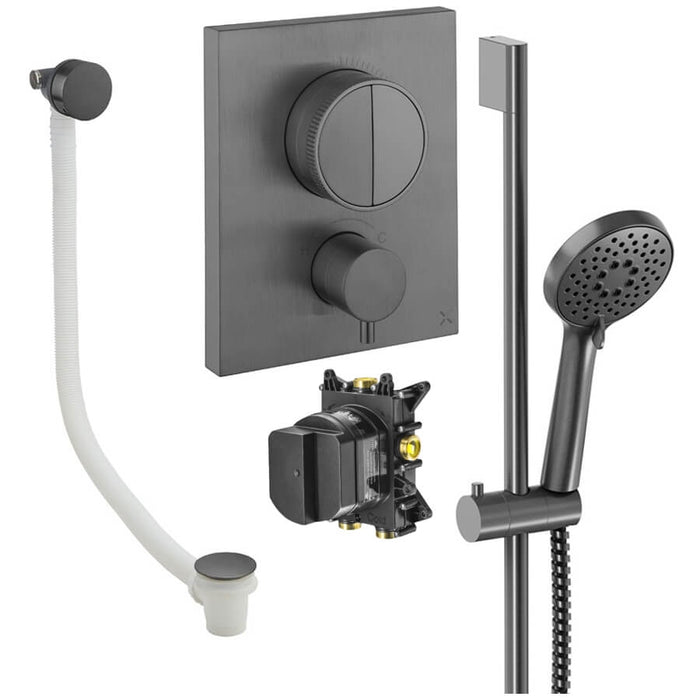

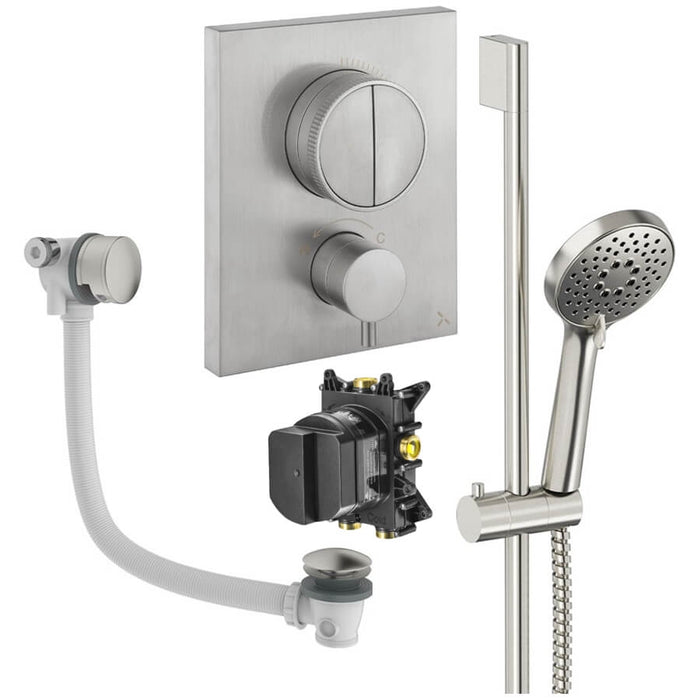

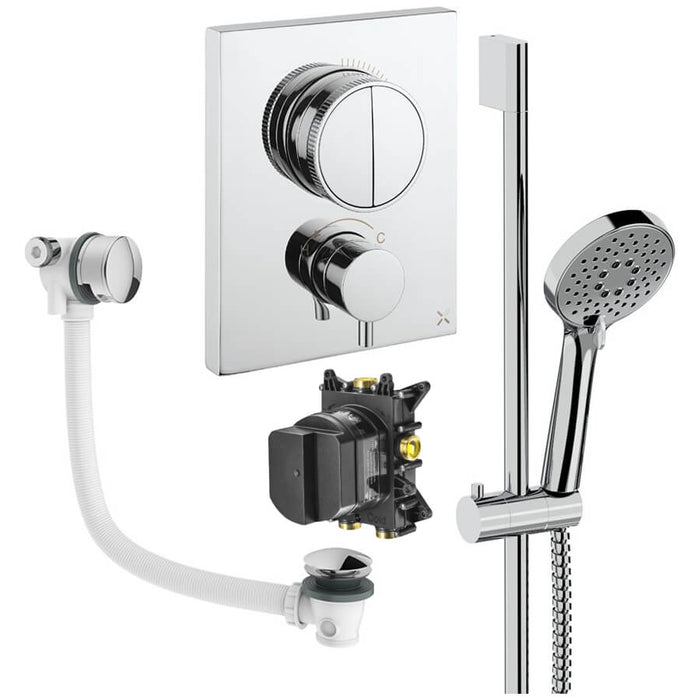

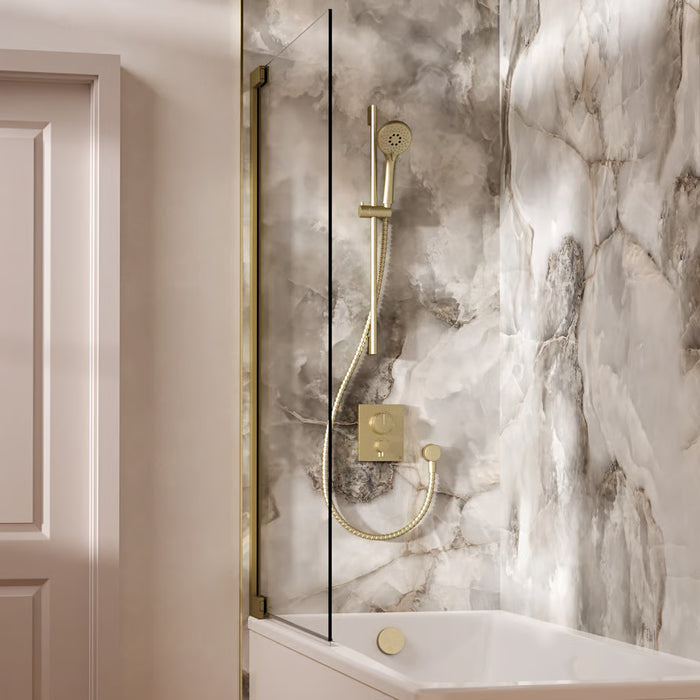

Crosswater Crossbox Push Shower Set 4 with Handset & Bath Filler
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Crossbox Push Shower Set 4 is designed to deliver a modern, efficient, and versatile showering solution for bathrooms that combine both shower and bath functionality. With its concealed Crossbox technology, thermostatic temperature control, and contemporary styling, this shower set offers dependable performance while maintaining a clean and minimal appearance. This complete shower set includes a shower valve, thermostatic Crossbox concealed unit, slide rail kit with handset and hose, and a bath filler with waste. The combination provides flexibility for both showering and bathing, making it a practical choice for modern family bathrooms or ensuite spaces.
The valve also includes a flush-block testing plate for simple pressure testing before the final installation stage. Flexible front or rear mounting options allow installers to adapt the valve to different plumbing layouts with ease. In addition, the built-in quick flow reversal function allows the hot and cold connections to be corrected quickly if they are accidentally installed the wrong way around. The Crosswater Crossbox Push Shower Set 4 combines advanced installation features, reliable thermostatic control, and contemporary design, making it a practical and stylish solution for modern bathrooms that require both shower and bath functionality.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass
- Outlets: 2
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 1 Bar
Special Features:
- Shower Set Includes - Shower Valve, Thermostatic Crossbox (Concealed Part), Slide Rail Kit: Handset and Hose, Bath Filler with Waste
Details of Thermostatic Shower Valve:
- Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
- The Flush-Block Testing Plate Included for Easy Pressure Testing
- Size: 130mm x 160mm [Width x Height]
- Simple 2-Stage Fixing Allows Installation of in-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
- Suitable for High Water Pressure
Details of Crossbox:
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure
Details of Slide Rail Shower Set:
- Slide Rail with Shower Kit and Outlet Elbow
- Overall Size: 111mm x 81mm x 698mm [Width x Depth x Height]
- 3-Functions Shower Handset
- 1-Outlet Elbow
- Manufactured from Brass and ABS Material
- Requires a Minimum of 1 Bar of Water Pressure
- WRAS Approved
- Inlet Connection Thread: G1/2-Inch
- Flow Rate: 1Bar: 10.29, 2Bar: 13.26, 3Bar: 15.18, 4Bar: 17.76, 5Bar: 19.38

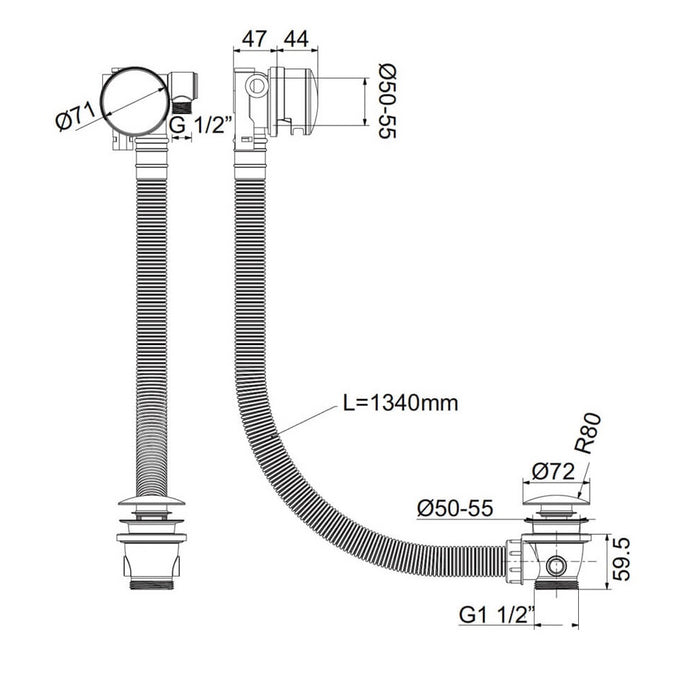

Details of Bath Filler with Waste:
- Length: 1340mm
- Projection: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]
Assembling instruction for Shower Valve
Assembling instruction for Crossbox
Assembling instruction for Shower Kit
Assembling instruction for Bath Filler Waste
Datasheet for Bath Filler Waste
Technical Drawing
Shower Valve
Crossbox
Slide Rail Kit
- View Less
Product Information
The Crosswater Crossbox Push Shower Set 4 is designed to deliver a modern, efficient, and versatile showering solution for bathrooms that combine both shower and bath functionality. With its concealed Crossbox technology, thermostatic temperature control, and contemporary styling, this shower set offers dependable performance while maintaining a clean and minimal appearance. This complete shower set includes a shower valve, thermostatic Crossbox concealed unit, slide rail kit with handset and hose, and a bath filler with waste. The combination provides flexibility for both showering and bathing, making it a practical choice for modern family bathrooms or ensuite spaces.
The valve also includes a flush-block testing plate for simple pressure testing before the final installation stage. Flexible front or rear mounting options allow installers to adapt the valve to different plumbing layouts with ease. In addition, the built-in quick flow reversal function allows the hot and cold connections to be corrected quickly if they are accidentally installed the wrong way around. The Crosswater Crossbox Push Shower Set 4 combines advanced installation features, reliable thermostatic control, and contemporary design, making it a practical and stylish solution for modern bathrooms that require both shower and bath functionality.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass
- Outlets: 2
- Handles: 2
- Handle Type: Knob
- Minimum Operating Water Pressure: 1 Bar
Special Features:
- Shower Set Includes - Shower Valve, Thermostatic Crossbox (Concealed Part), Slide Rail Kit: Handset and Hose, Bath Filler with Waste
Details of Thermostatic Shower Valve:
- Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
- The Flush-Block Testing Plate Included for Easy Pressure Testing
- Size: 130mm x 160mm [Width x Height]
- Simple 2-Stage Fixing Allows Installation of in-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
- Suitable for High Water Pressure
Details of Crossbox:
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure
Details of Slide Rail Shower Set:
- Slide Rail with Shower Kit and Outlet Elbow
- Overall Size: 111mm x 81mm x 698mm [Width x Depth x Height]
- 3-Functions Shower Handset
- 1-Outlet Elbow
- Manufactured from Brass and ABS Material
- Requires a Minimum of 1 Bar of Water Pressure
- WRAS Approved
- Inlet Connection Thread: G1/2-Inch
- Flow Rate: 1Bar: 10.29, 2Bar: 13.26, 3Bar: 15.18, 4Bar: 17.76, 5Bar: 19.38
Details of Bath Filler with Waste:
- Length: 1340mm
- Projection: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]
Assembling instruction for Shower Valve
Assembling instruction for Crossbox
Assembling instruction for Shower Kit
Assembling instruction for Bath Filler Waste
Datasheet for Bath Filler Waste
Technical Drawing
Shower Valve
Crossbox
Slide Rail Kit
- View Less
