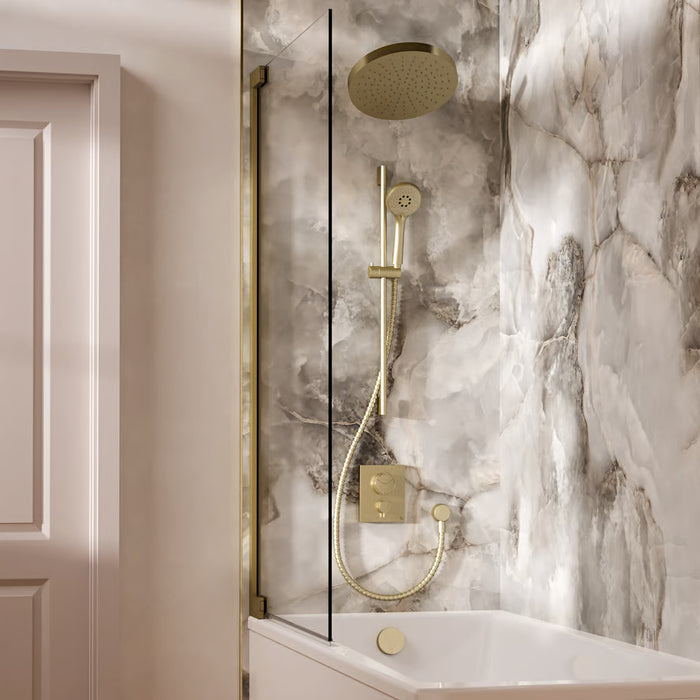

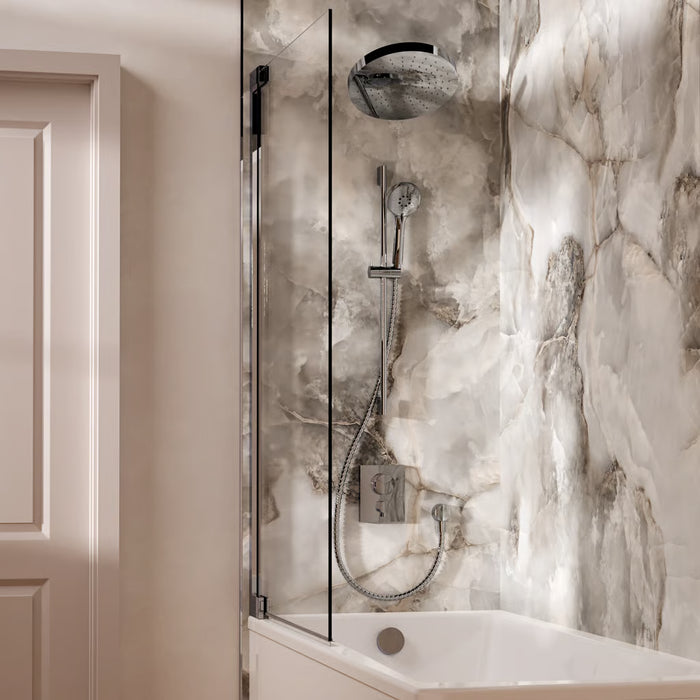

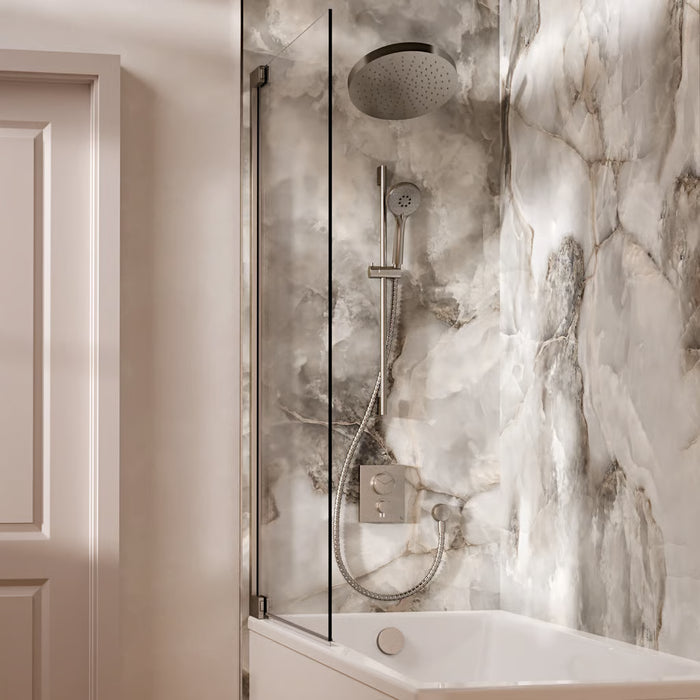

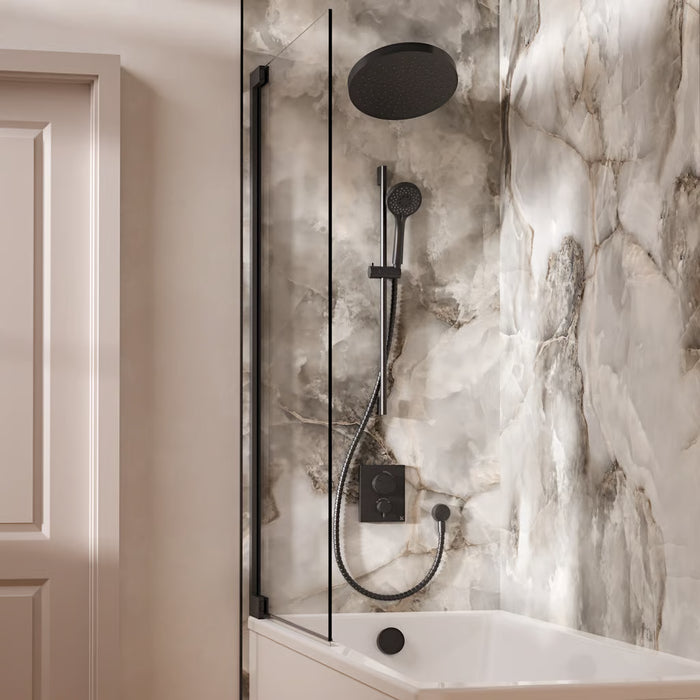

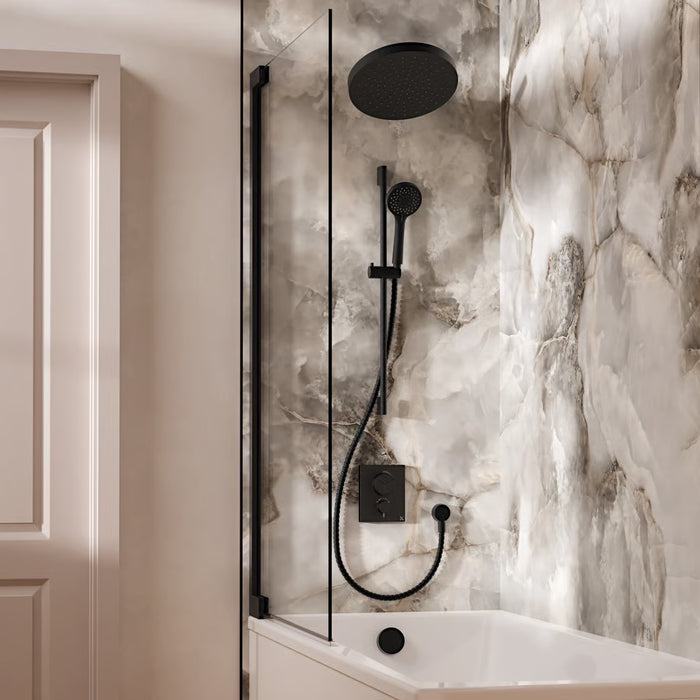

Crosswater Crossbox Push 3 Outlet Shower Set 10
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Crossbox Push Shower Set 10 is a complete and modern showering solution designed to deliver both performance and style in contemporary bathrooms. Part of the Crosswater Crossbox collection, this premium shower set features a concealed installation that creates a clean, streamlined look while providing precise control over multiple water outlets. The valve also features a built-in easy-switch thermostatic module for simplified operation and maintenance. A flush-block testing plate is included to make pressure testing easier during installation, and the system allows quick flow reversal if the hot and cold feeds are installed incorrectly. Improved flow dynamics enable 90-degree elbows to be fitted directly to outlets, creating a more compact pipework layout. The system is designed for high water pressure installations and requires a minimum operating pressure of 1 bar. At the core of the system is the concealed thermostatic shower valve, designed to maintain consistent water temperature for enhanced safety and comfort. The valve measures 130mm in width and 160mm in height and features a simple two-stage fixing system that allows the in-wall components and final trim to be installed separately, helping reduce the risk of damage during installation. Front or rear mounting options offer greater installation flexibility, while easy-fix second-stage trim sets help reduce installation time. Backed by a 15-year warranty, the Crosswater Crossbox Push Shower Set 10 offers advanced engineering, reliable performance, and elegant design, making it a comprehensive solution for modern bathroom installations.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass
- Outlets: 3
- Minimum Operating Water Pressure: 1 Bar
Special Features:

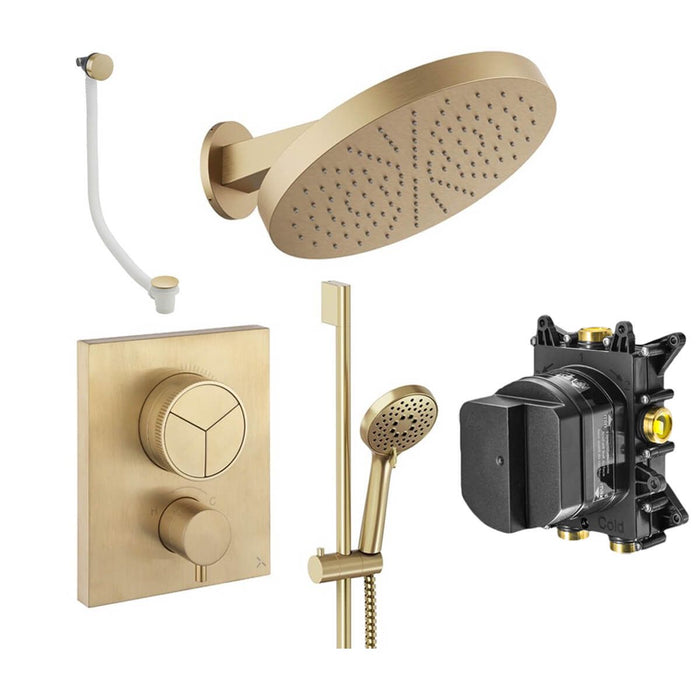

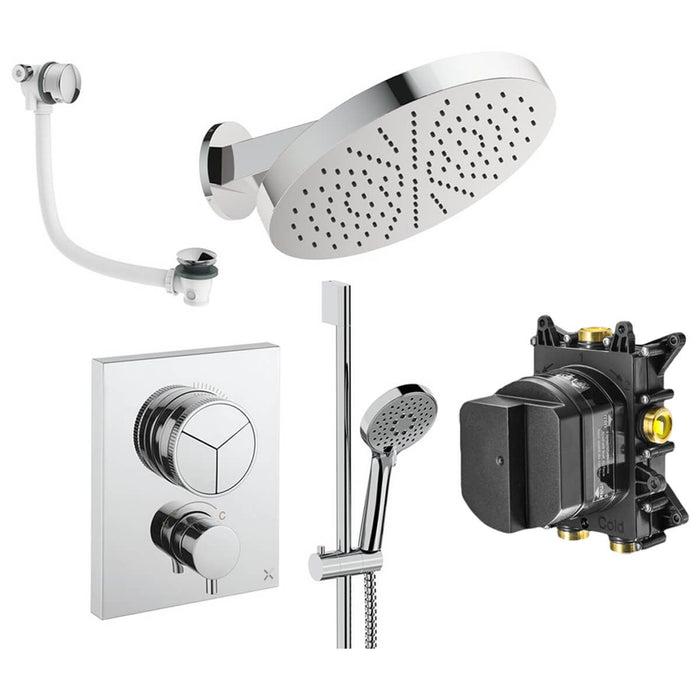

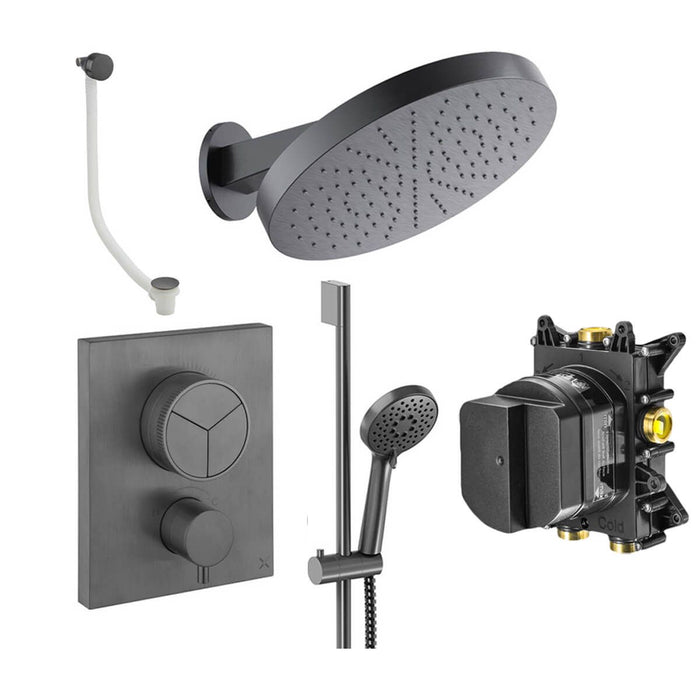

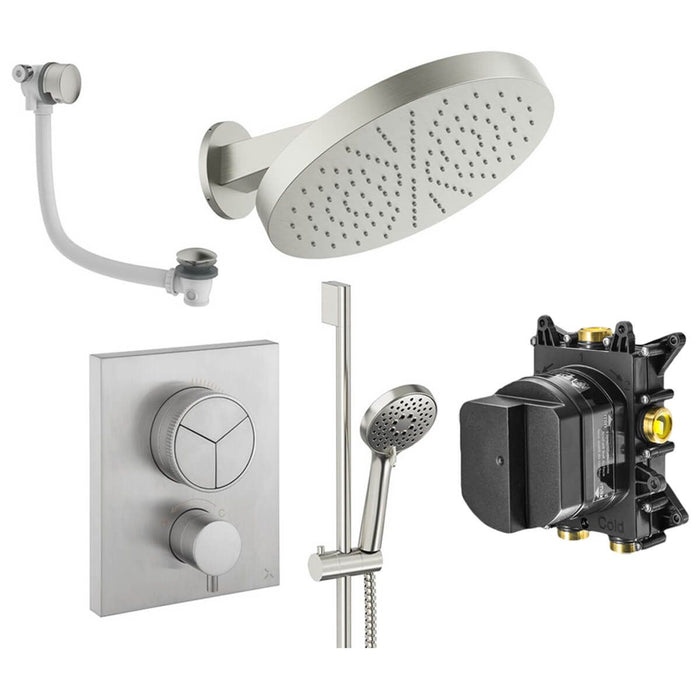

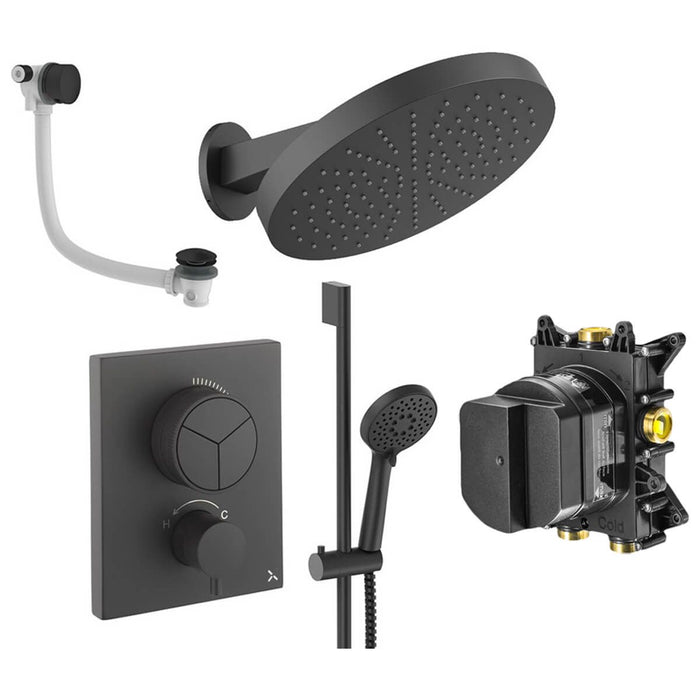

- Shower Set Includes - Concealed 3-Outlet Thermostatic Valve, Crossbox, Wall-Mounted Stainless Steel Shower Head, Slide Rail Kit with Handset, Hose and Outlet Elbow, Bath Filler with Waste

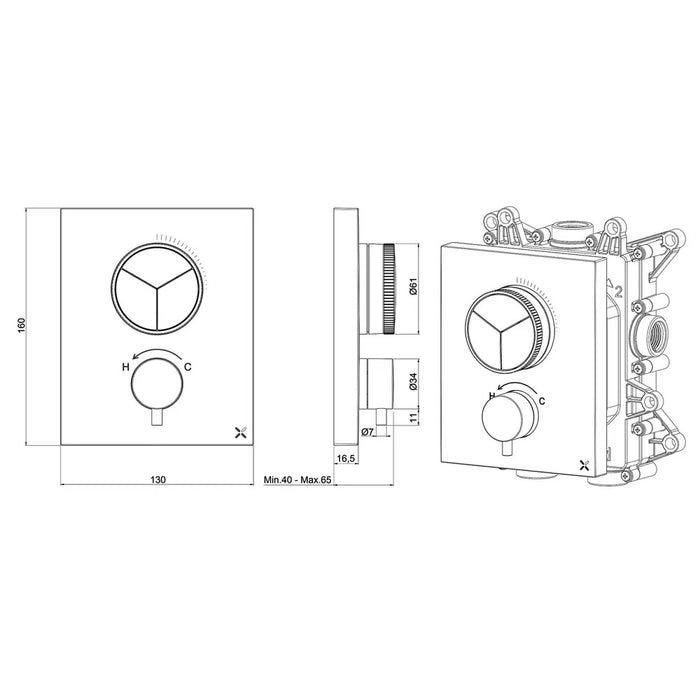

Details of Thermostatic Shower Valve:
- Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
- Built-In Easy-Switch Thermostatic Module Allows for Simple
- The Flush-Block Testing Plate Included for Easy Pressure Testing
- Size: 130mm x 160mm [Width x Height]
- Simple 2-Stage Fixing Allows Installation of in-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
- Suitable for High Water Pressure
- Requires a Minimum of 1 Bar Water Pressure System
Details of Crossbox:
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure
Details of Wall Mounted Stainless Steel Shower Head:
- Single Mode Function with Wipe Clean Nozzles
- Easy Clean Outlets
- Robust Design
- Easy Installation
- Includes Wall Arm
- Suitable for High Water Pressure Systems
- Works on Minimum 0.5 bar to Maximum 5.0 bar Water Pressure
- Diameter: Ø300mm
- Head Thickness: 30mm
- Arm Length: 202mm
- Inlet Connection: G1/2 inch

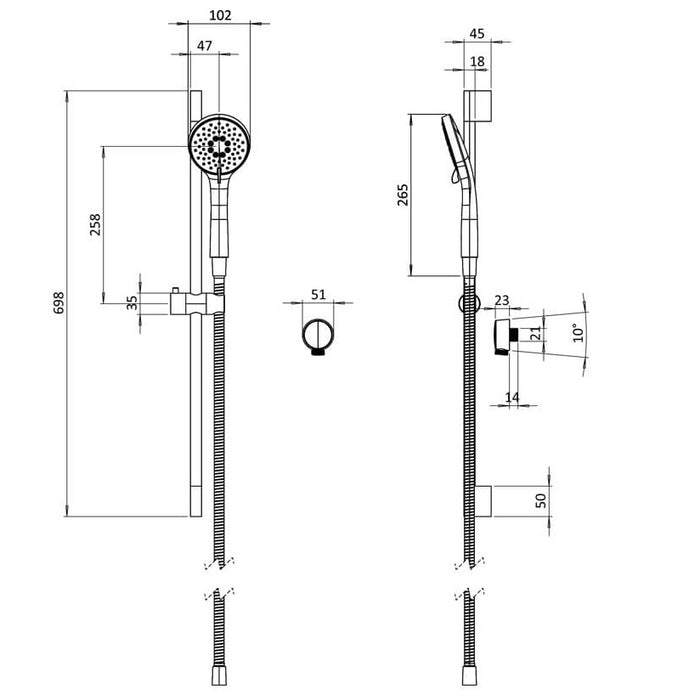

Details of Slide Rail Kit with Handset, Hose and Outlet Elbow:
- Comes with Handset Holder
- Completes with Shower Hose
- WRAS Approved
- Material: ABS
- 3 Function Shower Handset
- G1/2 inch Inlet Connection
- Size of Rail: Depth 45mm x Height 698mm
- Size of Handset: Ø102mm x Height 265mm
- Size of Outlet Elbow: Ø51mm x Depth 23mm
- Suitable for high-pressure water systems
- Requires a Minimum 1.0 Bar and a Maximum 5.0 Bar Operating Water Pressure
Details of Bath Filler with Waste:
- Length: 1340mm
- Depth: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]
Assembling instruction for Shower Valve
Assembling instruction for Crossbox
Assembling instruction for Shower Kit
Assembling instruction for Stainless Steel Shower Head
Assembling instruction for Bath Filler Waste
Datasheet for Stainless Steel Shower Head
Datasheet for Bath Filler Waste
Technical Drawing
Shower Valve
- View Less
Product Information
The Crosswater Crossbox Push Shower Set 10 is a complete and modern showering solution designed to deliver both performance and style in contemporary bathrooms. Part of the Crosswater Crossbox collection, this premium shower set features a concealed installation that creates a clean, streamlined look while providing precise control over multiple water outlets. The valve also features a built-in easy-switch thermostatic module for simplified operation and maintenance. A flush-block testing plate is included to make pressure testing easier during installation, and the system allows quick flow reversal if the hot and cold feeds are installed incorrectly. Improved flow dynamics enable 90-degree elbows to be fitted directly to outlets, creating a more compact pipework layout. The system is designed for high water pressure installations and requires a minimum operating pressure of 1 bar. At the core of the system is the concealed thermostatic shower valve, designed to maintain consistent water temperature for enhanced safety and comfort. The valve measures 130mm in width and 160mm in height and features a simple two-stage fixing system that allows the in-wall components and final trim to be installed separately, helping reduce the risk of damage during installation. Front or rear mounting options offer greater installation flexibility, while easy-fix second-stage trim sets help reduce installation time. Backed by a 15-year warranty, the Crosswater Crossbox Push Shower Set 10 offers advanced engineering, reliable performance, and elegant design, making it a comprehensive solution for modern bathroom installations.
Specifications:
- Warranty: 15 Years
- Product Type: Shower Set
- Brand: Crosswater
- Collection: Crossbox
- Style: Modern
- Material: Brass
- Outlets: 3
- Minimum Operating Water Pressure: 1 Bar
Special Features:
- Shower Set Includes - Concealed 3-Outlet Thermostatic Valve, Crossbox, Wall-Mounted Stainless Steel Shower Head, Slide Rail Kit with Handset, Hose and Outlet Elbow, Bath Filler with Waste
Details of Thermostatic Shower Valve:
- Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
- Built-In Easy-Switch Thermostatic Module Allows for Simple
- The Flush-Block Testing Plate Included for Easy Pressure Testing
- Size: 130mm x 160mm [Width x Height]
- Simple 2-Stage Fixing Allows Installation of in-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
- Front or Rear Mounting Options Increase Ease of Installation and Flexibility
- Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
- Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
- Suitable for High Water Pressure
- Requires a Minimum of 1 Bar Water Pressure System
Details of Crossbox:
- Suitable for High Water Pressure System
- Works On a Minimum of 1.0 Bar or Above Water Pressure
Details of Wall Mounted Stainless Steel Shower Head:
- Single Mode Function with Wipe Clean Nozzles
- Easy Clean Outlets
- Robust Design
- Easy Installation
- Includes Wall Arm
- Suitable for High Water Pressure Systems
- Works on Minimum 0.5 bar to Maximum 5.0 bar Water Pressure
- Diameter: Ø300mm
- Head Thickness: 30mm
- Arm Length: 202mm
- Inlet Connection: G1/2 inch
Details of Slide Rail Kit with Handset, Hose and Outlet Elbow:
- Comes with Handset Holder
- Completes with Shower Hose
- WRAS Approved
- Material: ABS
- 3 Function Shower Handset
- G1/2 inch Inlet Connection
- Size of Rail: Depth 45mm x Height 698mm
- Size of Handset: Ø102mm x Height 265mm
- Size of Outlet Elbow: Ø51mm x Depth 23mm
- Suitable for high-pressure water systems
- Requires a Minimum 1.0 Bar and a Maximum 5.0 Bar Operating Water Pressure
Details of Bath Filler with Waste:
- Length: 1340mm
- Depth: 44mm
- 3-in-1 Inlet/Outlet and Overflow Function
- Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
- The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]
Assembling instruction for Shower Valve
Assembling instruction for Crossbox
Assembling instruction for Shower Kit
Assembling instruction for Stainless Steel Shower Head
Assembling instruction for Bath Filler Waste
Datasheet for Stainless Steel Shower Head
Datasheet for Bath Filler Waste
Technical Drawing
Shower Valve
- View Less
