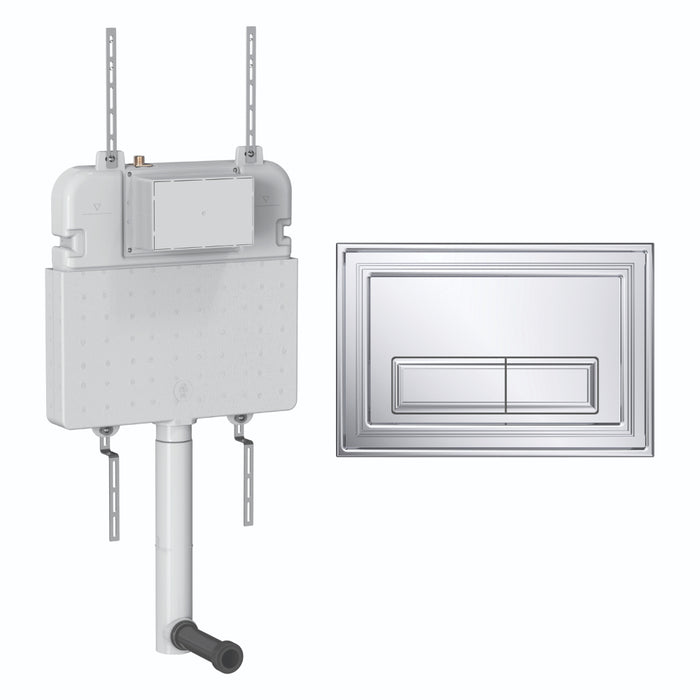

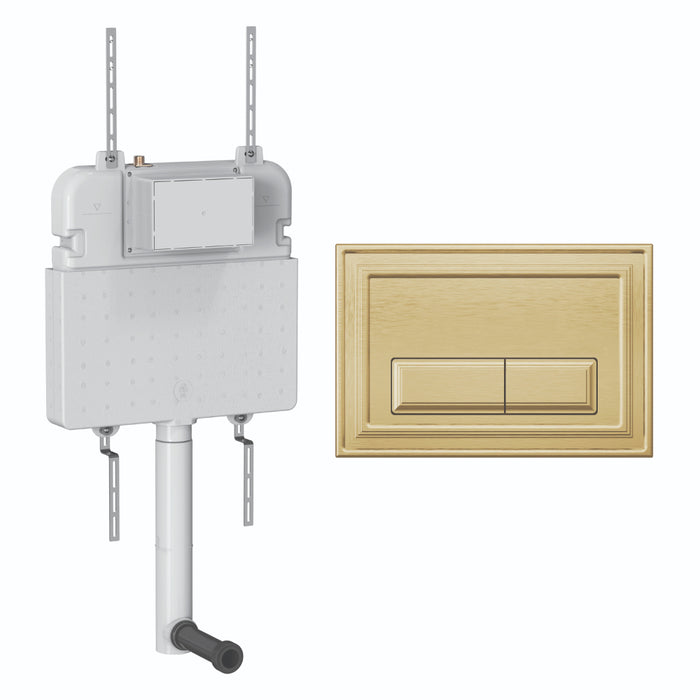

Crosswater Belgravia 530mm Tall Concealed Cistern Set 2
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Belgravia 530mm Tall Concealed Cistern Set 2 is a traditional-style concealed cistern system designed for compact and efficient bathroom installations. Supplied as a complete set, it includes a dual flush concealed cistern, flush plate, discharge pipe, and full installation kit, making it suitable for use with compatible Crosswater back-to-wall toilets. Manufactured from durable plastic and brass materials, the cistern offers long-lasting reliability and consistent performance. It features a dual-flush mechanism with a 6/4 litre flush volume, helping to reduce water consumption by up to 40% while maintaining effective flushing power. Designed for wall-mounted installation, it supports both front and top actuation for flexible fitting options. WRAS and UKCA approved and compliant with BS EN 14055:2018 standards, the cistern ensures trusted quality, safety, and performance. It operates with a maximum supply pressure of up to 6 bar and includes a slimline design that is ideal for smaller wall cavities. The system supports a front flush depth range of 100mm to 140mm and a top entry feed for easier installation.
The included flush plate features dual-flush eco technology, allowing full or reduced water usage for improved efficiency. With smooth mechanical operation, an actuation force of less than 20nm, and easy installation fittings included, it provides both convenience and reliability. Backed by a 5-year warranty, the Crosswater Belgravia 530mm Tall Concealed Cistern Set 2 delivers a space-saving, efficient, and traditionally styled concealed toilet solution for modern bathrooms.
Specifications
- Warranty: 5 Years
- Product Type: Concealed Cistern
- Brand: Crosswater
- Collection: Belgravia
- Style: Traditional
- Shape: Rectangular
- Mounting: Wall
- Material: Plastic/Brass
Special Features
- Set includes: Dual flush concealed cistern and flush plate
- Cistern includes discharge pipe & installation kit
- WRAS and UKCA Approved product
- Dual-Flush Mechanism
- Noise Class: Group I
- All Fittings Included
- Front or Top Actuation
- Standards: BS EN 14055:2018
- Flush Volume: 6/4 Litre
- Maximum Supply Pressure 6 Bar
- Fixing Type: Wall-Mounted Fixing
- Designed for Use with Compatible Crosswater Back-to-Wall Toilets
- Slimline Design is Created with Smaller Wall Cavities in mind
- Front flush depth range: 100mm-140mm
- Top entry feed
Details of Flush Plate
- Dual-Flush Technology - Including Eco-Flush
- Size: Width: 245mm x Height: 165mm
- Actuation Force: <20nm
- Smooth Yet Positive Mechanical Operation
- Easy to Fit
- Fixings for the Mounting Frame Included
- The Dual Flush Technology Allows You to Reduce Your Water Usage by up to 40%
- Press the Large Button to Flush with the Entire Water Volume or the Smaller Button for an Eco Flush [Reduced 3-litre Volume]
Dimensions
- Height: 550mm
- Width: 508mm
- Depth: 80mm
Assembling instructions for dual flush concealed cistern
Datasheet for dual flush concealed cistern
Technical Drawing
