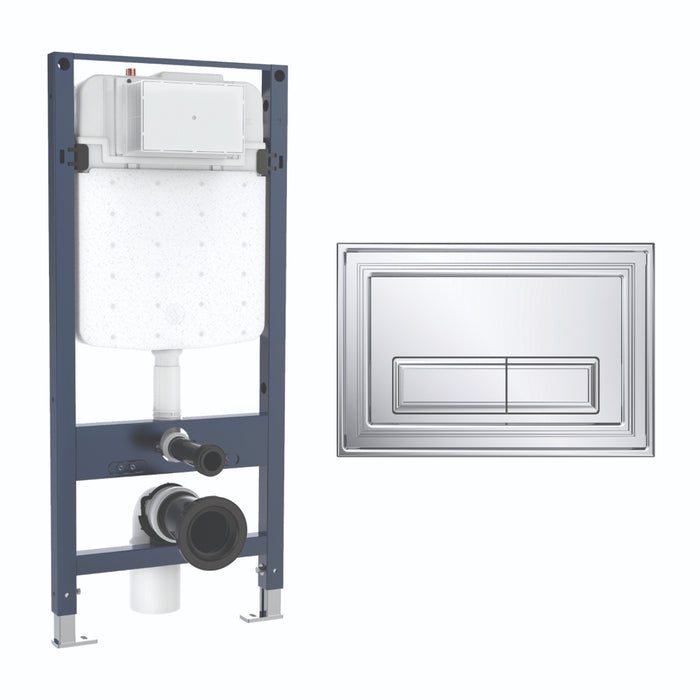

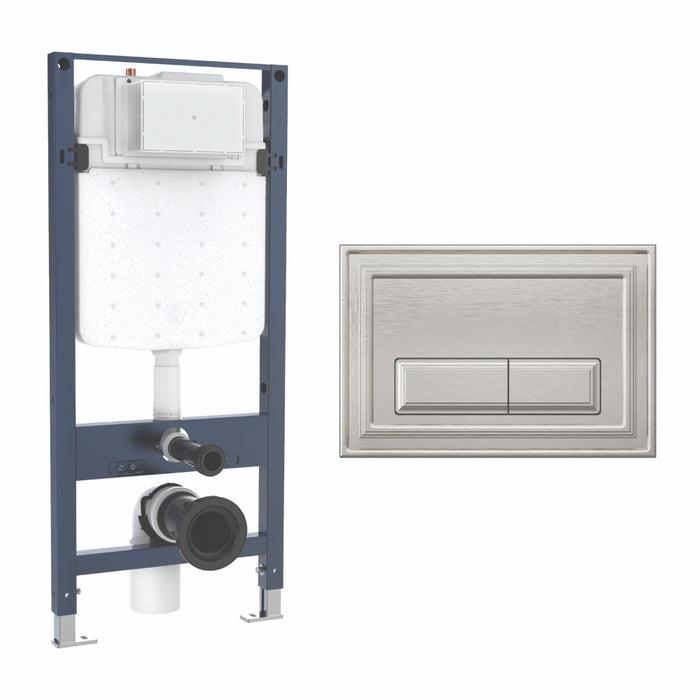

Crosswater Belgravia Slim 1120mm Concealed Cistern Toilet Frame Set 4
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Belgravia Slim Concealed Cistern Frame Set 4 is a high-quality wall-hung toilet frame system that combines traditional styling with advanced functionality, making it an ideal choice for elegant and practical bathroom installations. Designed for use with Crosswater wall-hung toilet pans, this complete frame set delivers dependable performance, efficient water-saving technology, and flexible installation features. Supplied as a complete package, the set includes a dual flush concealed cistern with installation kit, WC frame, and flush plate, providing everything required for a neat and professional concealed toilet installation. Constructed from durable steel, brass, and plastic materials, the frame is built to provide long-lasting reliability and can support loads of up to 400kg for exceptional stability and strength. The adjustable height design offers flexibility during installation, while the large feet are specially designed for easy rear fixing on UK timber floors. Easy-install wall brackets allow both vertical and horizontal fixing options, making the frame suitable for a variety of bathroom layouts and installation requirements. Adjustable feet with integrated rubber sound-deadening pads help reduce noise and vibration for a quieter bathroom environment. Featuring a mechanical push button dual flush system, the frame supports efficient water usage with adjustable water-saving settings of 4.5/3 litres and a preset flush volume of 6/4 litres. The integrated dual flush technology can help reduce water consumption by up to 40%, making it both environmentally friendly and cost-effective.
Suitable for front and top actuation, the frame provides versatile installation possibilities, while the back inlet water connection ensures a neat and practical setup. The flush plate actuation force of less than 20nm allows for smooth and effortless operation. Certified to WRAS and UKCA standards and compliant with BS EN 14055:2018 regulations, the Belgravia Frame Set 4 offers trusted quality, safety, and performance. Its low-noise operation, rated as Noise Class Group I, further enhances comfort and usability within the bathroom. The frame accommodates a front flush depth adjustment range between 180mm and 260mm, making it suitable for a wide variety of concealed installation applications. Backed by a 5-year warranty, the Crosswater Belgravia Slim Frame Set 4 provides a reliable, stylish, and efficient solution that perfectly blends traditional aesthetics with modern engineering.
Specifications
- Warranty: 5 Years
- Product Type: Wall Hung Toilet Frame
- Brand: Crosswater
- Collection: Belgravia
- Style: Traditional
- Shape: Rectangular
- Mounting: Floor
- Material: Steel/Brass/Plastic
Special Features
- Set includes: Dual flush concealed cistern & installation kit, WC frame and flush plate
- For use with Crosswater wall-hung toilet pans
- Supports up to 400kg load
- Depth range of Front flush: 180mm-260mm
- WRAS and UKCA certified product
-
Flush Type: Push Button Dual Flush
- Flush Operation: Mechanical
- Actuation Type: Front Actuation
-
Inlet Location: Top Inlet
- Adjustable Height
- Water Saving Adjustment: 4.5/3L
- Flush Volume: 6/4L preset
- Noise Class: Group I
- BS EN 14055:2018 standards
- Floor fixing included
- Large Feet for Easy Rear Fixing - Specially Designed for UK Timber Floor
- Easy Install Wall Brackets for Vertical or Horizontal Fixing
- Adjustable feet with Rubber Sound Deadening Pads
- Water-Saving Technology
- The Dual Flush Technology Allows You to Reduce Your Water Usage by up to 40%
- Flush plate Actuation Force: <20nm
Dimensions
- Height: 1120mm
- Width: 497mm
Assembling instructions for Frame with dual flush concealed cistern
Datasheet for Frame with dual flush concealed cistern

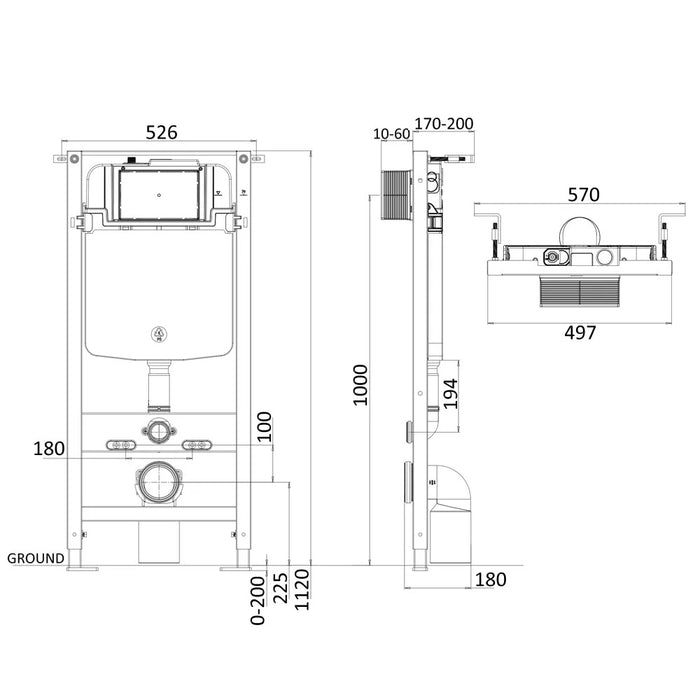

Technical Drawing
