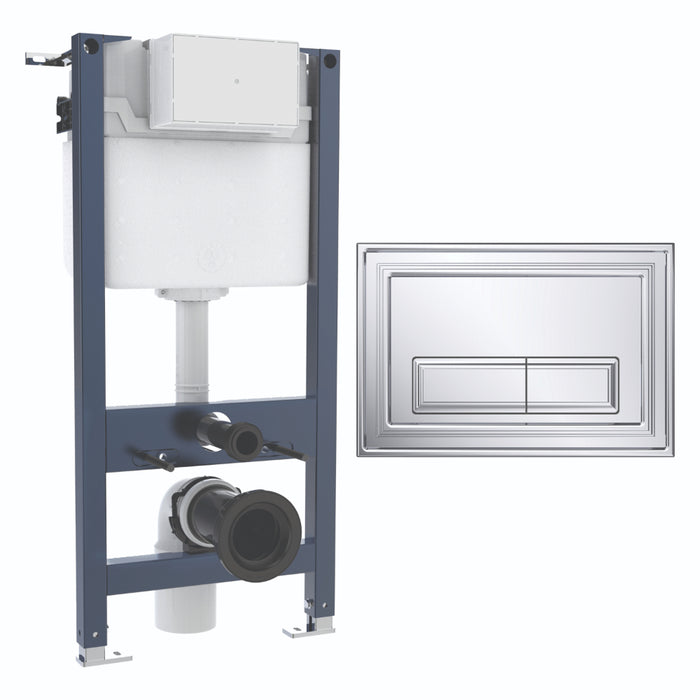

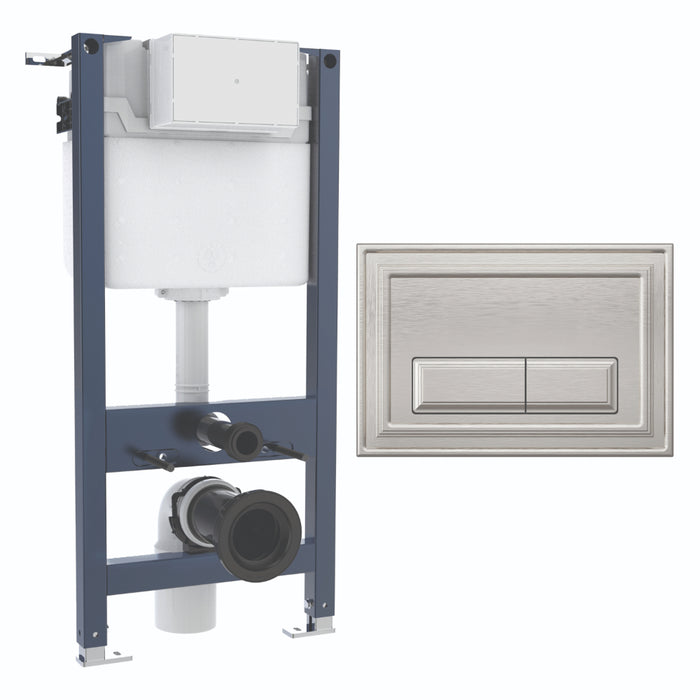

Crosswater Belgravia 980mm Concealed Cistern Toilet Frame Set 2
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Belgravia Concealed Cistern Frame Set 2 is a high-quality wall-hung toilet frame system that combines traditional styling with advanced functionality, making it an excellent choice for elegant and practical bathroom installations. Designed specifically for use with Crosswater wall-hung toilet pans, this complete set offers strength, efficient performance, and flexible installation options for modern and classic interiors alike. The set includes a dual flush concealed cistern with installation kit, WC frame, and flush plate, providing a complete solution for a neat and professional concealed toilet setup. Manufactured from durable steel, brass, and plastic materials, the frame is engineered for long-lasting reliability and can support loads of up to 400kg for exceptional strength and stability. With its adjustable height feature and versatile fixing options, the frame is designed to simplify installation. Large feet provide easier rear fixing and are specially designed for UK timber floors, while the easy-install wall brackets allow both vertical and horizontal fixing configurations. Adjustable feet with integrated rubber sound-deadening pads help reduce vibration and operational noise for a quieter bathroom environment. The mechanical push button dual flush system promotes water efficiency with adjustable water-saving settings of 4.5/3 litres and a preset flush volume of 6/4 litres. Thanks to the integrated dual flush technology, water usage can be reduced by up to 40%, making this frame a practical and eco-conscious choice.
Suitable for both front and top actuation, the Belgravia Concealed Cistern Frame Set 2 provides flexible installation possibilities to suit a wide range of bathroom layouts. It also features a side inlet water connection and a flush plate actuation force of less than 20nm for smooth and comfortable operation. Certified to WRAS and UKCA standards and compliant with BS EN 14055:2018 regulations, this frame system ensures trusted quality, safety, and performance. Its low-noise operation, rated as Noise Class Group I, further enhances comfort and usability in the bathroom. The frame accommodates top flush depth ranges between 170mm and 200mm, while front flush installations can be adjusted between 190mm and 260mm for greater installation versatility. Backed by a 5-year warranty, the Crosswater Belgravia Frame Set 2 offers a dependable and stylish concealed toilet solution that blends classic design with modern engineering.
Specifications
- Warranty: 5 Years
- Product Type: Wall Hung Toilet Frame
- Brand: Crosswater
- Collection: Belgravia
- Style: Traditional
- Shape: Rectangular
- Mounting: Floor
- Material: Steel/Brass/Plastic
Special Features
- Set includes: Dual flush concealed cistern & installation kit, WC frame and flush plate
- For use with Crosswater wall-hung toilet pans
- Supports up to 400kg load
- Depth range of Top flush: 170mm-200mm
- Depth range of Front flush: 190mm-260mm
- WRAS and UKCA certified product
-
Flush Type: Push Button Dual Flush
- Flush Operation: Mechanical
- Actuation Type: Front/Top Actuation
-
Inlet Location: Side Inlet
- Adjustable Height
- Water Saving Adjustment: 4.5/3L
- Flush Volume: 6/4L preset
- Noise Class: Group I
- BS EN 14055:2018 standards
- Floor fixing included
- Large Feet for Easy Rear Fixing - Specially Designed for UK Timber Floor
- Easy Install Wall Brackets for Vertical or Horizontal Fixing
- Adjustable feet with Rubber Sound Deadening Pads
- Water-Saving Technology
- The Dual Flush Technology Allows You to Reduce Your Water Usage by up to 40%
- Flush plate Actuation Force: <20nm
Dimensions
- Height: 980mm
- Width: 450mm
- Depth: 159mm
Assembling instructions for Frame with dual flush concealed cistern
Datasheet for Frame with dual flush concealed cistern

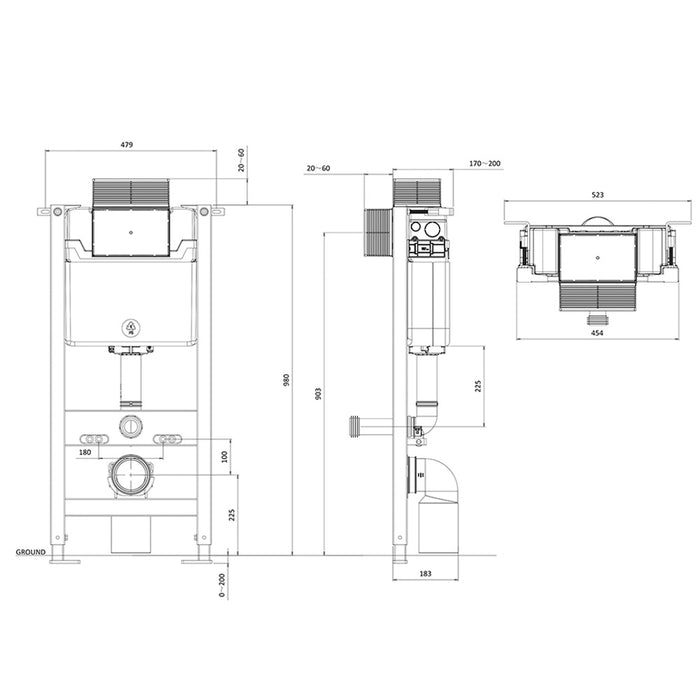

Technical Drawing
