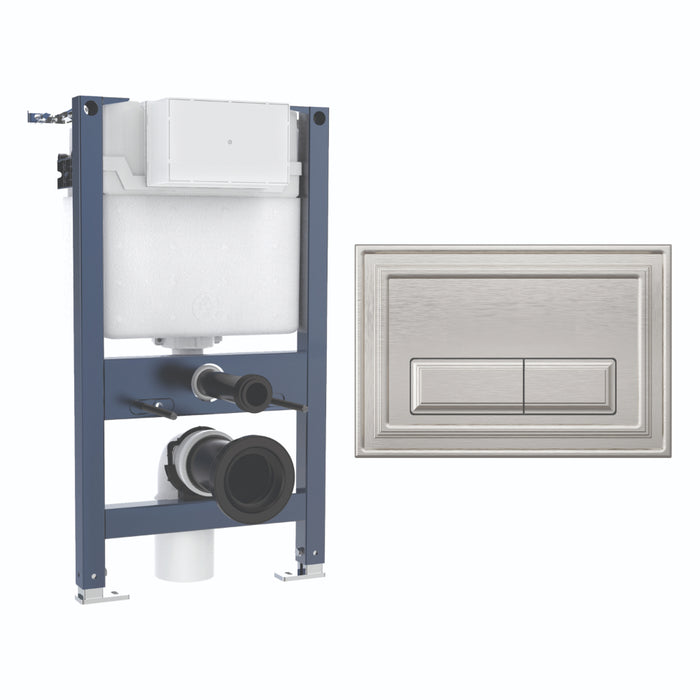

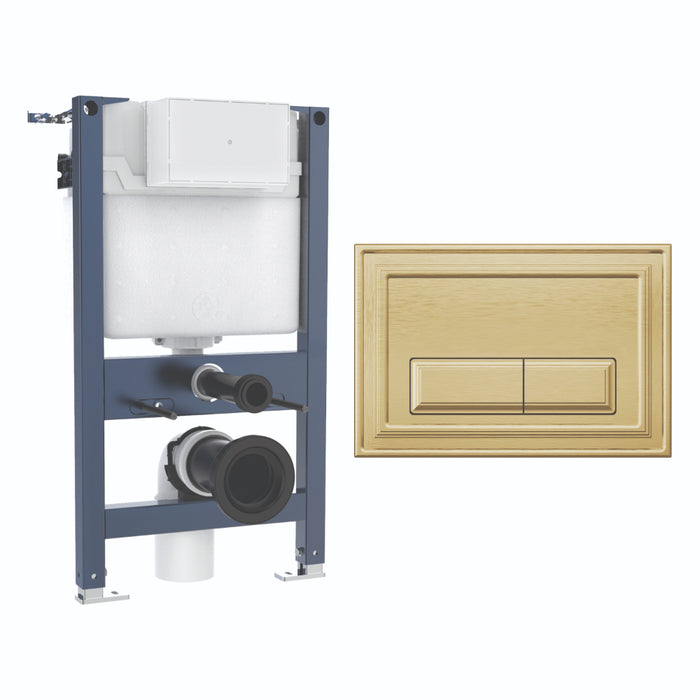

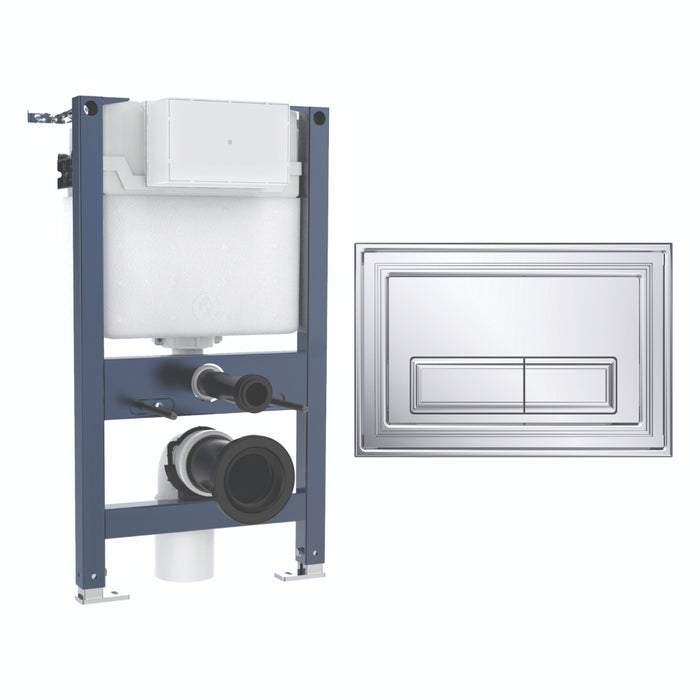

Crosswater Belgravia 820mm Concealed Cistern Toilet Frame Set 1
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Belgravia Concealed Cistern Frame Set 1 combines traditional styling with modern performance, making it an ideal solution for elegant wall-hung toilet installations. Designed for use with Crosswater wall-hung toilet pans, this complete frame set delivers durability, efficient flushing technology, and practical installation features for both classic and contemporary bathroom spaces. The set includes a dual flush concealed cistern with installation kit, WC frame, and flush plate, providing everything needed for a streamlined and professional installation. Constructed from high-quality steel, brass, and plastic materials, the frame is built for long-lasting reliability while supporting loads of up to 400kg for added strength and stability. Designed with installation flexibility in mind, the frame features adjustable height settings, large feet for easy rear fixing, and specially designed supports suitable for UK timber floors. The easy-install wall brackets allow for both vertical and horizontal fixing, while adjustable feet with rubber sound-deadening pads help minimise vibration and noise for a quieter bathroom experience. The mechanical push button dual flush system offers excellent water efficiency, with adjustable water-saving settings of 4.5/3 litres and a preset flush volume of 6/4 litres. The dual flush technology can help reduce water usage by up to 40%, making it a more environmentally conscious choice for modern homes.
Suitable for both front and top actuation, the frame provides greater flexibility for a range of bathroom layouts. It also features a side inlet water connection and a flush plate actuation force of less than 20nm for smooth and comfortable operation. Certified to WRAS and UKCA standards and compliant with BS EN 14055:2018 regulations, the Belgravia Frame Set 1 delivers dependable quality and trusted performance. The low-noise operation, rated as Noise Class Group I, further enhances comfort in the bathroom environment. The frame accommodates top flush depth ranges between 170mm and 200mm and front flush depth ranges from 190mm to 260mm, making it suitable for a variety of concealed installation requirements. Backed by a 5-year warranty, the Crosswater Belgravia Concealed Cistern Frame Set 1 offers a reliable and stylish solution that blends traditional aesthetics with modern engineering.
Specifications
- Warranty: 5 Years
- Product Type: Wall Hung Toilet Frame
- Brand: Crosswater
- Collection: Belgravia
- Style: Traditional
- Shape: Rectangular
- Mounting: Floor
- Material: Steel/Brass/Plastic
Special Features
- Set includes: Dual flush concealed cistern & installation kit, WC frame and flush plate
- For use with Crosswater wall-hung toilet pans
- Supports up to 400kg load
- Depth range of Top flush: 170mm-200mm
- Depth range of Front flush: 190mm-260mm
- WRAS and UKCA certified product
-
Flush Type: Push Button Dual Flush
- Flush Operation: Mechanical
- Actuation Type: Front/Top Actuation
-
Inlet Location: Side Inlet
- Adjustable Height
- Water Saving Adjustment: 4.5/3L
- Flush Volume: 6/4L preset
- Noise Class: Group I
- BS EN 14055:2018 standards
- Floor fixing included
- Large Feet for Easy Rear Fixing - Specially Designed for UK Timber Floor
- Easy Install Wall Brackets for Vertical or Horizontal Fixing
- Adjustable feet with Rubber Sound Deadening Pads
- Water-Saving Technology
- The Dual Flush Technology Allows You to Reduce Your Water Usage by up to 40%
- Flush plate Actuation Force: <20nm
Dimensions
- Height: 820mm
- Width: 450mm
- Depth: 159mm
Assembling instructions for Frame with dual flush concealed cistern
Datasheet for Frame with dual flush concealed cistern

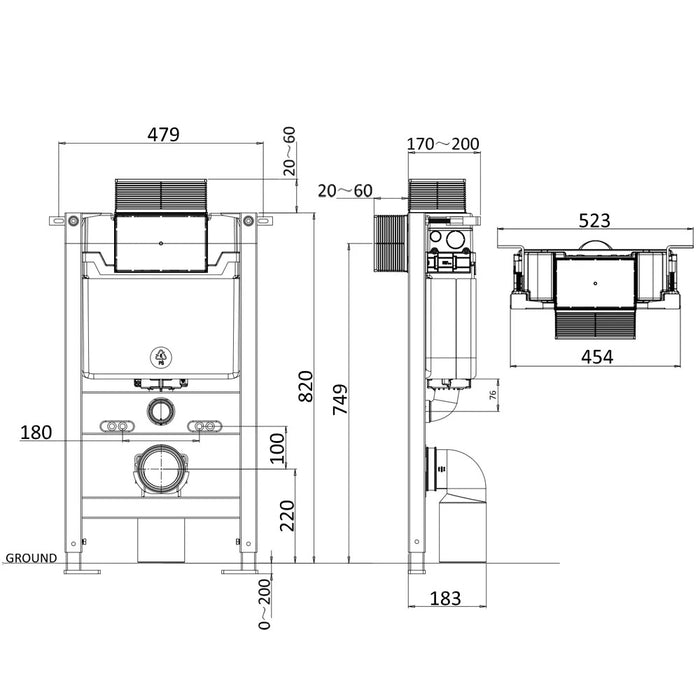

Technical Drawing
