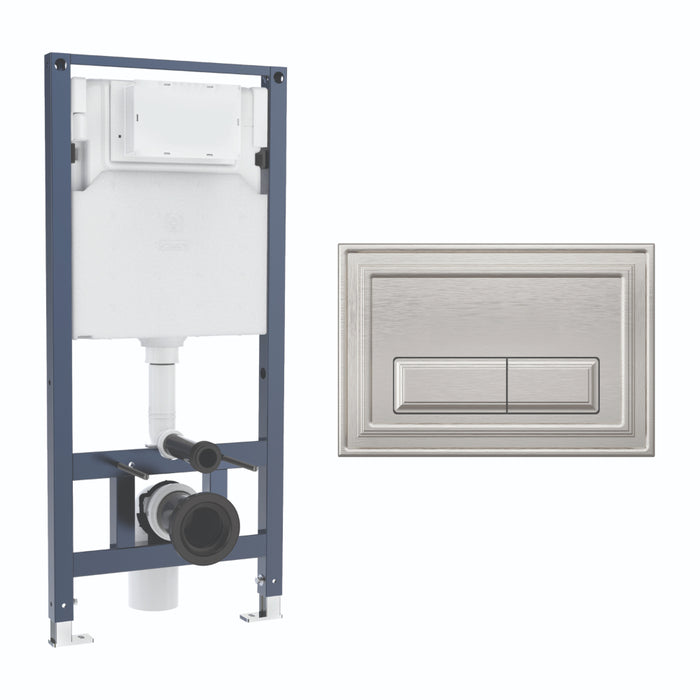

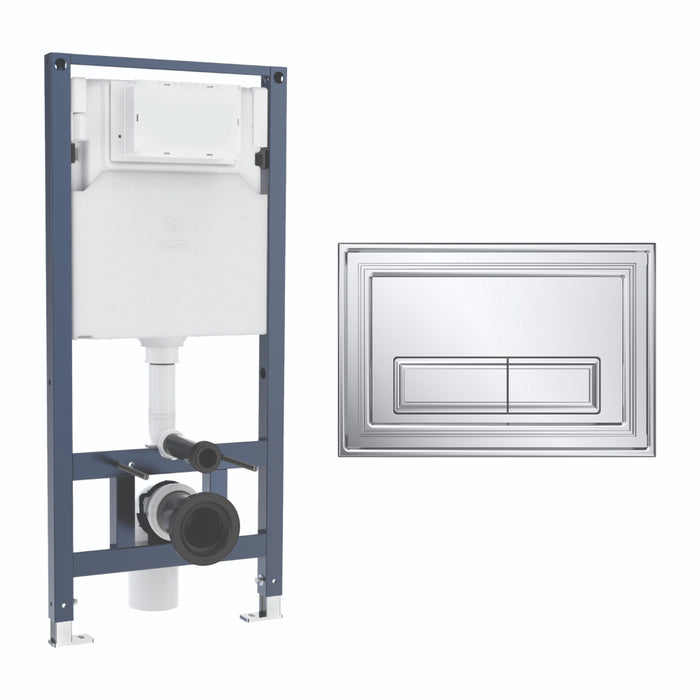

Crosswater Belgravia 1120mm Concealed Cistern Toilet Frame Set 3
Order now for dispatch in approximately 4 weeks.
Product Information
The Crosswater Belgravia Concealed Cistern Frame Set 3 is a premium wall-hung toilet frame solution that blends traditional elegance with modern functionality. Designed for use with Crosswater wall-hung toilet pans, this complete installation set offers reliable performance, strong construction, and flexible installation features for sophisticated bathroom spaces. Supplied as a complete package, the set includes a dual flush concealed cistern with installation kit, WC frame, and flush plate, providing everything required for a clean and professional concealed toilet installation. Manufactured from high-quality steel, brass, and plastic materials, the frame is engineered for long-lasting durability and is capable of supporting loads of up to 400kg for exceptional strength and stability. The adjustable height feature allows greater flexibility during installation, while the large feet are specially designed for easy rear fixing on UK timber floors. Easy-install wall brackets support both vertical and horizontal fixing configurations, making the frame suitable for a variety of bathroom layouts. Adjustable feet with rubber sound-deadening pads help minimise vibration and operational noise for a quieter and more comfortable bathroom environment. Featuring a mechanical push button dual flush system, the frame promotes improved water efficiency with adjustable water-saving settings of 4.5/3 litres and a preset flush volume of 6/4 litres. The advanced dual flush technology can help reduce water consumption by up to 40%, making it an environmentally conscious and cost-effective solution.
The frame supports both front and top actuation, offering greater installation versatility, while the side inlet water connection ensures practical and efficient setup. The flush plate actuation force of less than 20nm provides smooth and effortless operation. Certified to WRAS and UKCA standards and compliant with BS EN 14055:2018 regulations, the Belgravia Frame Set 3 delivers trusted quality, safety, and dependable performance. Its low-noise operation, rated as Noise Class Group I, further enhances comfort within the bathroom. Designed for concealed installations, the frame accommodates a front flush depth range between 190mm and 260mm, making it suitable for a wide range of bathroom configurations. Backed by a 5-year warranty, the Crosswater Belgravia Frame Set 3 offers a durable, efficient, and stylish solution that combines traditional design with modern engineering.
Specifications
- Warranty: 5 Years
- Product Type: Wall Hung Toilet Frame
- Brand: Crosswater
- Collection: Belgravia
- Style: Traditional
- Shape: Rectangular
- Mounting: Floor
- Material: Steel/Brass/Plastic
Special Features
- Set includes: Dual flush concealed cistern & installation kit, WC frame and flush plate
- For use with Crosswater wall-hung toilet pans
- Supports up to 400kg load
- Depth range of Front flush: 190mm-260mm
- WRAS and UKCA certified product
-
Flush Type: Push Button Dual Flush
- Flush Operation: Mechanical
- Actuation Type: Front/Top Actuation
-
Inlet Location: Back Inlet
- Adjustable Height
- Water Saving Adjustment: 4.5/3L
- Flush Volume: 6/4L preset
- Noise Class: Group I
- BS EN 14055:2018 standards
- Floor fixing included
- Large Feet for Easy Rear Fixing - Specially Designed for UK Timber Floor
- Easy Install Wall Brackets for Vertical or Horizontal Fixing
- Adjustable feet with Rubber Sound Deadening Pads
- Water-Saving Technology
- The Dual Flush Technology Allows You to Reduce Your Water Usage by up to 40%
- Flush plate Actuation Force: <20nm
Dimensions
- Height: 1120mm
- Width: 510mm
Assembling instructions for Frame with dual flush concealed cistern
Datasheet for Frame with dual flush concealed cistern

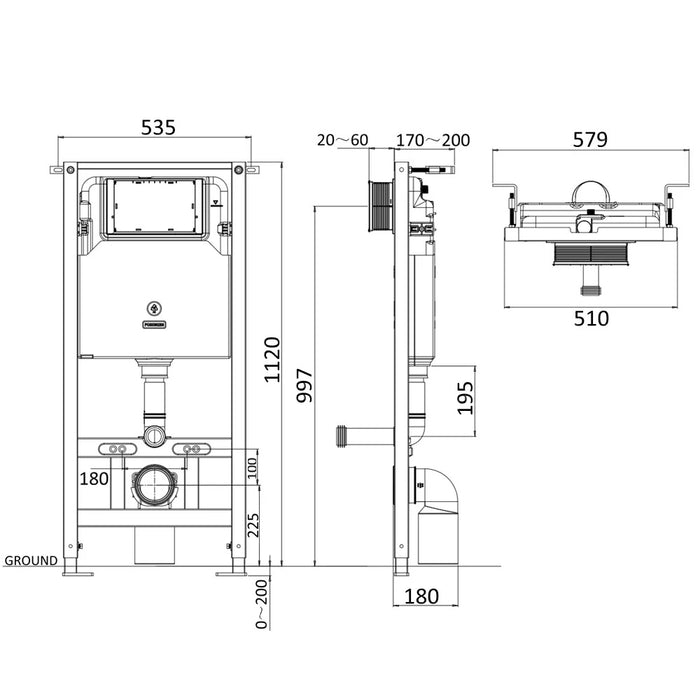

Technical Drawing
- View Less
Product Information
The Crosswater Belgravia Concealed Cistern Frame Set 3 is a premium wall-hung toilet frame solution that blends traditional elegance with modern functionality. Designed for use with Crosswater wall-hung toilet pans, this complete installation set offers reliable performance, strong construction, and flexible installation features for sophisticated bathroom spaces. Supplied as a complete package, the set includes a dual flush concealed cistern with installation kit, WC frame, and flush plate, providing everything required for a clean and professional concealed toilet installation. Manufactured from high-quality steel, brass, and plastic materials, the frame is engineered for long-lasting durability and is capable of supporting loads of up to 400kg for exceptional strength and stability. The adjustable height feature allows greater flexibility during installation, while the large feet are specially designed for easy rear fixing on UK timber floors. Easy-install wall brackets support both vertical and horizontal fixing configurations, making the frame suitable for a variety of bathroom layouts. Adjustable feet with rubber sound-deadening pads help minimise vibration and operational noise for a quieter and more comfortable bathroom environment. Featuring a mechanical push button dual flush system, the frame promotes improved water efficiency with adjustable water-saving settings of 4.5/3 litres and a preset flush volume of 6/4 litres. The advanced dual flush technology can help reduce water consumption by up to 40%, making it an environmentally conscious and cost-effective solution.
The frame supports both front and top actuation, offering greater installation versatility, while the side inlet water connection ensures practical and efficient setup. The flush plate actuation force of less than 20nm provides smooth and effortless operation. Certified to WRAS and UKCA standards and compliant with BS EN 14055:2018 regulations, the Belgravia Frame Set 3 delivers trusted quality, safety, and dependable performance. Its low-noise operation, rated as Noise Class Group I, further enhances comfort within the bathroom. Designed for concealed installations, the frame accommodates a front flush depth range between 190mm and 260mm, making it suitable for a wide range of bathroom configurations. Backed by a 5-year warranty, the Crosswater Belgravia Frame Set 3 offers a durable, efficient, and stylish solution that combines traditional design with modern engineering.
Specifications
- Warranty: 5 Years
- Product Type: Wall Hung Toilet Frame
- Brand: Crosswater
- Collection: Belgravia
- Style: Traditional
- Shape: Rectangular
- Mounting: Floor
- Material: Steel/Brass/Plastic
Special Features
- Set includes: Dual flush concealed cistern & installation kit, WC frame and flush plate
- For use with Crosswater wall-hung toilet pans
- Supports up to 400kg load
- Depth range of Front flush: 190mm-260mm
- WRAS and UKCA certified product
-
Flush Type: Push Button Dual Flush
- Flush Operation: Mechanical
- Actuation Type: Front/Top Actuation
-
Inlet Location: Back Inlet
- Adjustable Height
- Water Saving Adjustment: 4.5/3L
- Flush Volume: 6/4L preset
- Noise Class: Group I
- BS EN 14055:2018 standards
- Floor fixing included
- Large Feet for Easy Rear Fixing - Specially Designed for UK Timber Floor
- Easy Install Wall Brackets for Vertical or Horizontal Fixing
- Adjustable feet with Rubber Sound Deadening Pads
- Water-Saving Technology
- The Dual Flush Technology Allows You to Reduce Your Water Usage by up to 40%
- Flush plate Actuation Force: <20nm
Dimensions
- Height: 1120mm
- Width: 510mm
Assembling instructions for Frame with dual flush concealed cistern
Datasheet for Frame with dual flush concealed cistern
Technical Drawing
- View Less
