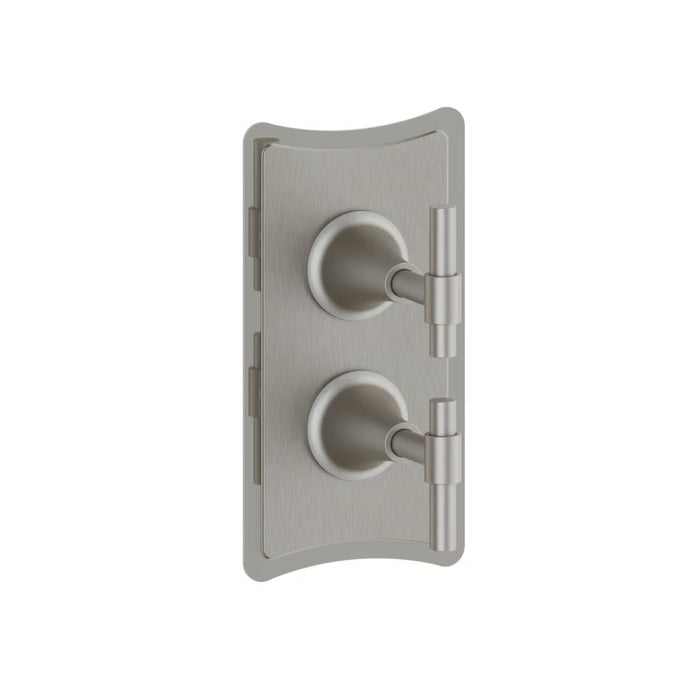

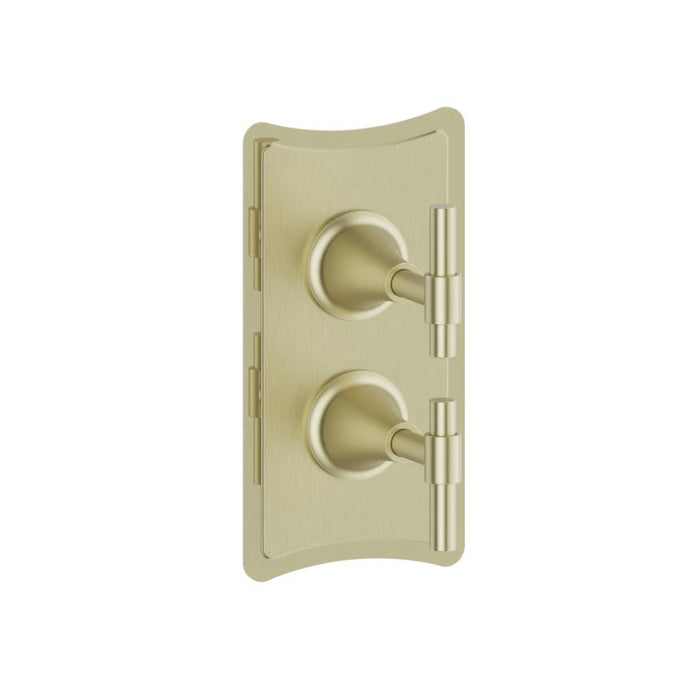

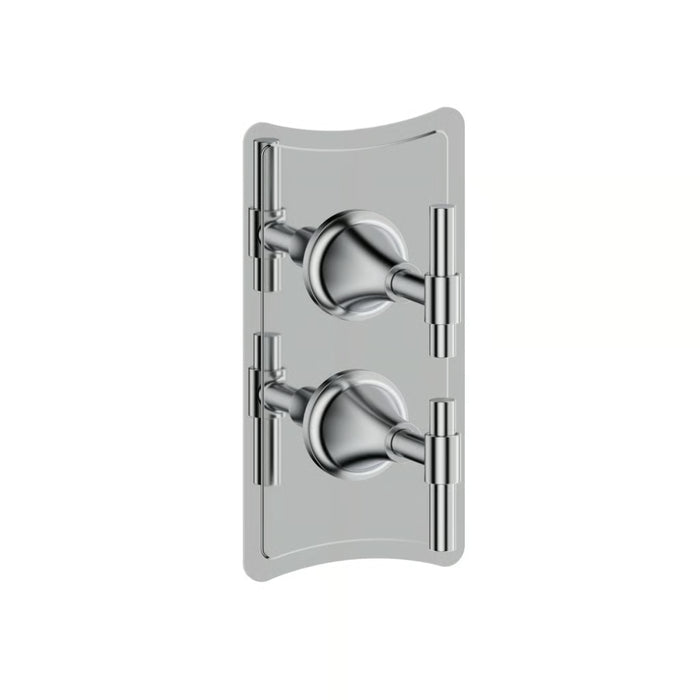

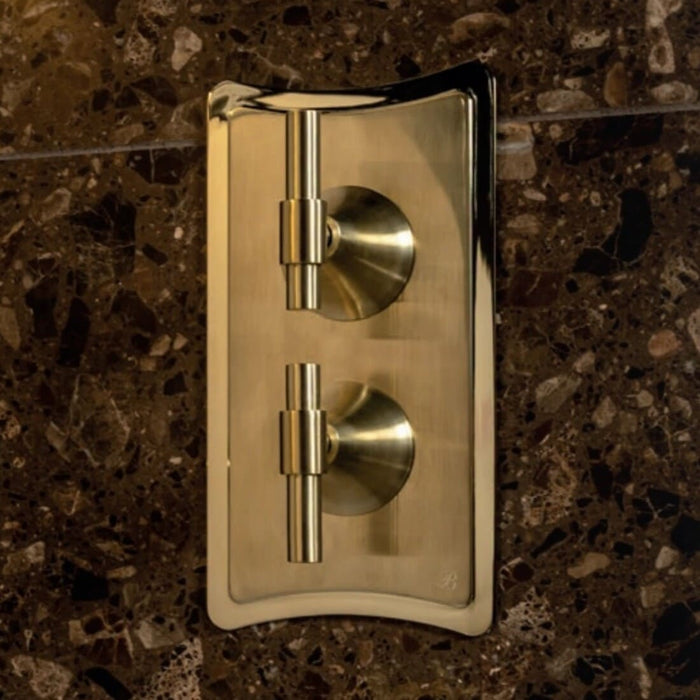

Burlington Strand 2 Outlet Concealed Shower Valve with Diverter
Order now for dispatch in approximately 4 weeks.
Product Information
The Burlington Strand 2 Outlet Concealed Shower Valve combines traditional elegance with versatile shower functionality, making it an excellent choice for classic and sophisticated bathroom interiors. Crafted from brass, this wall-mounted valve features a rectangular design with two lever handles for convenient control over water flow and temperature. Its concealed installation keeps the main valve body hidden behind the wall, creating a clean and uncluttered finish that complements traditional bathroom fittings. Designed with two outlets and an integrated diverter, it allows you to switch between two compatible shower functions, such as an overhead shower and a handheld shower, depending on your chosen configuration. Available in Chrome, Brushed Nickel and Brushed Brass finishes, this valve offers flexibility when coordinating your shower controls with other bathroom accessories.
Designed for reliable everyday performance, the Burlington Strand Concealed Shower Valve operates at water pressures between 0.5 and 5.0 bar and incorporates anti-scald protection for added comfort and safety. The product is listed with WRAS approval 2203300, KIWA approval 2201704 and TMV approval 2203756, and is backed by a 15-year warranty. Check compatibility with your selected shower fittings, plumbing arrangement and water pressure before installation.
Specification
- Warranty: 15 Years
- Product Type: Concealed Shower Valve
- Brand: Burlington
- Collection: Strand
- Style: Traditional
- Shape: Rectangular
- Mounting: Wall
- Material: Brass
- Outlets: 2
- Orientation: Vertical
- Handles: 2
- Handle Type: Lever
- Minimum Operating Pressure: 0.5 Bar
- Maximum Operating Pressure: 5.0 Bar
Special Features
- WRAS 2203300 KIWA 2201704 TMV 2203756 approved product
- Inlet connections thread: G3/4”
- Outlet connections thread: G3/4”
- Anti-scald protection: Yes
- Flowrate at 0.2 Bar: 6.5
- Flowrate at 0.5 Bar: 12.4
- Flowrate at 1.0 Bar: 18.1
- Flowrate at 2.0 Bar: 25.9
- Flowrate at 3.0 Bar: 31.9
- Flowrate at 4.0 Bar: 37.4
- Flowrate at 5.0 Bar: 42.2
Dimensions
- Height: 230mm
- Width: 120mm
- Depth: 110mm
Assembly instructions for Strand 2 Outlet Concealed Shower Valve
Datasheet for Strand 2 Outlet Concealed Shower Valve

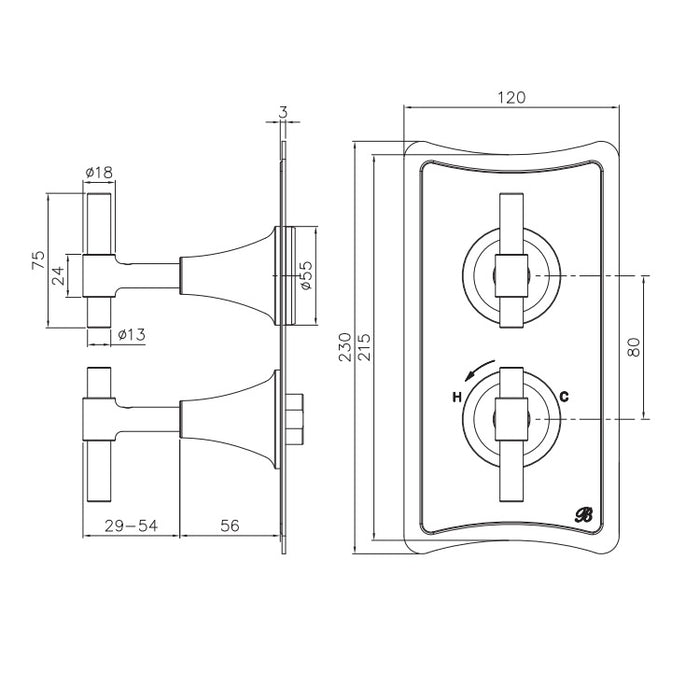

Technical Drawing
