BC Designs Viado Double Ended Freestanding Bath with Waste - Gloss White
Order now for dispatch in approximately 4 weeks.
Product Information
The BC Designs Viado freestanding double ended bath features a modern oval design crafted from Acrymite acrylic with a gloss white finish. It offers a slim rim and a generous bathing area, perfect for a contemporary bathroom. This floor-mounted bath comes without tap holes or bath feet and includes an overflow. The waste pipe and U-bend installation require consideration, as the U-bend must be below floor level and the waste pipe usually runs under the floor. Available in three sizes, the bath has a capacity ranging from 225 to 266 litres and comes with a 10-year guarantee for lasting quality.
SPECIFICATIONS
- Guarantee: 10 Years
- Product Type: Freestanding Bath
- Brand: BC Designs
- Range: Viado
- Finish: Gloss White
- Style: Modern
- Material: Acrymite Acrylic
- Mounting: Floor
- Shape: Oval
- Tap Holes: No
- Void: 100mm
- Overflow: Yes
- Bath feet: No
SPECIAL FEATURES
- The U-bend must go below the floor level so please allow for this when specifying
- Suitable for freestanding taps
- It is not possible to fit an overflow filler to this bath
- Bath the waste pipe usually needs to be run under the floor
- It has a slim rim and generous bathing area
- Images are shown for illustration purposes only
DIMENSIONS
- Height: 570mm x Length: 1580mm x Width: 740mm
- Height: 570mm x Length: 1680mm x Width: 740mm
- Height: 570mm x Length: 1780mm x Width: 800mm
|
Size |
Capacity |
Bath Internal Length Bottom |
Bath Internal Width Bottom |
|
1580mm X 740mm |
225 litres |
1100mm |
460mm |
|
1680mm X 740mm |
226 litres |
1200mm |
|
|
1780mm X 800mm |
266 litres |
1150mm |
480mm |
Assembling instructions for Double Ended Freestanding Bath
Datasheet for 1580mm x 740mm Double Ended Freestanding Bath
Datasheet for 1680mm x 740mm Double Ended Freestanding Bath
Datasheet for 1780mm x 800mm Double Ended Freestanding Bath
TECHNICAL DRAWING

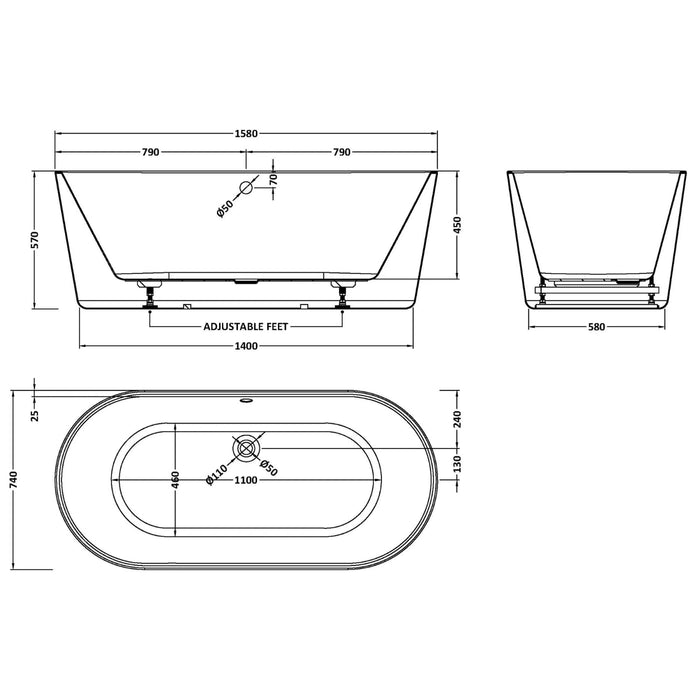

1580mm x 740mm

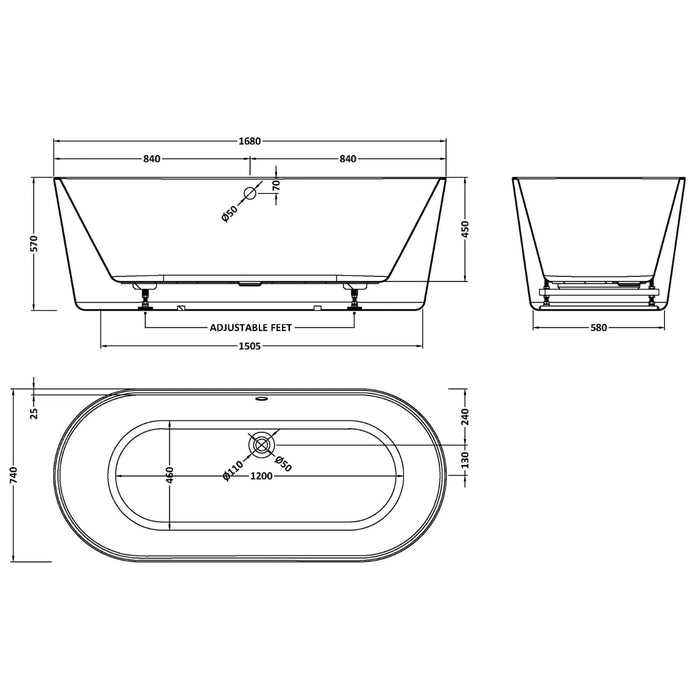

1680mm x 740mm
1780mm x 800mm
- View Less
Product Information
The BC Designs Viado freestanding double ended bath features a modern oval design crafted from Acrymite acrylic with a gloss white finish. It offers a slim rim and a generous bathing area, perfect for a contemporary bathroom. This floor-mounted bath comes without tap holes or bath feet and includes an overflow. The waste pipe and U-bend installation require consideration, as the U-bend must be below floor level and the waste pipe usually runs under the floor. Available in three sizes, the bath has a capacity ranging from 225 to 266 litres and comes with a 10-year guarantee for lasting quality.
SPECIFICATIONS
- Guarantee: 10 Years
- Product Type: Freestanding Bath
- Brand: BC Designs
- Range: Viado
- Finish: Gloss White
- Style: Modern
- Material: Acrymite Acrylic
- Mounting: Floor
- Shape: Oval
- Tap Holes: No
- Void: 100mm
- Overflow: Yes
- Bath feet: No
SPECIAL FEATURES
- The U-bend must go below the floor level so please allow for this when specifying
- Suitable for freestanding taps
- It is not possible to fit an overflow filler to this bath
- Bath the waste pipe usually needs to be run under the floor
- It has a slim rim and generous bathing area
- Images are shown for illustration purposes only
DIMENSIONS
- Height: 570mm x Length: 1580mm x Width: 740mm
- Height: 570mm x Length: 1680mm x Width: 740mm
- Height: 570mm x Length: 1780mm x Width: 800mm
|
Size |
Capacity |
Bath Internal Length Bottom |
Bath Internal Width Bottom |
|
1580mm X 740mm |
225 litres |
1100mm |
460mm |
|
1680mm X 740mm |
226 litres |
1200mm |
|
|
1780mm X 800mm |
266 litres |
1150mm |
480mm |
Assembling instructions for Double Ended Freestanding Bath
Datasheet for 1580mm x 740mm Double Ended Freestanding Bath
Datasheet for 1680mm x 740mm Double Ended Freestanding Bath
Datasheet for 1780mm x 800mm Double Ended Freestanding Bath
TECHNICAL DRAWING
1580mm x 740mm
1680mm x 740mm
1780mm x 800mm
- View Less
