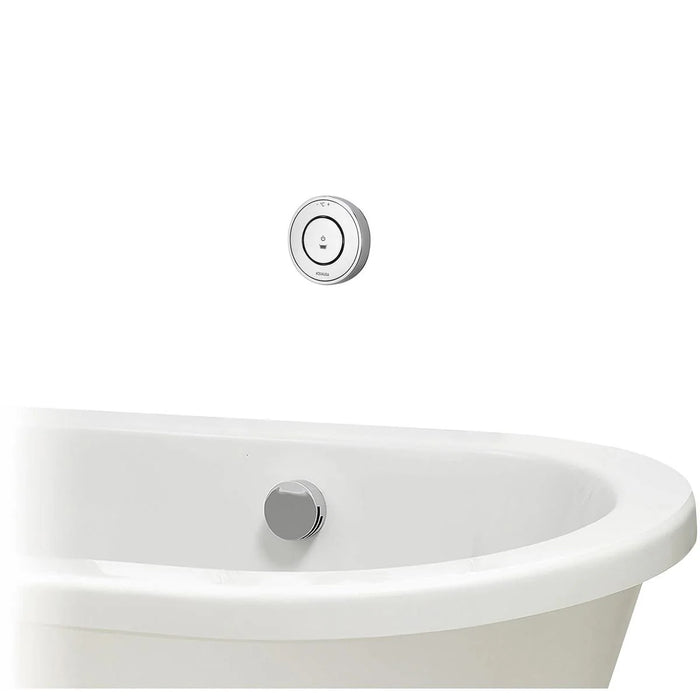

Aqualisa Unity Q Smart Digital Shower Concealed with Bath Fill - High Pressure/Combi

The Aqualisa Unity Q Smart Digital Shower Concealed with Bath Fill is a premium smart shower system designed for approved high-pressure and combi water systems, combining elegant concealed styling with advanced digital technology. Featuring a standalone fast-fill bath filler that also functions as an overflow, this innovative system delivers both luxurious bathing and intelligent shower control from a sleek, minimalist interface. Powered by the advanced Aqualisa SmartValve™, it provides precise thermostatic temperature control, one-touch start/stop operation, a Boost function for enhanced flow, and an LED temperature-ready indicator that confirms when your selected temperature has been reached. The SmartValve™ can be installed up to 7.5 metres away in a loft, airing cupboard, or beneath the bath, offering greater installation flexibility and easier maintenance.

Built-in Wi-Fi connectivity allows complete control through the Aqualisa Smart App, Amazon Alexa, and Google Home, enabling remote operation, voice activation, personalised user profiles, shower timers, water usage tracking, and household management from a single app. Eco Mode helps reduce water consumption by up to 33%, while the app also allows users to customise temperature, flow rate, and shower duration to suit individual preferences. Compatible with optional wired remote control and high-pressure, combi, and boosted gravity water systems, the Unity Q features 15mm push-fit connections for straightforward installation and is suitable for cold water inlet temperatures between 1°C and 15°C, with a maximum hot water inlet temperature of 65°C. CE, UKCA, and BEAB approved and backed by a 5-year warranty, it offers an intelligent, efficient, and luxurious bathroom solution. Images are shown for illustration purposes only.

Specifications

• Warranty: 5 Years
• Product Type: Shower Set
• Brand: Aqualisa
• Collection: Unity Q
• Style: Modern
• Mounting: Wall

• Material: Brass
• Outlets: 1
• Minimum Pressure: 1 Bar
• Maximum Pressure: 5 Bar

• Peak operating pressure: 7 Bar

Special Features

• Cold inlet temperature 1˚C (minimum)
• Cold inlet temperature 15˚C (maximum)
• Hot inlet temperature 65˚C (maximum)
• Equipped with the advanced Aqualisa SmartValve™ for intelligent performance, precise thermostatic temperature control, and efficient water management.
• Features a standalone fast-fill bath filler that also functions as an overflow for a sleek, integrated design.
• Intuitive push-button controls provide simple and convenient operation.
• LED temperature-ready indicator confirms when your selected water temperature has been reached.
• SmartValve™ can be installed up to 7.5 metres away for flexible installation and easy maintenance access.
• Built-in Wi-Fi connectivity enables remote control via the Aqualisa Smart App or compatible smart home devices.
• Compatible with Amazon Alexa and Google Home for convenient voice activation.
• Eco Mode helps reduce water consumption by up to 33%, depending on the water system.
• Designed exclusively for approved high-pressure water systems.
• Built-in Wi-Fi connectivity allows you to control your shower remotely using the Aqualisa Smart App from anywhere in your home.
• Compatible with Amazon Alexa and Google Home for convenient hands-free voice control.
• The Aqualisa Smart App lets you create personalised user profiles, customise shower duration, temperature, and flow rate, while tracking household water usage through an intuitive dashboard.
• LED temperature-ready indicators clearly show when your selected water temperature has been reached and the shower is ready to use.
• Eco Mode allows the SmartValve™ to limit maximum temperature and flow rate, helping reduce water consumption and lower household energy and water bills.
• Remote shower control allows you to start and manage your shower from anywhere in your home using the Aqualisa Smart App.
• Compatible with Amazon Alexa and Google Home for convenient hands-free voice control.
• Create personalised user profiles with individual temperature, flow, and shower duration settings.
• Monitor household water usage to promote sustainability and help reduce water and energy costs.
• User-friendly Aqualisa Smart App provides an intuitive interface with secure and reliable data management.
• One-touch start/stop button for quick and effortless shower operation.
• LED temperature indicator confirms when your pre-selected water temperature has been reached.
• Boost function provides enhanced water flow for a more powerful showering experience.
• Built-in Wi-Fi connectivity enables control via the Aqualisa Smart App or compatible smart home devices, including Amazon Alexa.
• The Aqualisa Smart App offers remote start/stop, shower timer, user profiles, usage tracking, dashboard, and help & support features.
• Powered by the advanced Aqualisa SmartValve™ for precise thermostatic temperature control and reliable performance.
• Compatible with an optional wired remote control for added convenience (sold separately).
• Aqualisa SmartValve™ features 15mm push-fit inlet connections with 48mm inlet centres for quick and reliable installation.
• Inlet supply configuration is hot water on the right and cold water on the left.
• SmartValve™ and diverter outlet connections utilise secure 15mm push-fit fittings.
• Flexible installation allows the SmartValve™ to be positioned in a loft, airing cupboard, or beneath the bath.
• Compatible with high-pressure, combi, and boosted gravity water systems.
• CE, UKCA, and BEAB approved, ensuring compliance with recognised quality and safety standards.
• Images are shown for illustration purposes only

Datasheet for Unity Q Digital Shower Concealed with Bath Fill

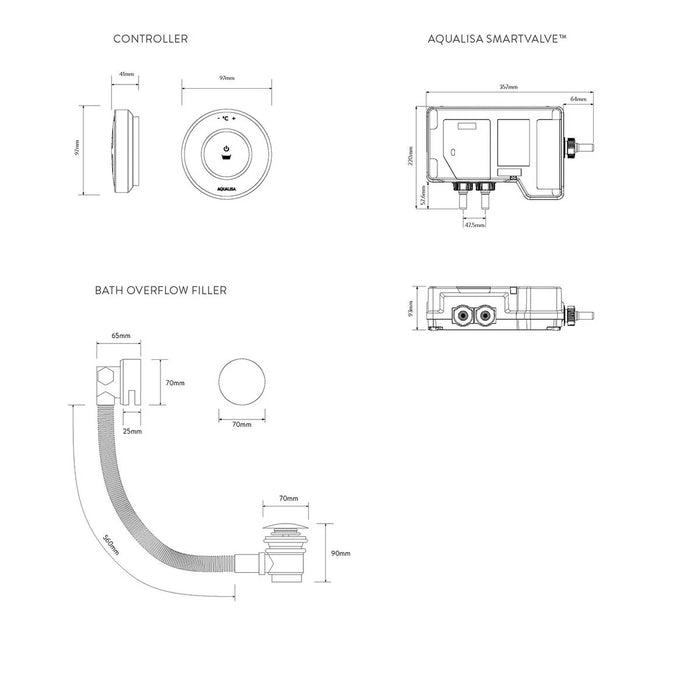

Technical Drawing
