Grohe Wall Hung Concealed Cistern Frame
Stocks : 3 in stock, order now for immediate dispatch
Product Information
The Grohe Wall Hung Concealed Cistern Frame is a durable and reliable solution designed for modern bathrooms. This robust frame supports wall-hung toilets and is perfect for creating a clean, minimalist aesthetic by concealing the cistern behind the wall. Made from high-quality, corrosion-resistant steel, it ensures stability and long-lasting performance. The frame is adjustable to fit different toilet models and features easy installation with pre-installed fixing brackets for quick mounting. Designed for both new constructions and renovations, it provides a sleek and space-saving solution while maintaining efficient water flow and functionality. Ideal for any contemporary bathroom setup, the Grohe Wall Hung Concealed Cistern Frame combines form, function, and ease of installation.
Specification
- Guarantee: 5 Years
- Product Type: Wall Hung Toilet Frame
- Finish: Blue/White
- Style: Modern
- Shape: Rectangular
- Material: ABS
Special Features
- For on-the-wall installations or studded walls
- Quick adjustment and Lockable
- Comes complete with fixing material
- With wall brackets for on-the-wall installations
- Grohe ecojoy technology for less water and perfect flow
- 90mm diameter of outlet bend
- Fixing bolts distance is 180mm to 230mm
- WC bracket for on the wall installations or studded walls
- Adjustable reducer diameter is 90mm to 100mm of depth
- Bracket with 2 wc fixing bolts, tuv approved bracket
- Suitable for single or series installation and dry-cladding, completely pre-assembled
- Angle valve and push fit flexible hose union
- NOTE: Flush plate is sold separately.
- Flush cistern with 6 l full flush volume - 3 l half flush volume capacity
- Pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or non-Interruptible
- Front or top actuation cistern
- Water supply from left/right or back
- With flushing cistern GD 2 , 6 l - 2.6 l
- Pneumatic discharge valve offering 2 modes of operation
- 1/2 inch water supply connection including integrated angle valve
- Easy to install and use
- Images are shown for illustration purposes only
Dimensions

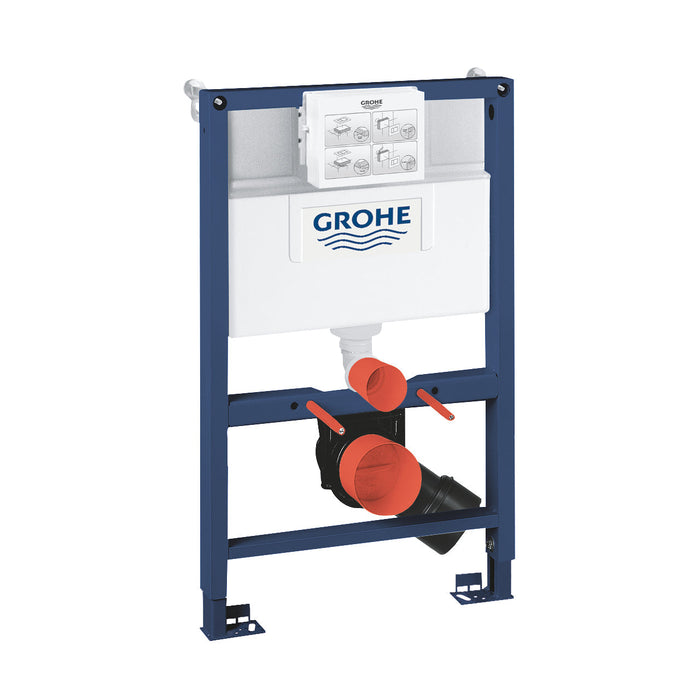

- H 820mm x 500mm

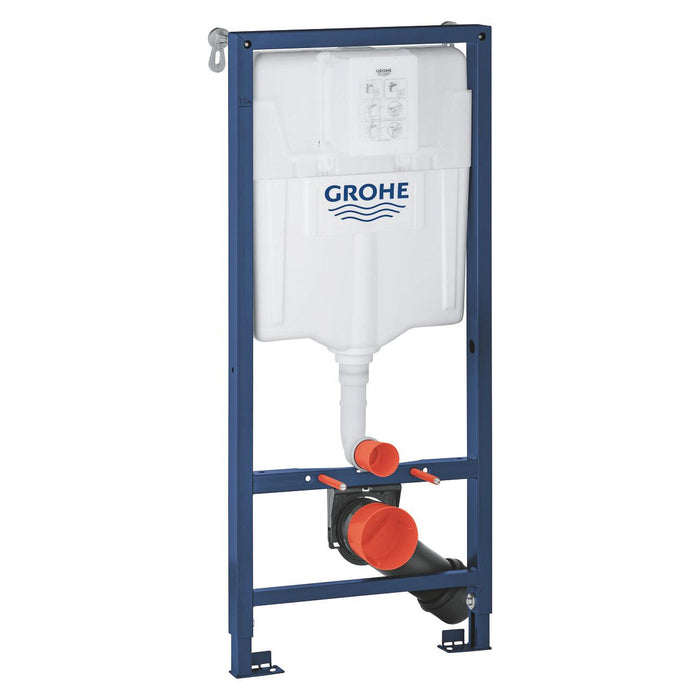

- H 1130mm x 500mm
Assembling instructions for Wall Hung Concealed Cistern Frame
Datasheet for 820mm Wall Hung Concealed Cistern Frame
Datasheet for 1130mm Wall Hung Concealed Cistern Frame
TECHNICAL DRAWING

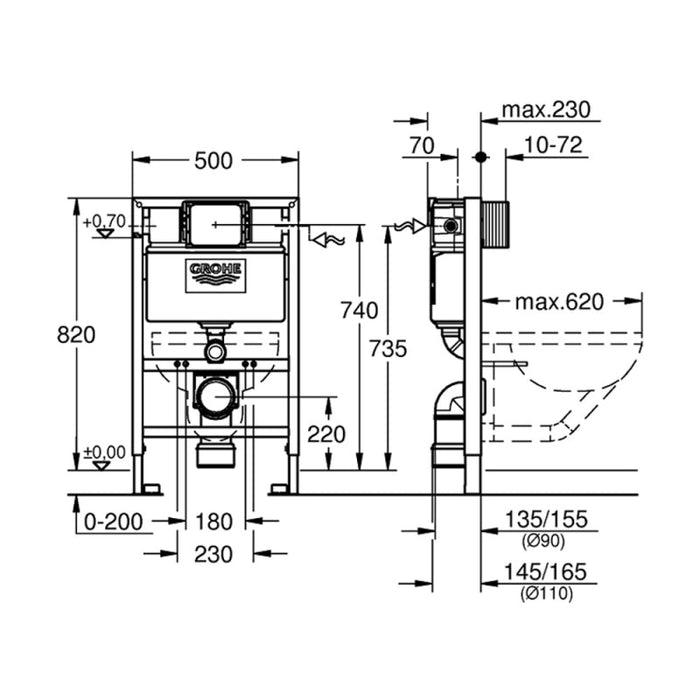

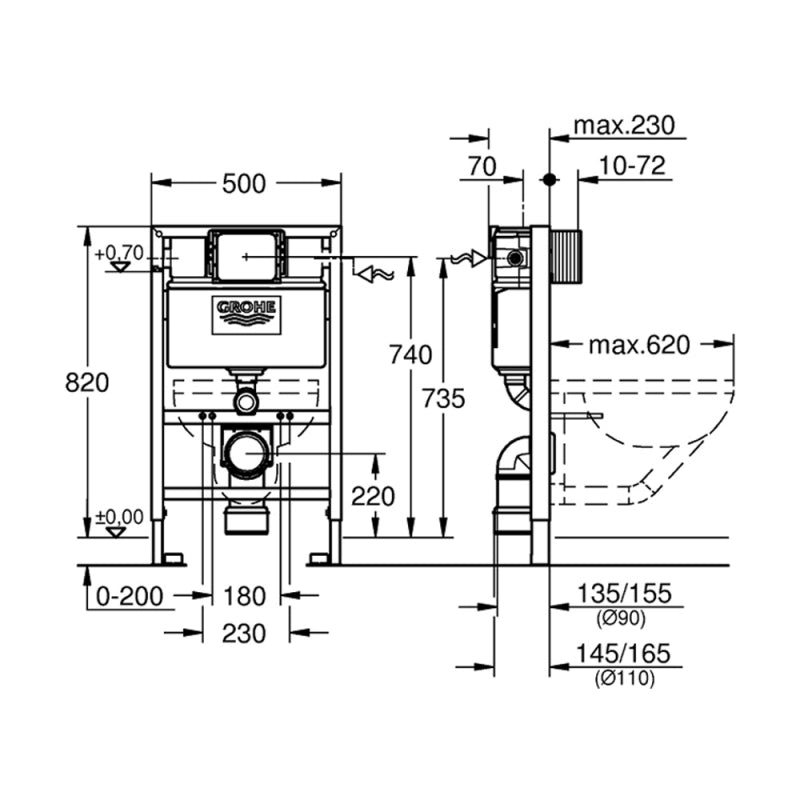

820mm High Toilet Frame

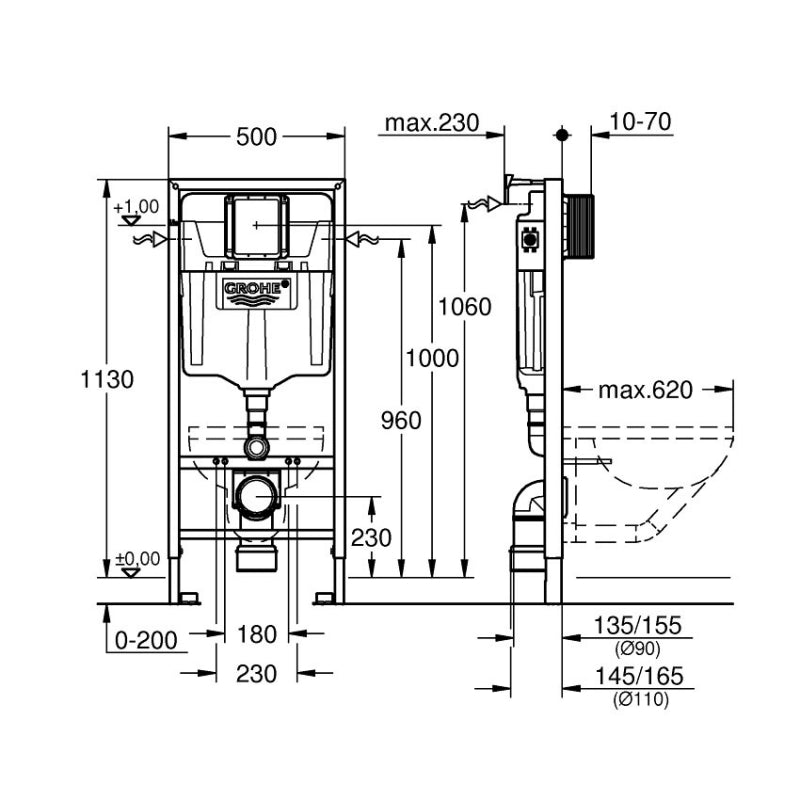

1130mm High Toilet Frame
- View Less
